DCI-145-2H BAND PASS FILTER



Two Meter 2 MHz Wide 4 Pole Bandpass Filter (Model: DCI-145-2H)

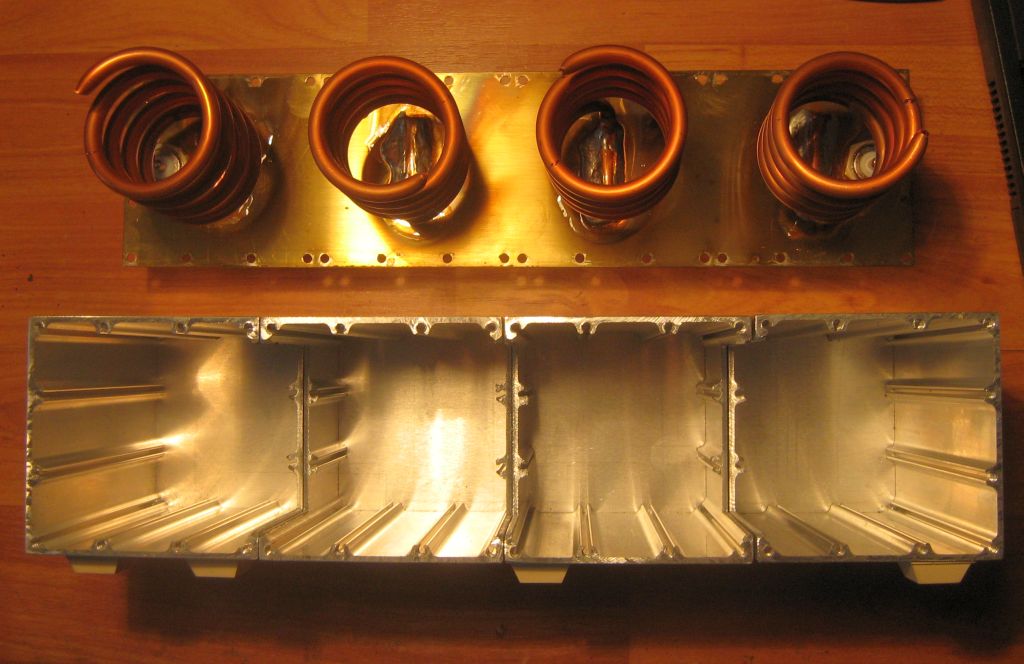

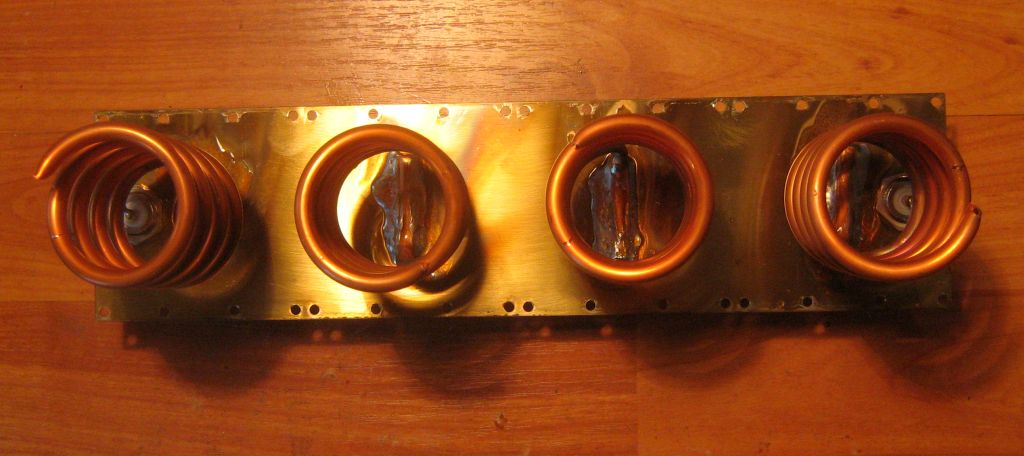

This filter is slightly modified, the coils are cut...

YO4GJH, thanks for pics!











Measurements with:


1.

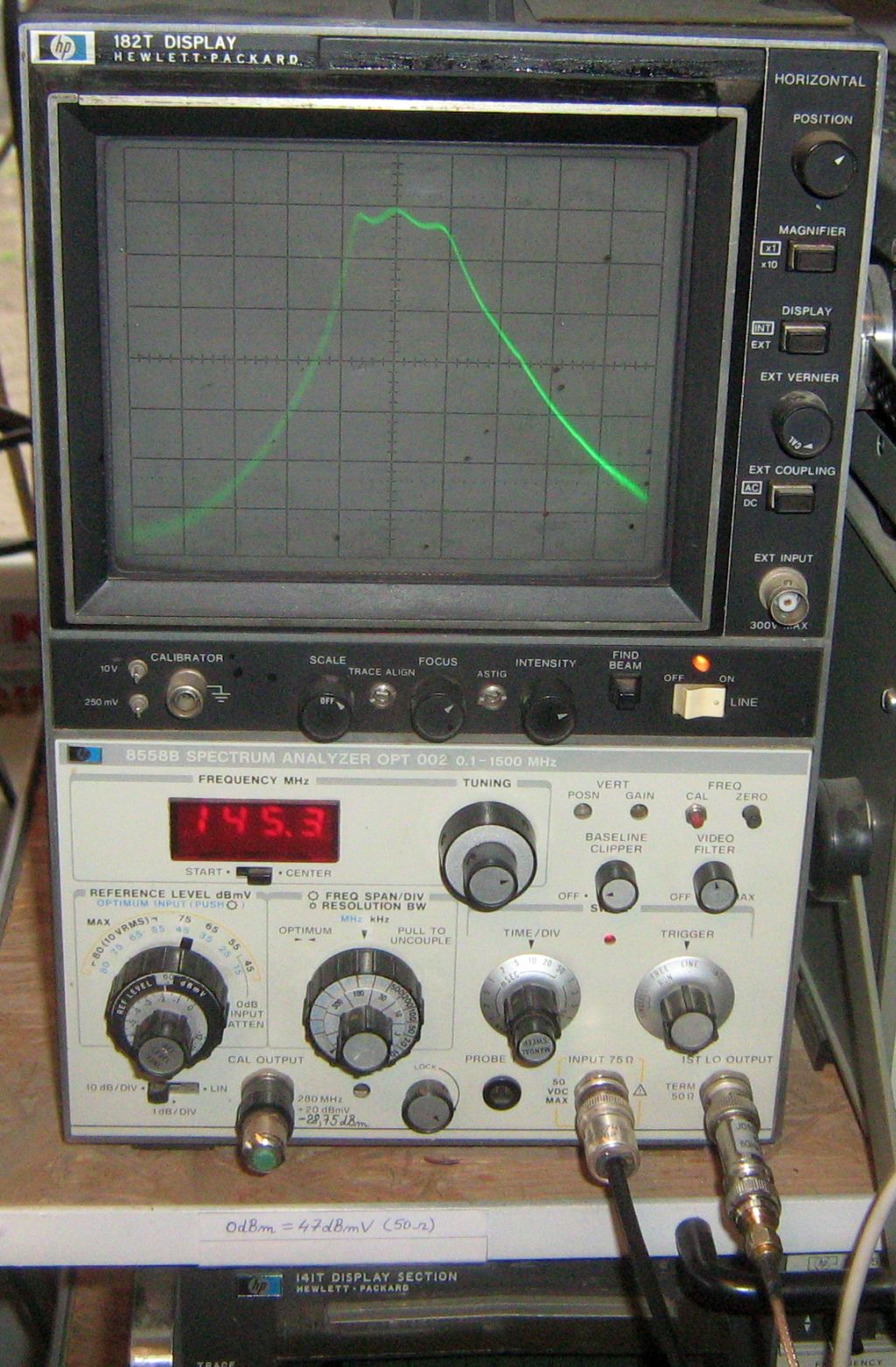

SA and Tracking Generator (SPAN: 2MHz/divison, 10dB/divison - YO4HFU Tracking Generator)
2. VNA Bandwidth -3dB (VNA IZ1PMX)

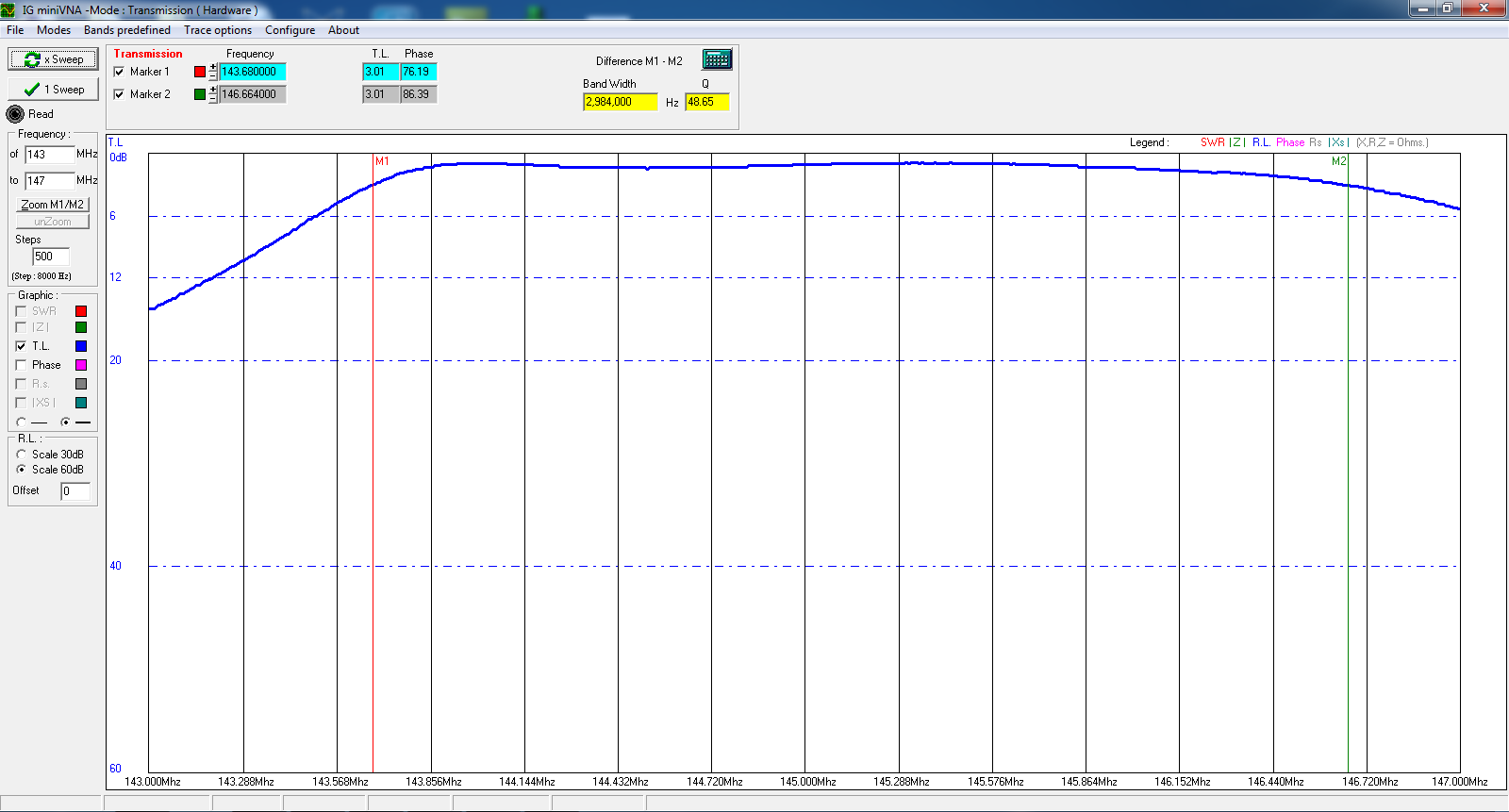

3. VNA Loss 144,200MHz

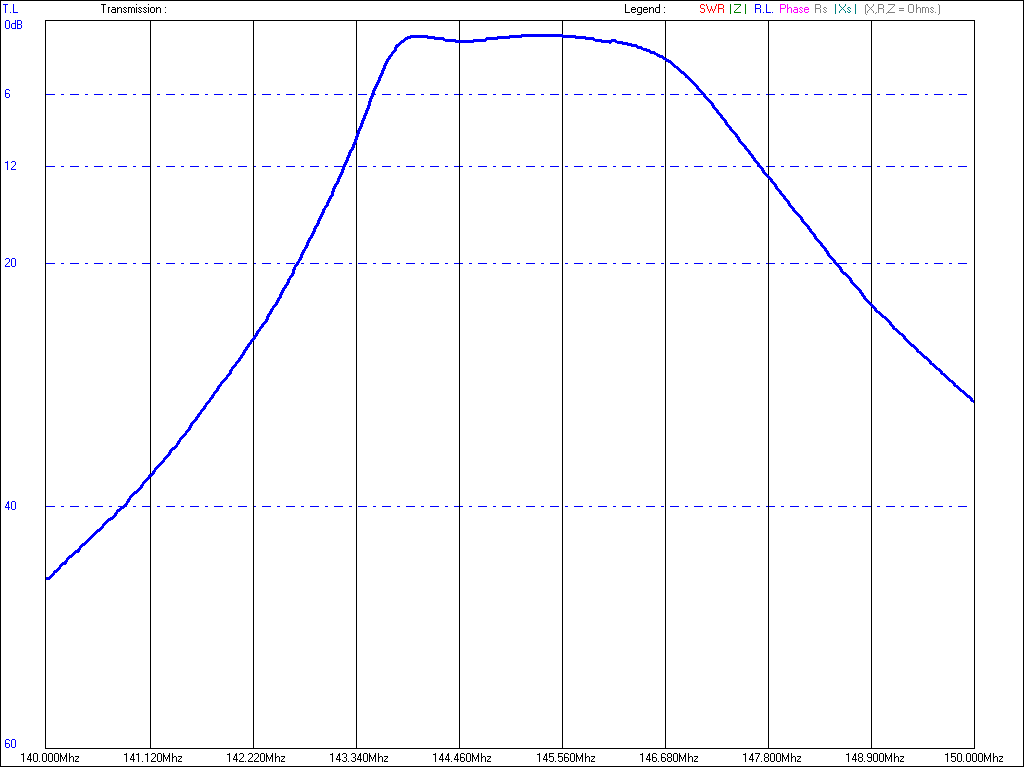

4. VNA sweep between 140-150MHz
