YO4HFU
VHF-UHF Antenna Analyser



This RF Wheatstone bridge can measure accurately the SWR & Impedance (MFJxxx uses this model of RF bridge)
For best result use SMD resistors(2x100 or 3x150ohms in parallel connection)
The FR4 pcb was replaced with a "ugly" construction. Now the maxium frequency is >500MHZ with very good precision.
For antenna connector use only N or SMA types. SO-239 introduce high errors of SWR measurements and is suitable only for HF range.
Optimal input power is 1-2W. For short test i use 5W delivered from an FM handy, without any SMD resistor burned...
Use short connections, quality connectors, SMD resistors and Schottky diodes.

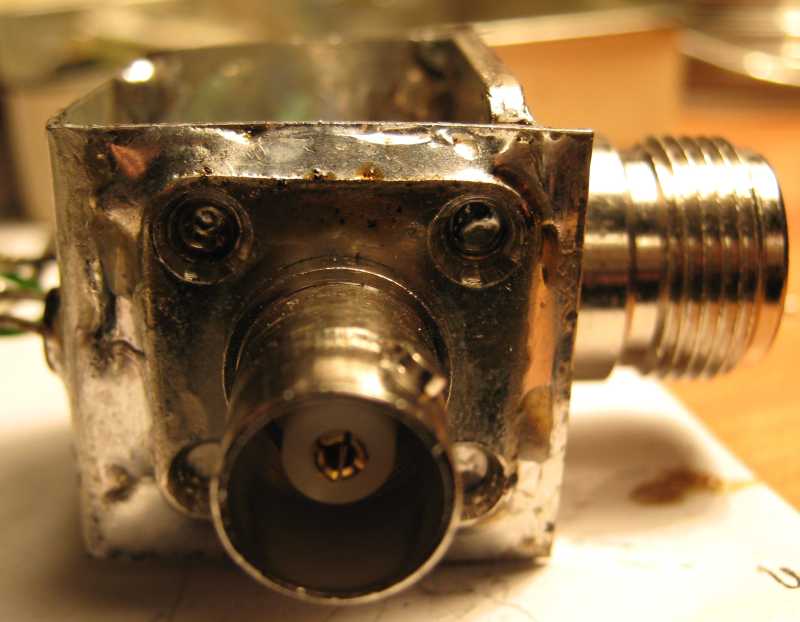

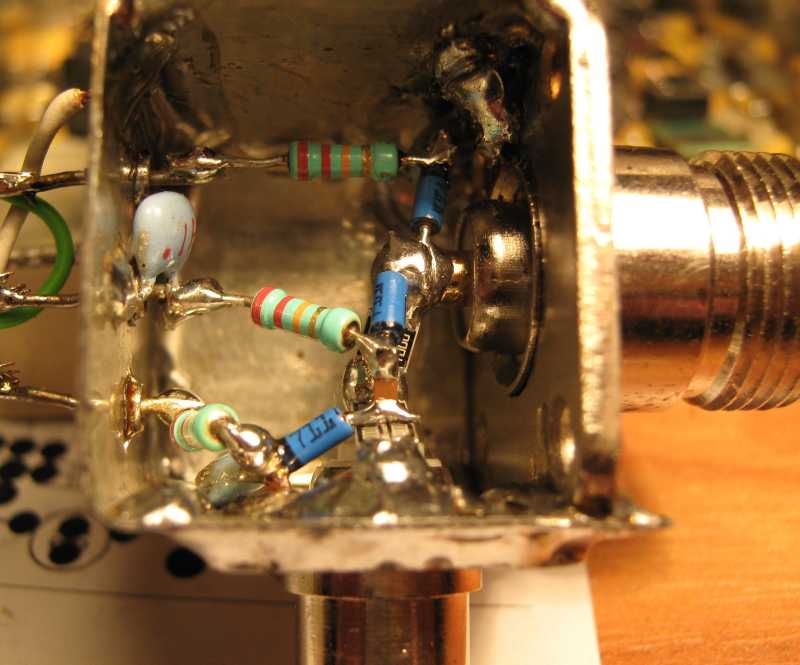

Inside of my RF bridge

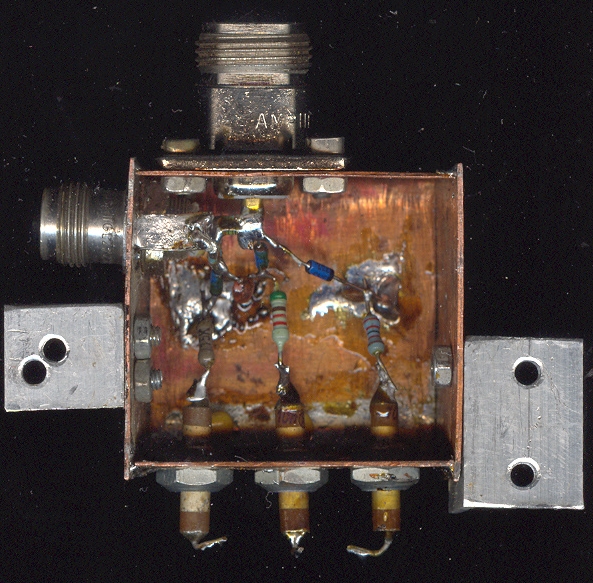

YO4SAZ construction
