YO4HFU
AS5040/5045 AZ-EL MAGNETIC ENCODER



AS5040=10bit; AS5045=12bit



Useful positioner for AZ-EL contactless reading. Analog output has no EMI emission, suitable for weak signal enviroment (EME).
The Output voltage is 0...5V for 0...360 degrees.
Attention to clockwise or counterclockwise direction. To change the meaning, the magnet will be applied on the opposite side of the AS504X.

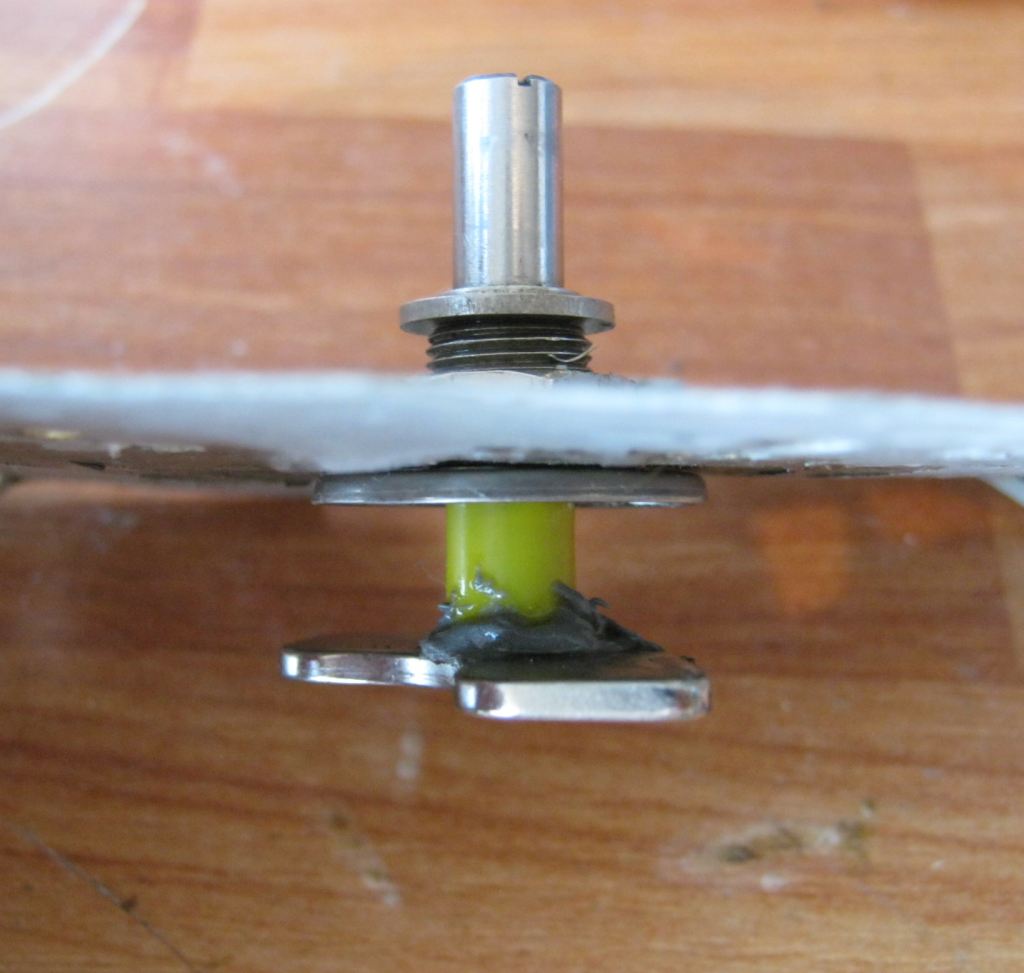

I used a neodymium magnet recovered from HDD. The gap was about 2-3mm. >>Foto<<

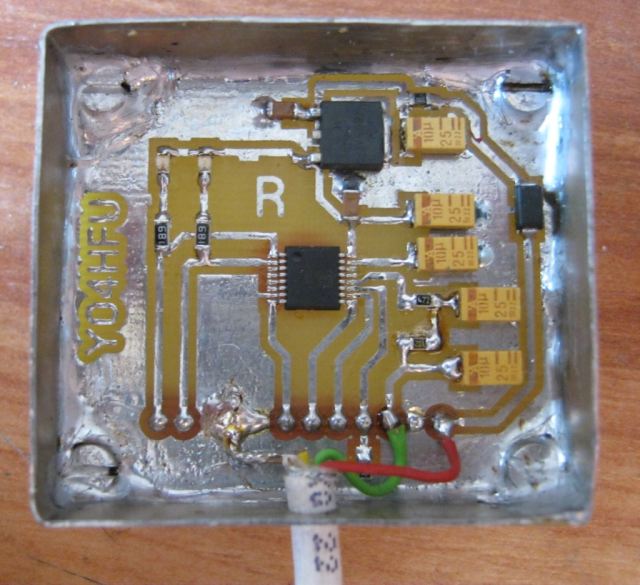

PCB & Sprint Layout File
