Marshall 9000 preamp - footswitch modification
built date - 19.04.1989
Because the original footswitch does not exist anymore, I must build another one, to do the channels switching job.

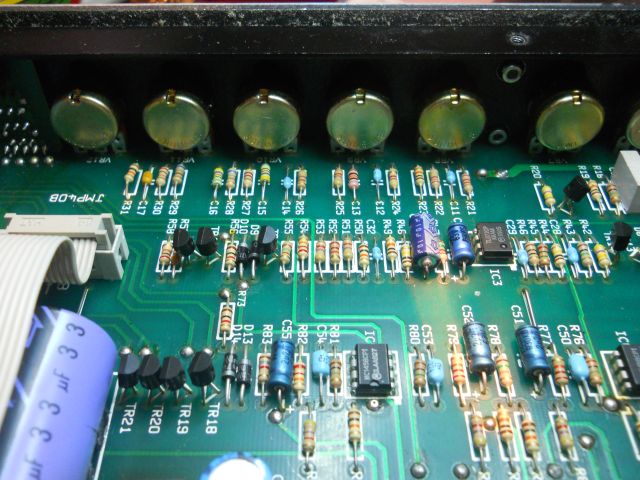

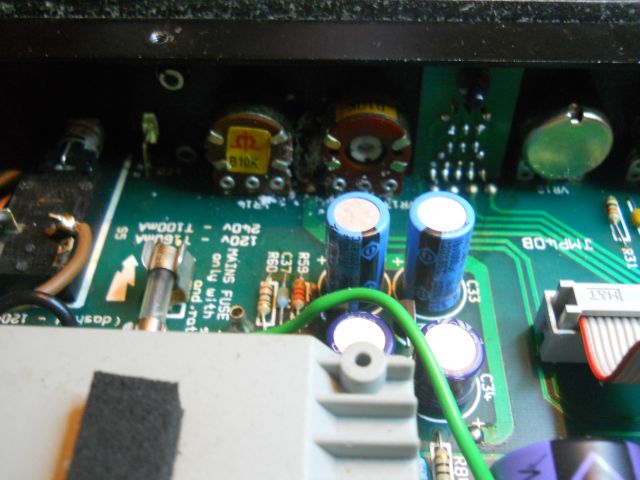

Some "Alpha" type potentiometers need to be replaced
I have another Marshall 5 channels footswitch, so I must modify. The modified footswitch must do the jobs as follow:
New footswitch pedal schematics was built
- switch on 3 channels with just one single button push (the last command will remain valid)

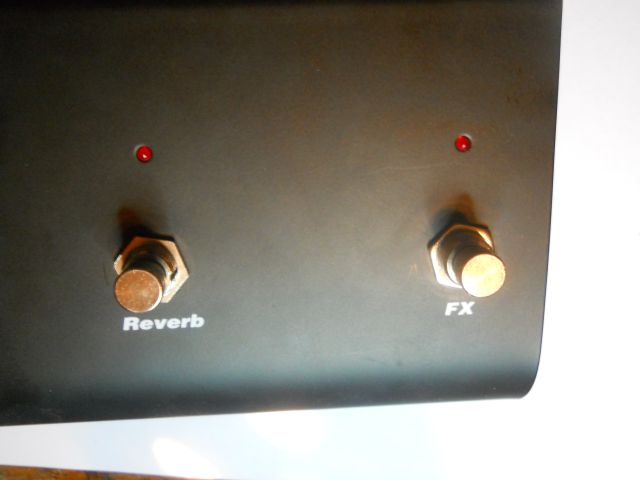

- switch 2 channels with on/off buttons

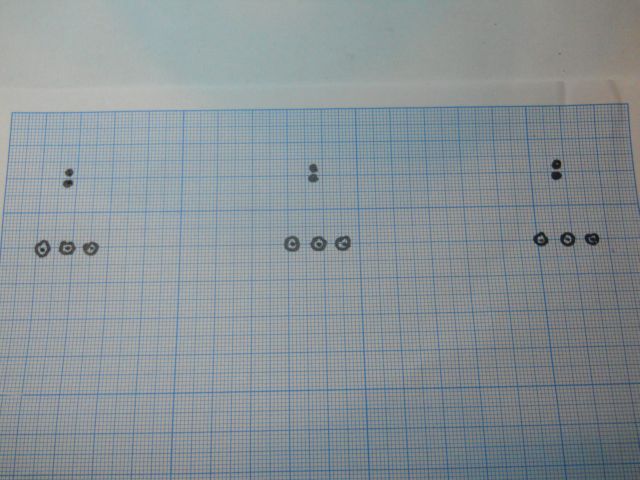

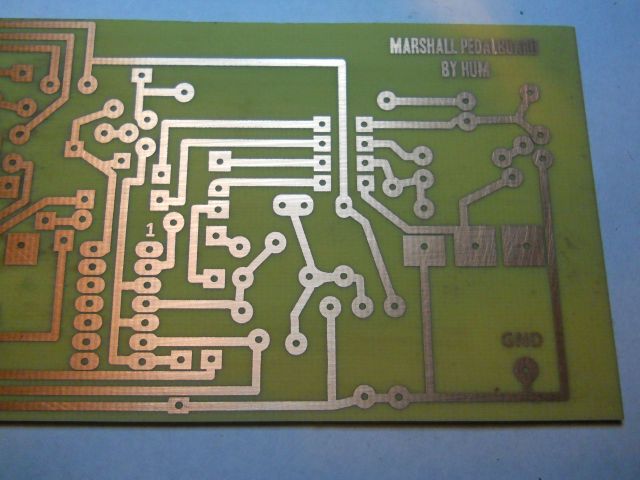

- new PCB building, must be carefully - switches and diodes must go to same holes from pedal

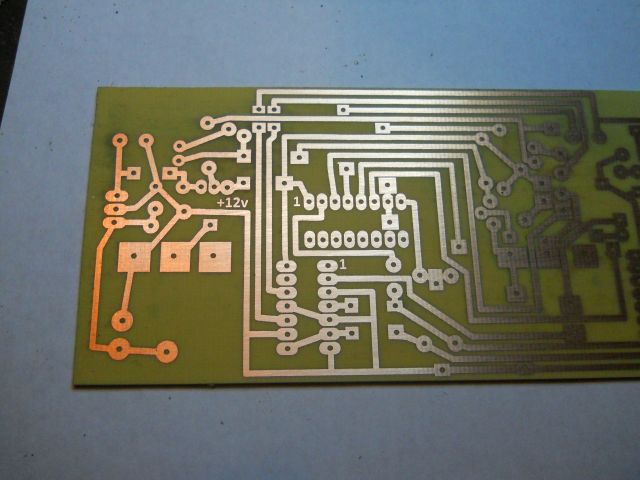

- PCB released with Eagle

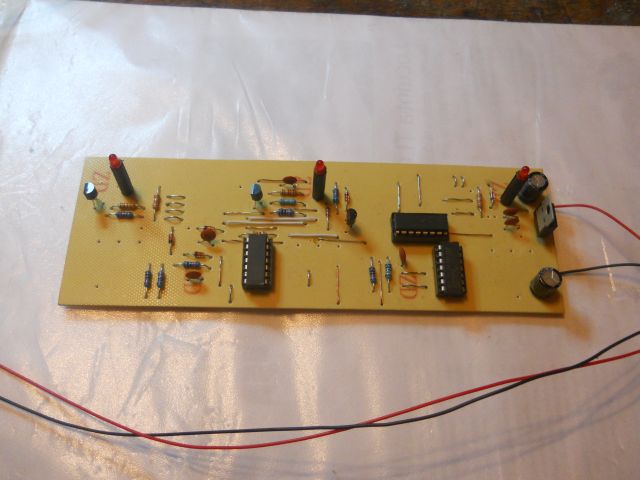

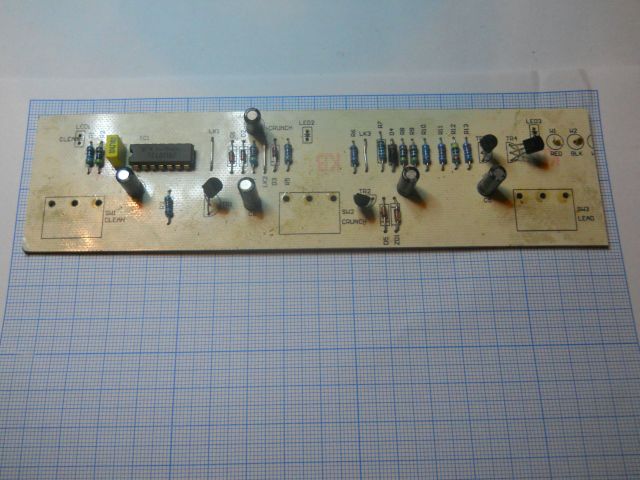

- populated PCB artwork

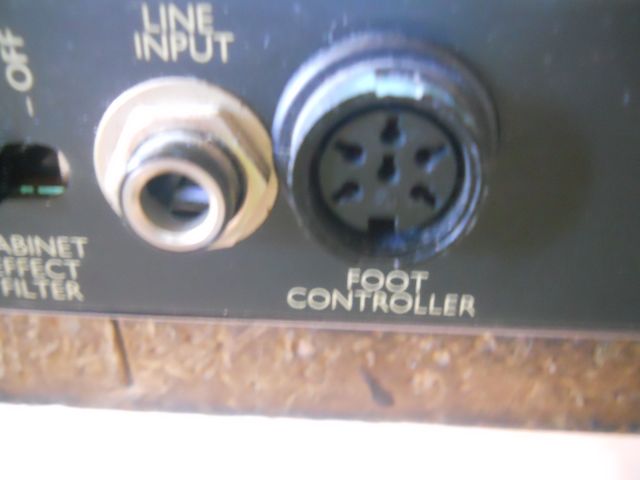

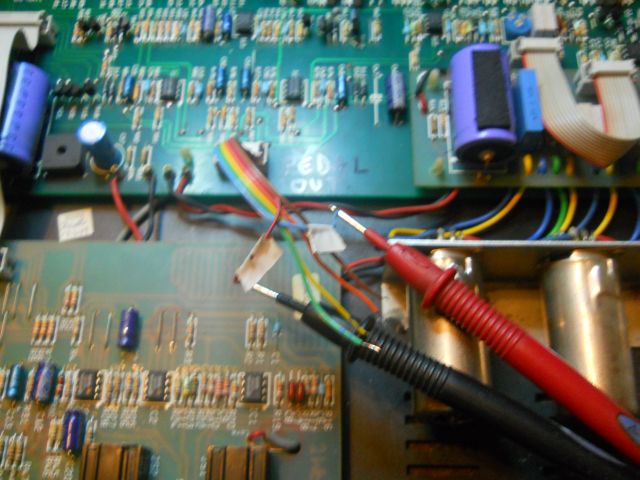

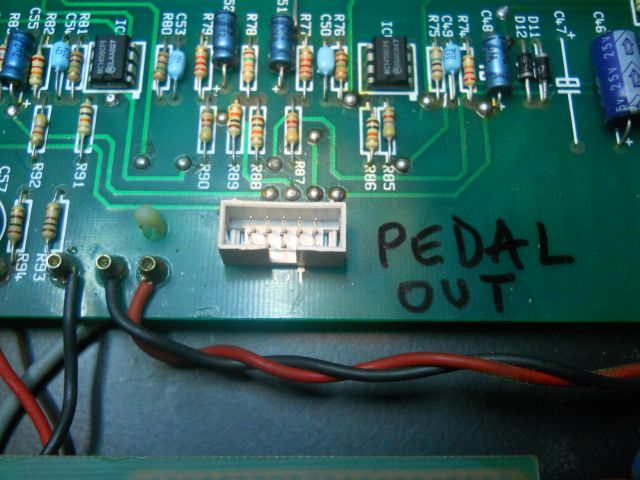

- command voltage and wiring connectors for old footswitch pedal

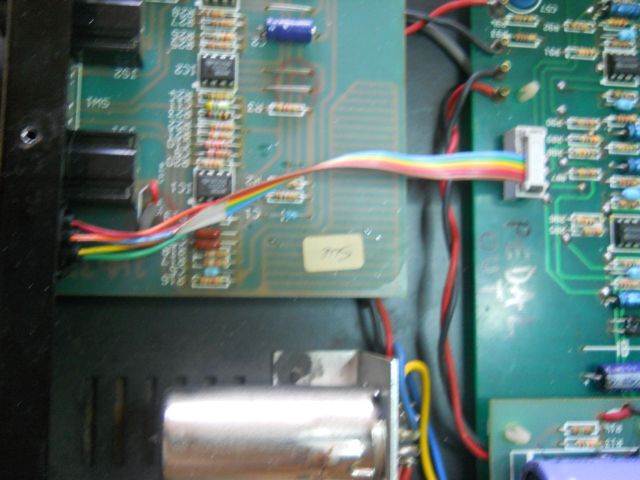

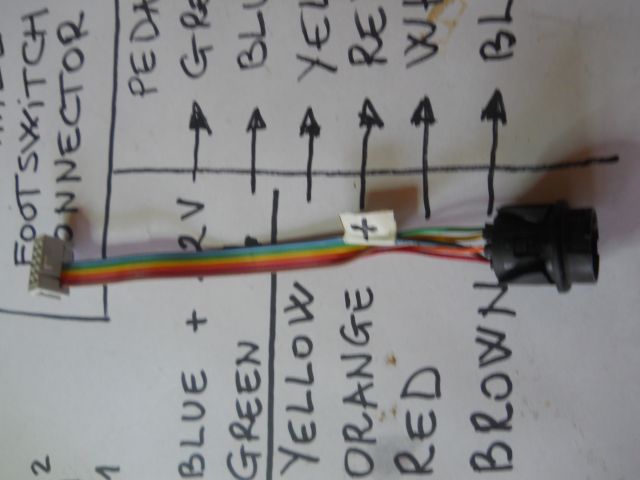

- connector wiring, assembling and mounting on his place

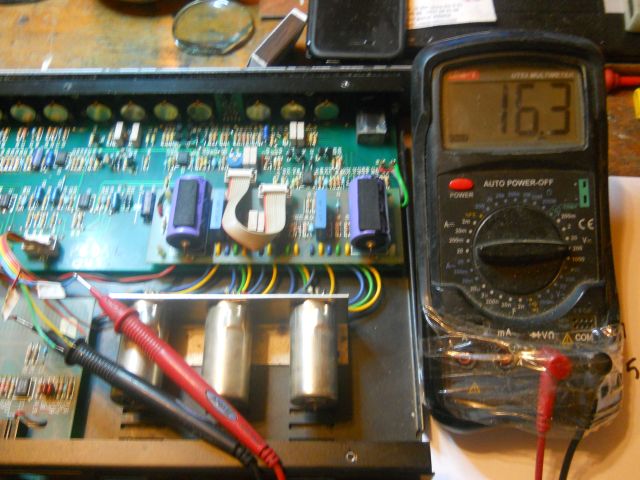

- voltages and command in new pedal

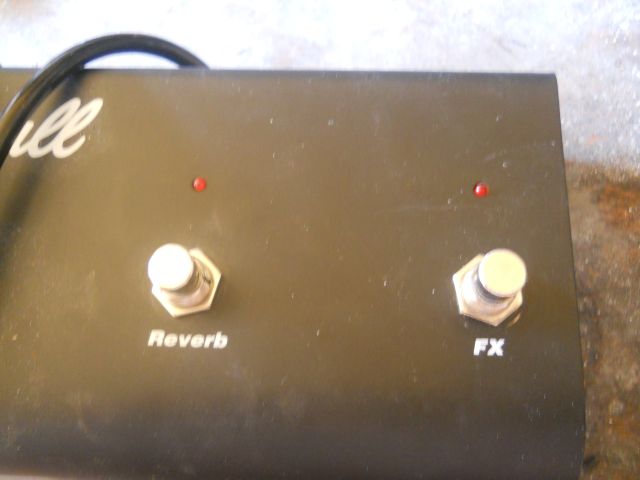

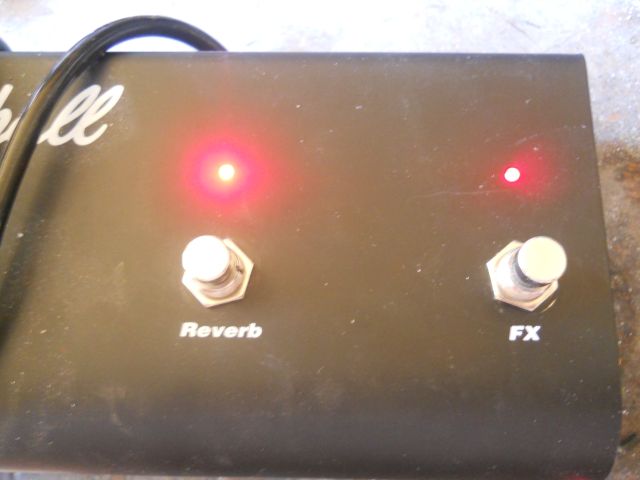

- first on/off commands (2 x non retour switch)
(under construction)
