JAVORNIK HIGH PERFORMANCE 14/144 MHz TRANSVERTER

          Based on the S53WW Robi and S53MM - Sine project :

            http://lea.hamradio.si/~s53rm/JAVORNIK%20144.htm

            http://lea.hamradio.si/~s53ww/xvrt/xvrt.htm



            PCB made after 2007 with second (maybe III-rd) version of JAVORNIK transverter with

           RA60H1317M - 60W PA hybrid module.



         Some (better say all) parts very difficult to find in/from Romania :

            Relay :

             - CMOS RELAY OMRON G5Y-1 - 1 pc.

           Transistors :

           - BSP100 - 1 pc.;   BSP090 - 2 pcs.;   BFG 196 - 6 pcs.;   BF998 -  4 pcs.;    BC849 - 1 pc.

           - BFR93A - 3 pcs.;   FDN 335N - 1 pc. ;

           Diodes :

           - MBR 1645 - 1 pc.;    BAT17 - 2 pcs.;    1,5KE16 - 1 pc. ;    BAR63-04W - 4 pcs.;

           Ferrite :

          - double hole ferrite for HF/VHF - 2/3 pcs.

           Trimmers :

           - 2 - 6 pF trimmers (miniature) - 2 pcs.;

           SMD 1210 inductors :

           - 220nH - 6 pcs.;    330nH - 1 pc.;     10uH - 1pc.

          Coils/Inductances :

          - Burklin code - 78D878 - 2 pcs.;    code 78D872 - 9pcs.

            Connectors :

             - 90 degree angled  N (PL/BNC) for PCB - 6 pcs. ;

          -  90 degree angled RCA connector for PTT- 2 pc. ;    10Amps connector for PSU - 1 pc. ;

           Other Parts :

          - IC LM339 - 1 pc.

          - Mixers :   TUF-1+ - 1 pc. ;    TUF-1H+ - 2 pcs. ;

          - 130MHz quartz crystal  - 1 pcs.;

          - RA60H1317M - 60W VHF power amplifier hybrid module  - 1pc. ;

          - heatsink ;

               Transverter's progress :

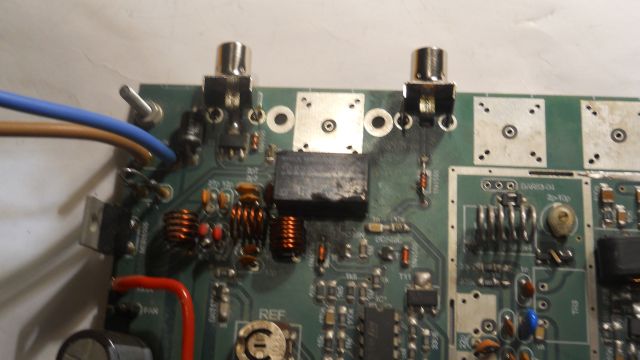

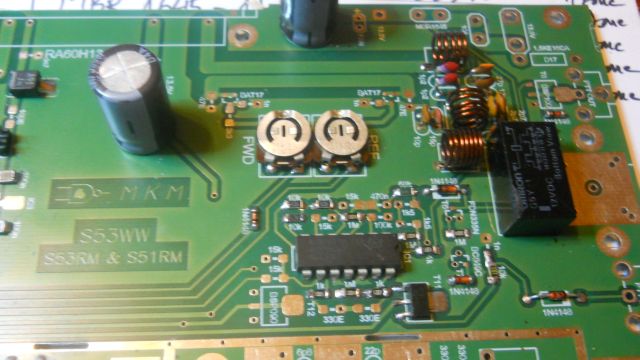

          25 January 2014 added on PCB: CMOS Relay OMRON G5Y-1 12VDC, 1 x  BSP100



          28 January 2014 transverter progress

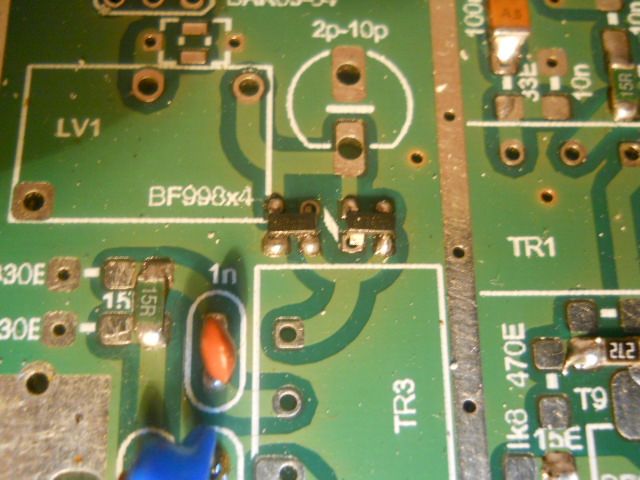

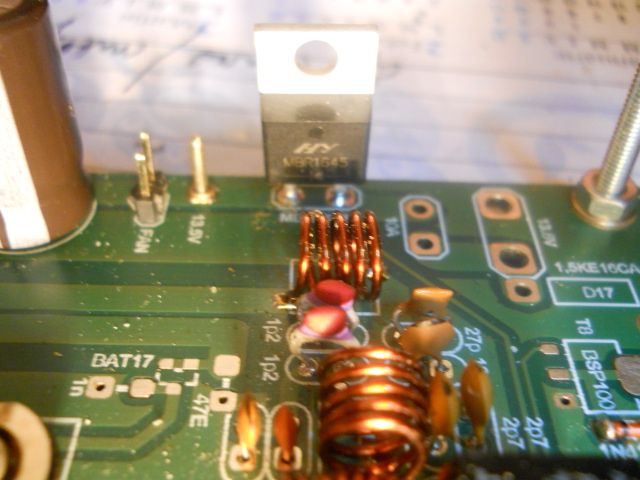

          31 January 2014 added on PCB: MBR 1645, 4 x BF998, 4 x BFR93A, 1 x BFG196

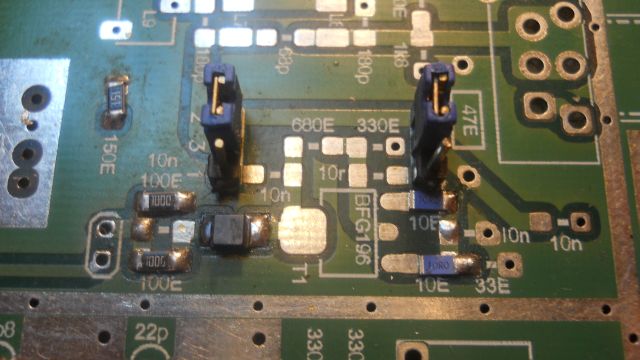

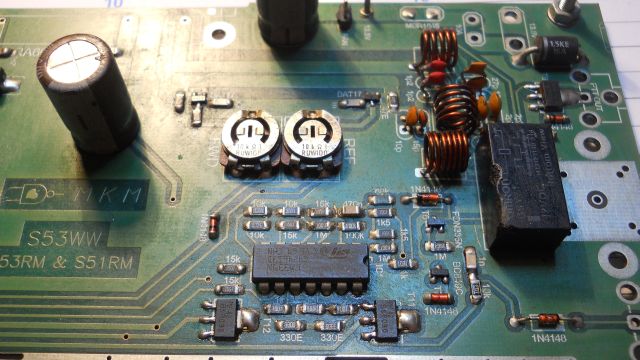

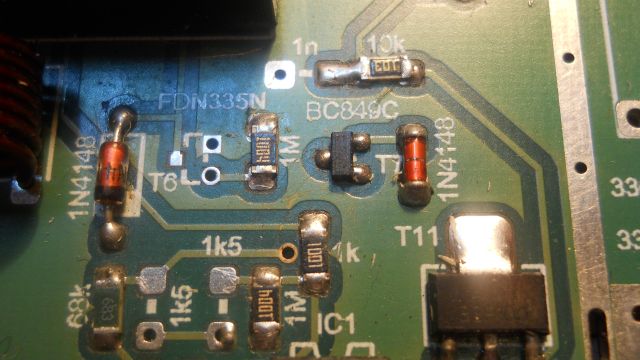

            05 February 2014 added on PCB: 1,5KE16, BAT 17, BC 849c, Jumpers

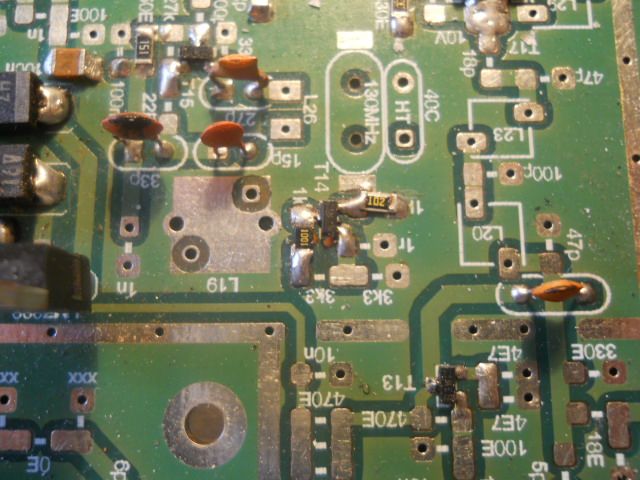

         15 February 2014 added on PCB: SMD parts



           15 February 2014 added on PCB: 2 pcs. coils/inductances



          07 March 2014 added SMD 1210 inductors 10uH, 220nH and 330nH

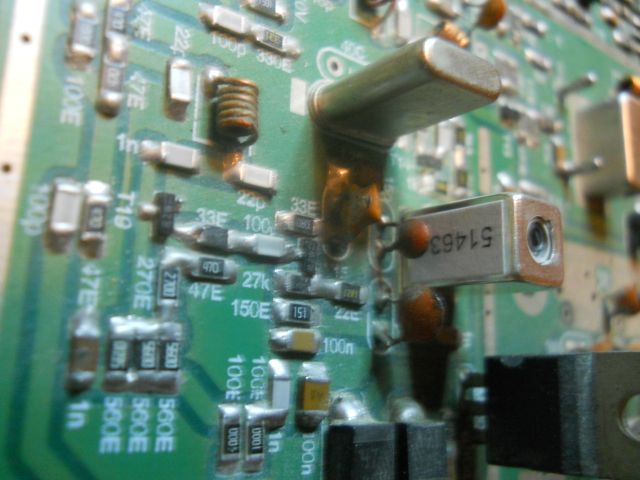

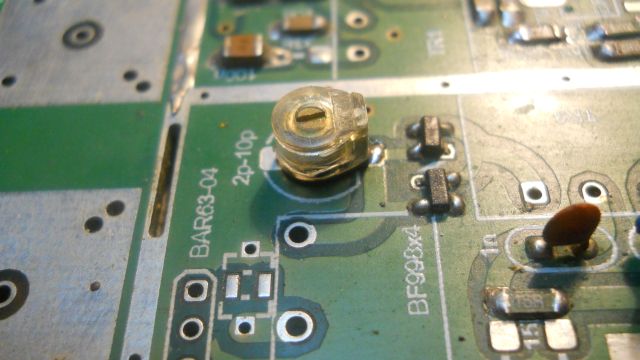

          08 March 2014 added 2-6 pF miniature trimmers

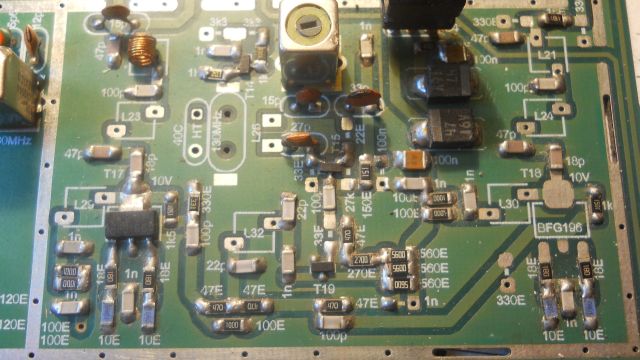

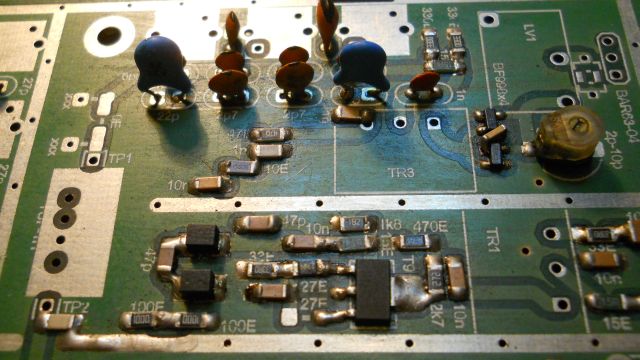

            19 April 2014 all transistors added



            20 April 2014 double hole ferrite added

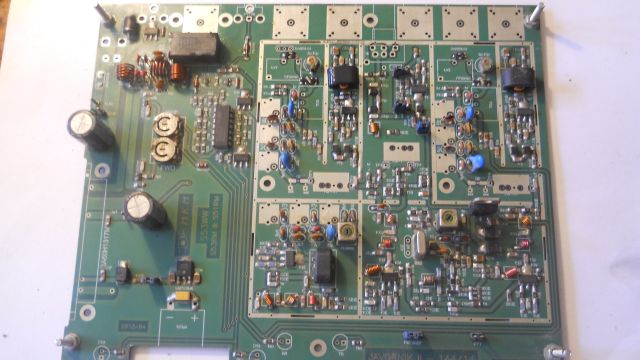

          20 May 2014 - all resistors, capacitors, transistors, diodes was mounted on PCB

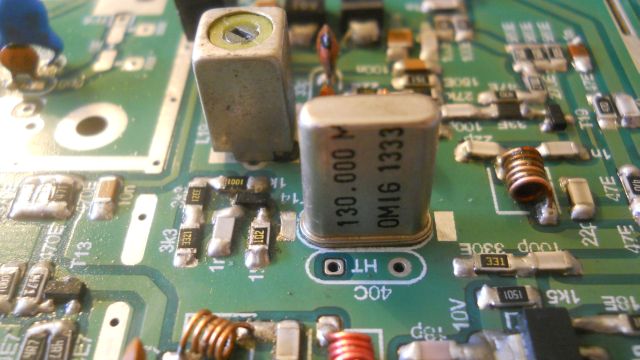

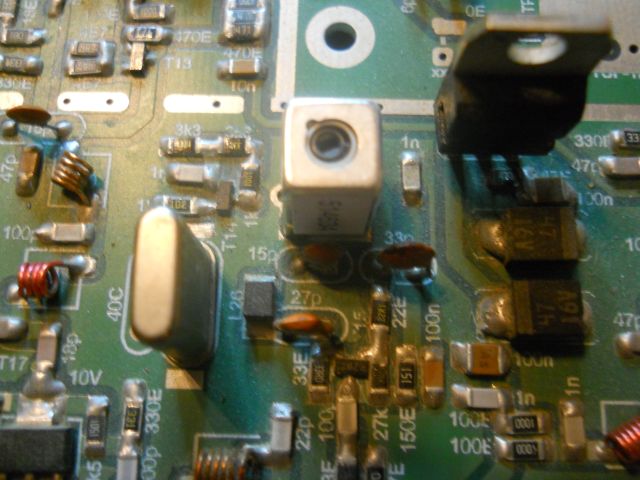

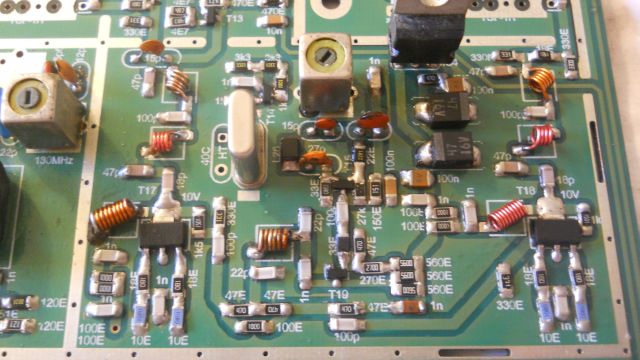

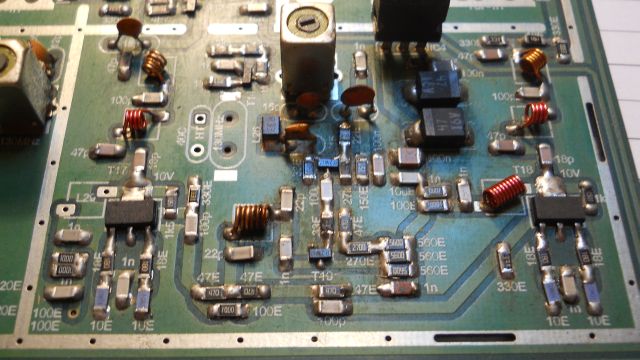

          21 May 2014 - 130 MHz quartz crystal was mounted on PCB

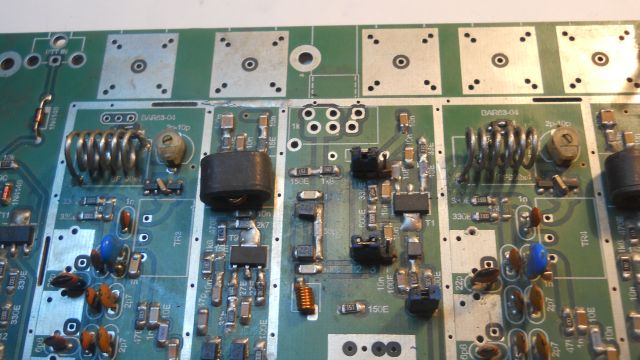

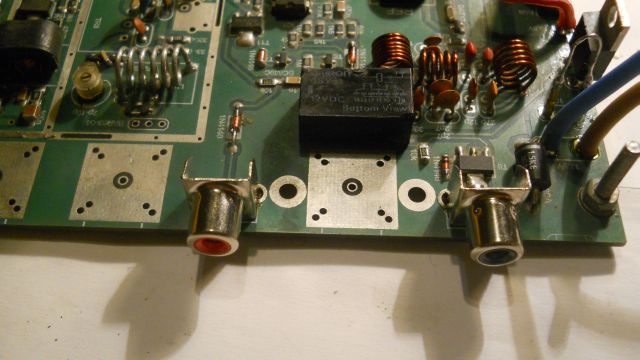

          26 May 2014 - 144MHz front end inductances added and PTT connectors



         27 May 2014 - first testing day



          12 December 2014 - TUF - 1+, TUF - 1H+ mixers added

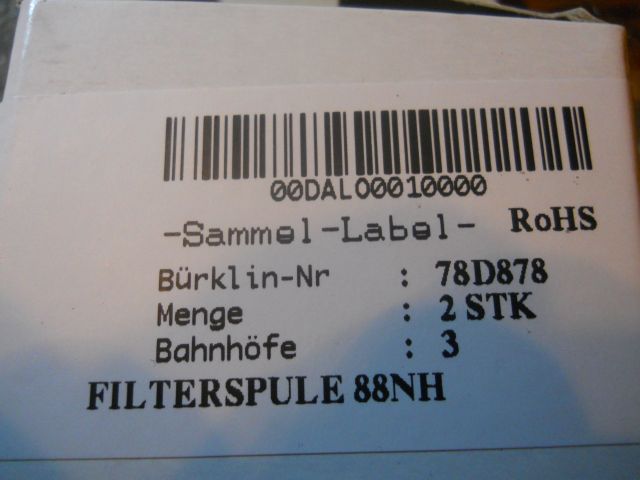

                                    -  78D878, 78D872 Burklin coils added

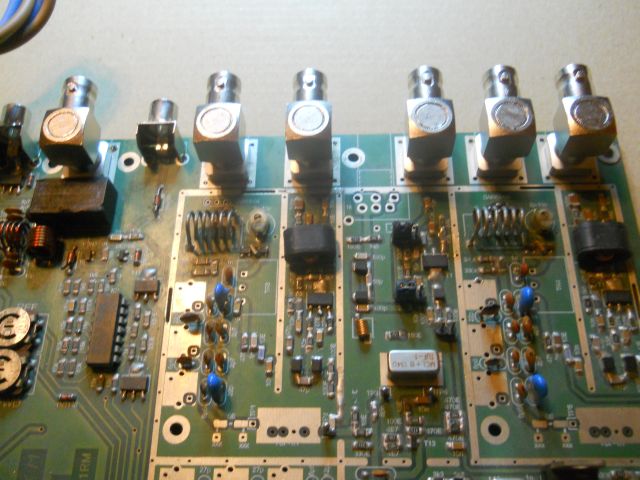

                                    -  90 degree angled BNC connectors for PCB added









            project under construction
