EQUIPMENT FOR 432 MHz BAND

    Rig: YAESU FT 847

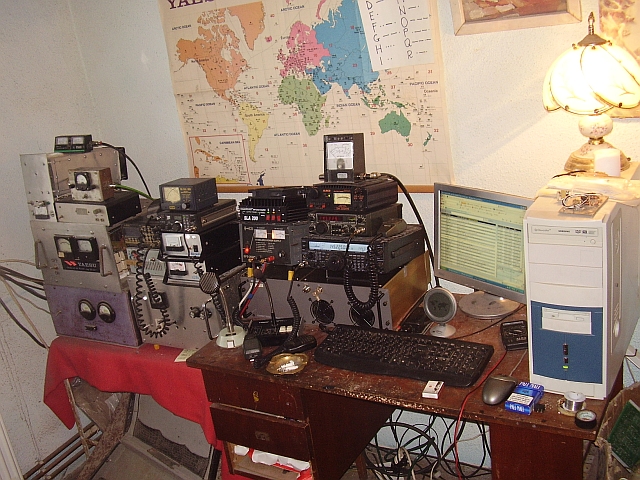

    2009 radio shack

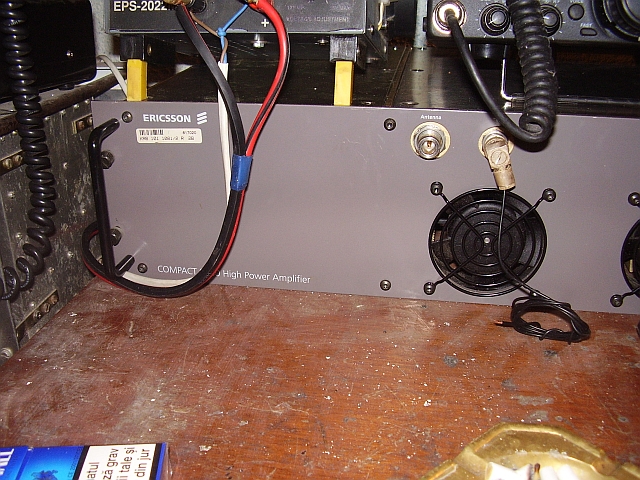

    Ericsson Compact 9000 High Power Amplifier - 432MHz/300 W

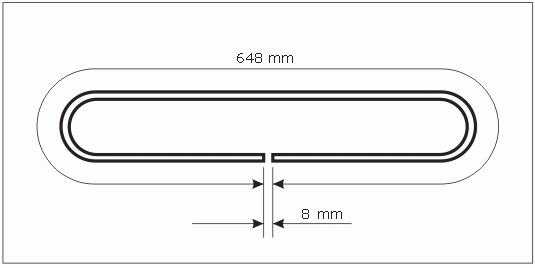

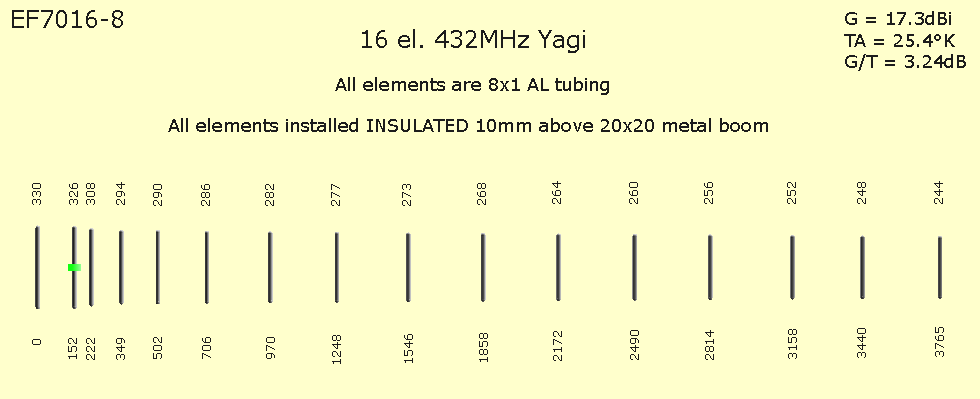

   Antenna - 16 elements, after YU7EF - Pop, project, design & calculation :

   Ef7016_8/Ef7016-8_Dimensions.gif (10648 bytes)

  Total boom lenght : 3.765 m, alluminum 20 mm x 20 mm x 1,5 mm

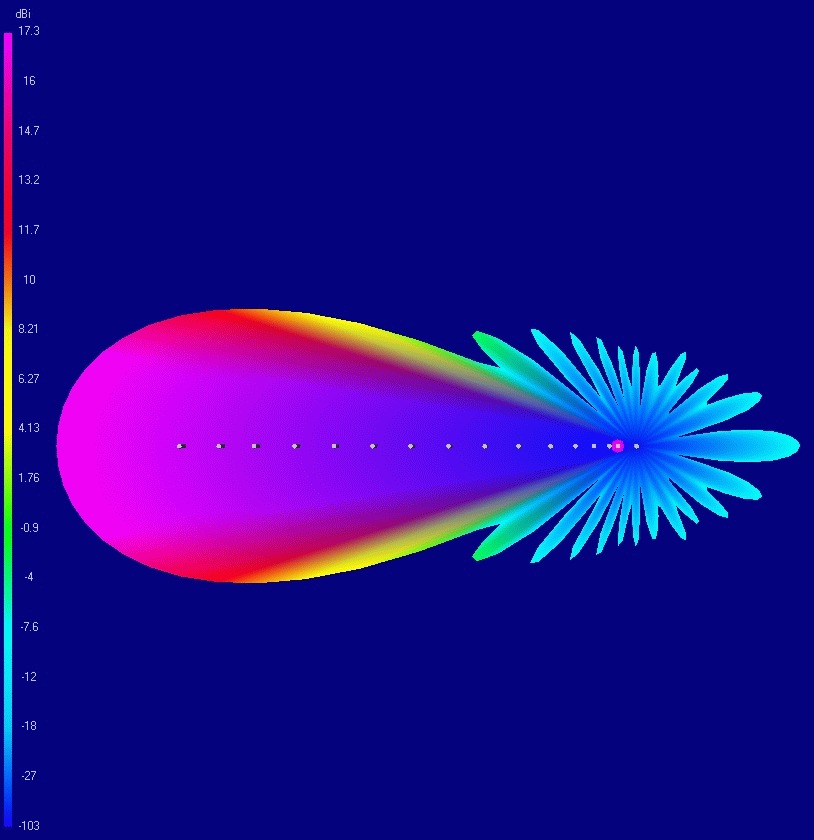

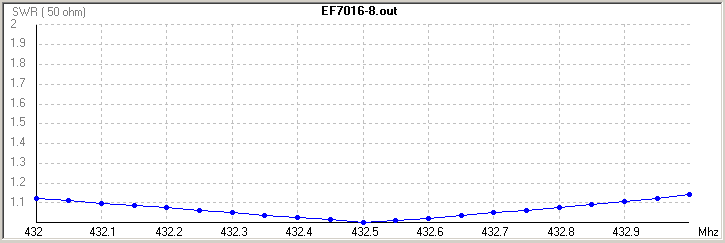

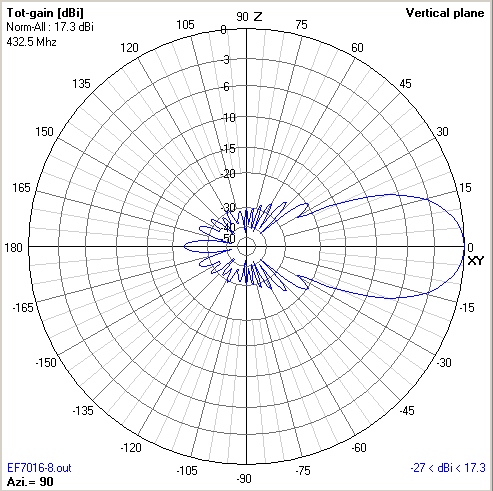

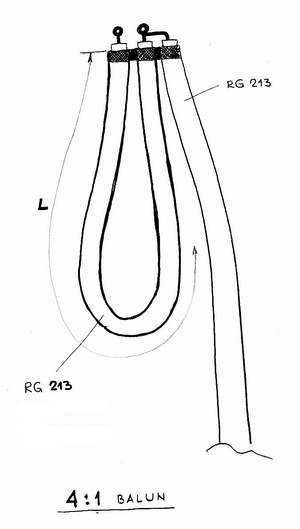

  TECHNICAL DESIGN :

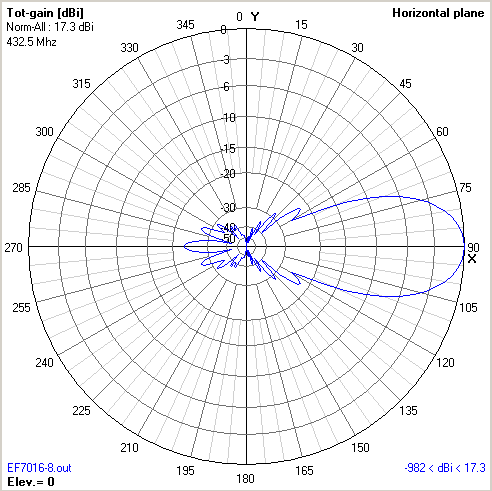

   EF7016_8/EF7016-8_H.gif (17346 bytes) EF7016_8/EF7016-8_Hc.gif (53472 bytes)

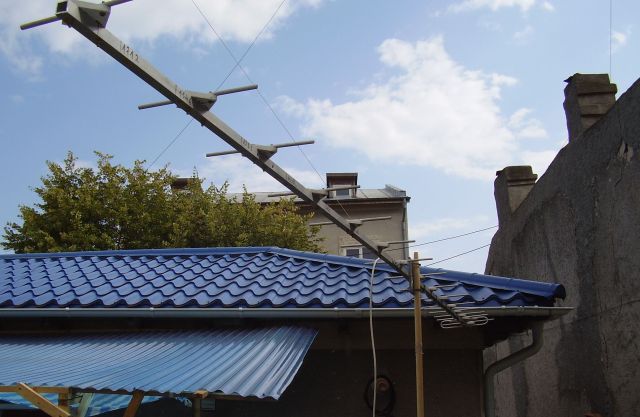

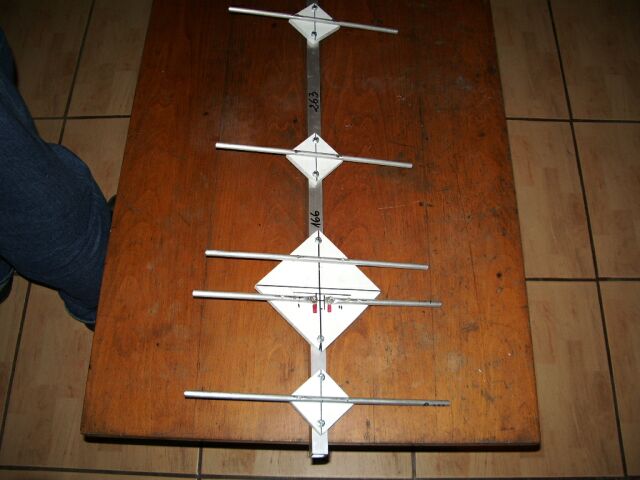

   Practical realization

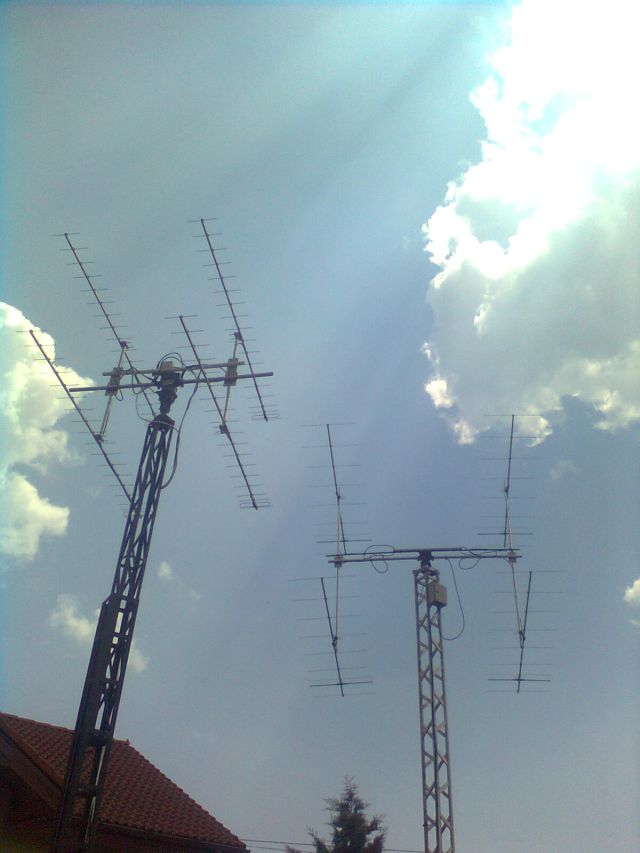

   My old antenna system = 2 x 10 elements after YO4GMS calculation ;



   432 MHz EME Activity :

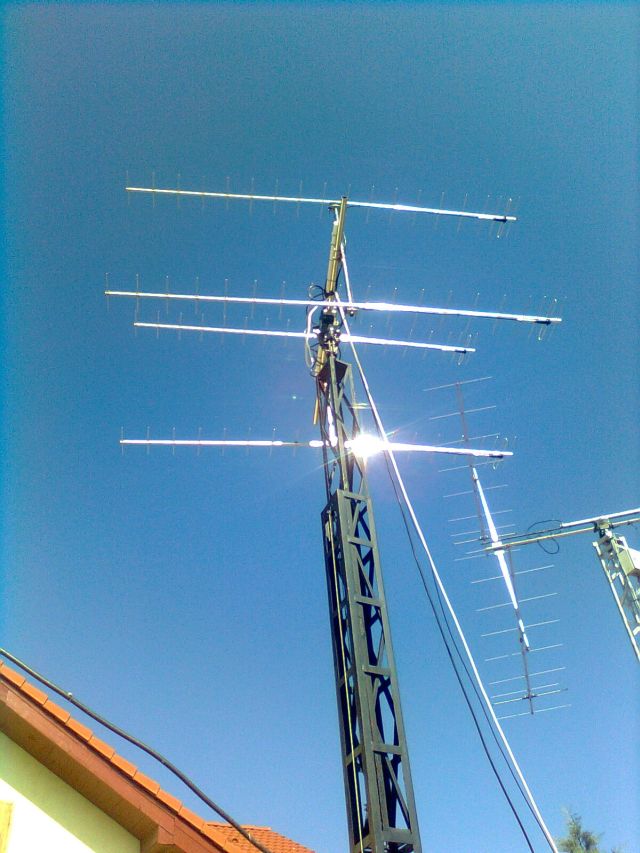

   - 4 x 15 elements F9FT, YAESU G-5500 rotator, full Az/El ;

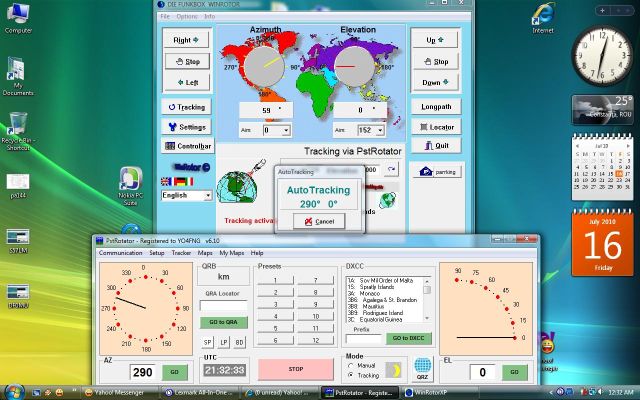

    - USB WinRotorXP interface, PstRotator moon tracking software (made by YO3DMU) ;



    - BEKO HLV-550 PA ;

    - SSB Electronics LNA ;



    For the moment not QRV via EME - BEKO HLV 550 PA was burned out ;

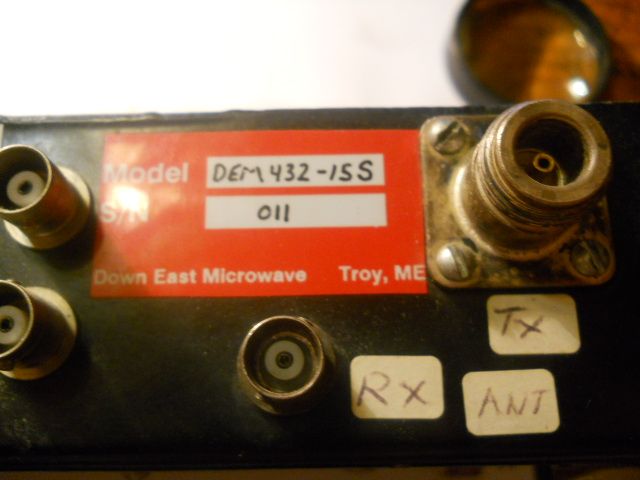

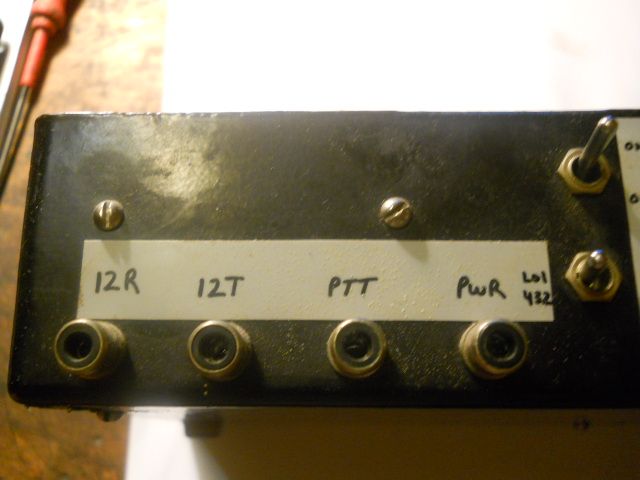

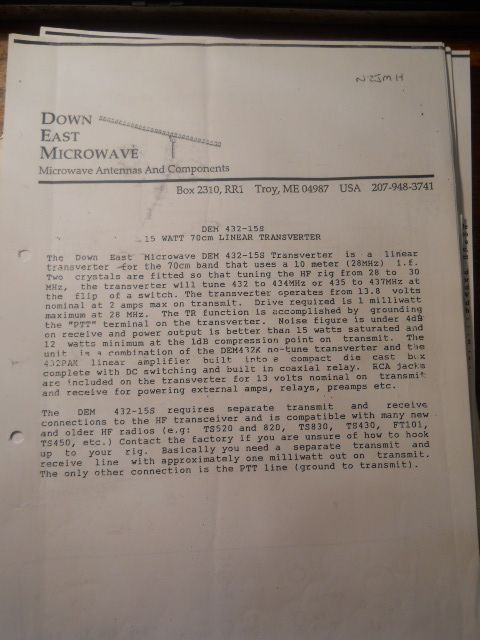

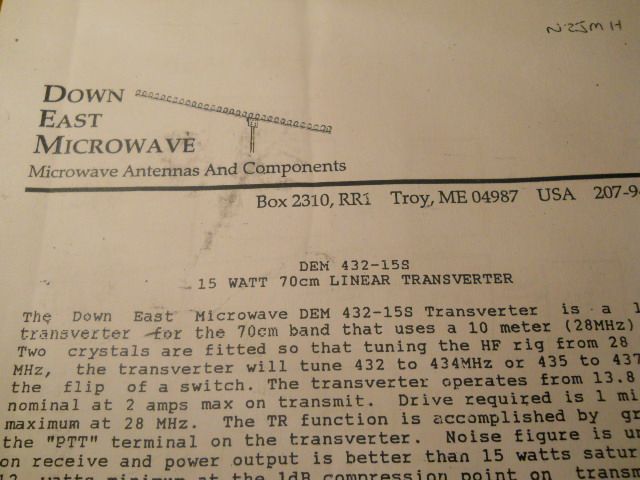

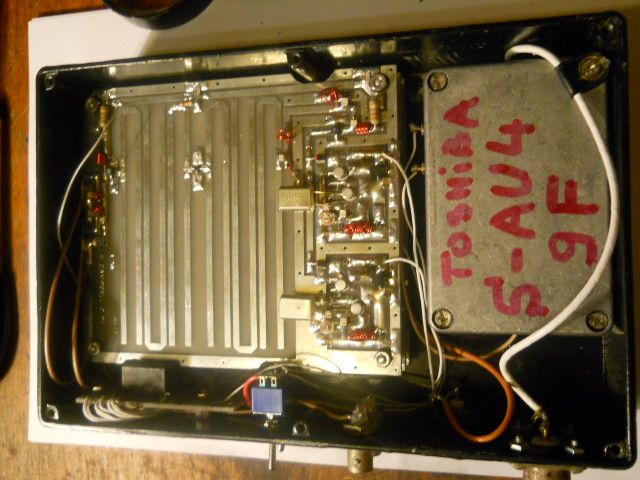

    DEM 432-15S - high performance transverter 432/28 MHz
