BEACON FOR 10 GHz BAND

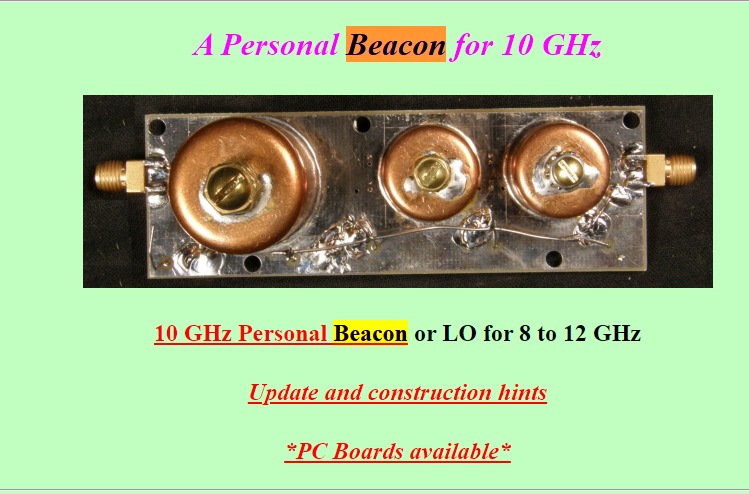

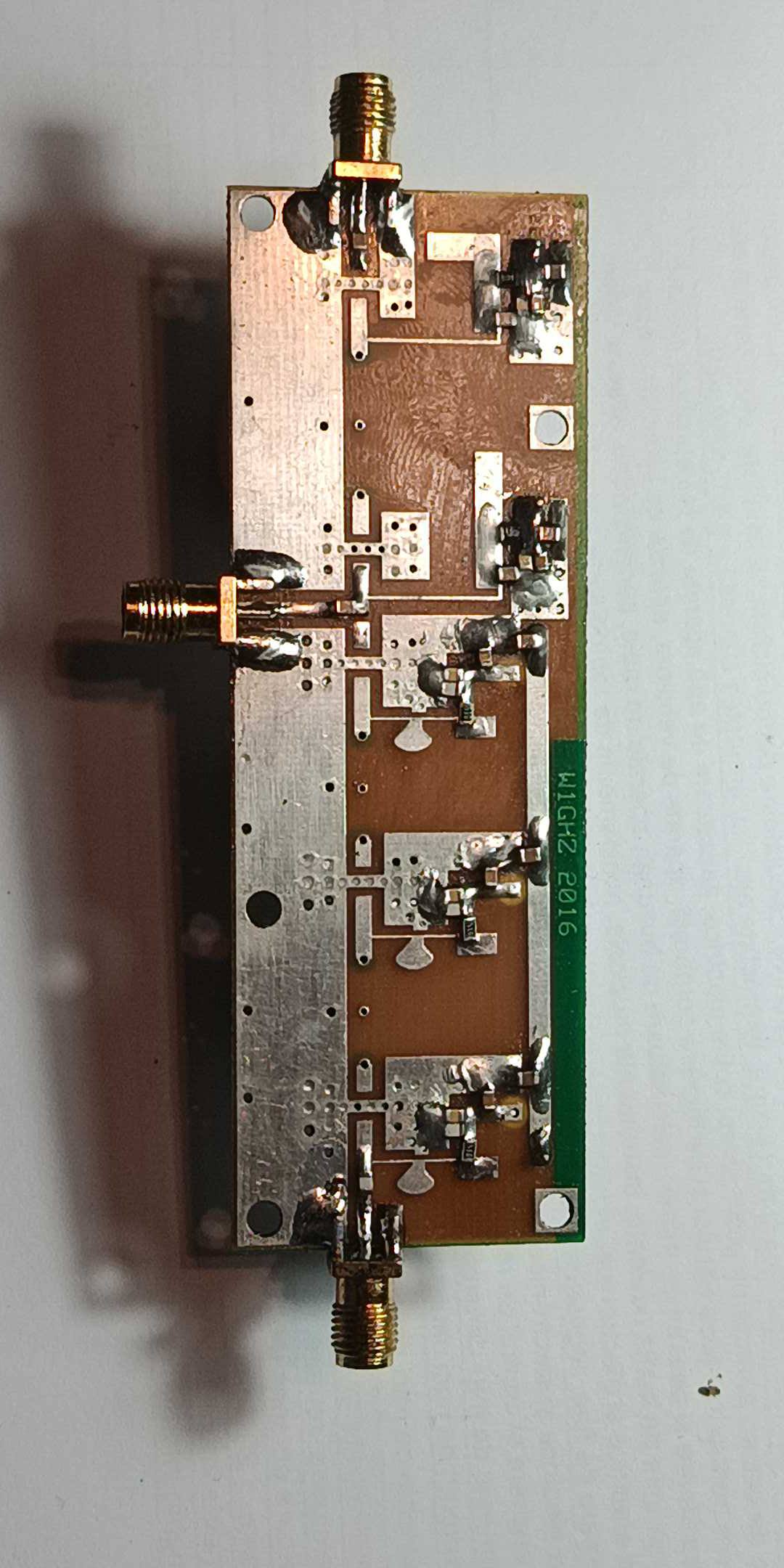

   Project for beacon in 10GHz band (10368.820 MHz), based on Wade W1GHZ's PCB x 9 multiplier

   The beacon will have ID in classic CW and JT4G digital mode and will be installed in KN44HD

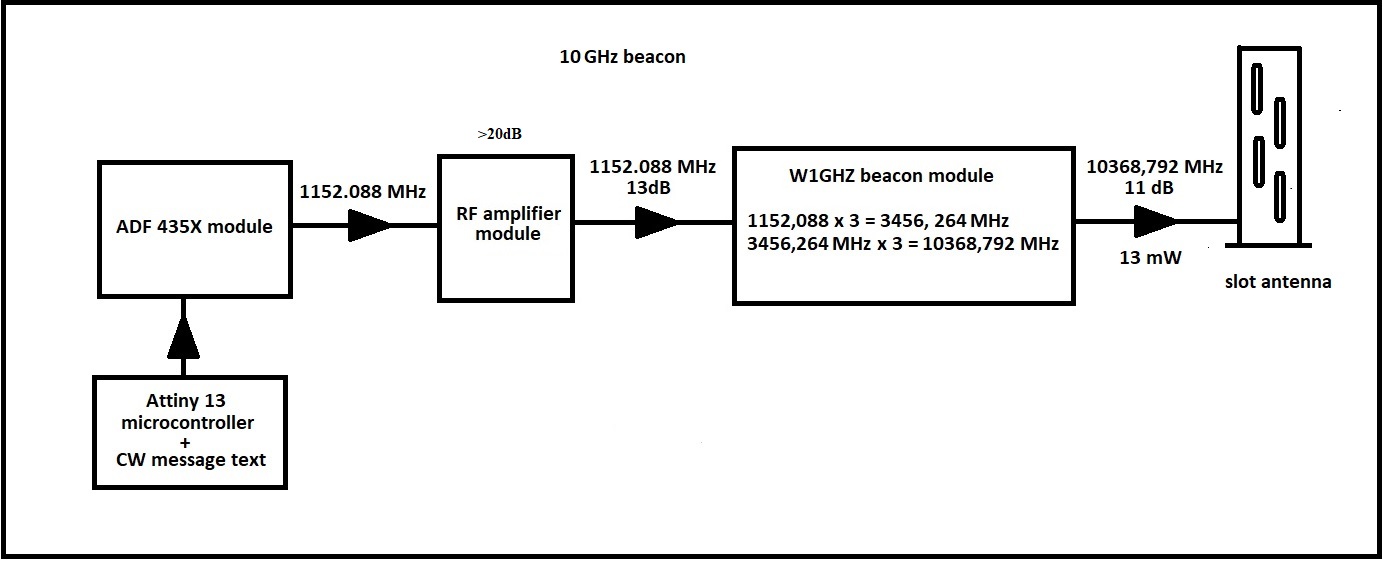

   BEACON STRUCTURE

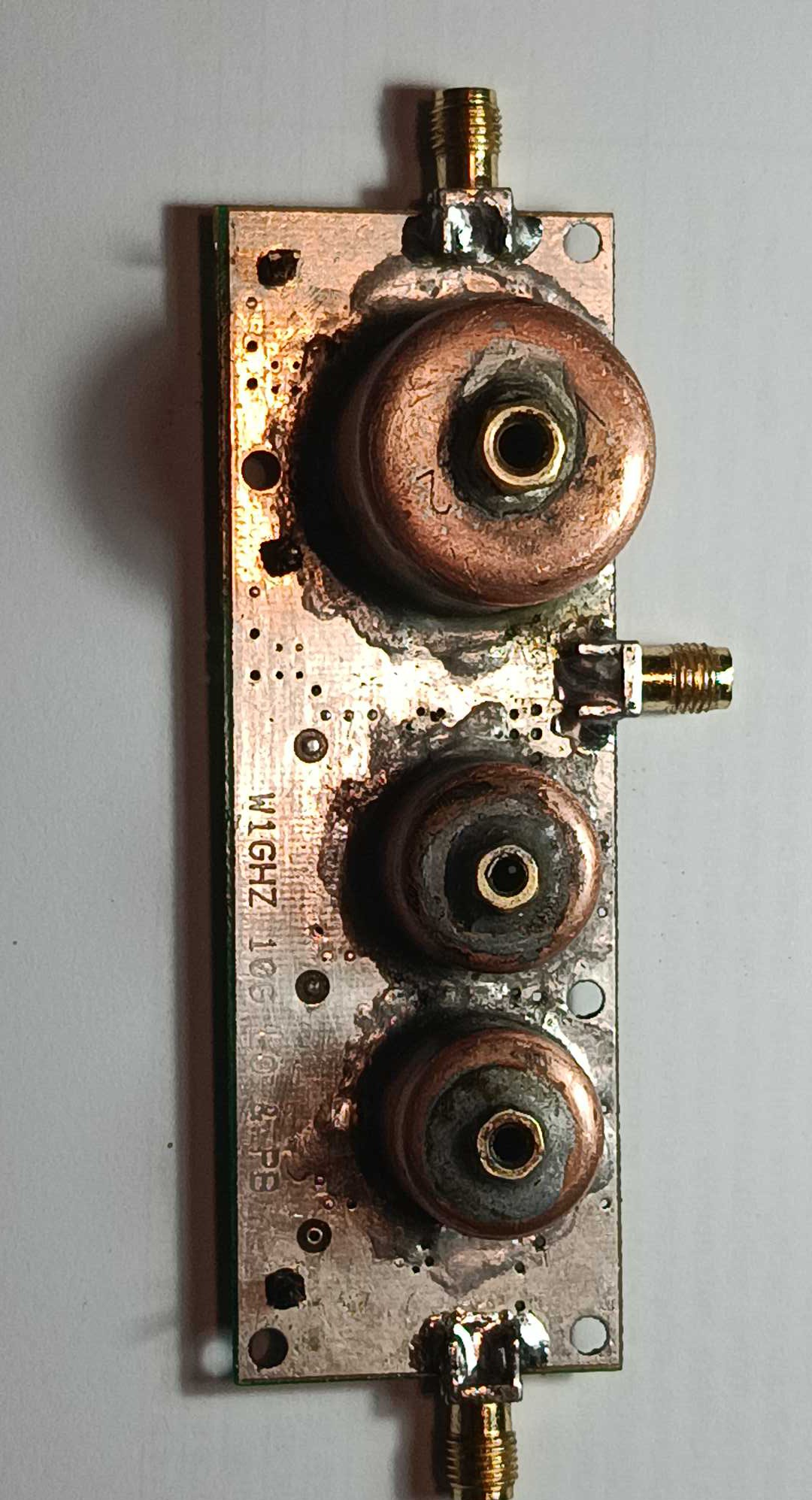

   Copper pipe cap and brass nuts soldered



   Beacon work progress December 2025

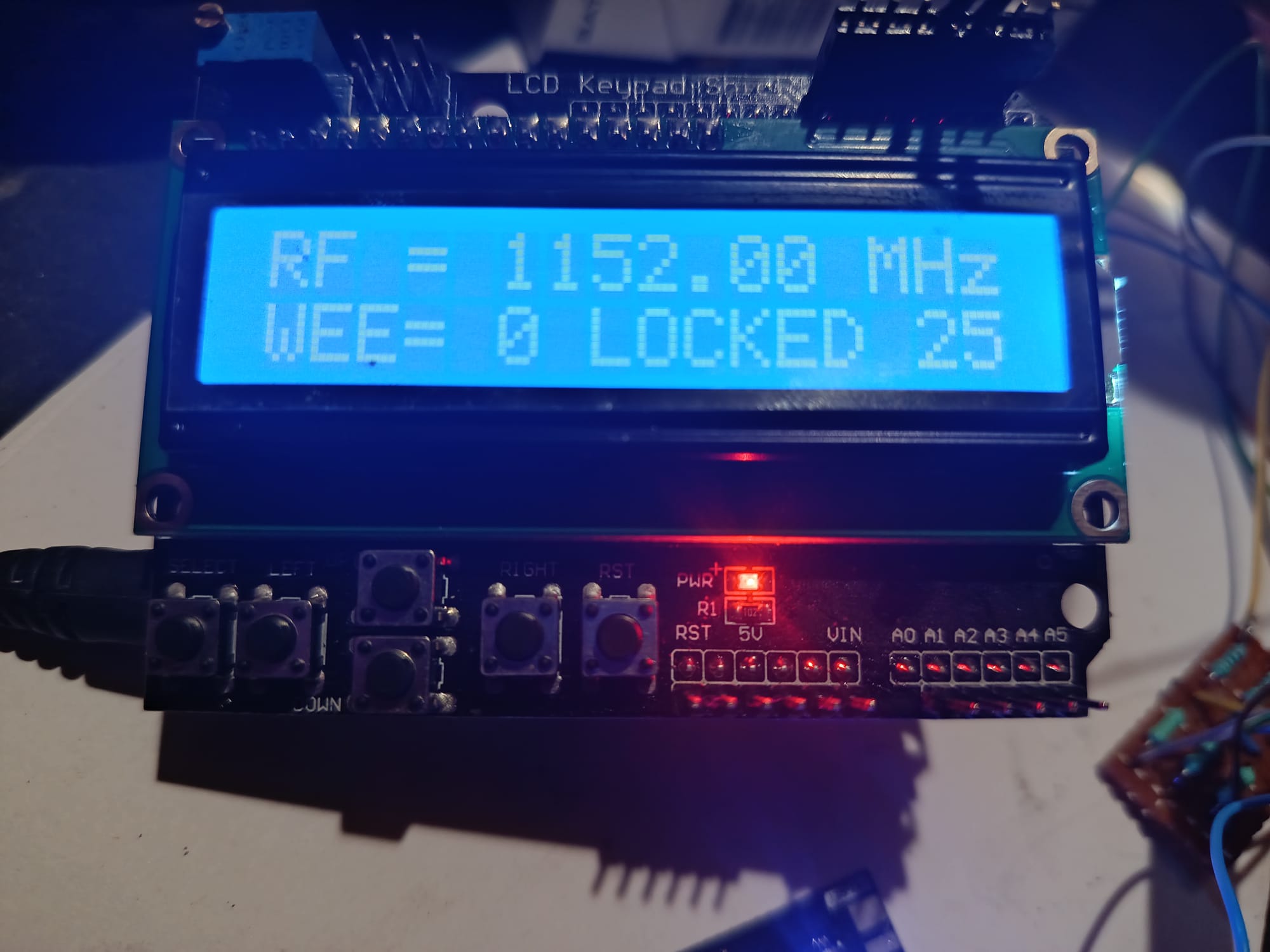

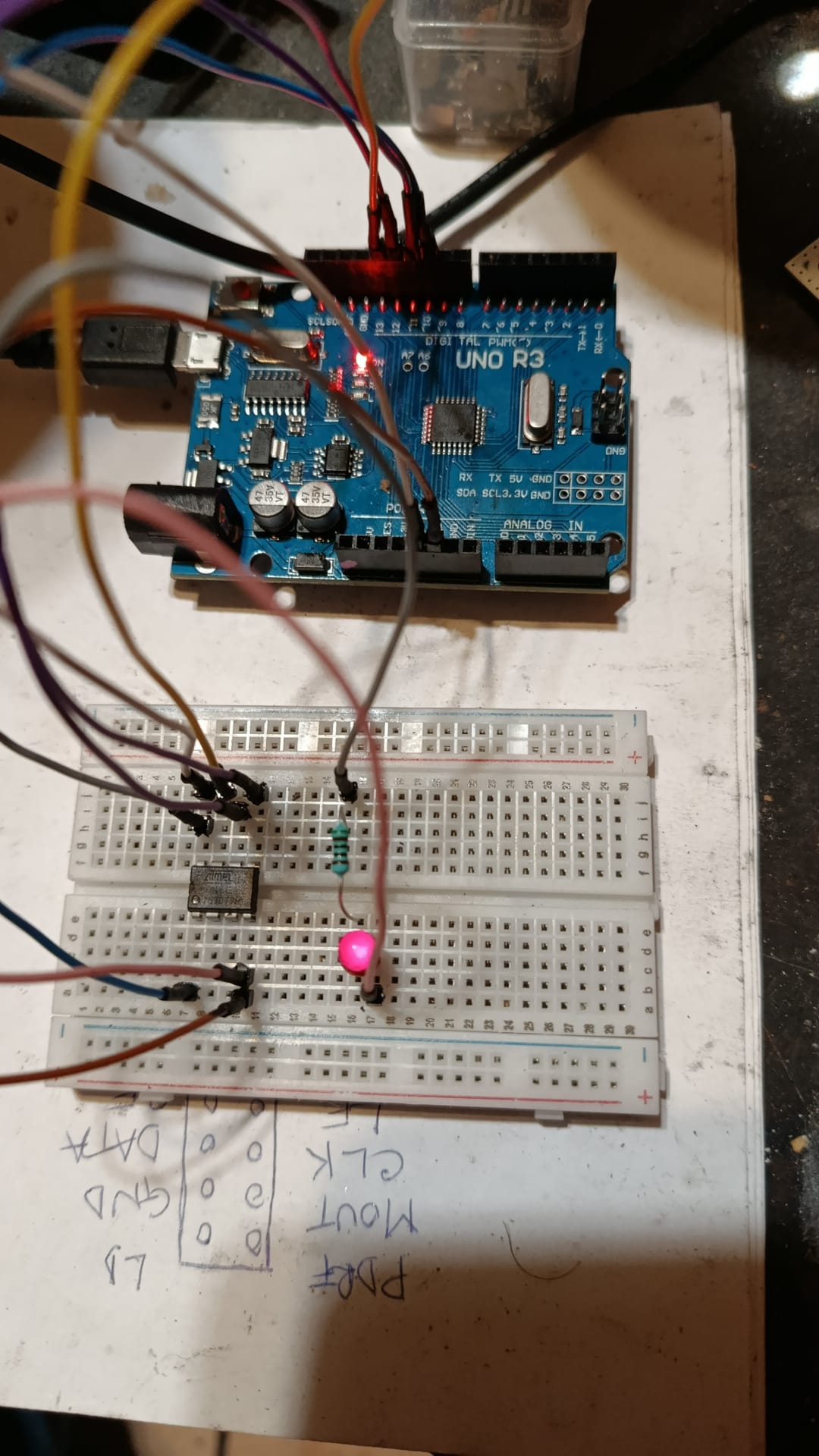

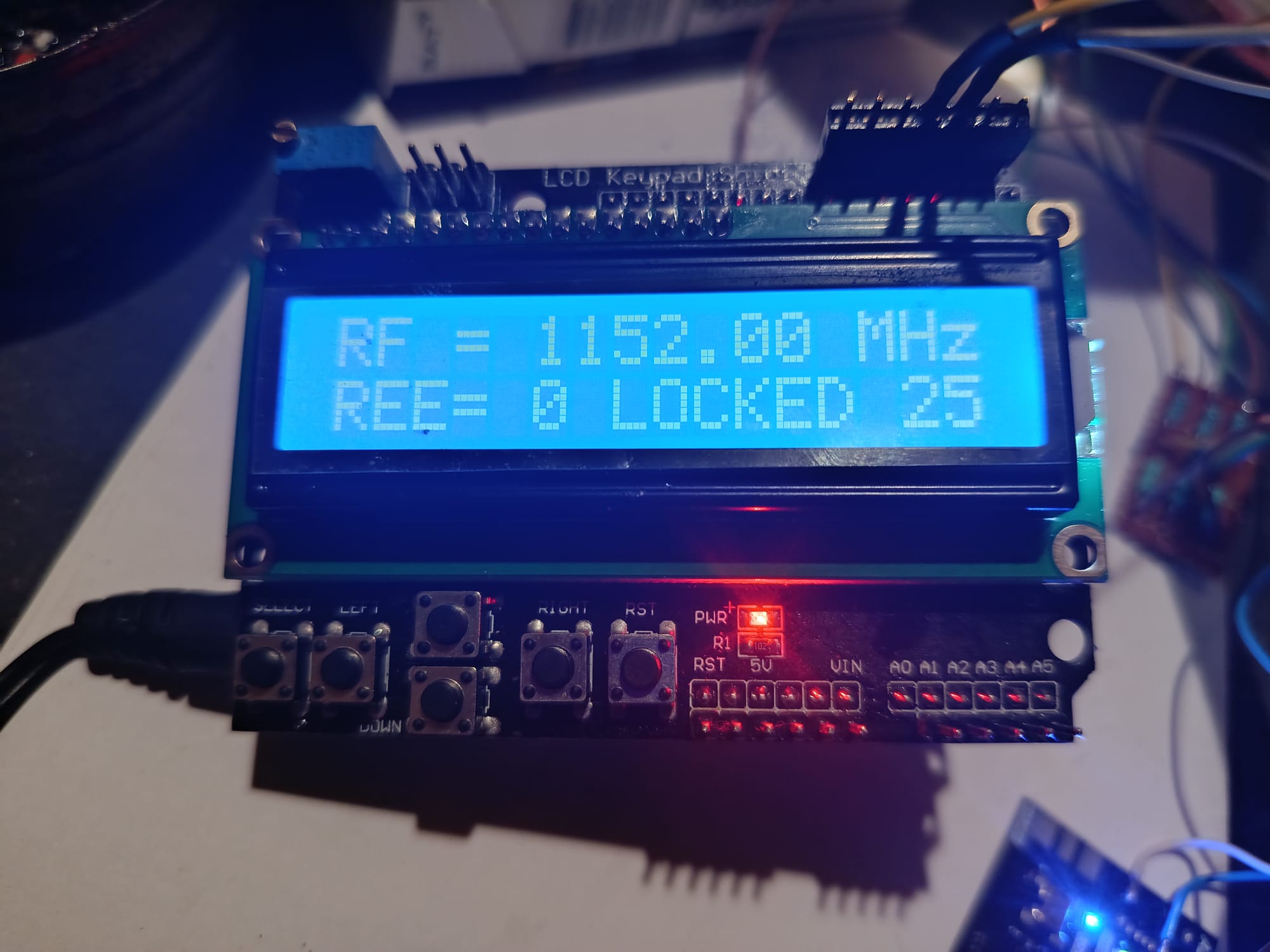

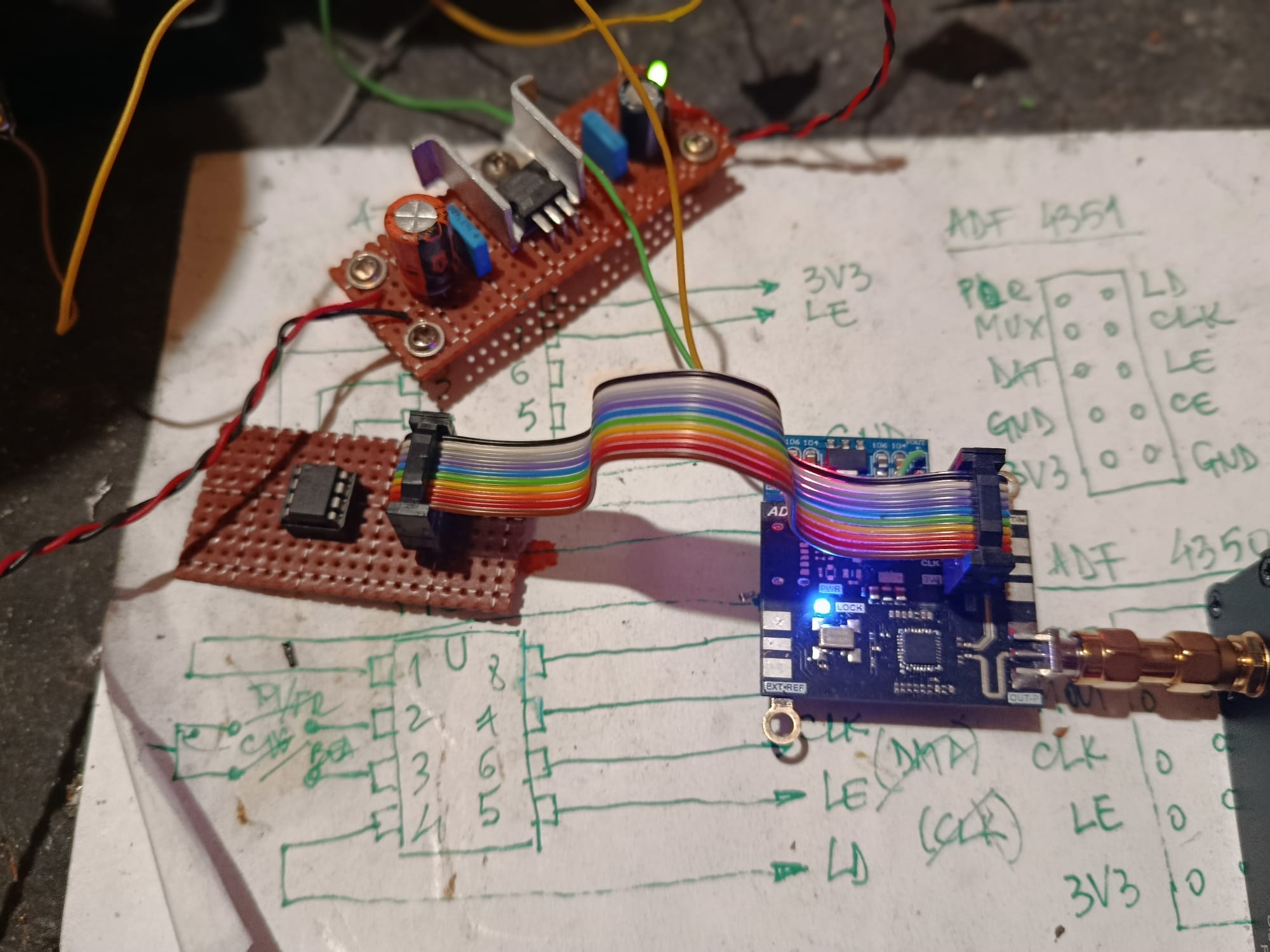

   Lab test - ADF4350 EVB for 1152 MHz, controlled with Arduino as Signal Generator and Attiny 13 microcontroller

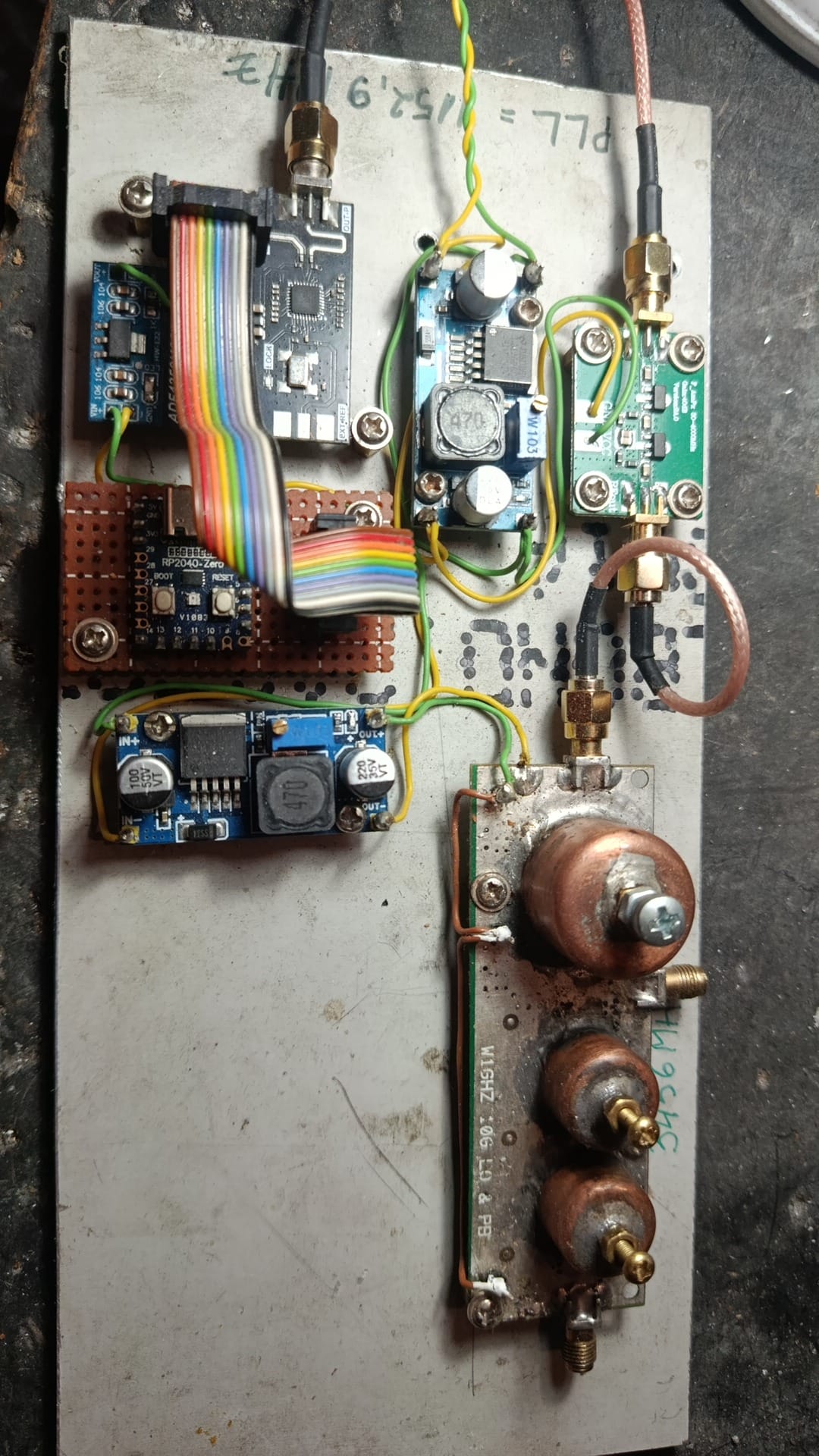

   Beacon work progress May 2026

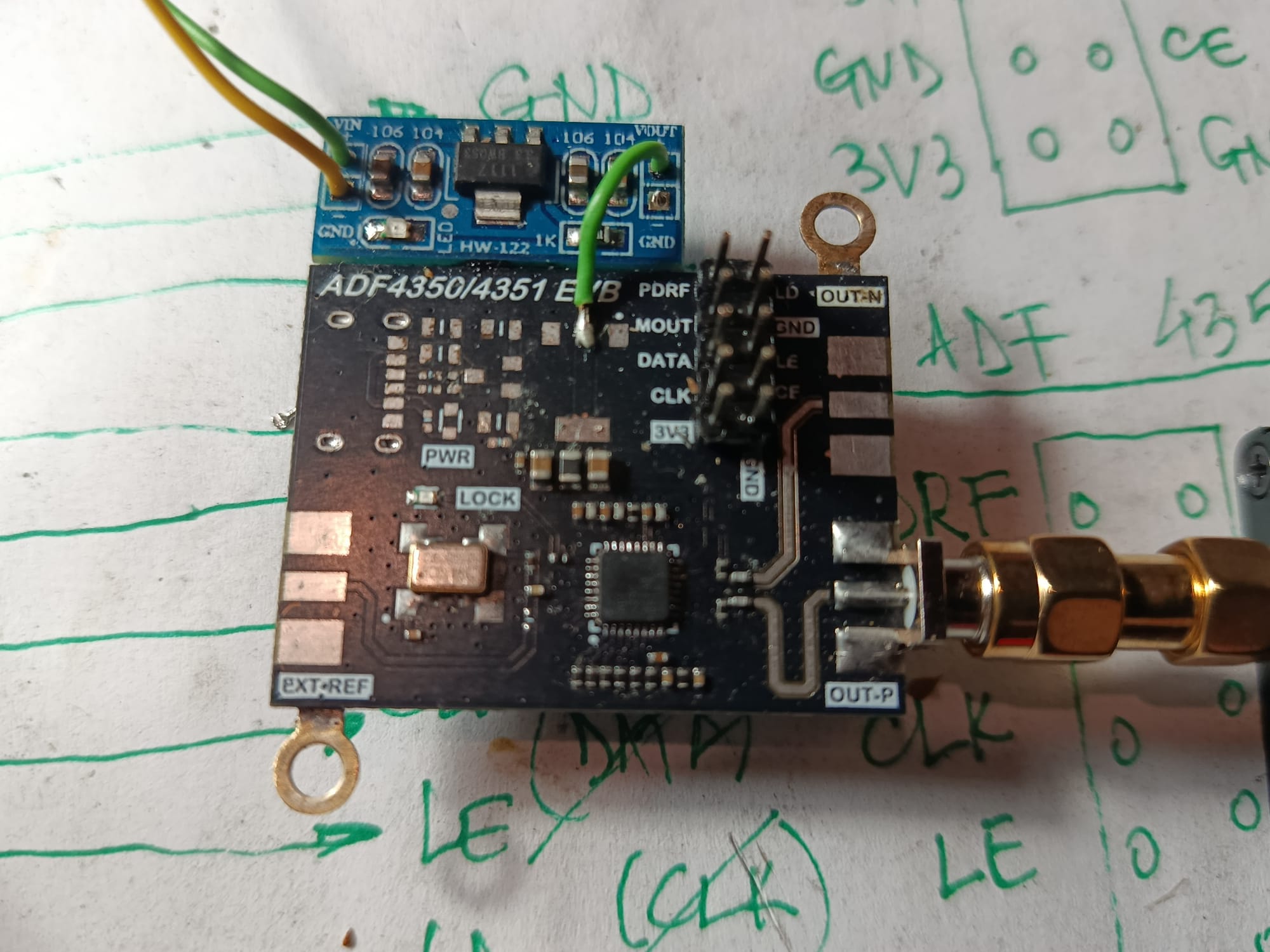

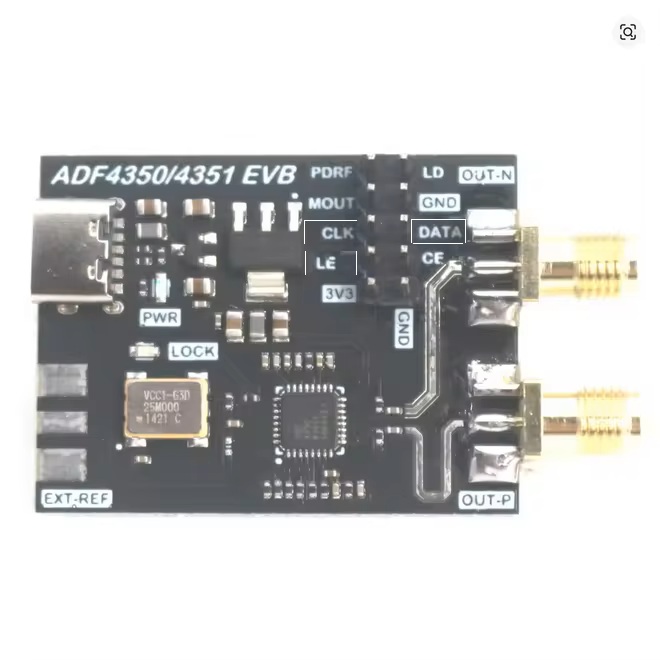

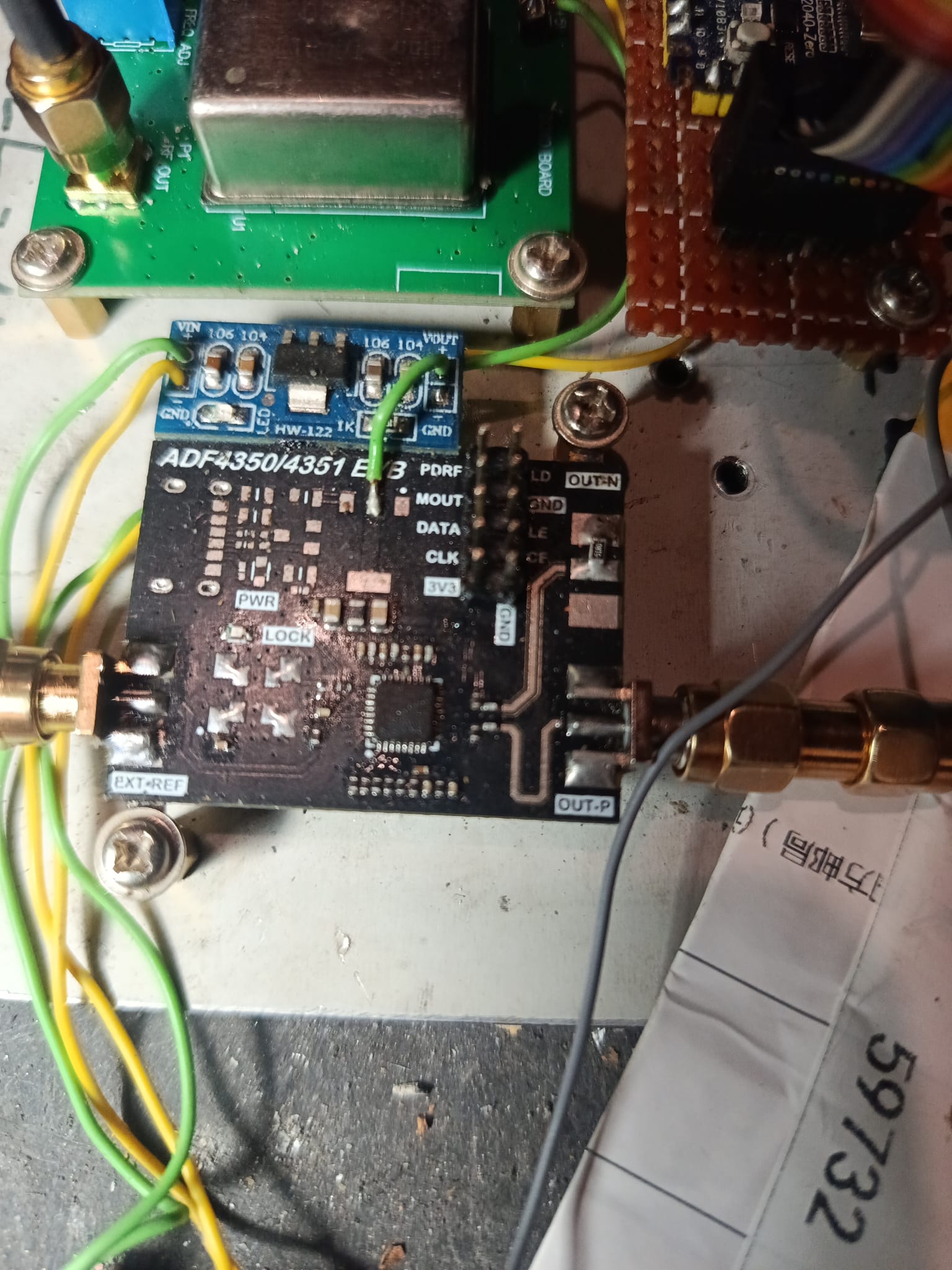

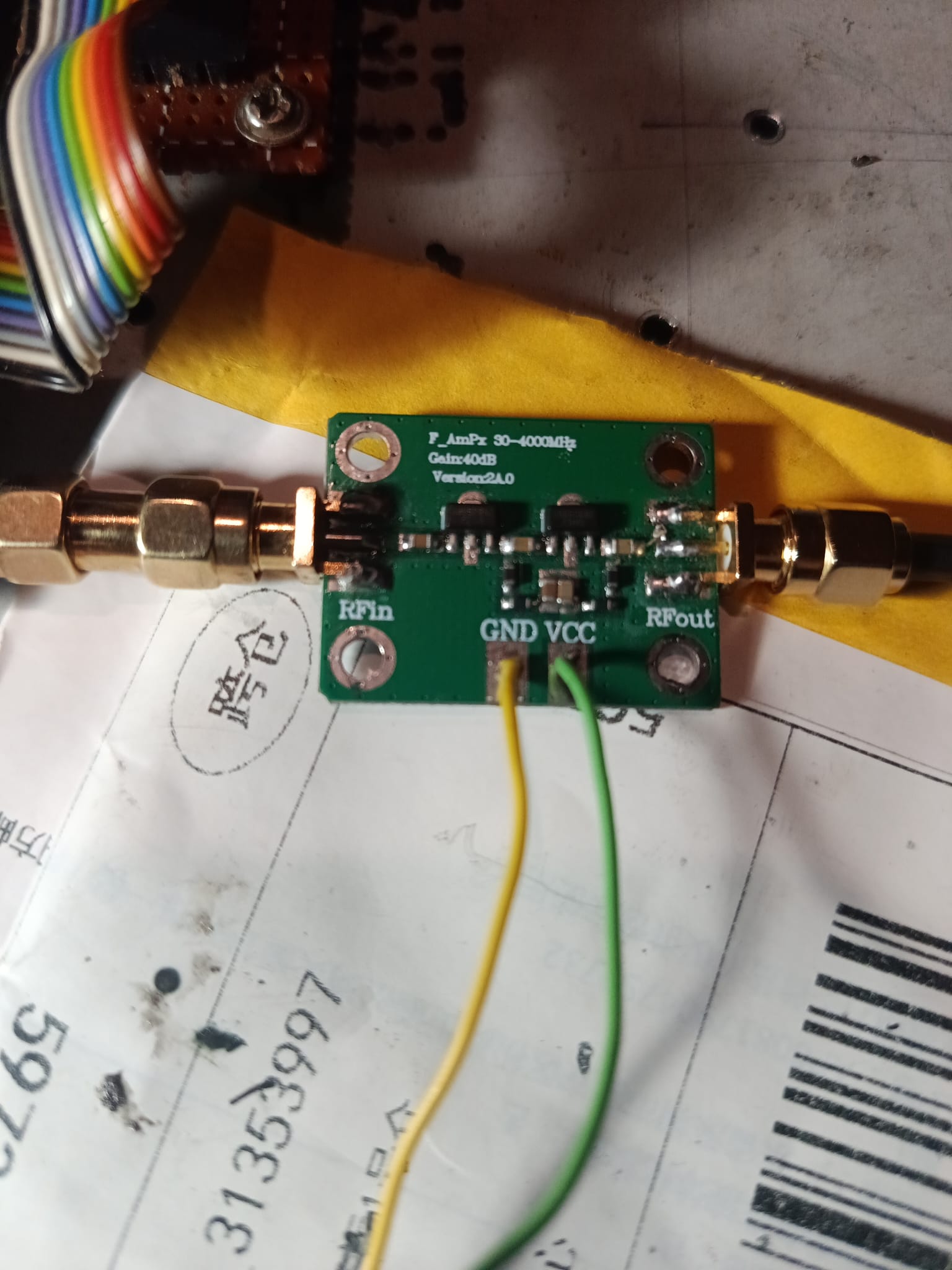

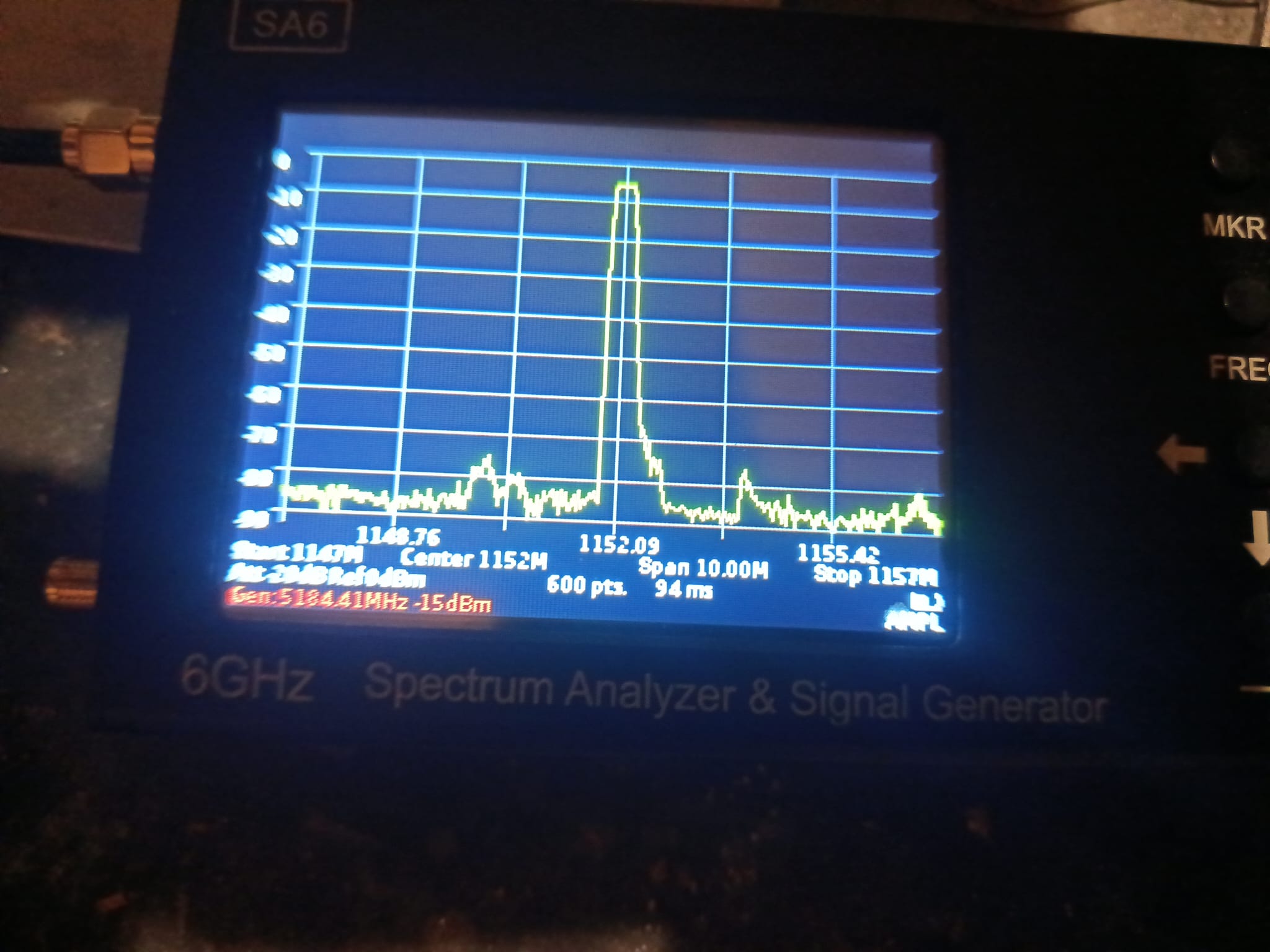

   ADF4350 EVB module have a very low signal level at 1152.0911MHz and 20dB RF amplifier added



   Beacon work progress June 2026

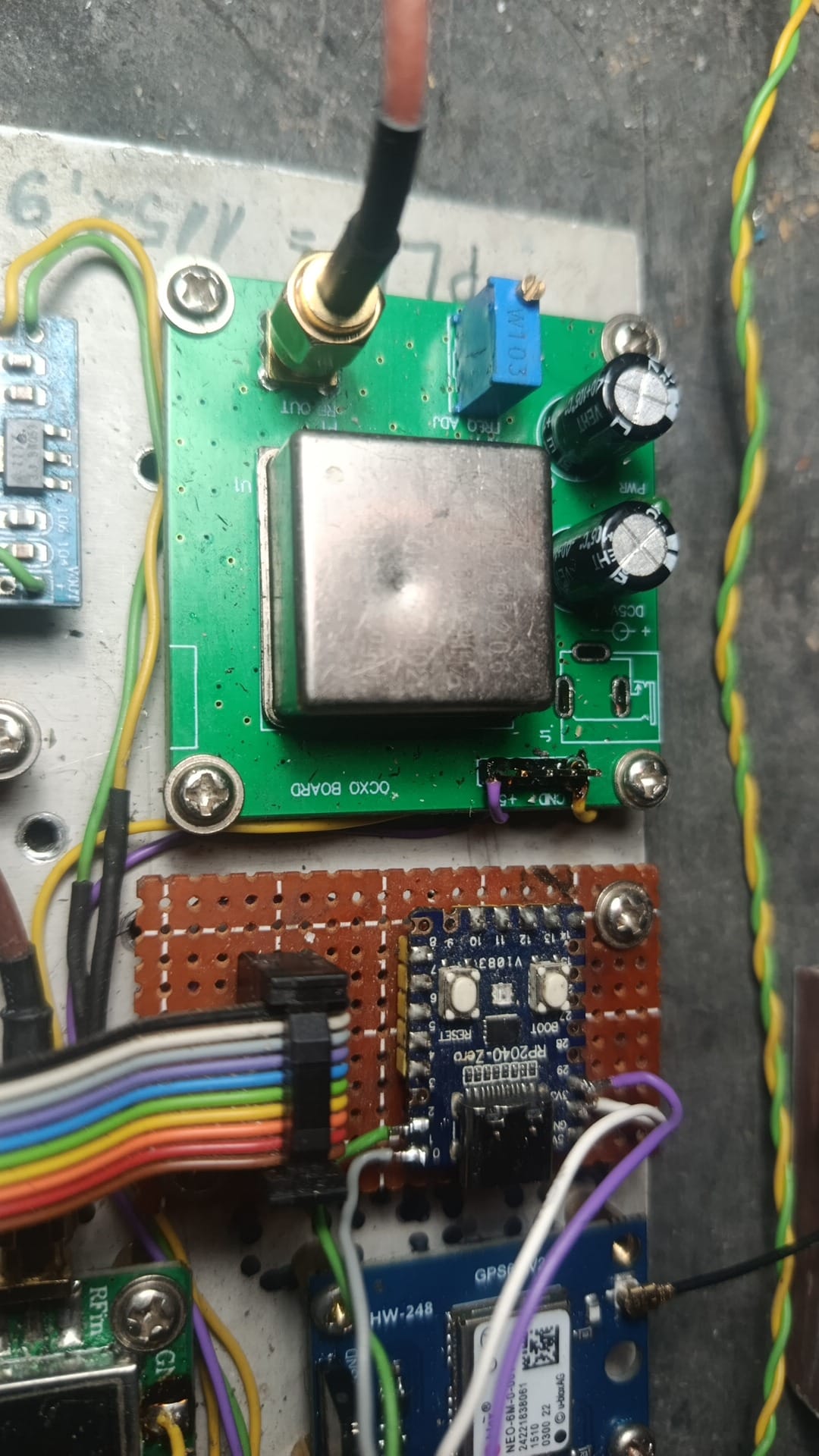

   For better frequency stability, I replaced the PLL's internal 25 MHz reference with an external 10 MHz reference

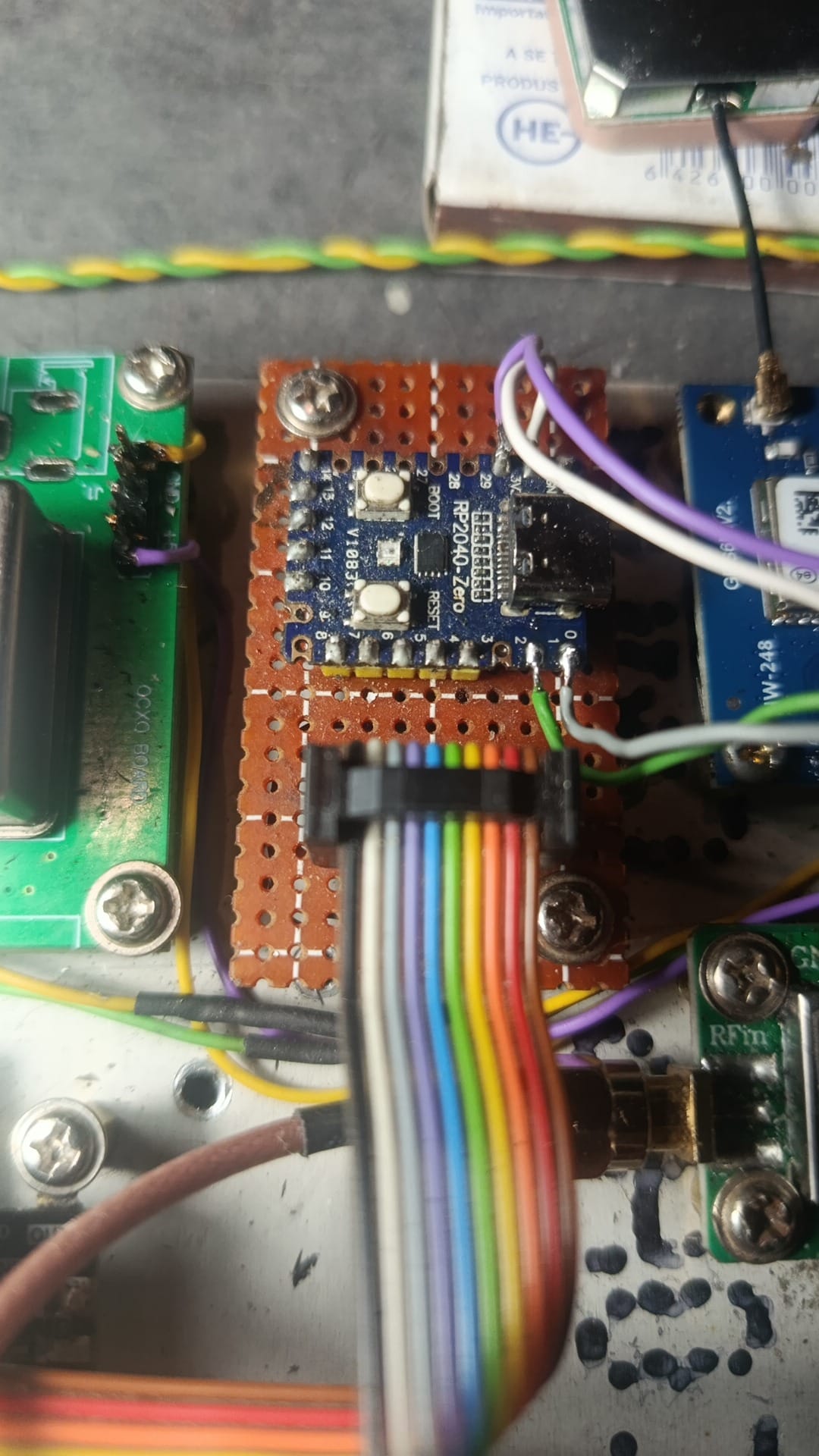

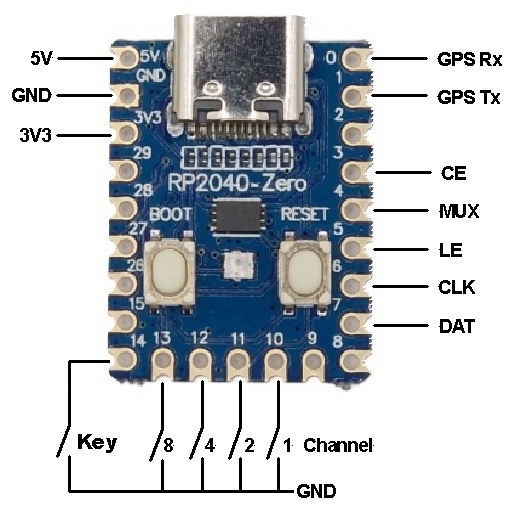

   Because the Atiny 13 microcontroller does not fit the JT4G digital ID message, it was replaced with the RP2040 microcontroller

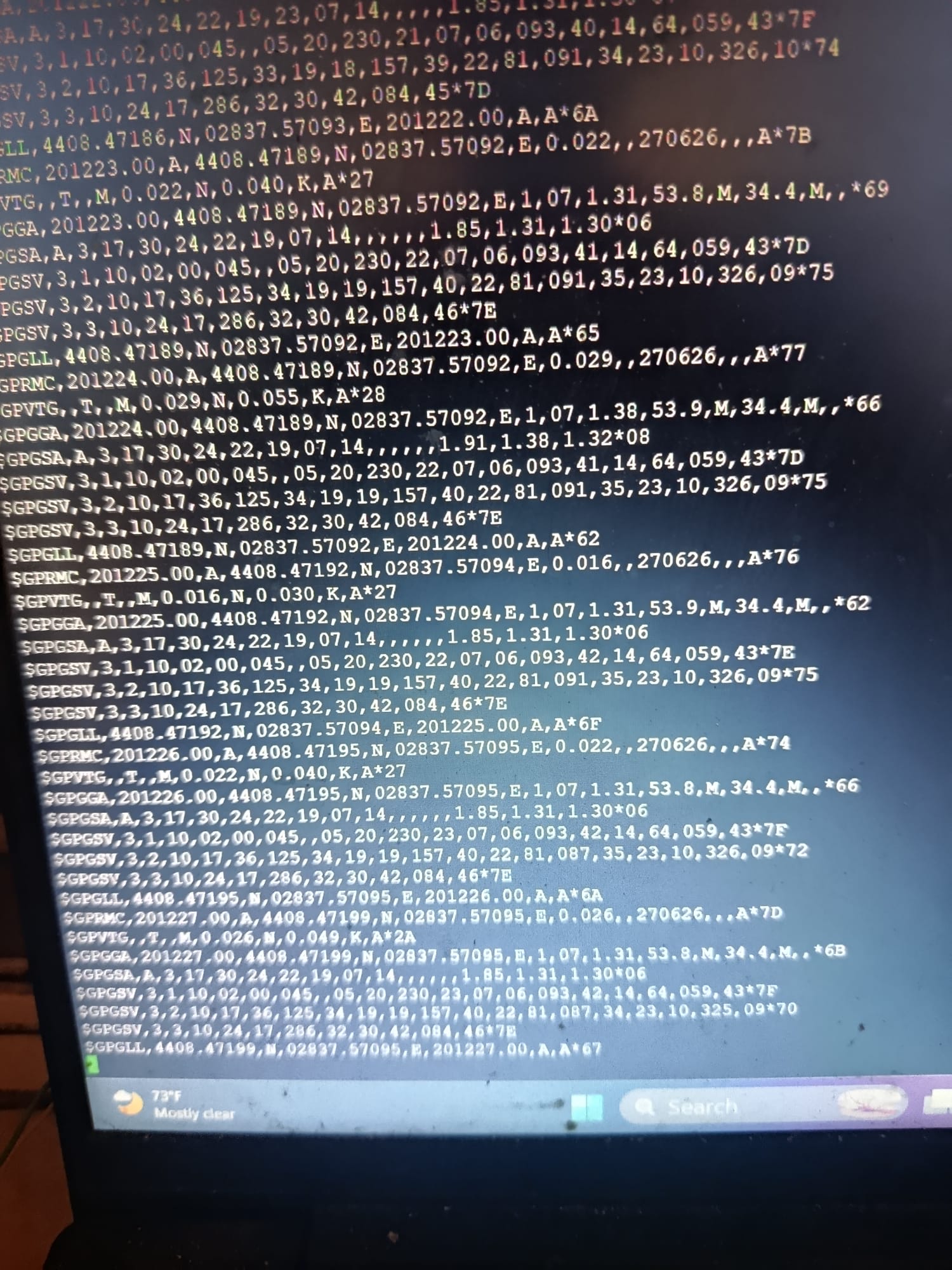

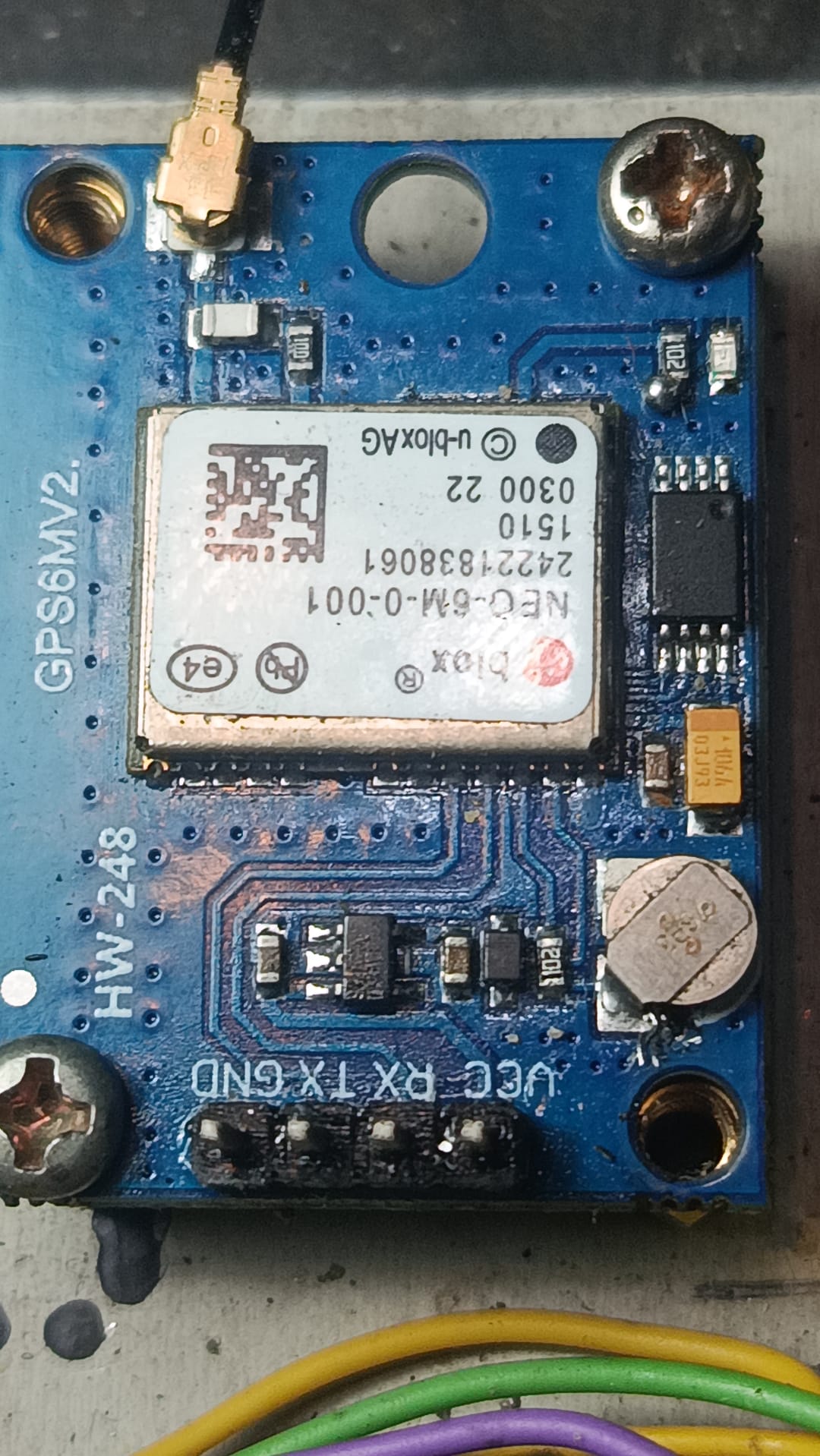

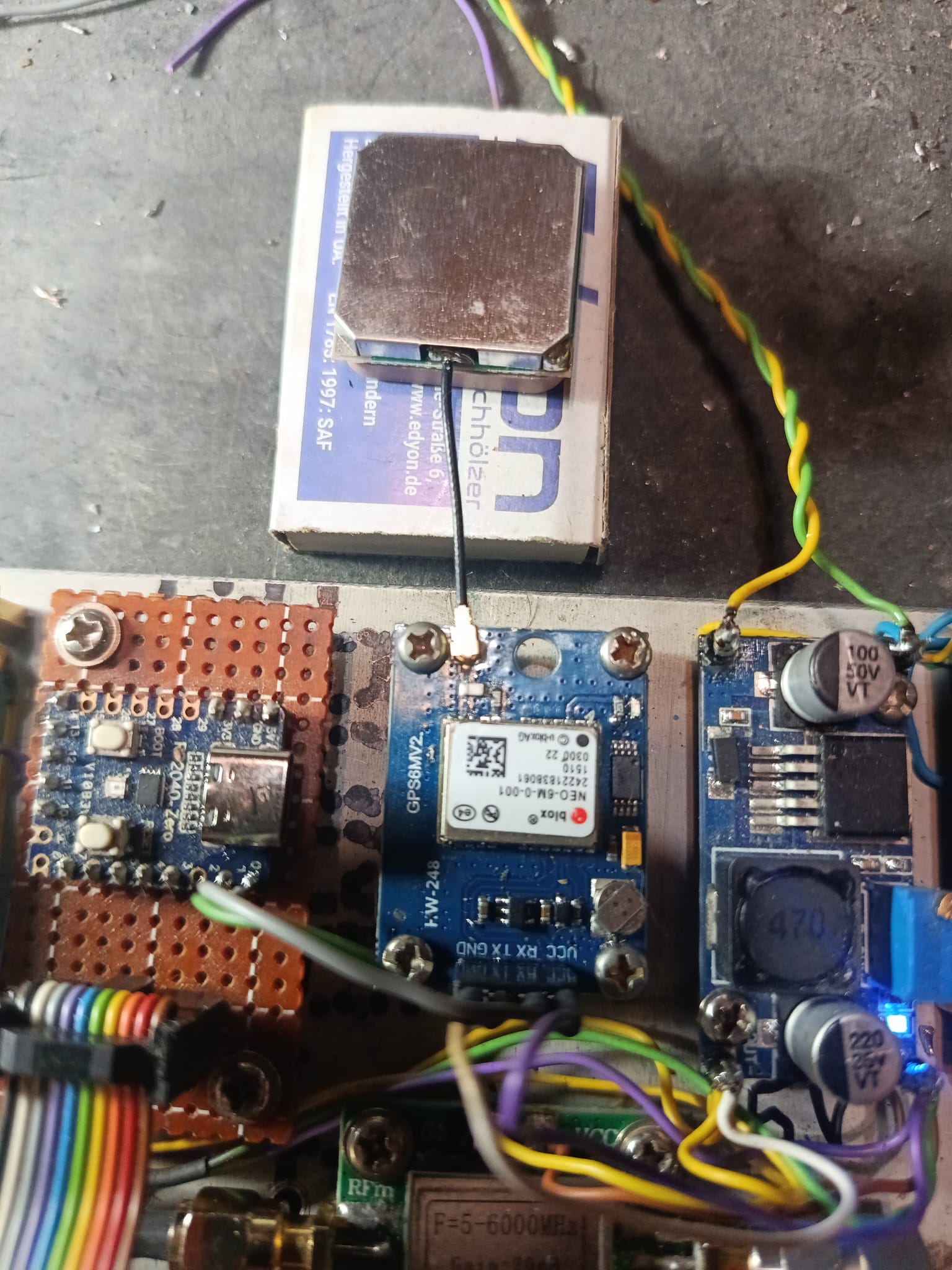

   JT4G needs very accurate time periods, a GPS controller was added



   Beacon work progress July 2026

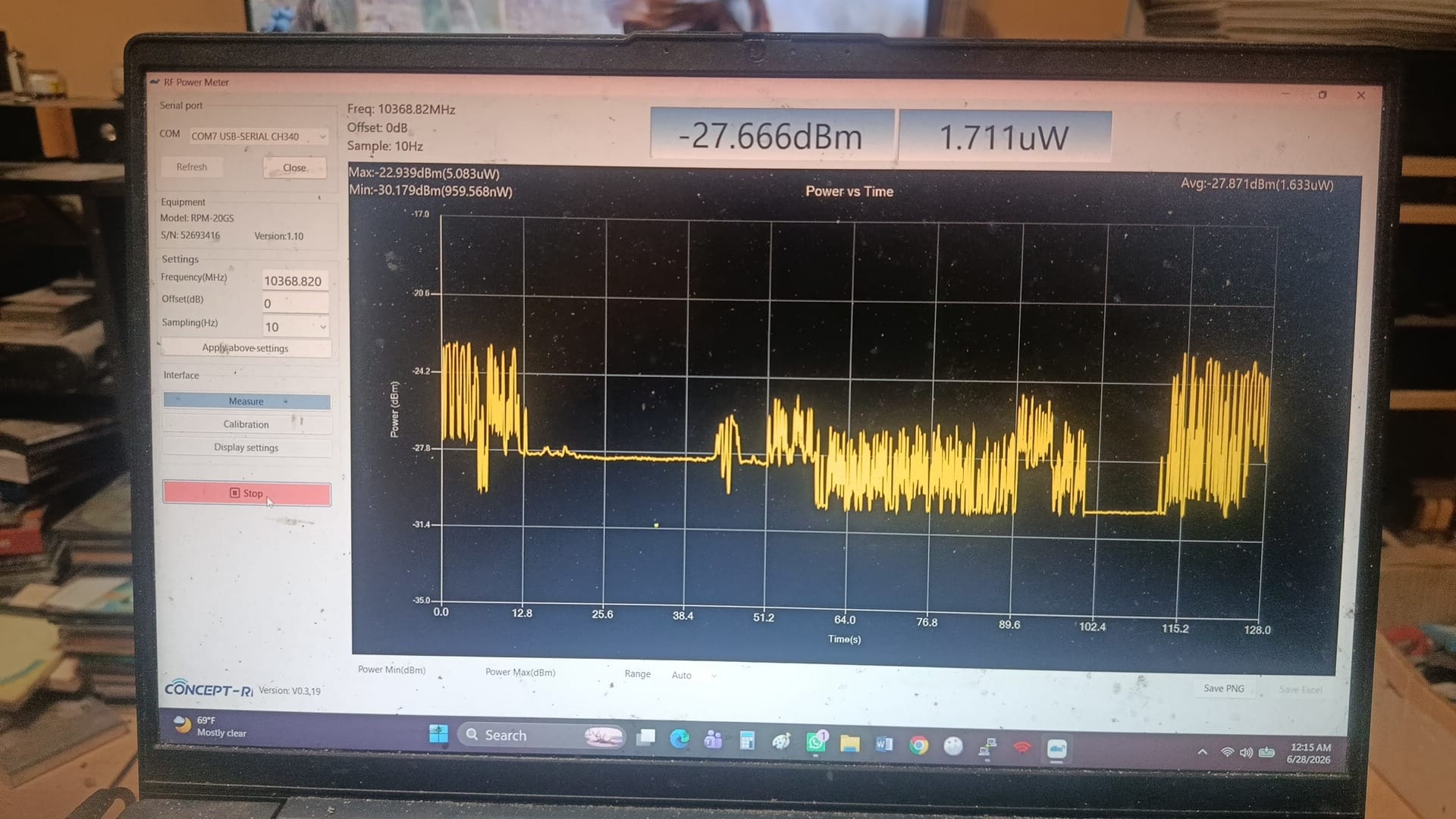

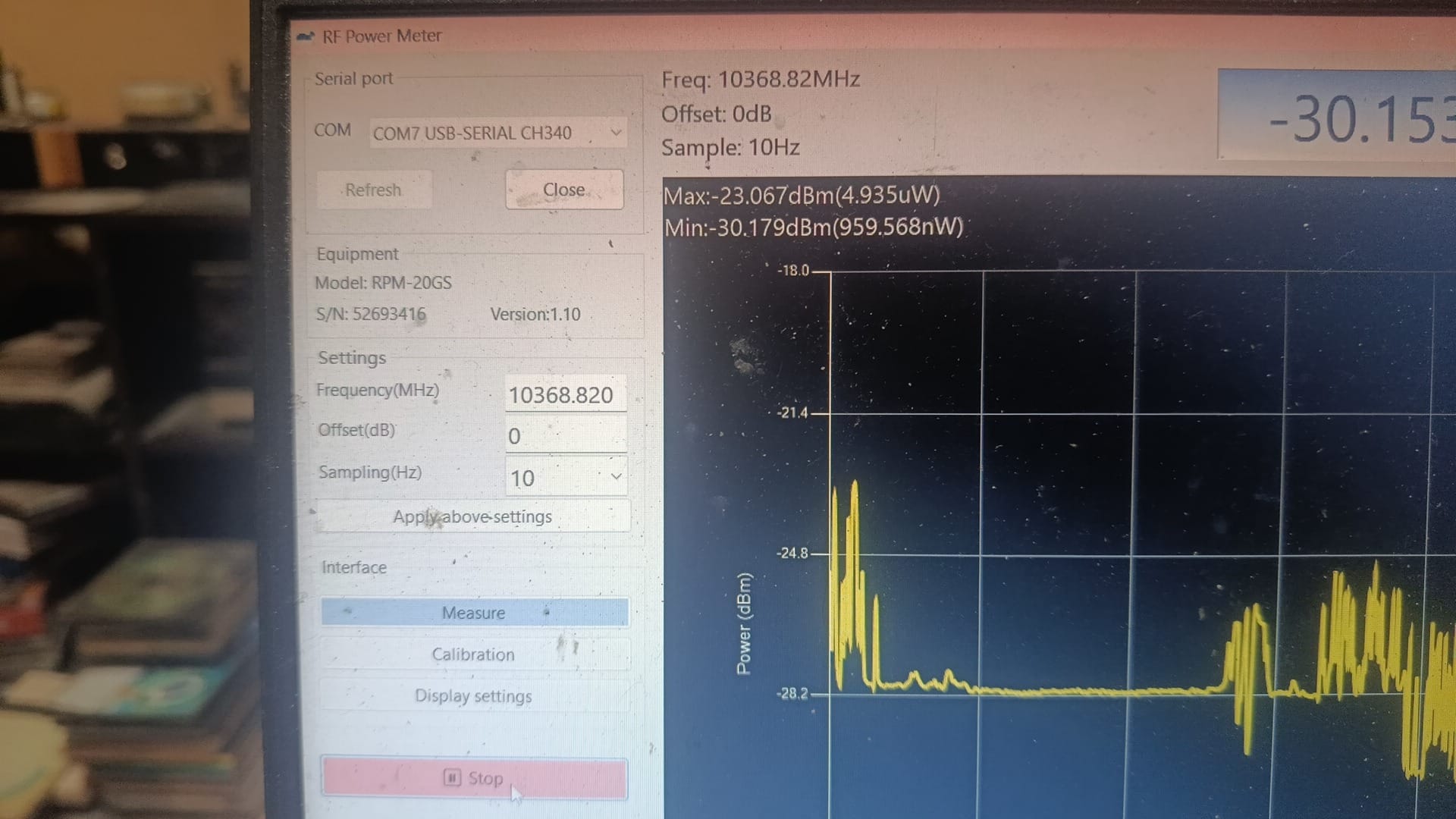

   Signals at 10368.820 MHz





   project under construction
