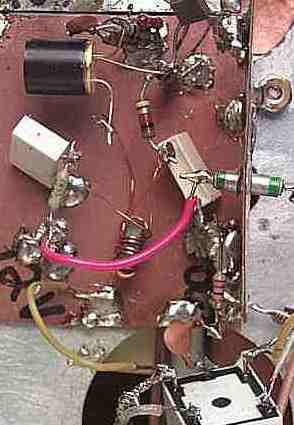

Post-mixer Amplifier Picture

The relay at the bottom of the image switches the output to one of the crystal filters.

Output is right above the relay through a 6dB Pi-network resistive pad.

The large white rectangle objects are ceramic capacitors (.01s) which I had on hand when the circuit was built.
