Service BulletinAmateur Radio Division

Subject: TS-430S - Intermittent PLL Unlock in FM/AMDate: October 17, 1984

Some owners of the TS-430S have reported intermittent loss of transmit and Receive when operating in the FM or AM modes, along with a loss of the digital display.

The cause of this may be due to a loss of the FM/AM Heterodyne Oscillator signal. Replacing the components listed below will correct most instances of this failure.

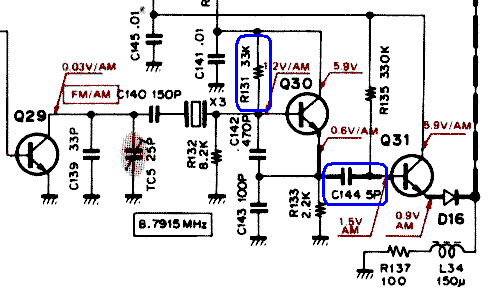

On the Control Unit (X53-1290-XX) change R131 to a 22 K ohm 1/4 watt carbon resistor, and change C144 to a 3 pF 25v Disc ceramic capacitor.

Time required for this modification is 30 minutes. No realignment is required.

©1984 Kenwood U.S.A.
