Service BulletinAmateur Radio Division

Subject: TM-732A - Protection of Q201 in 430 MHz UnitDate: June 28, 1993

Q201 the first RF Amplifier in the 430 MHz unit fails at random.

Corrective Action:

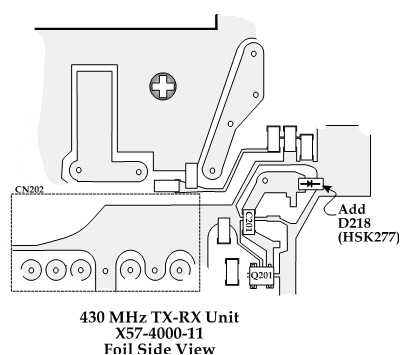

Addition of diode D218 in parallel with diode D214 in the RA line provides increased surge protection for Q201.

Parts Required:
Kenwood Part No.
Circuit Description
1 Diode HSK277 D218
This modification requires soldering equipment rated for CMOS type circuits. It also requires familiarity with surface mount soldering techniques. If you do not have the proper equipment or knowledge do not attempt this modification yourself. Seek qualified assistance.

Time required for this modification is 30 minutes or less. Service code A:18 B:X57-4000-B4 C:D218 D:91

©62993 by CLM for Kenwood Service Corporation (E51-93-029)
