JTDX & Image Controller Easy Software
- Send and Receive Images Using FT8 Mode -

- Basic Overview -

   Using JTDX and the Image Controller Easy Program you can Tx/Rx images using the FT8 mode. Most images are Tx/Rx on the 20 meter band at 14.075 USB. The JTDX program will decode all RX image signals as HISCALL/IMAGE in the decoded box along with other FT8 Signals. The Easy program then displays the image in the RX Tab. You can TX your image using the Tx-Hybrid Tab as YOURCALL/IMAGE for others to Rx. I also use a SignaLink USB soundcard interface between radio & computer. (Not needed if radio has interface built-in.)

- Click on Digital Photos tab above to see my last 30 images received using FT8 -


- Click to Enlarge Images -

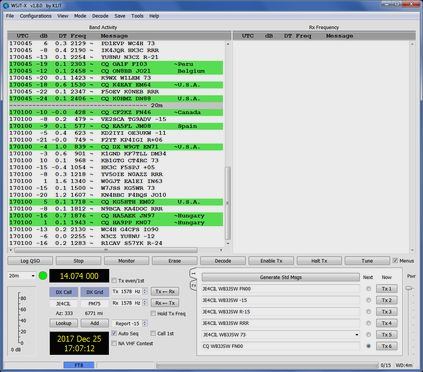

jtdx easy

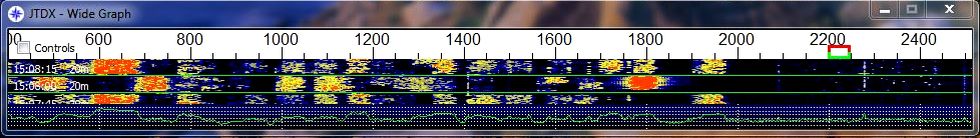

graph

Click HERE for Download & Help Files - Updated 1/14/2023
