Ceramic Capacitor Color Code
EIA Standard RS-198 MILITARY STANDARD MIL-C-20D |
![]() |
|
Stand-Off Capacitors
(EIA ONLY) |
||
![]() |
![]() |
![]() |
3-Dot Disc Capacitors
(RETMA ONLY) (Voltage rating is always 500 V., tolerance is always --0.) |
3-Dot Button Capacitors
(EIA ONLY) |
5-Dot Button Capacitors
(EIA ONLY) (Voltage rating is always 500 V.) |
![]() |
![]() |
![]() |
Feed Through Capacitors
(EIA ONLY) |
High Capacity Tubulars
(Insulated or Non-Insulated) |

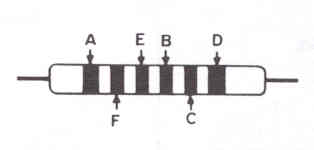

Temperature Compensating
Tubulars |
![]() |
![]() |
![]() |
Tubular Capacitors
(Voltage rating is always 500v.) |
Tubular Capacitors
(Old RMA) |
MIL Style CC
Rectangular |
Note: Styles CC-60 through CC-71 will be color coded here with Green = 500 and Brown = 150, working volts DC. |
Color |
Digits of
Capacitance (μμf) |
Multiplier
E |
Tolerance
F |
Temp. Coef. A
(Parts per million per °C.) |
||||
B | C | D |
10 μμf or
less (μμf) |
Over 10
μμf (%) |
EIA |
MILITARY† |
||
Black
Brown Red Orange Yellow Green Blue Violet Gray White Gold |
0
1 2 3 4 5 6 7 8 9 --- |
0
1 2 3 4 5 6 7 8 9 --- |
0
1 2 3 4 5 6 7 8 9 --- |
1
10 100 1000 10,000* --- --- --- 0.01 0.1 --- |
±2.0
±0.1 ±0.25 --- --- ±0.5 --- --- ±0.25 ±1.0 --- |
±20
±1 ±2 --- ±5 --- --- --- Gray ±10 --- |
±0
- 33 - 75 -150 -220 -330 -470 -750 +150 to -1500 +100 to -750 --- |
±0
- 30 - 80 -150 -220 -330 -470 -750 --- --- +100 |
