Here are some pictures
of the WA3UMY 443.05 MHz remote base
repeater system. These were taken in December 2001, just prior
to the addition of the new IRLP repeater linking hardware.

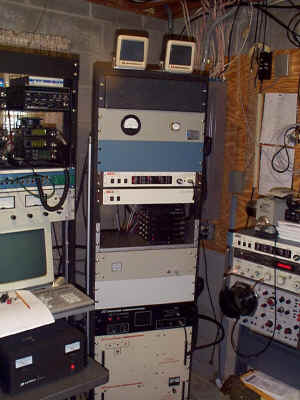

Picture of the full repeater rack (center).
View of the Celwave 6-cavity duplexer (top), Bird power
monitoring panel (middle) and the RC-850 computerized
repeater controller and digital voice recorder (bottom).

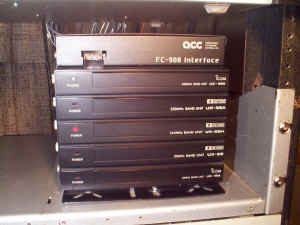

View of our five ICOM IC-900 remote base transceiver modules
(right side of shelf) with the ACC FC-900 digital interface sitting on top.
Here is a closer view of the five ICOM IC-900 remote base transceivers
that make operating on the WA3UMY 443.05 MHz repeater so much fun!
View of the Spectrum 30-watt repeater (black unit at top of picture),
100 watt power amplifier (middle) and two 30-amp power supplies (bottom) which
supply power to the amplifier and remote base transceivers respectively.

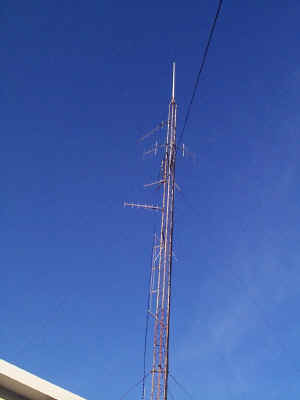

View of the WA3UMY 70-foot tall antenna tower with the
Celwave 443.05 MHz Super Stationmaster antenna on top.
