Inside Bottom of R-390A

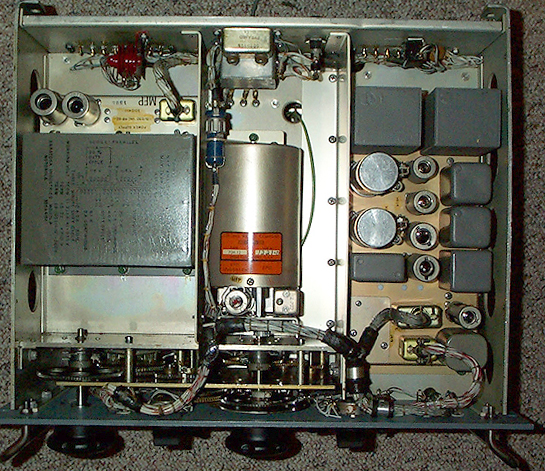

Inside the bottom of the R-390A

Visible is the power supply with it's two 25Z5W rectifier tubes and power supply on the left and the Collins made PTO in the center. This radio is so clean you could eat off it !
