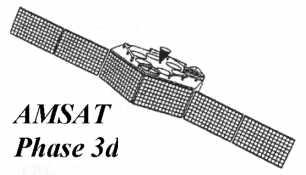

Phase 3d will weigh 1100 pounds at liftoff and have a wing span of 21feet,
deployed solar panels, and will be 3 axis stabilized, a first for amateur satellites.
The solar panels will generate 600 watts of power.


Band   Analog Uplink Freq.      Band   Analog Downlink Freq.
H      21.210 - 21.250          V      145.805 - 145.990
V      145.800 - 145.990        U      435.475 - 436.200
U      435.300 - 435.800        S      2400.225 - 2400.950
L      1269.000 - 1269.500      X      10451.025 - 10451.750
L      1268.075 - 1268.575      K      24048.025 - 24048.750
S      2400.100 - 2400.600
S      2446.200 - 2446.700
C      5668.300 - 5668.800


Band  Digital Uplink Freq.      Band   Digital Downlink Freq.
V     145.800 - 145.840         V      145.955 - 145.990
U     435.300 - 435.550         U      435.900 - 436.200
L     1269.000 - 1269.250       S      2400.650 - 2400.950
L     1268.075 - 1268.325       X      10451.450 - 10451.750
S     2400.100 - 2400.350       K      24048.450 - 24048.750
S     2446.200 - 2446.450
C     5668.350 - 5668.550


Band   Beacon-1Freq.   Beacon-2 Freq.
U      435.450         435.850
S      2400.200        2400.600
X      10451.000       10451.400
K      24048.000       24048.400

Notes:29.330 is used for Digitized Voice Bulletins.
      Any uplink band can be matched to any downlink band.
      All downlink freqs are inverted from the Uplink freqs.
