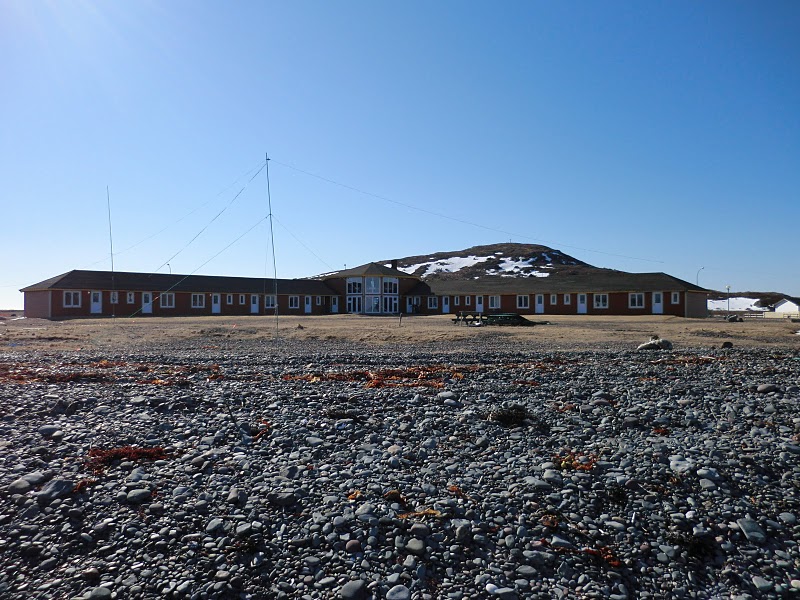

Motel Miquelon, with my antennas as seen from the beach before the snow
storm. The 30 foot mast, ( 3 ea 10 foot fence poles) in the
foreground held the dipoles, and the Steppir vertical is closer to the
building with the radials held down by rocks (like seen in the
foreground) on the ground. The fine resturant which I ate all my
meals is in the center, and the rooms extend to the sides I was in the
farthest room on the left, which is room 5. The beach had no sand
only the rolled rocks you can see, but they were multi colored, and
interesting to look at.
Here is the running blog from the trip the I kept as often as time
permitted each morning when the propagation was low and just after
breakfast. Once the bands started opening, there was no time for
anything inbetween the pile-ups. It was so much fun, I did not
want to leave.
Updates
I will be spotting Fldigi on PSK reporter
Watch for me on the DX cluster
RTTY frequencies planned are 1.830 3.590 7.040
10.139 14.090 18.103 21.075 24.910
28.090 plus or minus any other activity
Since I am using Fldigi with the Signal Browser for RTTY, I can see at
least 2.5Khz of spectrum so there is no need to call me at exactly the
same place the last contact was made, please spread out a little, so
your callsign can be decoded by the browser. I will move my
receiver when needed, but I will be looking for calls in the clear that
decode easily anywhere within my 3Khz passband. Once I have your
call, I may have to narrow the filters down on the IC-7000 to get your
report, but that is easy with the software and the continuous range of
DSP filtering. I hope this technique will help get contacts with
as many of the deserving as possible. I have already found the
dynamic range of my laptop sound card leaves much to be desired for
these kinds of modes compared to my normal base station computer, but
it will work, and add some to the dx flavor of this trip.
I may also try some PSK63 or PSK125 at the top of the PSK segment to
see if there is any interest if RTTY gets slow.
12 March -- Everything Packed and ready. Travel tomorrow
morning to Hailfax and wait for Monday flight to St Pierre. Hope
the Weather holds out.
13 March -- Arrived in Halifax today, all the equipment made it this
far safely, although TSA left a calling card in each suitcase after
rummaging through them. I guess they are not used to Ham
equipment going on a dxpedition and needed a closer look at it. I
will depart for St. Pierre tomorrow at noon, and hopefully get on the
Miquelon plane in the afternoon. The weather is predicted to be
good most of the week.
14 March -- Arrived in St. Pierre, but the onward flight to
Miquelon was cancelled because of weather. so I am delayed here until
tomorrow morning's boat trip over at 0800. I had a good
meeting with Jean-Pierre, FP5CJ this afternoon, so the time was well
spent discussing antennas and DX. For now it looks like it will
be later tomorrow before I can get any antennas up in the air, and
become active on the bands, so stand by just a little longer. If
it is a nice day as predicted, I will try to get both the multi
dipoles, and 160M antennas up as well as the Steppir vertical up before
the weather turns bad again. All the equipment is still with me,
and no problems at all, (other than the expected overweight charges),
but the Pelican case is becoming scratched up from other folks luggage
banging against it in transit. I see the daily SSN is still
dropping down to 64 today, so the higher bands may not be as productive
as last week, but should still have some openings.
15 March -- Ok, I made it to Miquelon this morning, and am now on
site and working on putting up antennas. I should be on the air
later this afternoon or this evening depending on how fast I learn how
everything works, and how many times I have to come back inside to warm
up. It is cold and windy outside, but sunny, so not as bad as it
could be. I updated the frequency list a little last night,
and will see how it goes as I get started, it may change depending on
conditions. I will update here later today when I am ready
to start.
Explanation here-- My equipment arrived but all the data
interface boxes and cables did not, so a scramble ensued to get RTTY
going.
16 March -- Starting to work through this. Have got audio going
to the radio now, in a fashion both directions, but no PTT yet.
So I am clicking the mouse, and holding the microphone button, while
keeping as quiet as possible for the rtty contacts. There
was a very nice test run of about 20 lucky folk around 0500 that were
calling me and I sort of got coordinated enough with the macros to
answer and get them in the log. Tomorrow morning I will make a
trip to the local hardware store and try to pick up some RCA jacks and
some RJ-45 plugs so I can at least get vox ptt working on this rig, and
the RCA so I can get the amp running. If I have to I could
probably just stick wires in the holes, but I want to try to get the
right connectors if I can. This situation is not looking as
hopeless as it did a few short hours ago, I can work folk now, even if
it is ackward, and with low power for now. it will get better.
17 March -- Had a very nice RTTY run last night and this morning.
LOTW uploaded last night about 250 entries. Solved the PTT
problems, with Mic taped into an earphone muff for acoustic isolation
and using vox now. It seems to be working pretty well, but I have
the real interface box on the way, it arrived by special courior ( my
son-in-law, Mike) and is in St Pierre with FP5CJ today, waiting for
transportation to Miquelon once the weather clears up a little.
Once it arrives, I will then have rig control and be able to use the
filters to really deal with the pile-ups. The dynamic range of
the audio chip in this laptop leaves a lot to be desired when ever a
strong signal comes up, I lose the weak ones half way in the middle of
a decode, very frustrating sometimes, when I am used to just narrowing
the filters, and the weak ones just come back up. Right now the
internet is down again, so I am not sure when I can update this, but it
is up much more than it is down. It is very windy today and I am
looking at the antennas dancing in the wind, and the swr on the tuner
going up and down, sometimes triggering a retune, but not to
often. The Granite States Cobra Ultralite Senior has worked great
it is loading on all bands with the AT-600 even with my less than
successful experience testing it before I left home. It is
not a 4 square on 160, or even resonant, but it has made a few qsos so
far, on what seemed to be a dead band. I had a real good run on
12 this morning. One comment, when I am using the browser to
select your signal, it is easier to decode if you send a call at least
3 times so I can have time to find you and then decode the last
one. Once I have it decoded correctly it goes fast. My plan
for today is to stay as high in frequency as I can and work my down as
the sun falls, once I find activity, just stay there until it drys up,
and then look for more. Breaks only when necesary.
20 March -- Received Plug n Play interface unit by Special Courier on
the boat from St Pierre 18 March, and with a little surgery have it up
and running with rig control now, and am ready for BARTG this
weekend, I plan to do S&P at times and the rig control was critical
for that type of operation. I had a good two hour run on 10
Saturday, and hope to get an opening today. So far nothing has
been heard up on 160 RTTY although I did work a loud cw station just to
make sure the antenna was working. I have been on the air almost
from wake up to bed time with the exception of meals and this is the
most fun I have had since fishing in Alaska several years ago. I
need to do this again. I will try 160 again just before I turn in
around 0100 or later, so if you hear a RTTY signal, please give me a
call. I will be working on the 160 antenna to see if I can
improve it tomorrow after the BARTG contest. All logs so far are
up on LOTW and you can check down at the bottom with ClubLog to see if
you are in. Sign up for LOTW, paper QSL's are going to take a
while. No one has asked, but I will send the log to eqsl once I
am finished and get a card designed and printed. Surprise, the
sun is out today, but the wind is still blowing hard, this weather is
hard on antennas!
21 March -- Because of the delay in getting started, I have
decided to extend the trip until next Sunday 27 March when the next
opportunity to leave is available. So there will be flight
schedules to change but more opportunity to QSO. The bands do not
seem to open here until the sun had come over the horizon, at least for
RTTY, I can not find any one to qso with. So far everything is
working fine, and BARTG ended well with over 400 qso's many of
them with counter number 001, just for the contact I guess. A
little drama working on simplex contest, but it was a lot of fun.
This next week I will concentrate on maximum qso's and encourage
everyone to please read the DX'ers code of conduct, just a few that do
not listen, spoil it for many others. See you on the bands
somehere near my announced frequencies.
22 March -- Well Murphy is doing well here on Miquelon. Last
night as I was about to upload the logs, the internet went down and
stayed down all night. A couple nights ago I smelled something
bad from the tuner, but the pile-ups were busy, so I did not have time
to investigate until this morning, and I found that I have cooked one
of the toroids in the AT-600pro. It still works, but
smells. Not sure what happened, but many possibilities including
operating on an antenna port without an antenna in the heat of
battle. So while I still have one low power antenna tuner left,
the Z-11 pro, it was meant for barefoot operation, and was planned for
backup if I lost the amp and the AT-600. So plan for today, is
after lunch to build a resonant 40, 80, and 160 dipole that will not
need a tuner to put up for tonight. I have not been able to get
the Steppir to tune on 40 yet, and each time I try, it loses tune for
all the other bands, so I have not enough experience with it to
understand what I am not doing right. So a dipole is simple, and
within my technical capability to build this afternoon, all the parts
are here. Here is a tuner picture, you can notice the tororid in
the lower right hand corner is very discolored, that is from getting
hot. In spite of all, I am having more fun than I have had in
years, I just love being on this side of the pile-ups. It is so
much fun.
23 March -- Good activity on 17 this morning, and disapointed in the
low frequency antenna work from yesterday. They are not resonant
where I need them to be and without an antenna analzyer, it is to cold
to be pruning them with the rig as the analyzer, so without the tuner
working, it was much less than satisfactory at power. So I ran
barefoot, but for RTTY, everything gets pretty hot with high swr pretty
quickly, and so, just not good yet. Time will tell if it gets
better. There are not many stations on the low bands to talk with
that are in range I can hear even, I have listened on 160 just before
going to sleep, and have not heard any, and just a few cw
signals. SSN is coming back up as the sun continues to rotate
back to last weeks activity area, so as the week progresses, it should
get better. It is Wed already, only three more operating
days after today, then pack up and head back. Time is starting to
fly.
26 March -- Blinding Snow storm hit yesterday. Sidways snow
coming down so fast i could not see the antennas 15 feet in front of
the window at times. Still blowing snow today, but I do not think
it is still coming down, just blowing around. Not that much on
the ground, I think it all blows into the sea just a hundred feet from
me. I am really hoping it is gone by tomorrow morning when I have
to take the antennas down. Radio conditions are improving, many
contacts are being made around the world on all the bands except 160,
because of the cooked tuner mentioned a few days ago. Uploads to
the Log book of the World are going well each night and it is showing
58 countries confirmed as of last night. Everything else holding
up, and packing will begin in the morning. This week has gone by
so fast, and the memories will last forever. This has been the
most fun I have had for years, although i am very tired from so many
hours on the bands, I know after tomorrow there is no more of this, so
get it while I can. I may stay up longer tonight than ususal, and
plan to sleep on the boat back (if the snow does not interfere with
it's schedule).
27 March -- Now QRT -- Antennas coming down today, packing and
travel on the boat planned for today. This has been the most fun
I have had in as long as I can remember, thank all of you for the many
RTTY contacts, I hope everyone had a chance for qso with FP during this
trip, and as the sunspots rise, there will be other opportunities, I am
sure. The pile-ups were fantastic from this end. All
the logs have been uploaded to LOTW and ClubLog, and there will be a
correction upload for the fixes I discover once I return. All the
Paper QSL cards will be designed and printed on return and sent out as
time permits, and buro cards will be returned when received and as time
permits. LOTW is encouraged, as the fastest, and easiest for both
of us, but if you want a nice color picture paper card with
images of the trip, be sure to include a way for me to return it to
you, or it will have to go to the bureau.
