Receive only Antenna

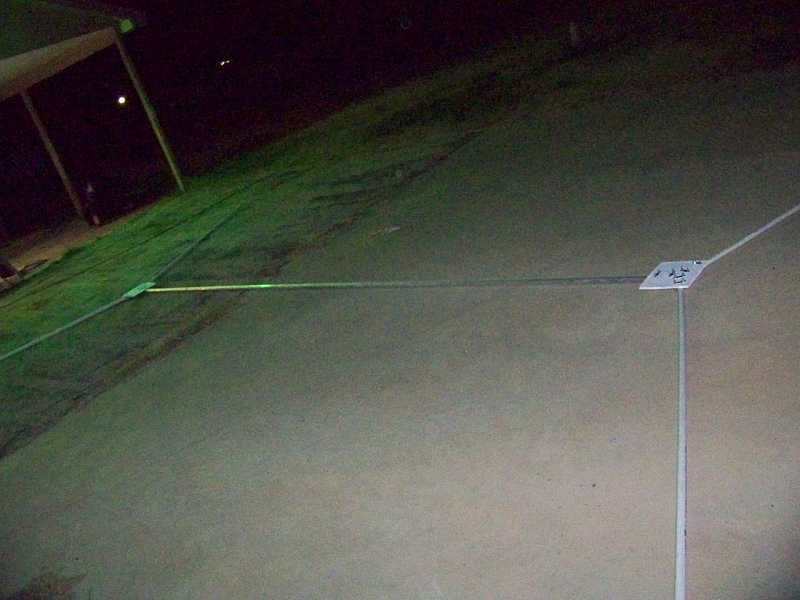

This first picture shows the support elements for flag

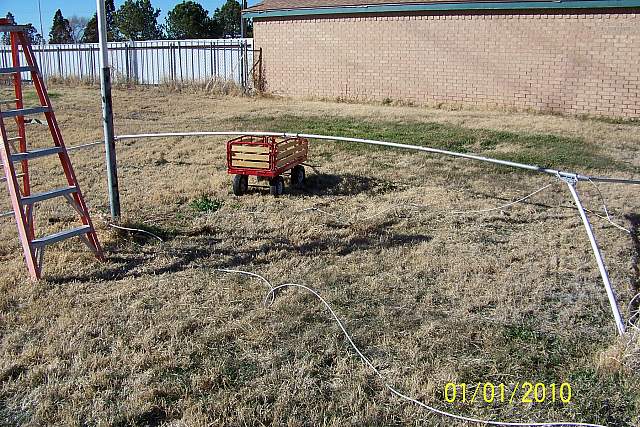

The assembled flag laying on the driveway
first Flag had a heavy duty and heavy 1" boom
plywood at each end with U-bolts to hold pvc pipes in place which are used as spreaders

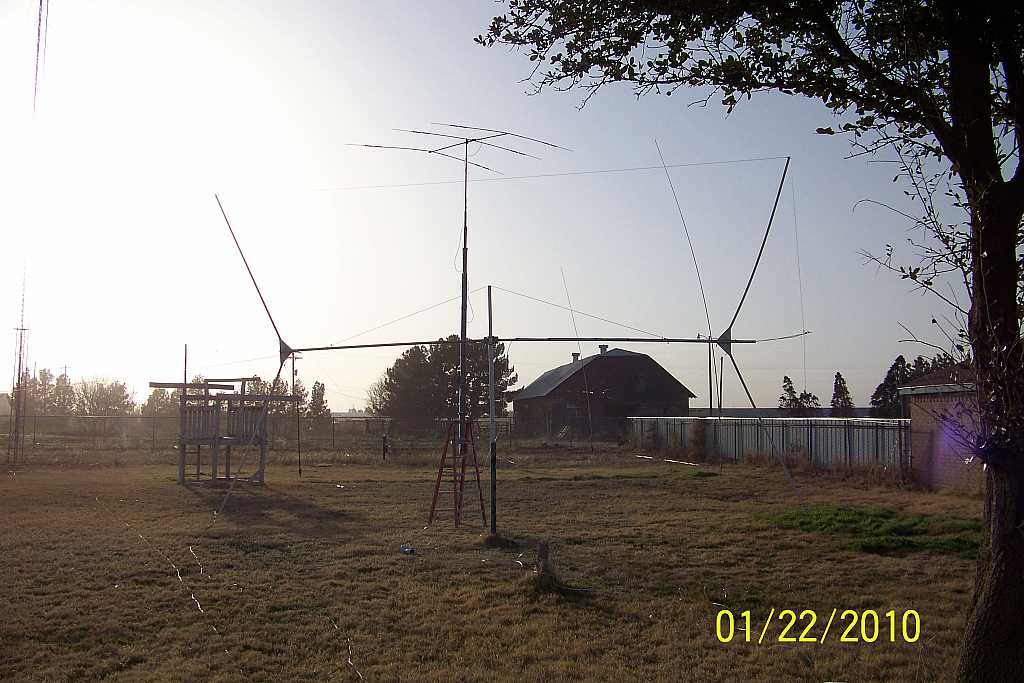

Post sunset
this is the only picture I have of the plywood spreader version installed
a wind storm a few weeks after the flag was up busted one of them
and the Flag was taken down for a rebuild
New AL end plates with U bolts
(TNX JT for AL plate!)
The reassembled antenna ready to be put up on mast
Flag is installed without boom supports first
after week - the flag comes back down,
wire is removed and reinstalled to get everything in right alignment
boom guys added and goes back up
Rebuilt Flag has lighter 1 1/2" boom, Al plates to support the U bolts, carbon based termination resistor
Again a wind storm in progress on these last two pictures
The Flag was raised once the wind slowed

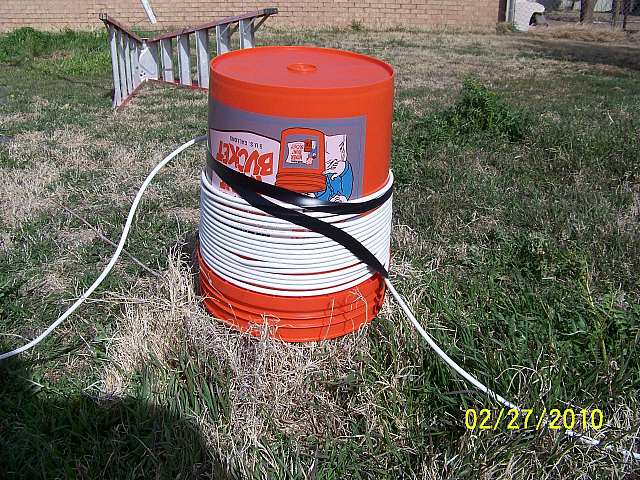

160 meter coax balun
have fun and GL with the DX
