Let us get down to the nitty-gritty now:

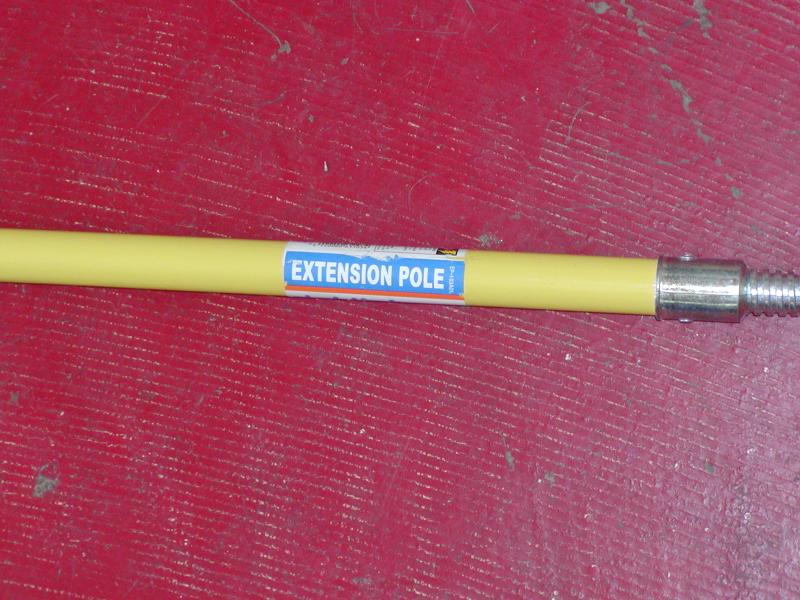

painter's 6ft. pole
|

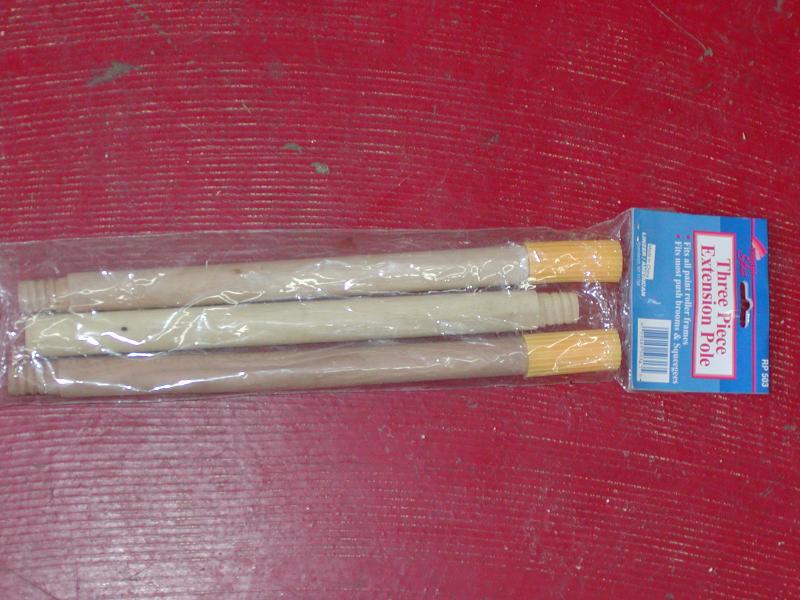

extenders plus couplers
|

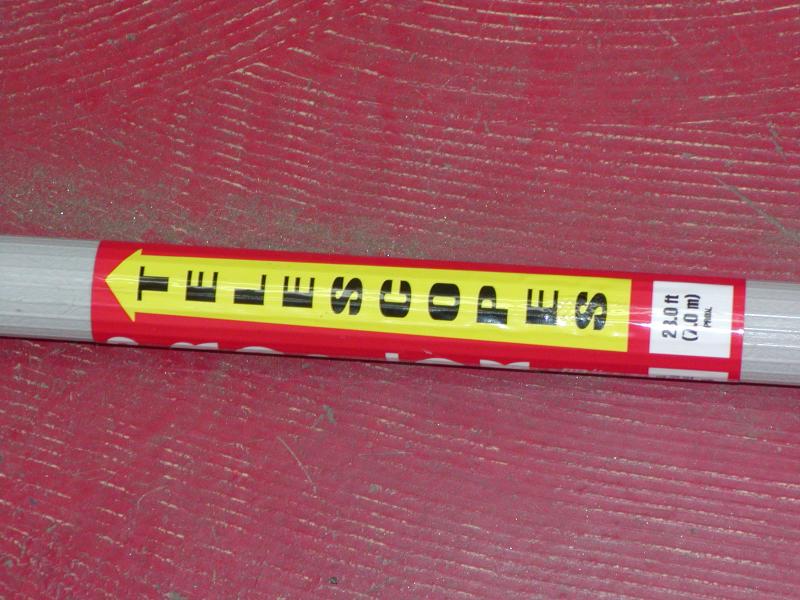

painter's 23ft. pole
|

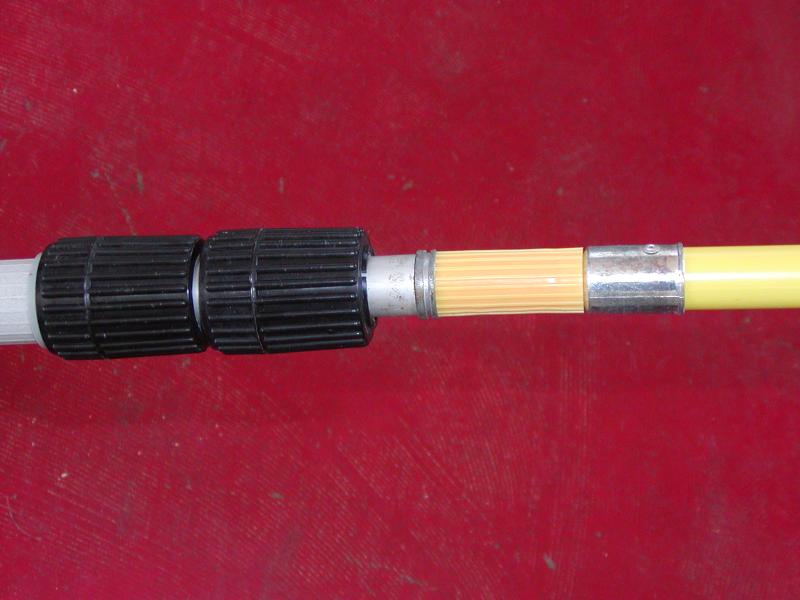

Coupling 6ft. to 23ft.
|

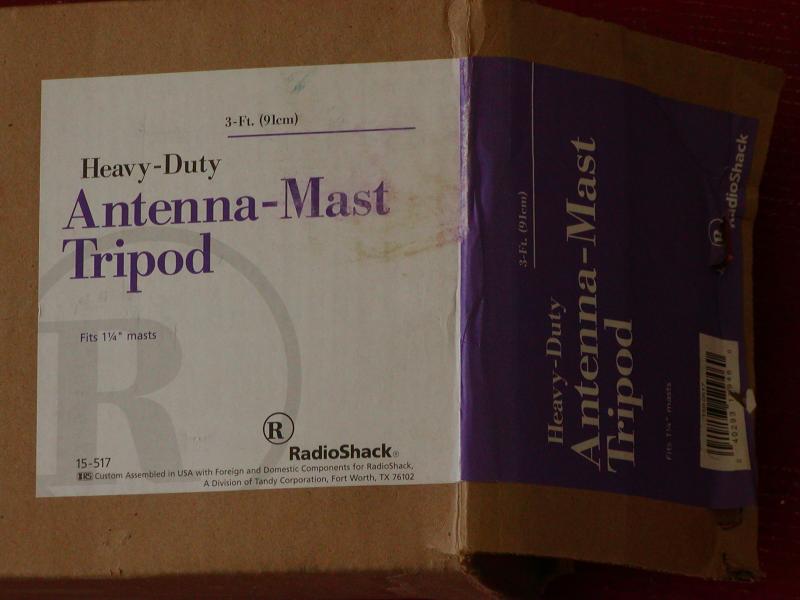

Tripod
|
Pole being held
|
Tripod details
|
Pole in tripod
|
Windy Day
|

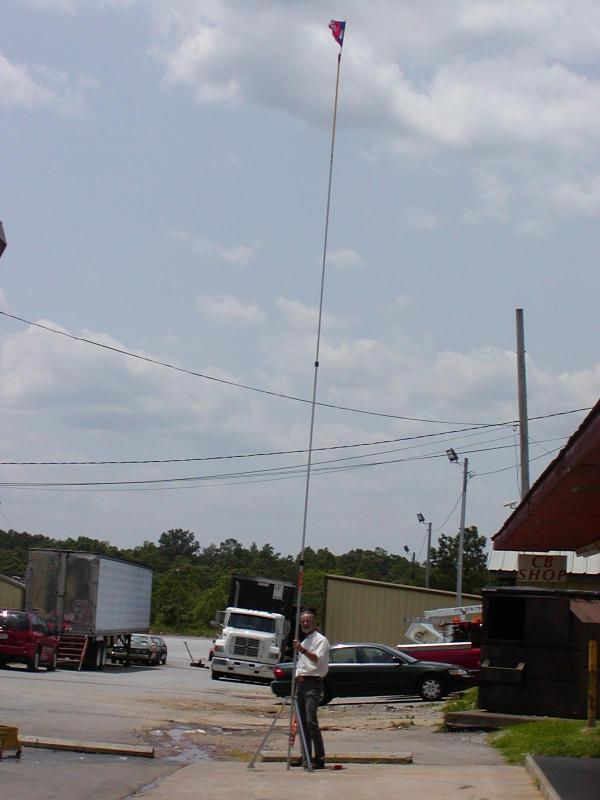

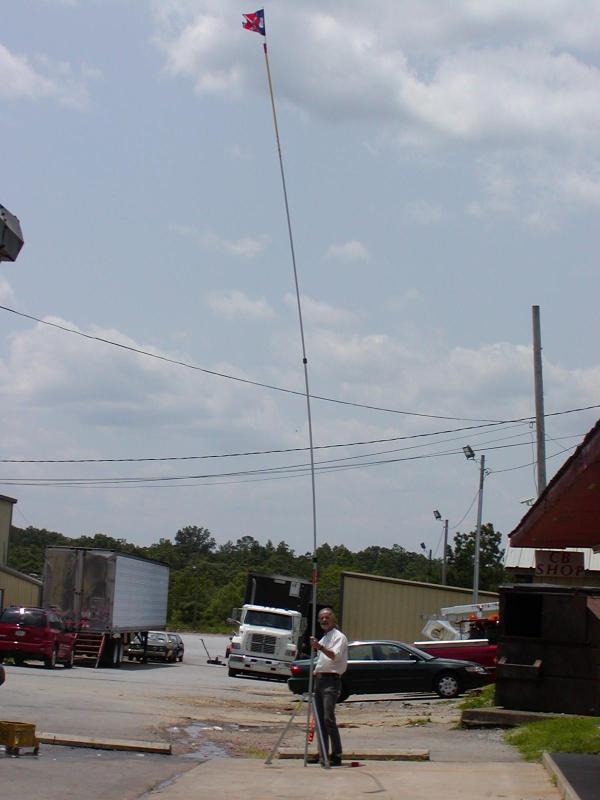

Pole fully extended
|
As you can see, the 6ft. pole combined with the 23ft. pole can stick the antenna(s) up very high, almost 30ft. if the base of the pole is set on the ground. (even higher if set in the tripod middle)
On a windy day, one can either 1) guy off the mast using rope and stakes (or bricks), or 2) shorten the mast. This arrangement is great when no antenna supports are possible, like when a hurricane flattens an area.
As a last note, the tripod can be mounted on a platform or other arrangement to help stablize the mast.
