PRESIDENT'S MESSAGE
Happy Holidays to all. As many of you I have been under the weather for a while and finally got released from the hospital the day before Thanksgiving. I came home from NY Presbyterian in a stretch limo, wearing a pair of summer shorts, a hospital gown and bare feet, in a snow storm. Walking to the limo, no one on the streets of Manhattan gave me a second glance.
I would like to thank all of you that called or sent cards, it's uncanny how they arrived just when I needed a pick me up the most. I am trying to get the ball rolling on the repeater replacement, by the time you read this it should be ordered and being built. I have also talked with K1FC and N1AWJ about getting the machine back up at higher power level.
Happy New Year, and I hope to be strong enough to attend the January or February meeting
Andy.

REPEATER COMMITTEE MEETING
Due to the inclement weather on December 5, our meeting/holiday party had to be cancelled, therefore there is no meeting minutes to report. We hope that the weather will be more cooperative for the January meeting. On Tuesday December 10, the Repeater Committee met at Andy's (KA1SLG) house. Present were Ernest, KA1NGG, Mike, N1FOA, Andy, KA1SLG, Fred, K1FC and Marv, N1AWJ. The meeting centered on the selection of the repeater and accessories as well as the type of duplexer to purchase. The committee reviewed several manufacturers of repeaters and selected a VHF Hi Pro Repeater by Maggiore Electronic Lab. The repeater's output power is 35 Watts. We have not selected a power amplifier as yet, but plan to in the near future. The repeater comes complete with a controller (with full autopatch, speed dialing, voice ID and PL decoding functions) but requires an external power supply. We selected the MFJ 40A switching power supply for its compact size, low weight and reliability. Purchase of the repeater and duplexer will have been made by the time you read this report. A full report on the repeater will be made at the January meeting.
Marv, N1AWJ

ASK ELMER

Dear Elmer,
All of the radios that I have use a Phase Locked Loop Frequency Synthesizer for tuning. I can easily understand the crystal
oscillator controlled radio, but how can a single quartz crystal produce all of the discrete frequencies needed to tune my radio.
Signed Puzzled.

Dear Puzzled,

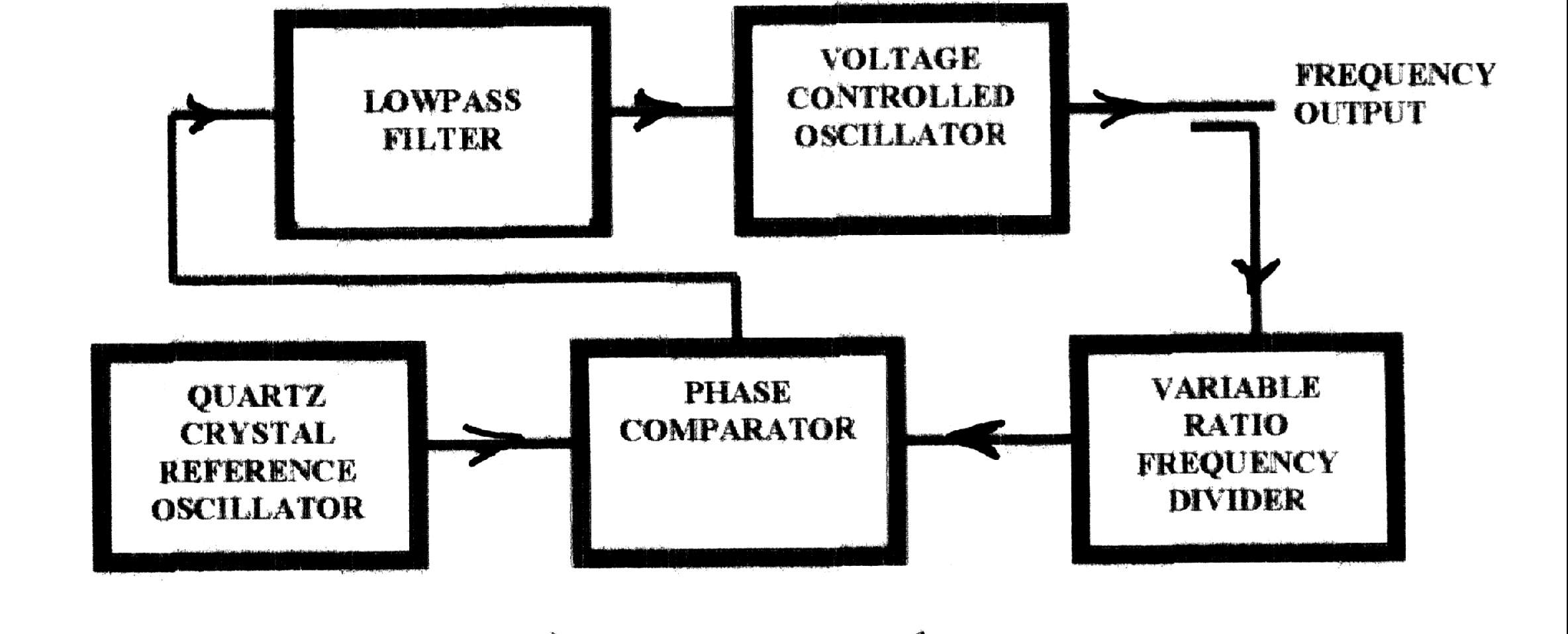

The principals of the Frequency Synthesizer were developed early in the 1950's. Over the years they have been refined and appear in many, if not most, of the communications and entertainment devices we use today. The basic principal on which the Phase Locked Loop (PLL) Frequency Synthesizer is bases upon is signal feedback, comparison and error correction. Below is a block diagram of a simple PLL Frequency Synthesizer.

To understand its operation, we must understand the operation of each block independently, and then as a system. The first block we will discuss is the “Voltage Controlled Oscillator” (VCO). This is a free running variable frequency oscillator operating at the desired frequency range. As an example, if you wanted to operate on the 15 meter band, this oscillator would have a frequency range of 21 MHz to 21.45 MHz. The way the frequency would be varied is with an external voltage using a varactor, rather than a mechanical variable element (such as a variable capacitor or inductor).
The oscillator would be defined by it's “Transfer Characteristic” which has the units of MHz/Volt. As an example, the 15 meter unit might have a transfer characteristic of 0.45 MHz/V. This means that 1 volt will change the oscillators output frequency over the full 15 meter band. The next block is the “Variable Ratio Frequency Divider”. This is the block that controls the tuning of the entire synthesizer. We won't go into details of how a divider works, but the divider is a digital circuit which is capable of dividing the frequency of the VCO by any number (including a fractional number like 1/213.5). The division ratio is selected by the tuning dial of the radio. Instead of it being marked in division ratios, it is marked in output frequency. The next block is the “Phase Comparator”. The circuit of this block can be similar to a diode balanced mixer or a digital circuit with a similar function. The purpose of this block is to compare the phase difference between 2 frequencies and produce a DC voltage proportional to the frequency and then the phase difference. Its transfer characteristic is in Degrees/Volt when the two frequencies being compared are within 1 Hz of each other. The “Reference Oscillator” block is generally a precision crystal oscillator at some sub-multiple of the Synthesizers output frequency. Its frequency is chosen so that the demands on the variable ratio frequency divider are kept to a minimum. As with anything in electronics, compromises have to be made between the complexity of the frequency divider and the output frequency of the reference oscillator. For our discussion we will not go into the details of the compromises, as the choices will be left to the system designer. The most important requirement for the reference oscillator is that it be very stable and its output signal have a very low phase noise. We hear the term “phase noise” frequently, but many do not understand what it is and why is it important. Without going into a very long and overly technical discussion, all electronic components have associated with themselves electrical noise being generated by the random motion of electrons. In oscillators, this noise modulates (like in your FM and AM transmitter) the output signal in a random fashion. The ideal oscillator would Have an absolute unvarying output frequency. Phase noise FM modulates this signal causing it to jump around in a random fashion. The greater the phase noise the more the frequency jumps around. Intuitively, you can see that if the frequency jumps around, reception and demodulation of the signal to obtain its message becomes increasingly difficult. Ultimately, if the phase noise is great enough the signal disappears into the noise and cannot be recovered. This is rarely the case for amateur communications except in EME and other weak signal transmissions. Needless to say, the lower the phase noise the better the signal. One characteristic of phase noise is that when you frequency multiply a signal, you also multiply its phase noise proportionally. This is one of the considerations in choosing the reference oscillator frequency for a synthesizer. The last block we will discuss is the “Low Pass Filter”. This is a very standard resistor capacitor low pass filter circuit, though in some implementations it can be an electronic filter using an operational amplifier. Its function is to remove any of the high frequency noise components from the output of the phase detector, as well as control the response speed of the system to external noise, and other instabilities. Without this filter, the circuit would probably be very unstable. A good way of visualizing the function of the filter, is to think of a weight, at the end of a spring hung from the ceiling of your room. If  you were to pull down on the weight and release it, it would oscillate up and down for quite some time. If there were no losses in the spring and no air friction, the weight would oscillate forever. If, you would do the same experiment in a room filled with motor oil, the weight would not oscillate forever, but would settle down fairly rapidly. The low pass filter acts like the room filled with motor oil, to get the system to settle down to its steady state condition rapidly, and essentially stay there until something pulls the weight again. The only other item I wish to mention is that strange symbol (two parallel lines) at the output of the VCO and connected to the frequency divider. This is the symbol of a signal sampler. Its function is to sample a small portion of the output signal and send it to the frequency divider.
Well Puzzled, I think you will have to remain so until the next issue of the SQUELCH BURST.
Until then,
73 and a Happy New Year!
Elmer

Send your questions to “ASK ELMER”, c/o Marv Fleischman, N1AWJ, PO Box 113, Ridgefield, CT 06877 or e-mail to [email protected]. WE NEED ELMER QUESTIONS !!!!!!!!!!!
