February 2003 NJ “Islander” Pad Cutter While browsing the Internet, I came across a tool that seemed interesting and possibly valuable to those doing their own construction projects. It is called a NJ Islander Pad Cutter. It is a diamond coated tool that cuts a 5mm pad in PC board for construction of surface mounted large ( as compared to usual ‘surface mounted’ )components. The pads are located so as to mount the necessary parts and connect them directly or by leads to the various pads. It was developed by a QRP enthusiast but could be used for any small construction project. Besides proper layout, a drill press of some kind is required since there is no center pin for location and the unit will “walk” if no press is used. A Dremel tool is ideal for such use. Also, care must be taken that the cutter does not penetrate the board. A depth of 1/32 or 1/64 is adequate and can be set on the drill press. DO NOT attempt to hold the board and drill freehand– if the drill binds the board will rotate! All kinds of possibilities come to mind– such as using an inexpensive hot glue gun to fasten dip components to the board before drilling and soldering. I am not a salesman for this unit but it seemed worthwhile to share with others who may not have heard of it. The cost is $9.00 and it can be ordered from: George Heron, N2APB 2419 Feather Mae Court Forest Hills, MD 21050 (no credit cards– make check payable to George Heron, N2APB or pay electronically thru PayPal at [email protected]) (Dick,WA1VUU)
February 2003 ASK ELMER
Dear Elmer. All of the radios I have use a Phase Locked Loop Frequency Synthesizer for tuning. I can easily understand a crystal oscillator controlled radio, but how can a single quartz crystal produce all of the discrete frequencies needed to tune my radio? Signed Puzzled Dear Puzzled,

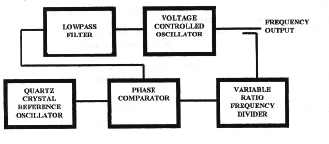

This month we will continue with the developing saga of the Phase Locked Frequency Synthesizer started in the December issue of the Squelch Burst. For reference purposes I will redraw the diagram of the PLL Frequency Synthesizer.
The frequency of the Quartz Crystal reference Oscillator is chosen based on the synthesizer's output frequency steps, so as to minimize the frequency divider's fractional division ratios as well as the range, response time and capabilities of the Phase Comparator and Voltage Controlled Oscillator. There are several other equally important considerations which we will not discuss at this time. When the Synthesizer is first turned on, the Reference Oscillator comes to its precise frequency (for our example this will be 10 KHz), but the Voltage Controlled Oscillator (VCO) can be anywhere within its operating frequency range. In our example anywhere between 21 MHz and 21.45 MHz. A sample of the VCO's output frequency is sent through the Frequency Divider, which happens to be set to a division ratio of 1420. The output of the divider is connected to one of the inputs of the phase comparator. The other input is connected to the reference oscillator. Any difference between the two input frequencies will produce a Continued on Page 5 February 2003 Page 5 ASK ELMER cont. voltage which would be varying at the difference frequency. This voltage would be smoothed by the Lowpass Filter and fed to the voltage control input of the VCO. This would cause the VCO to change its output frequency over its entire tuning range in step with the frequency difference. As the VCO's frequency varies, it approaches the frequency of the Reference Oscillator. As it does, its movement slows down (the frequency difference becomes less and less ) until ultimately the difference frequency between the reference and the VCO (through the divider) becomes less than 1 Hz. At this time, the output of the Phase Comparator will be a voltage, proportional to the phase difference between the two signals. Ultimately, the output frequency of the VCO will come to rest at one frequency, now determined by the Frequency Divider's division ratio and the Reference Oscillator's frequency. Since the Reference Oscillator is at 10 KHz, and the Frequency Divider is set to a ratio of 1420, the VCO's output frequency is at 1420 X 10 KHz. This equals 14.2 MHz. We want to operate at 14.25 MHz, so we move the dial on our radio to this frequency. This dial movement changes the Frequency Divider's ratio to 1425 from 1420. The Phase Comparator senses this change by outputting a voltage which varies at the new frequency difference. The operation repeats itself as previously described until the VCO settles to its new frequency. Voltage Controlled Oscillators are not the most stable devices. Their frequency tends to vary due to components changing their values from ageing, temperature changes, supply voltage changes, etc. It is the job of the Phase Comparator to quickly sense these small changes in frequency and generate a correction voltage so that the VCO's output frequency appears to remain unchanging. The rate at which it can sense and correct for these small variations is determined by the response of the Lowpass Filter. The response of the filter is chosen to permit the relatively slow variations in the VCO's frequency to be fully corrected, but to filter out all of the high frequency noise generated within the system, not related to the VCO. Any small change in the VCO's output frequency will be immediately corrected and the VCO will appear to have the stability of the Reference Oscillator, and still be able to change its frequency on command. I do hope this clears up your quandary. 73, Elmer Send your questions to “ASK ELMER” c/o Marv Fleischman, N1AWJ, PO Box 113, Ridgefield, CT )6877-0113 or e-mail them to [email protected]
