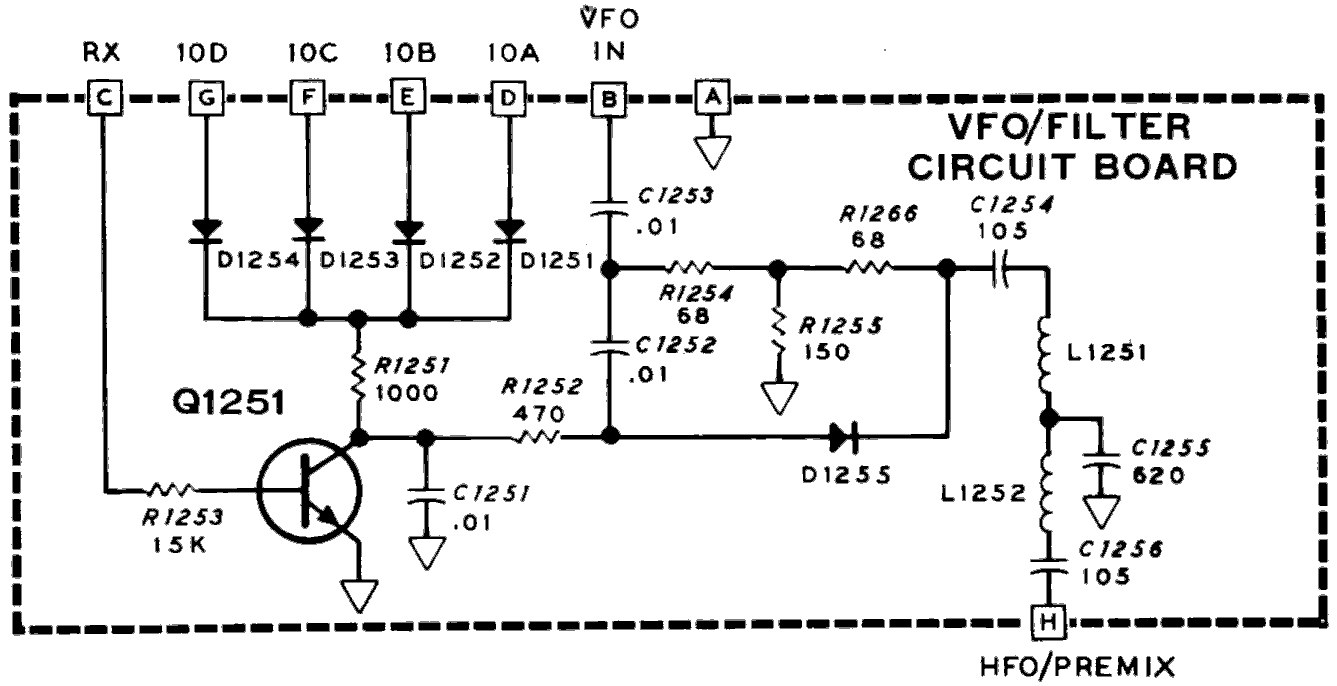

VFO Filter

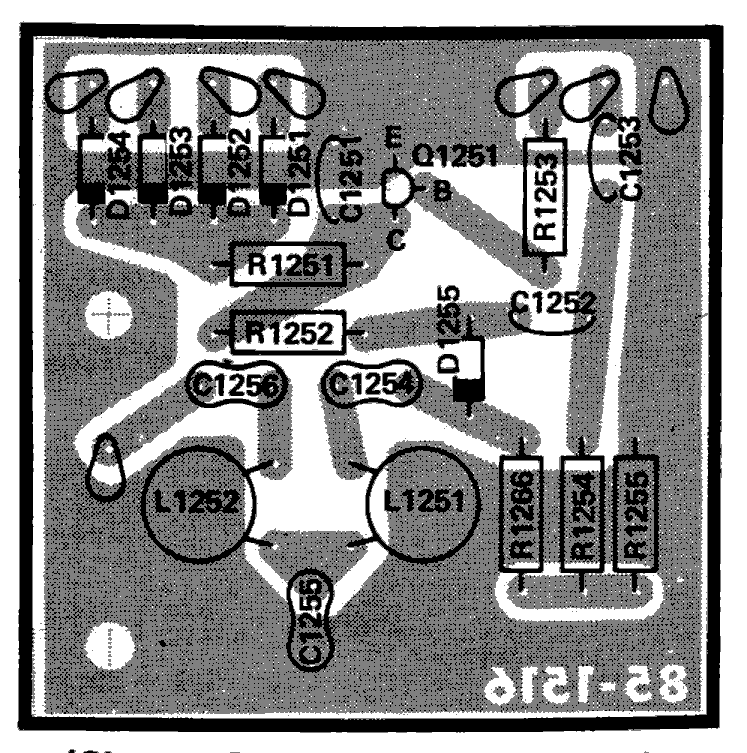

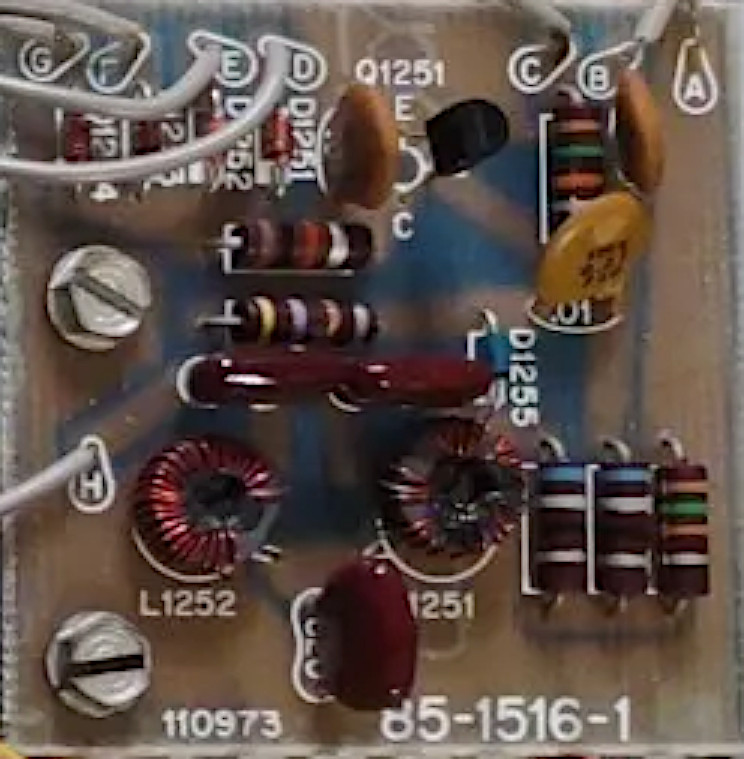

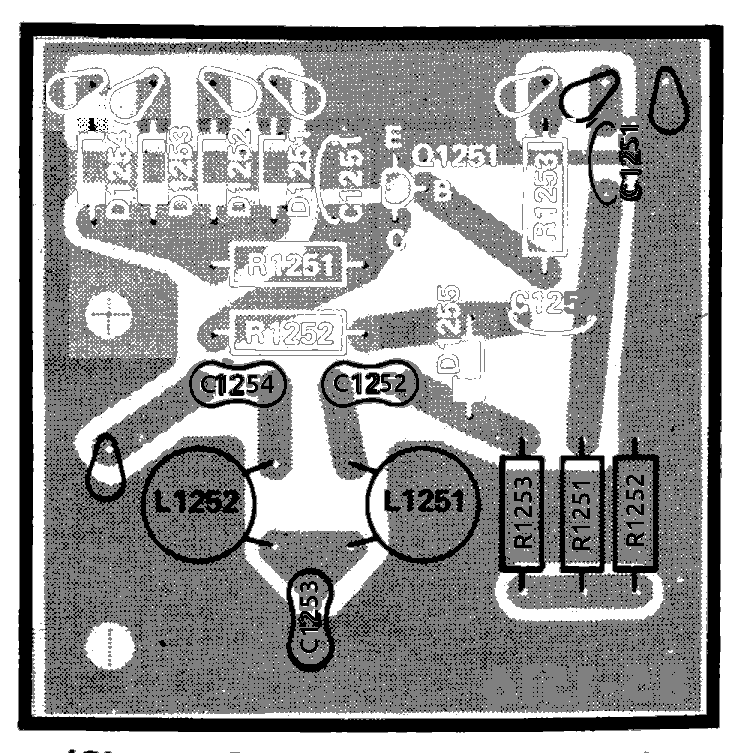

A change in screening is being made on the VFO filter board, changing the board from PN 85-1516-1 to PN 85-1516-2 (and 85-1633-1 to 85-1633-2). Components will be deleted from the new board and the remaining components are being re-numbered, as follows:

[Old Board] 85-1516-1 85-1633-1	[New Board] 85-1516-2 85-1633-2	Value
R-1255	R-1252	150 ohms
R-1254	R-1251	68 ohms
R-1266	R-1253	68 ohms
C-1254	C-1252	105 pf
C-1256	C-1254	105 pf
C-1253	C-1251	.01 uf
C-1255	C-1253	620 pf

The new board will be incorporated in all future productions runs.
