H - Power Amplifier

NOTE:: No negative feedback! Should have negative feedback fron collector to base of each transistor for stability.

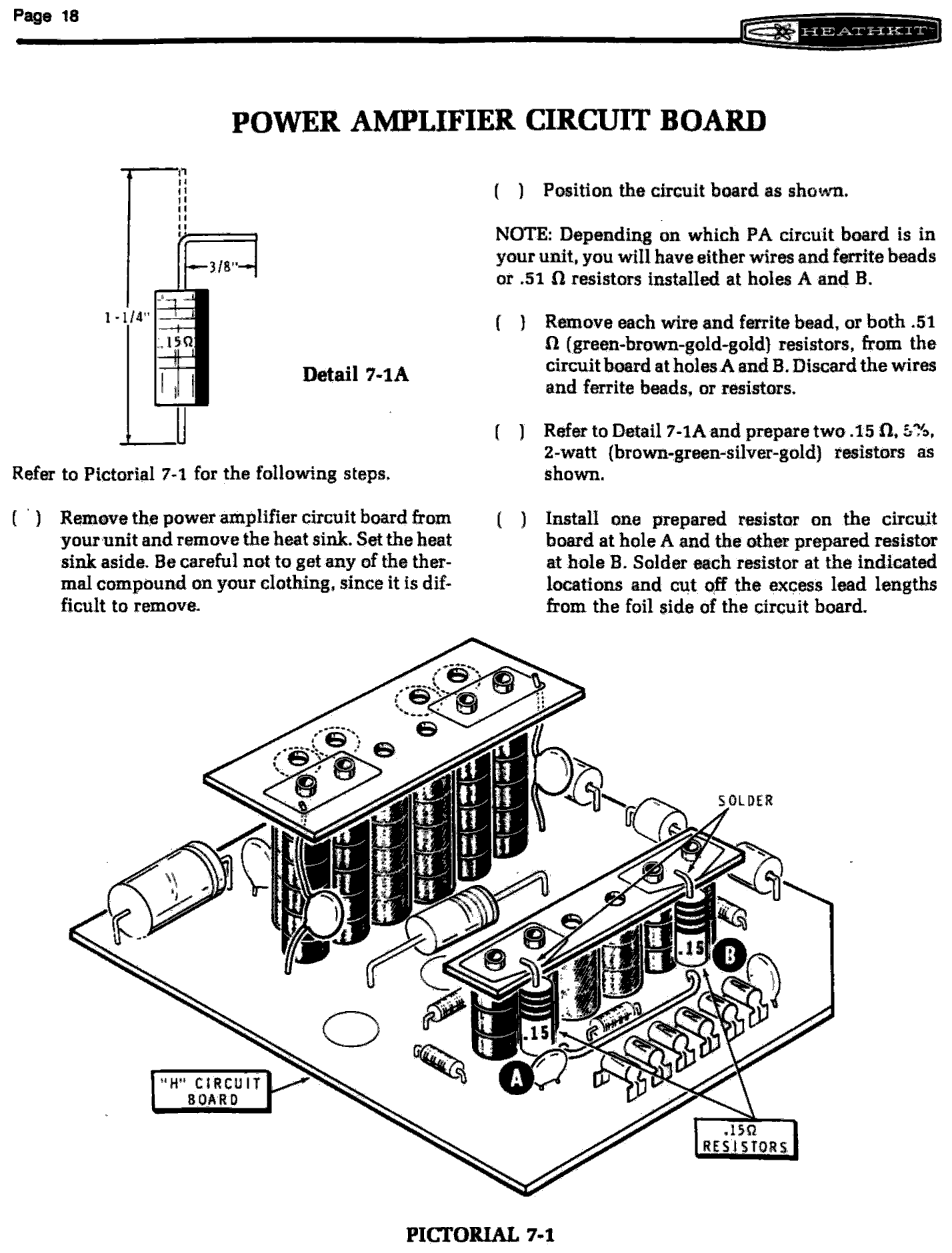

Updates (SBM-104-2)

Click for Hi-Res image

Click for Hi-Res image

HW-104 => 85-1629-2

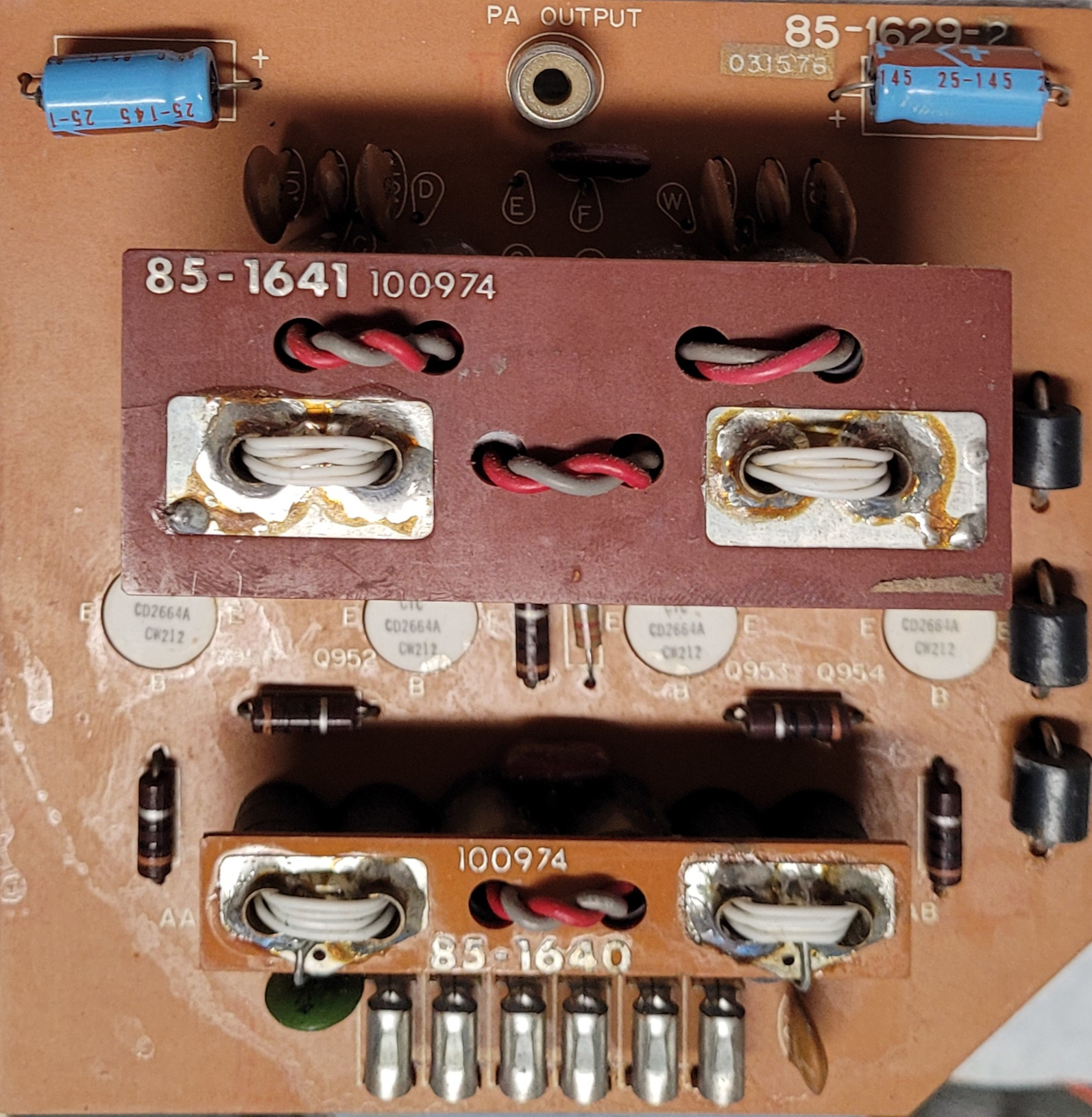

PC Board

Click for Hi-Res image

X-Ray

Click for Hi-Res image

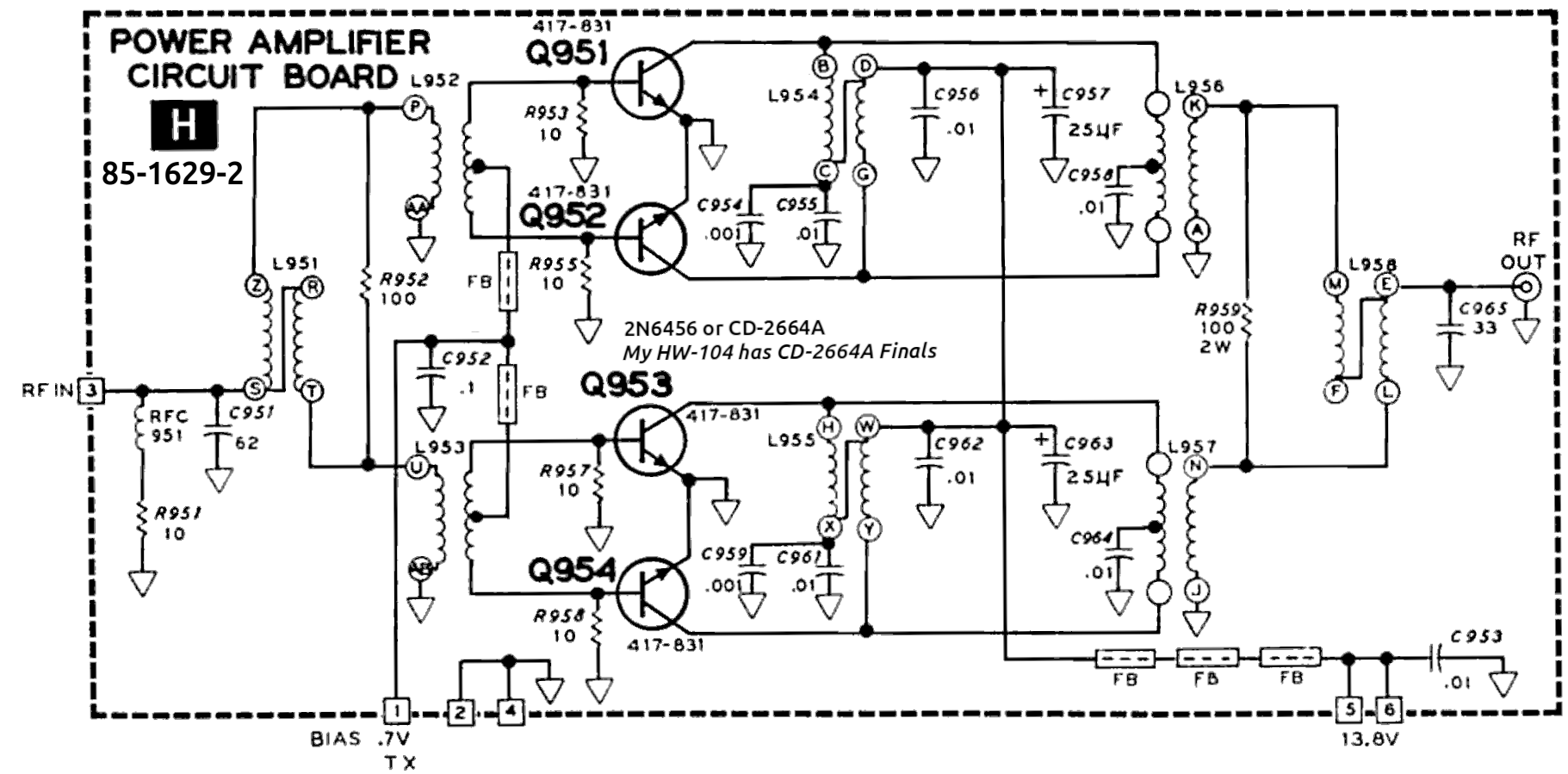

Schematic

Click for Hi-Res image

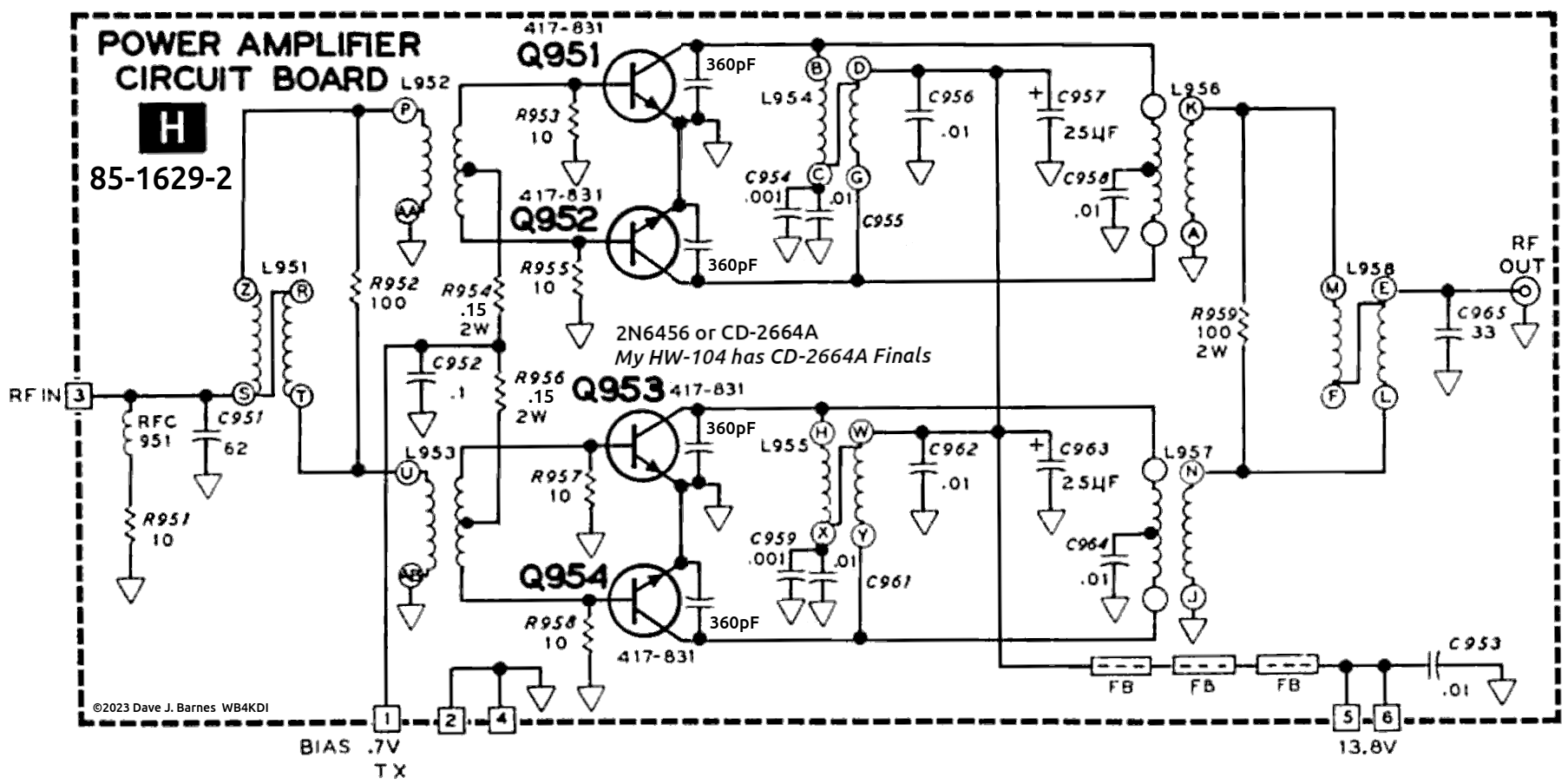

Updated re. SBM-104-2

Click for Hi-Res image

SB-104A => 85-2055-1

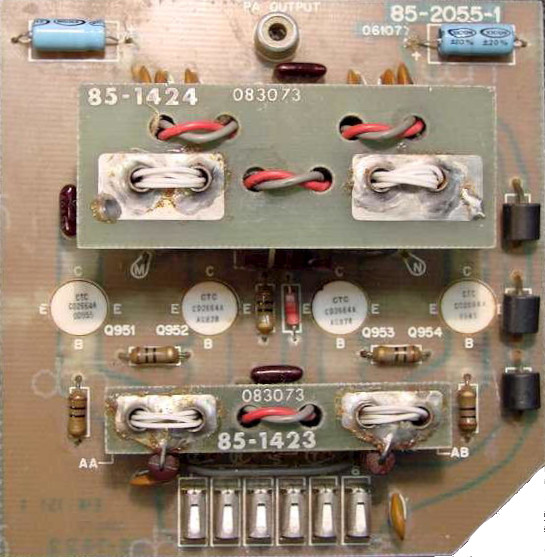

PC Board

Click for Hi-Res image

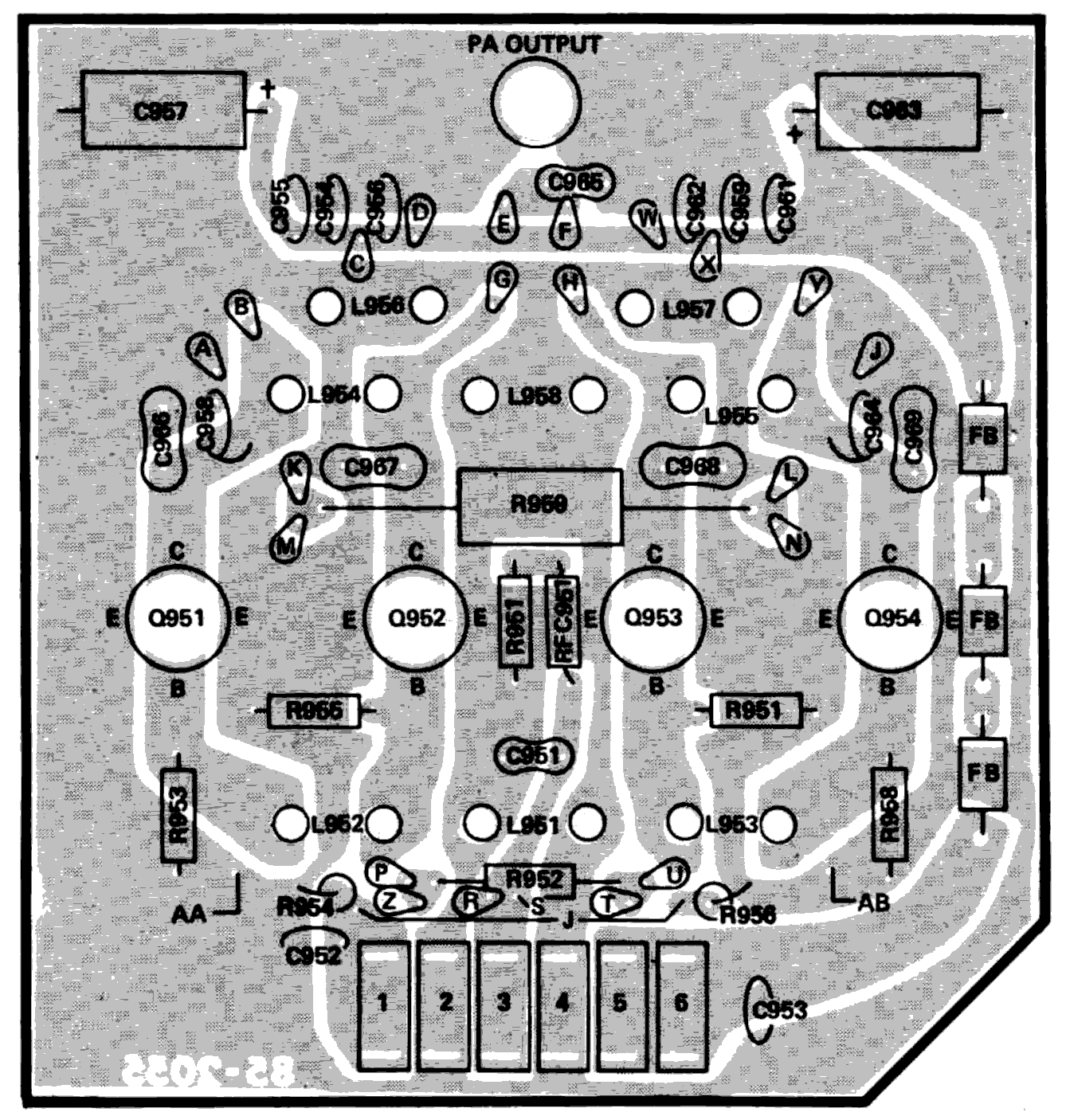

X-Ray

Click for Hi-Res image

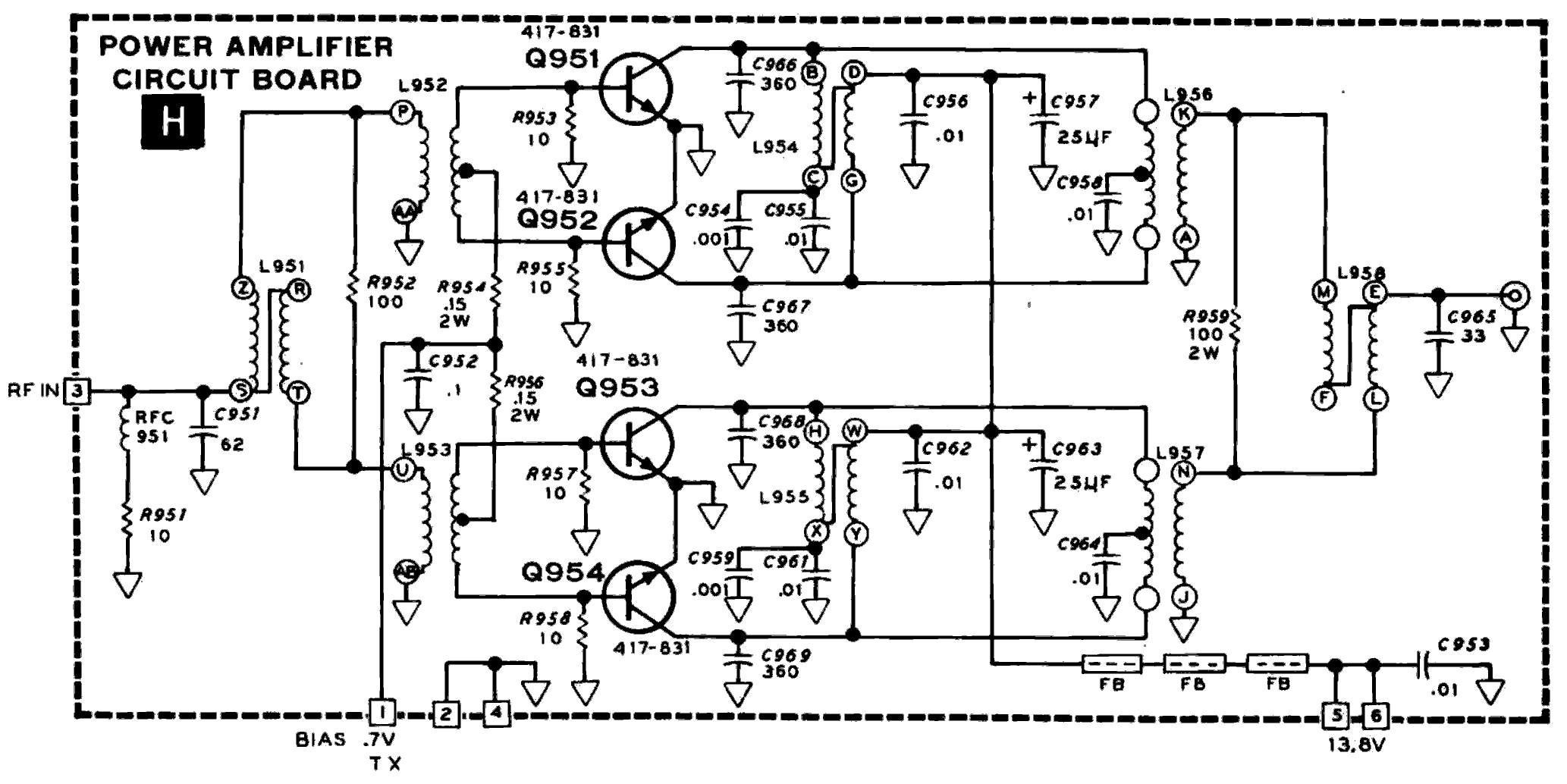

Schematic

Click for Hi-Res image
