G - RX Front End
Updated Schematic
[

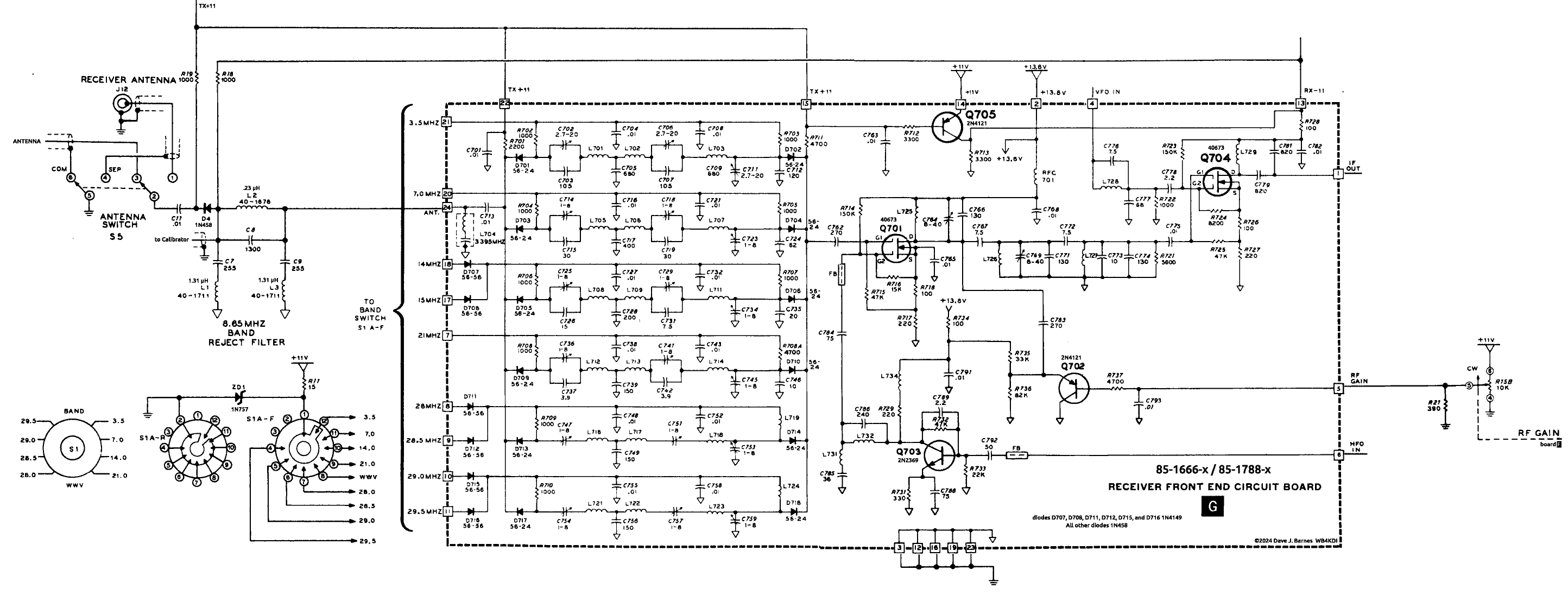

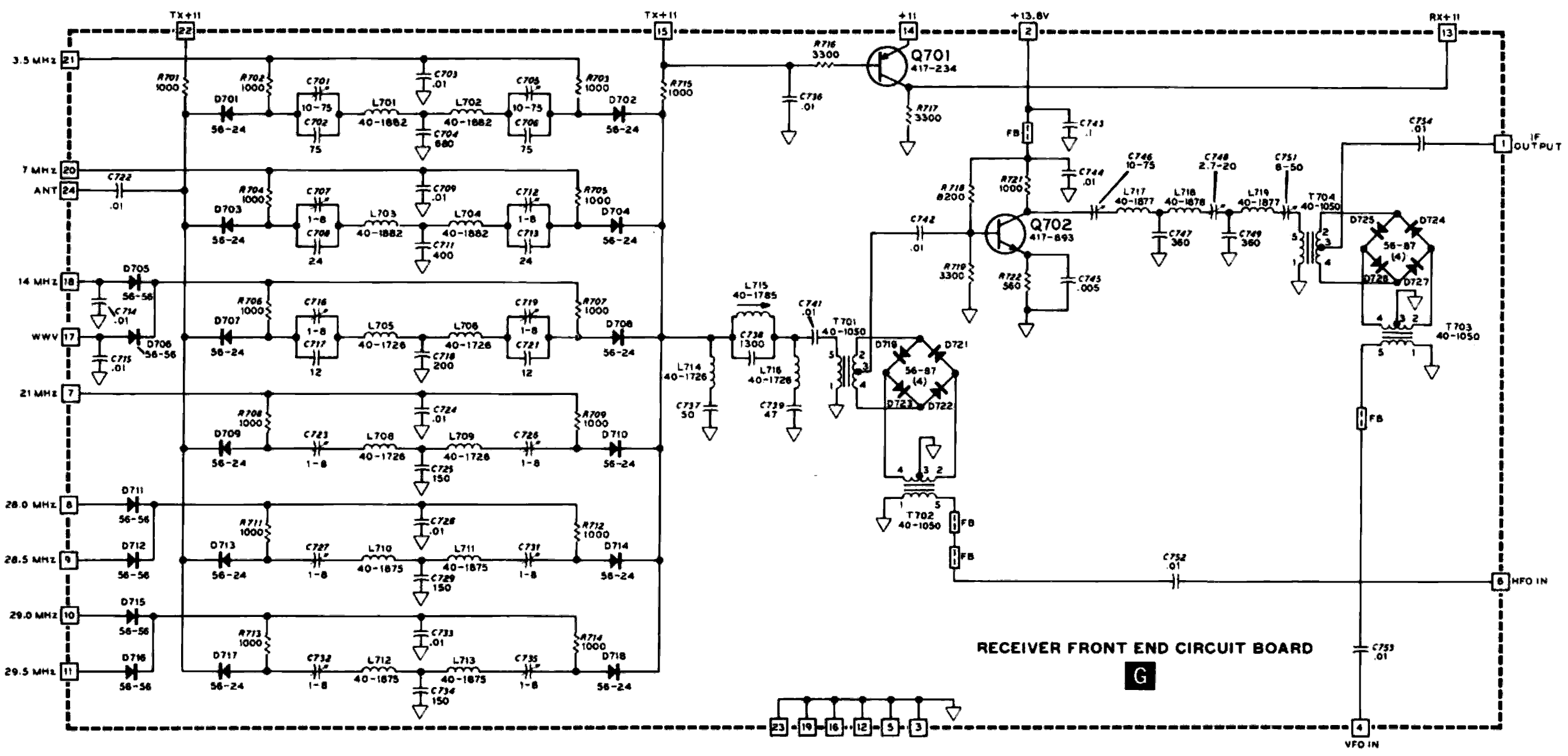

UHD Schematic
]
SB-104 => 85-1666-1
Heathkit Changes
(March 24, 1976)
from SB-104-31
Improved Sensitivity
(Does not apply to 85-1931-x)
The following change should be made to all HW/SB-104's received for service:
Remove and discard L733
Remove and discard C787
This change eliminates the series resonant circuit from the colector of Q703 to ground, and improves the performance of the PN 40-1875 coil at L734.
[

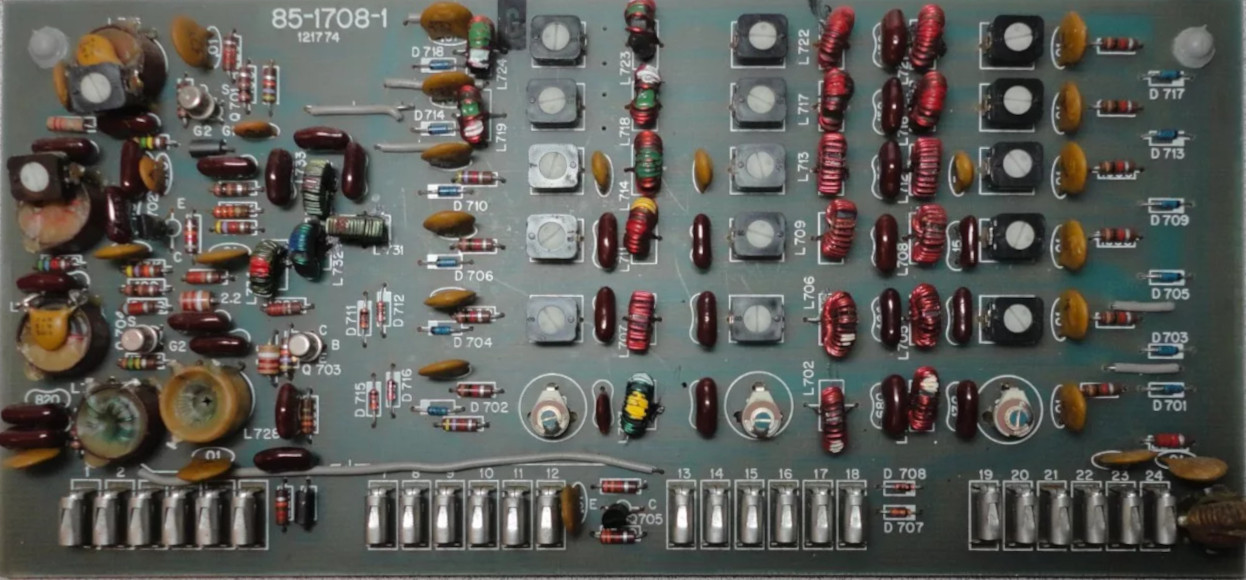

85-1708-1 without above mod
]
[
85-1788-1 without above mod
]
All older front end boards shown below have the inproved sensitivity mod applied.

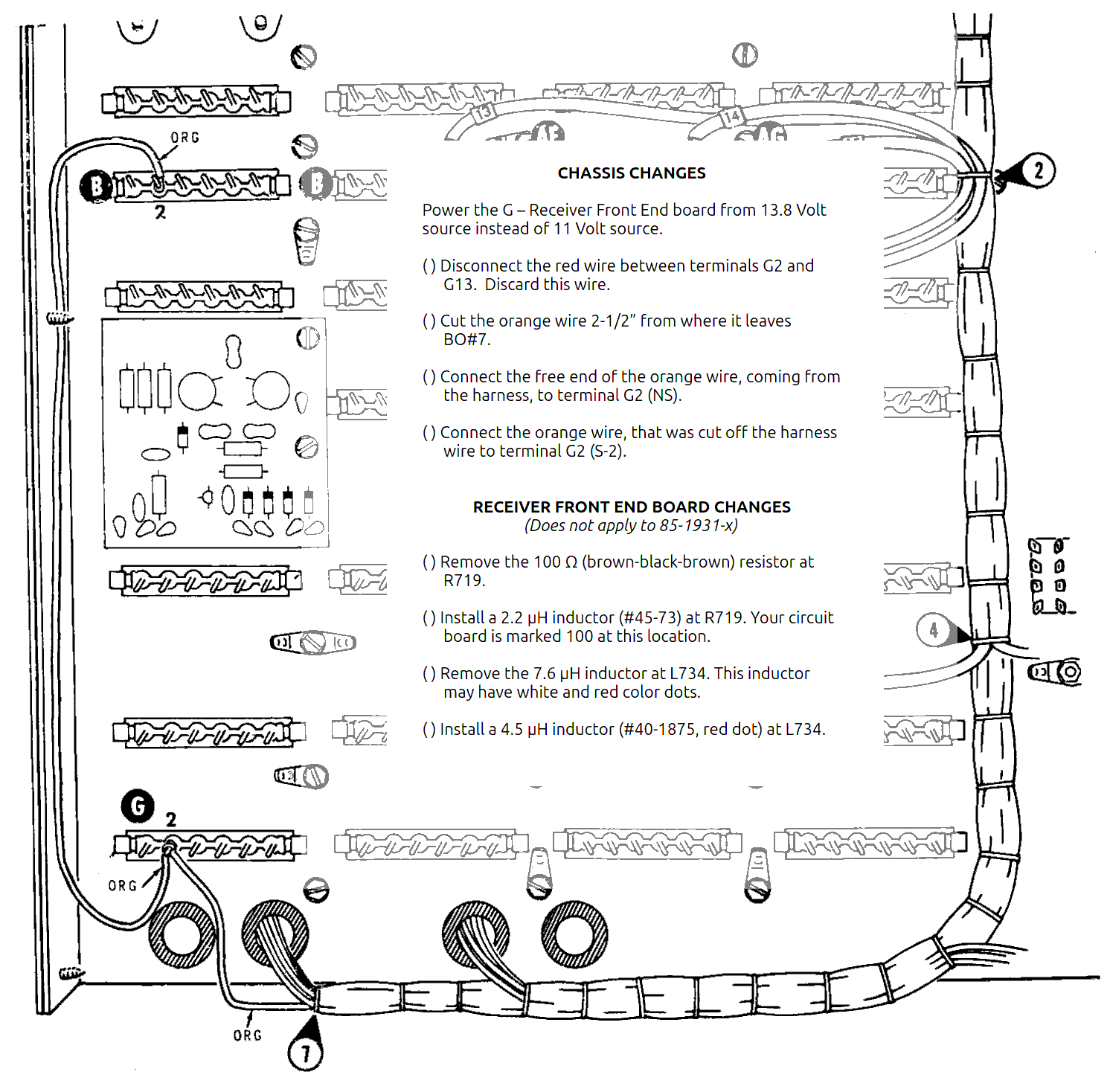

Updates (SBM-104-1)
PC Board

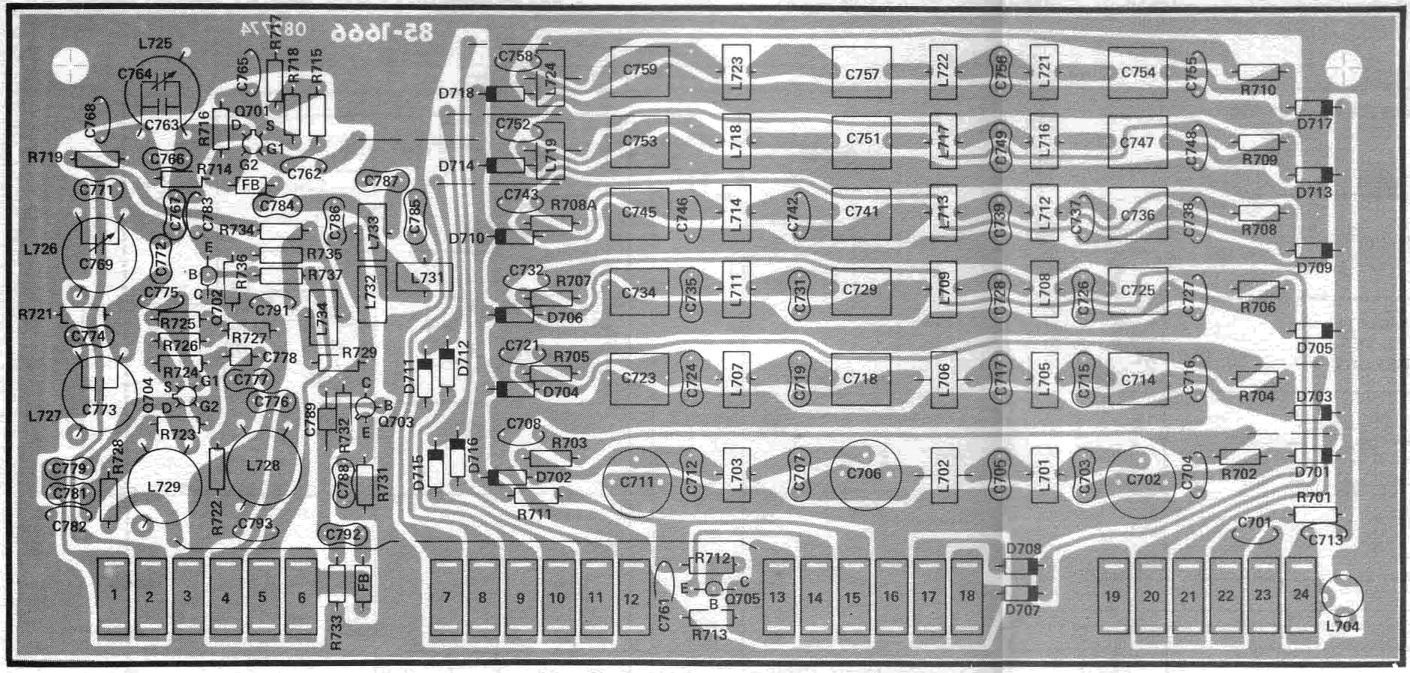

X-Ray
Schematic
SB-104 => 85-1708-1

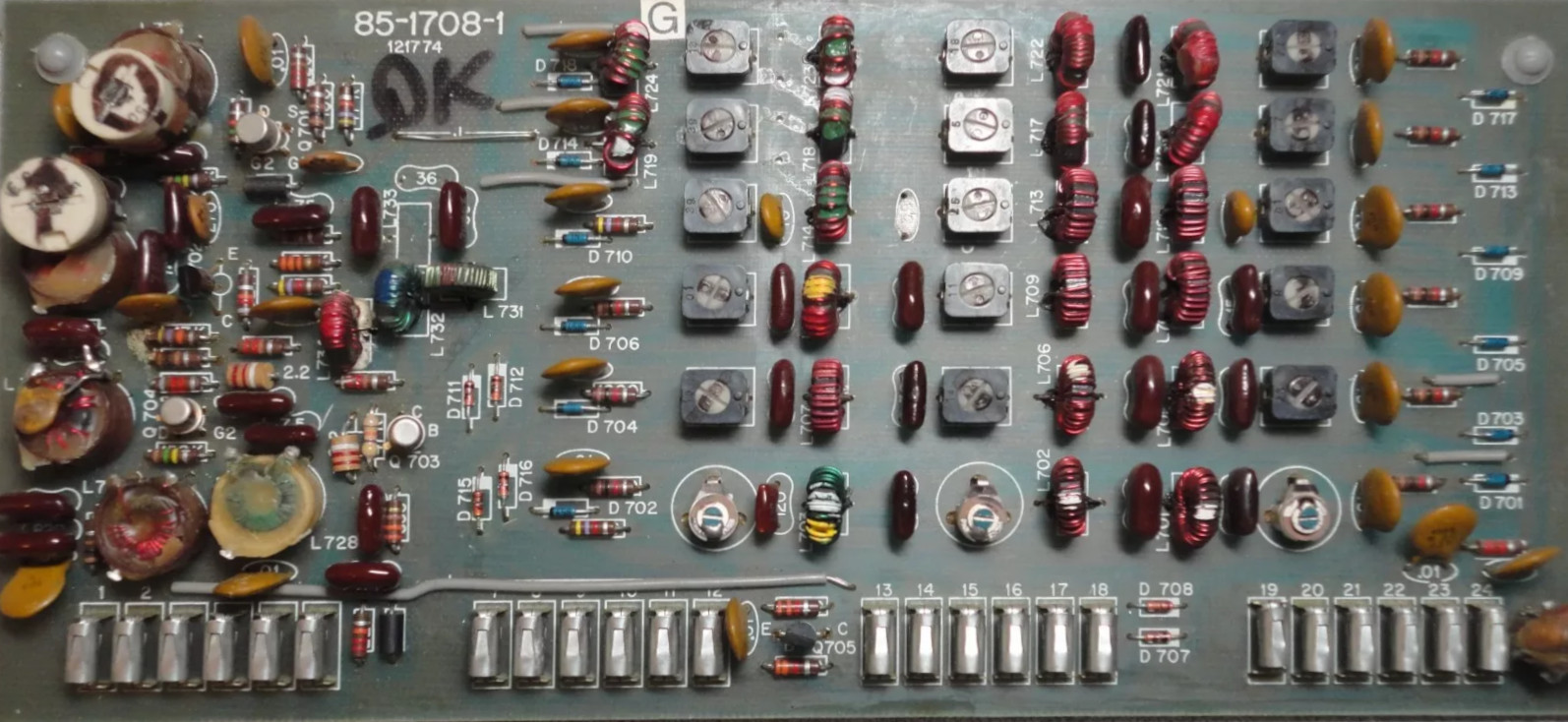

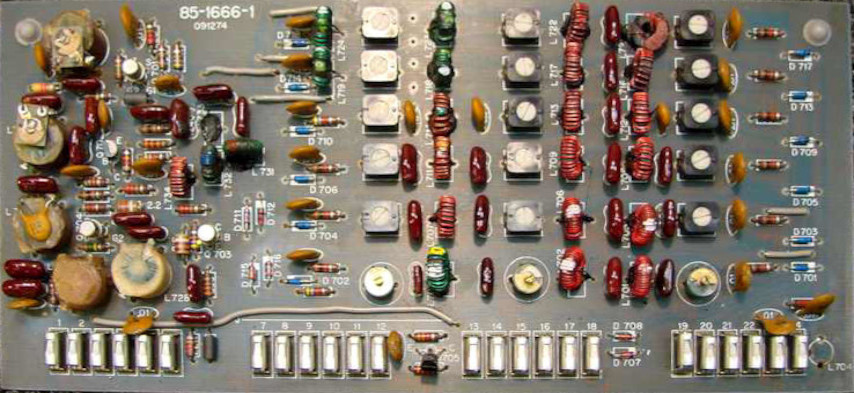

PC Board
Board XRay and schematic same as HW-104 85-1788-x below.
HW-104 => 85-1788-x

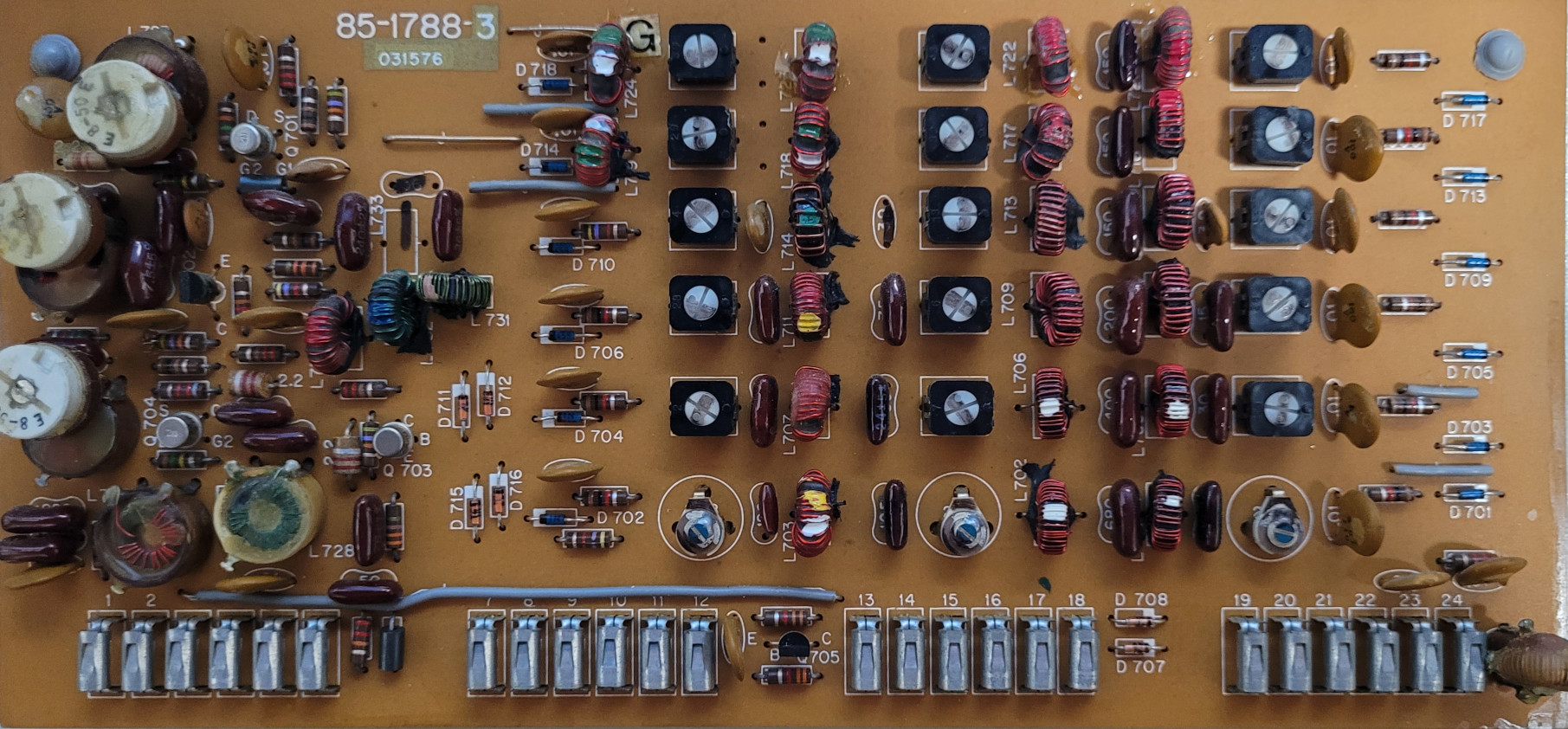

PC Board
Alignment
X-Ray
Schematic

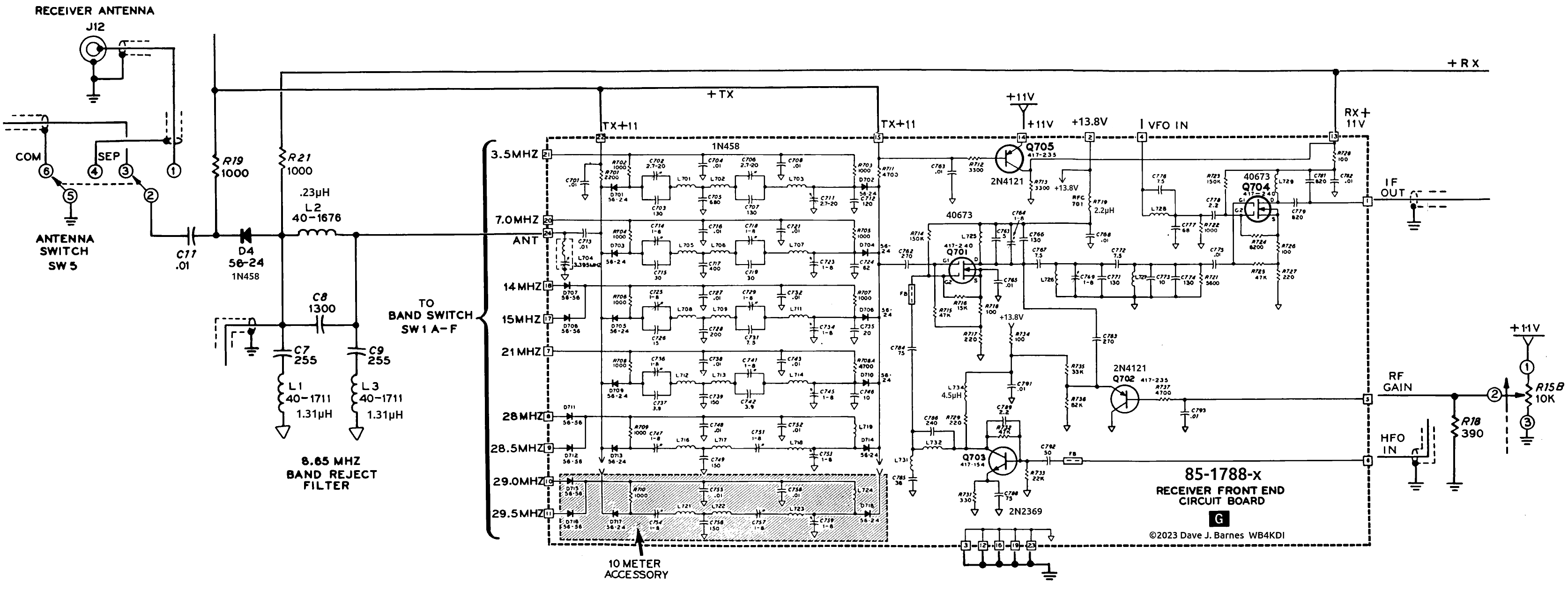

As modified re. SBM-104-1

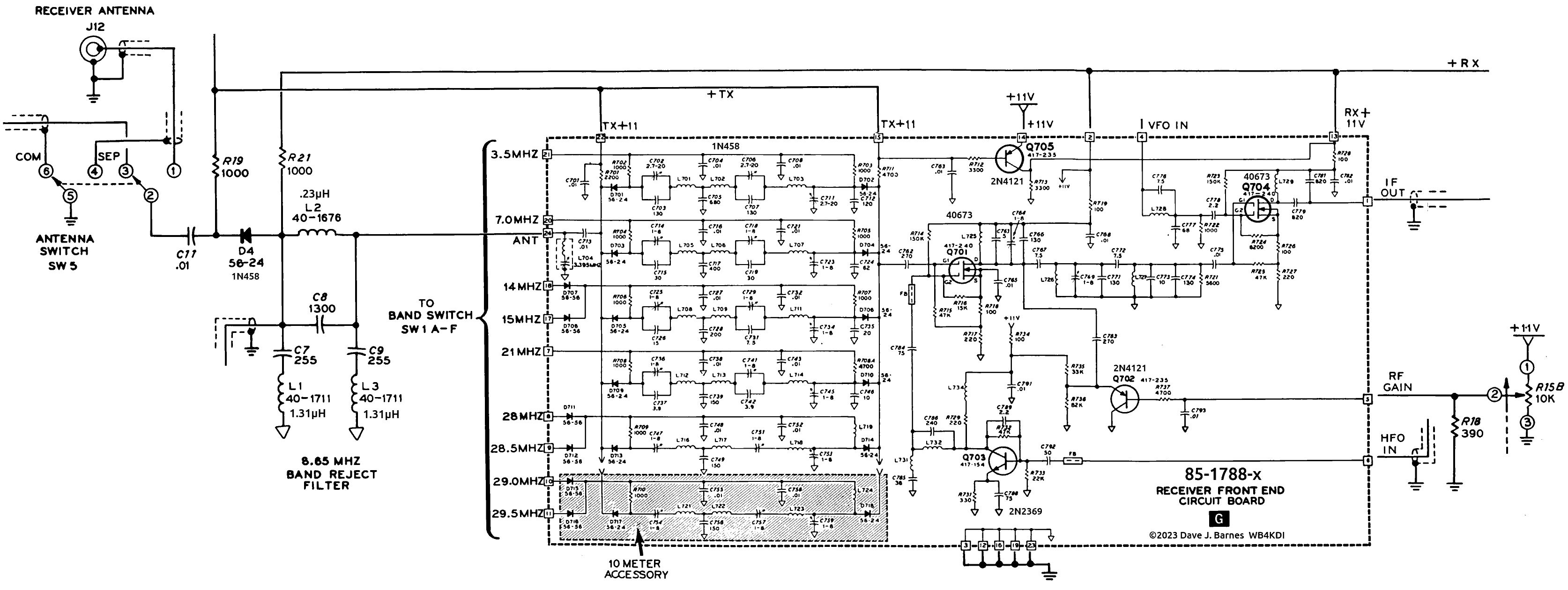

8.65 MHz Reject Filter
The SB-104A does not have this reject filter.

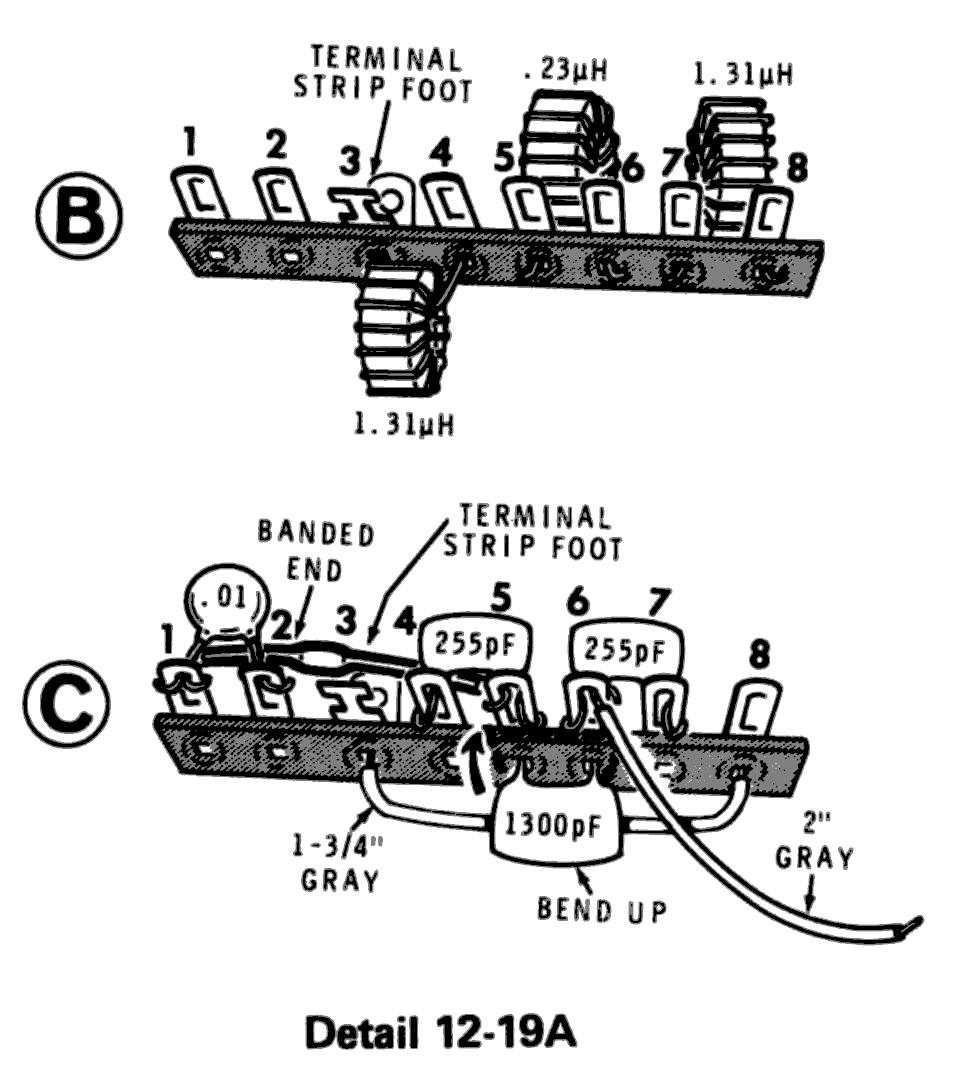

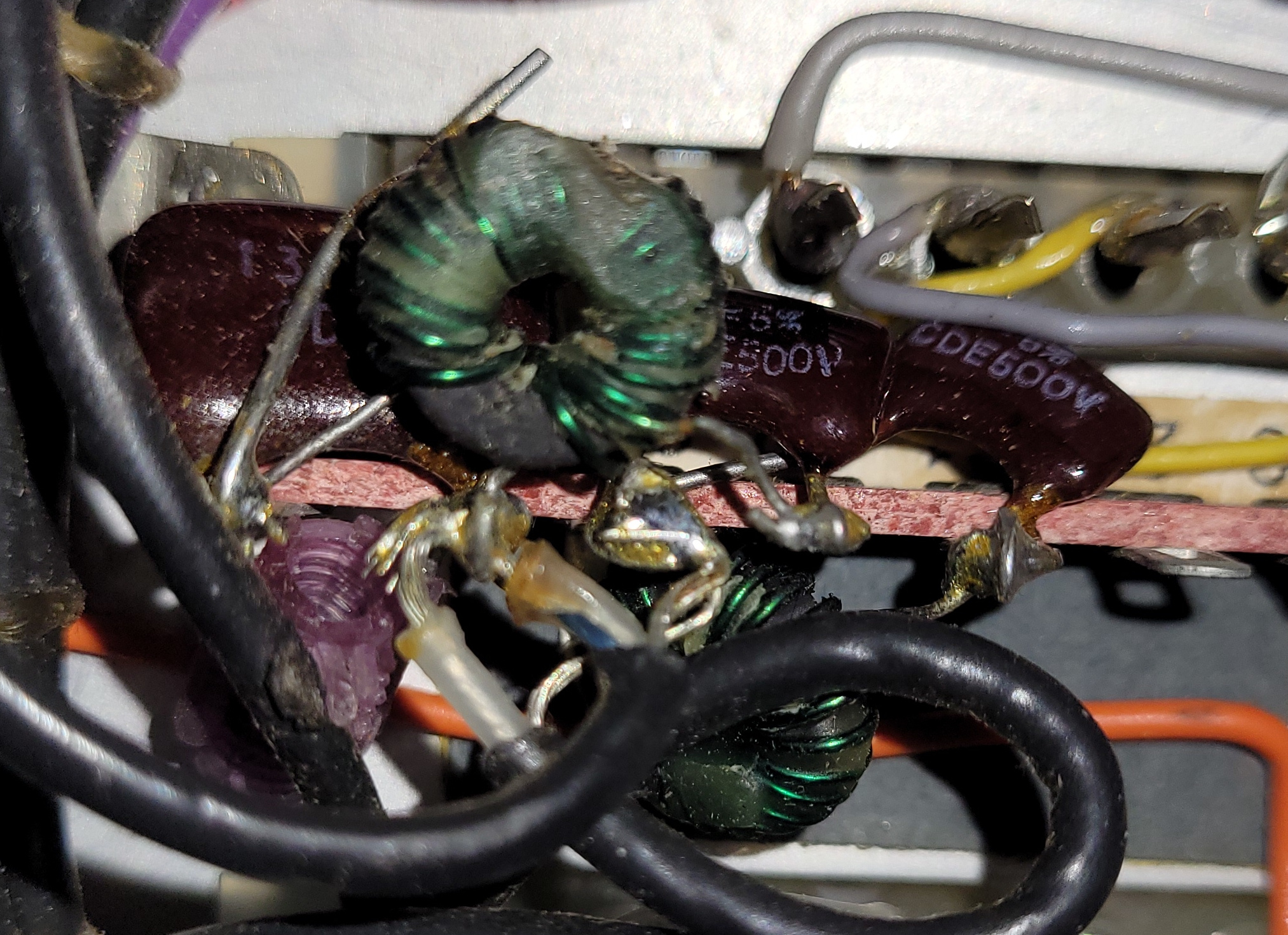

Reject filter photo from SB-104 manual
This reject filter is wired differently than the following directions.
SB-104A => 85-1931-1

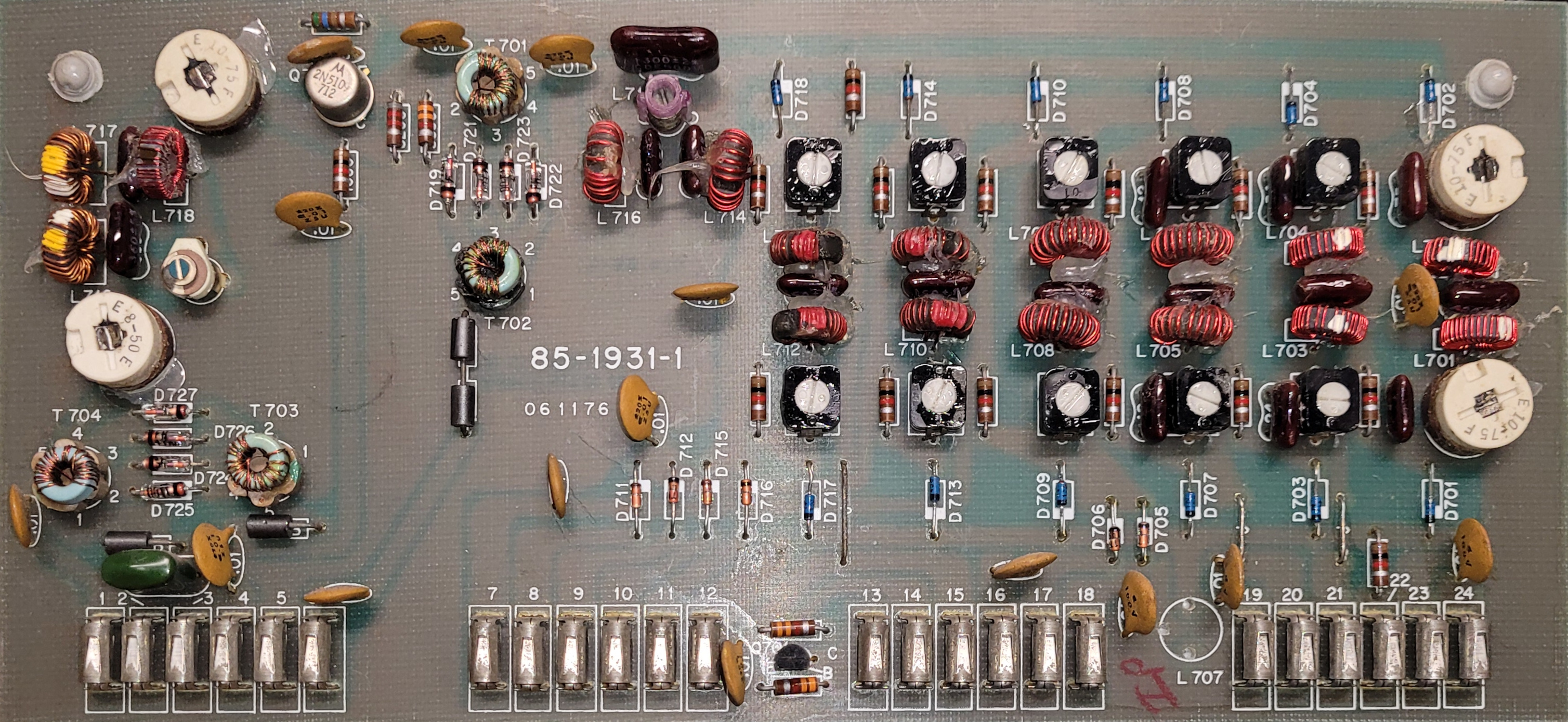

PC Board

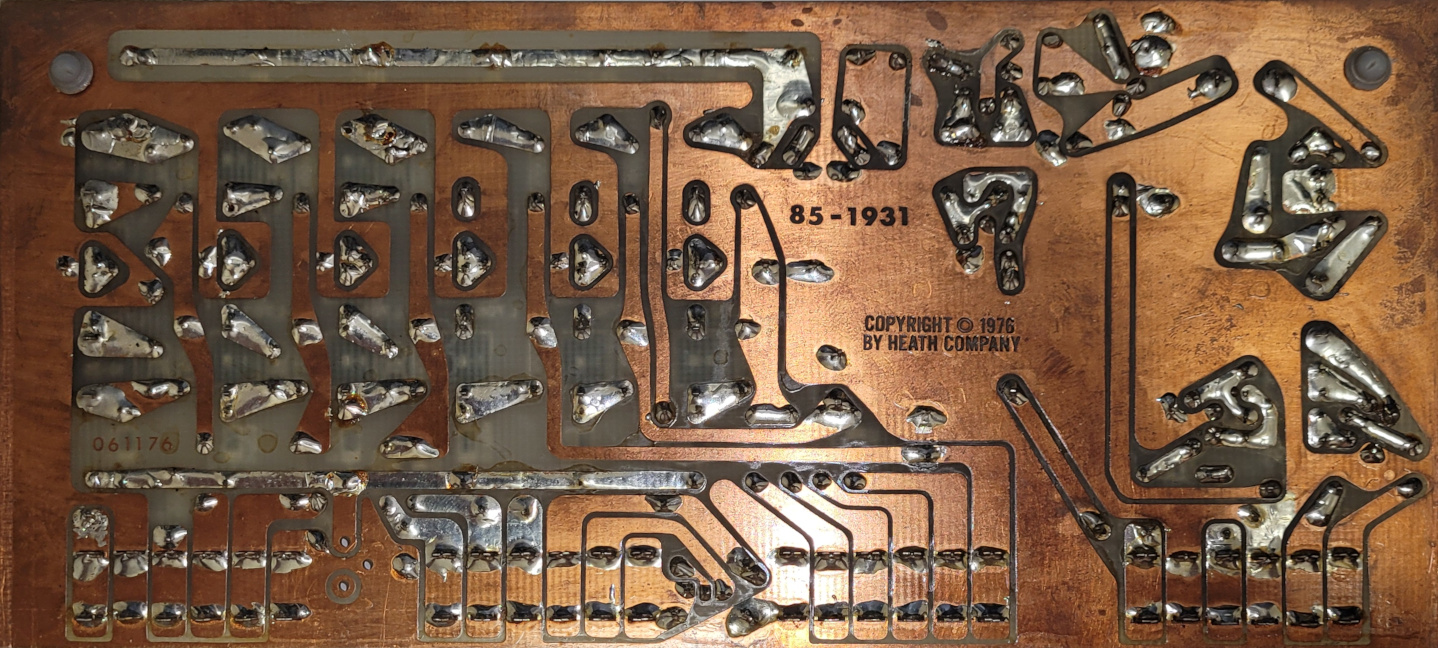

Homemade board? Photo resist but no solder mask?

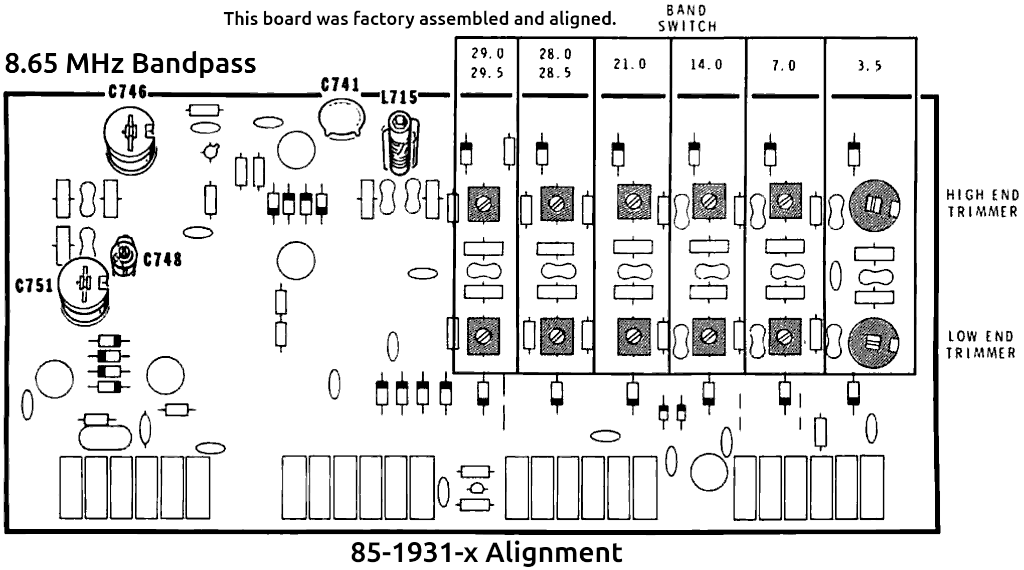

Alignment

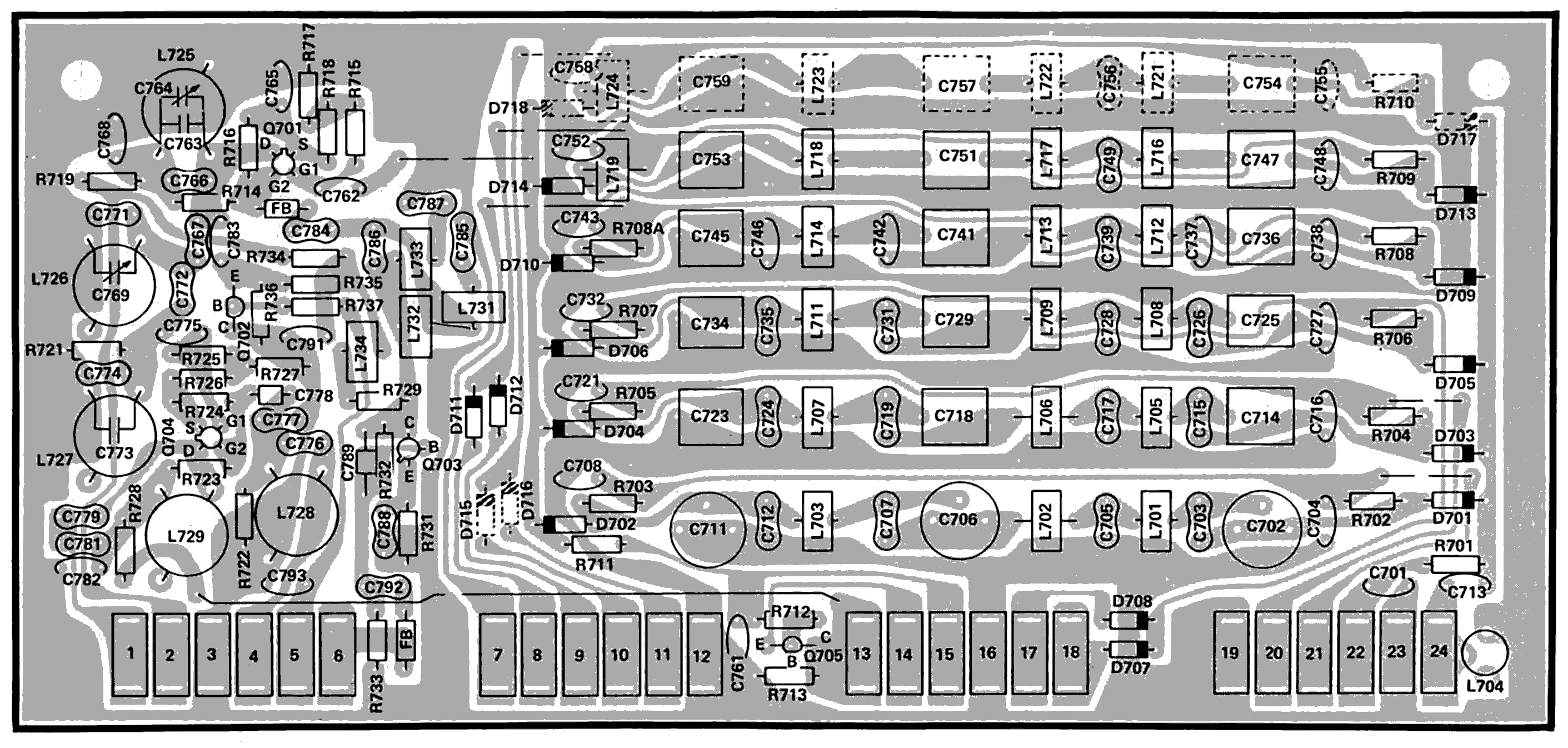

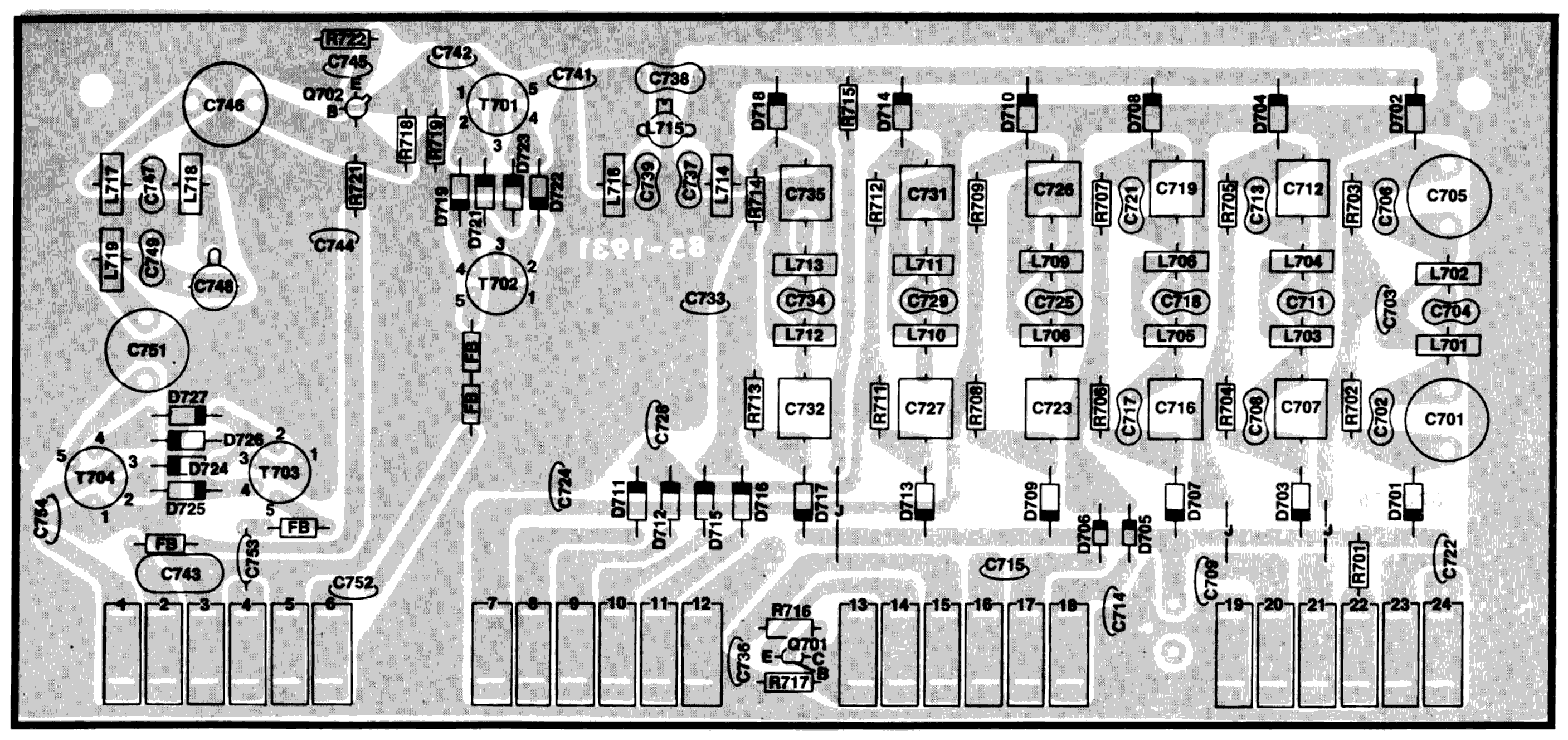

X-Ray

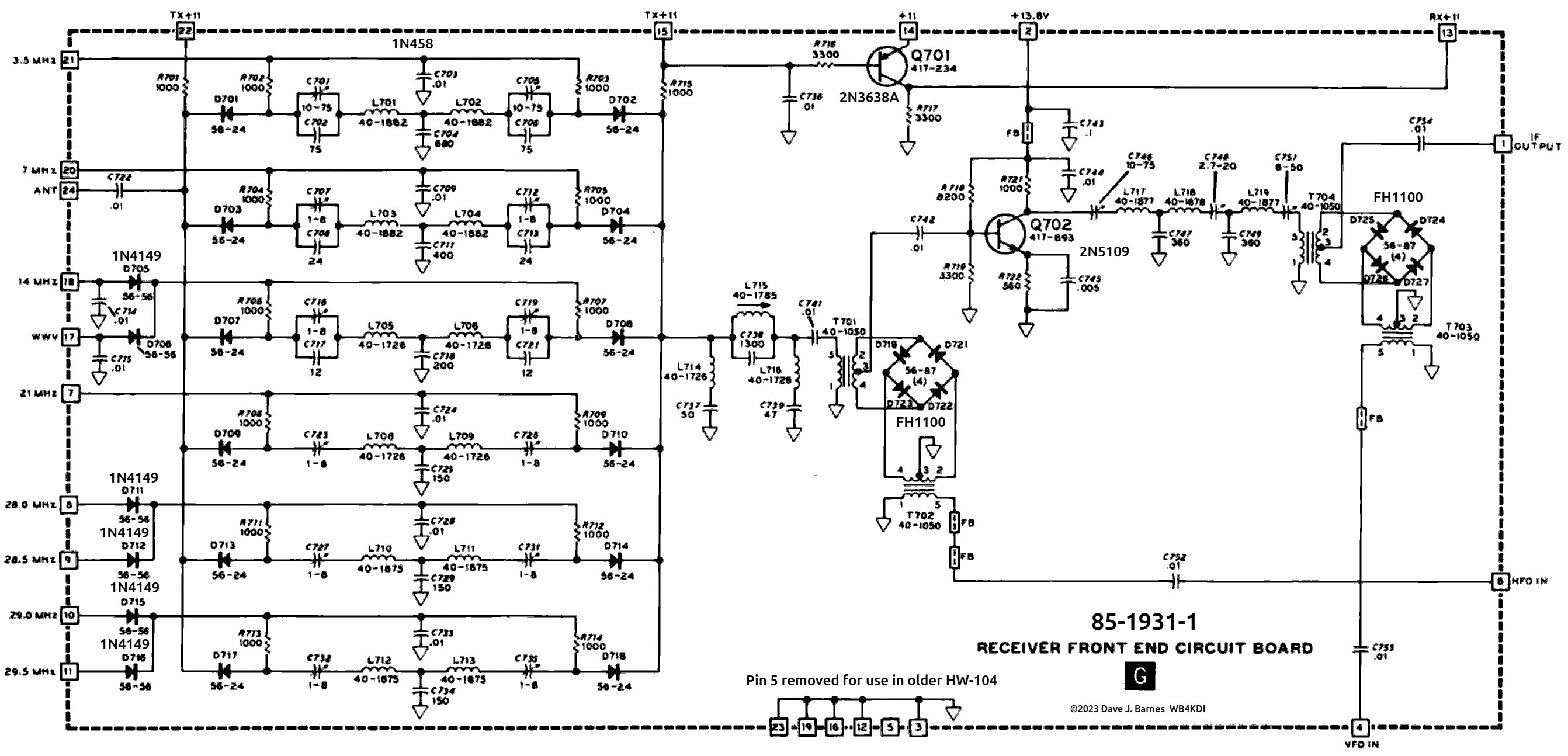

Schematic
Modified for use in HW-104
©2008
WB4KDI Dave J. Barnes
