D - HFO Premixer

Heathkit Changes (May 19, 1976) from SB-104-40

Reliable 20M HFO starting
1. C414 from 10pF to 18pF

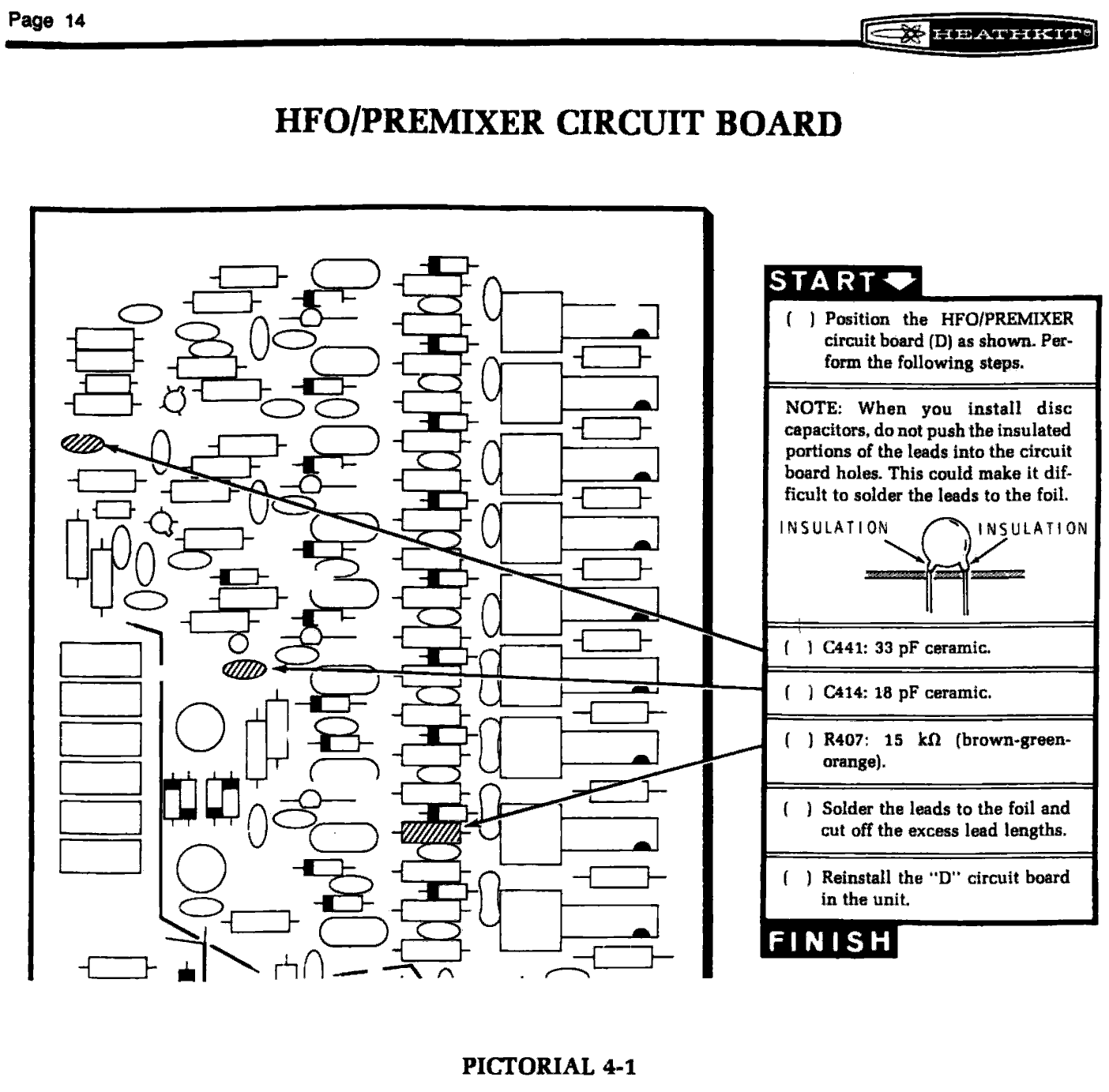

Updates (SBM-104-2)

Click for Hi-Res image

SB-104 => 85-1418-1

PC Board

Click for Hi-Res image

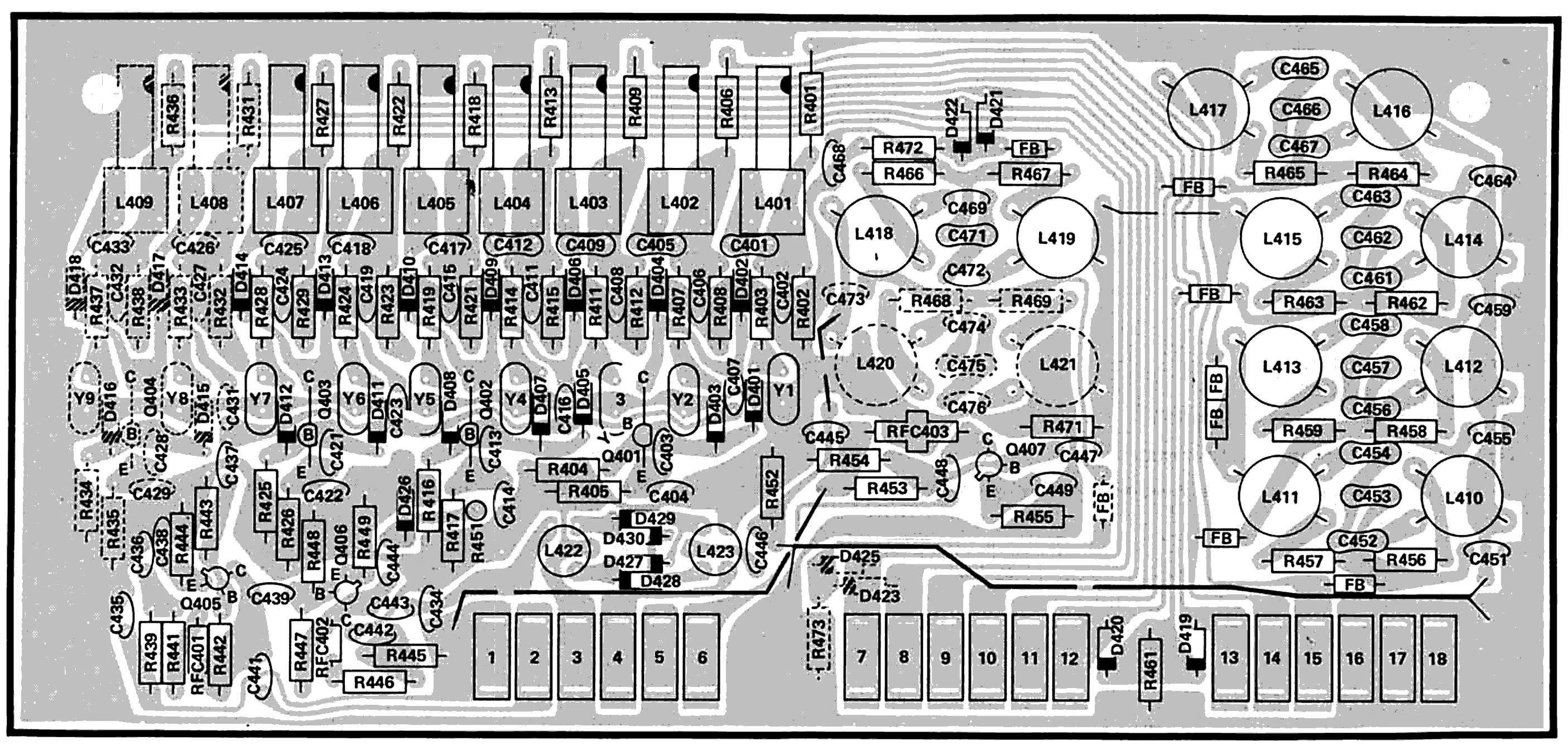

X-Ray

Click for Hi-Res image

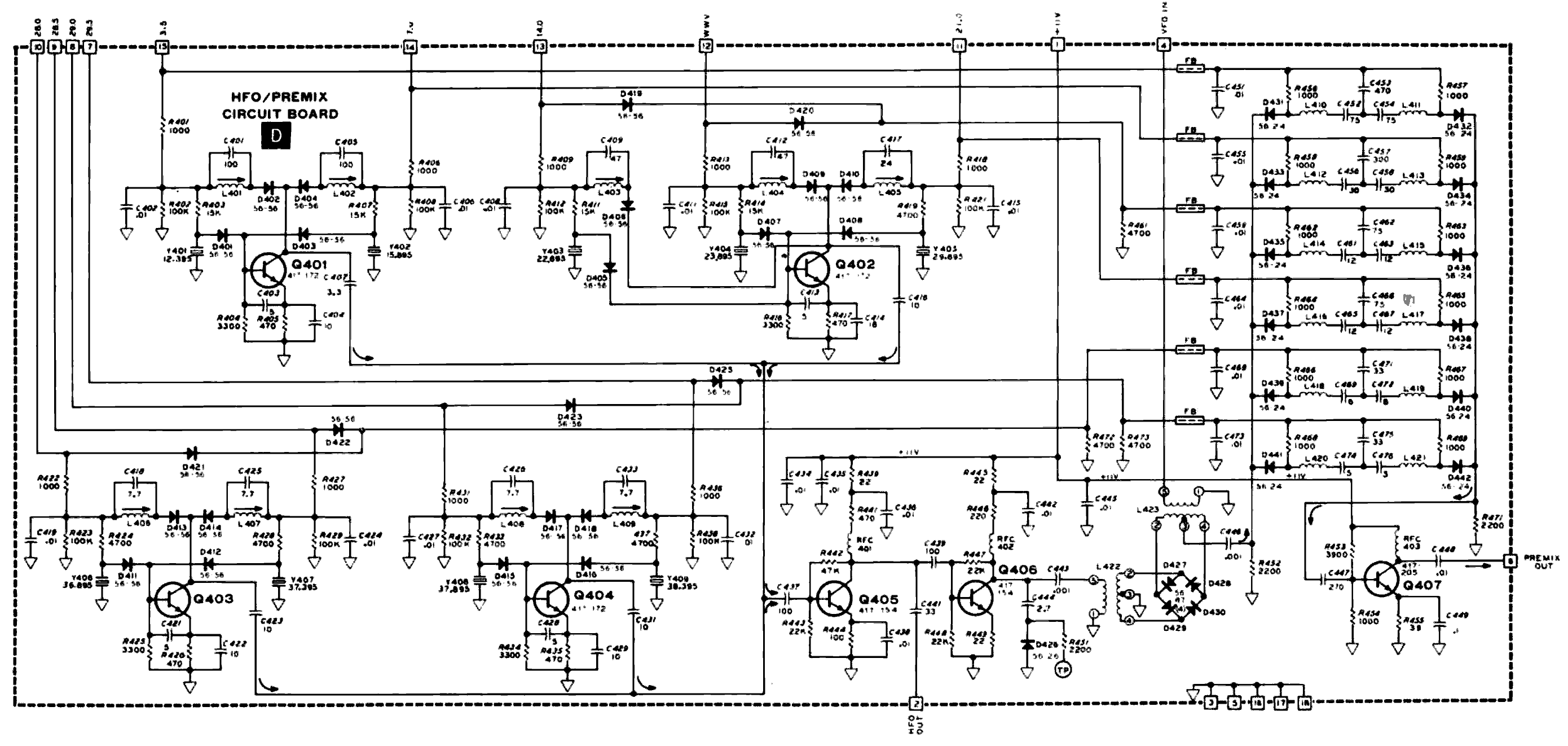

Schematic

Click for Hi-Res image

HW-104 => 85-1626-2

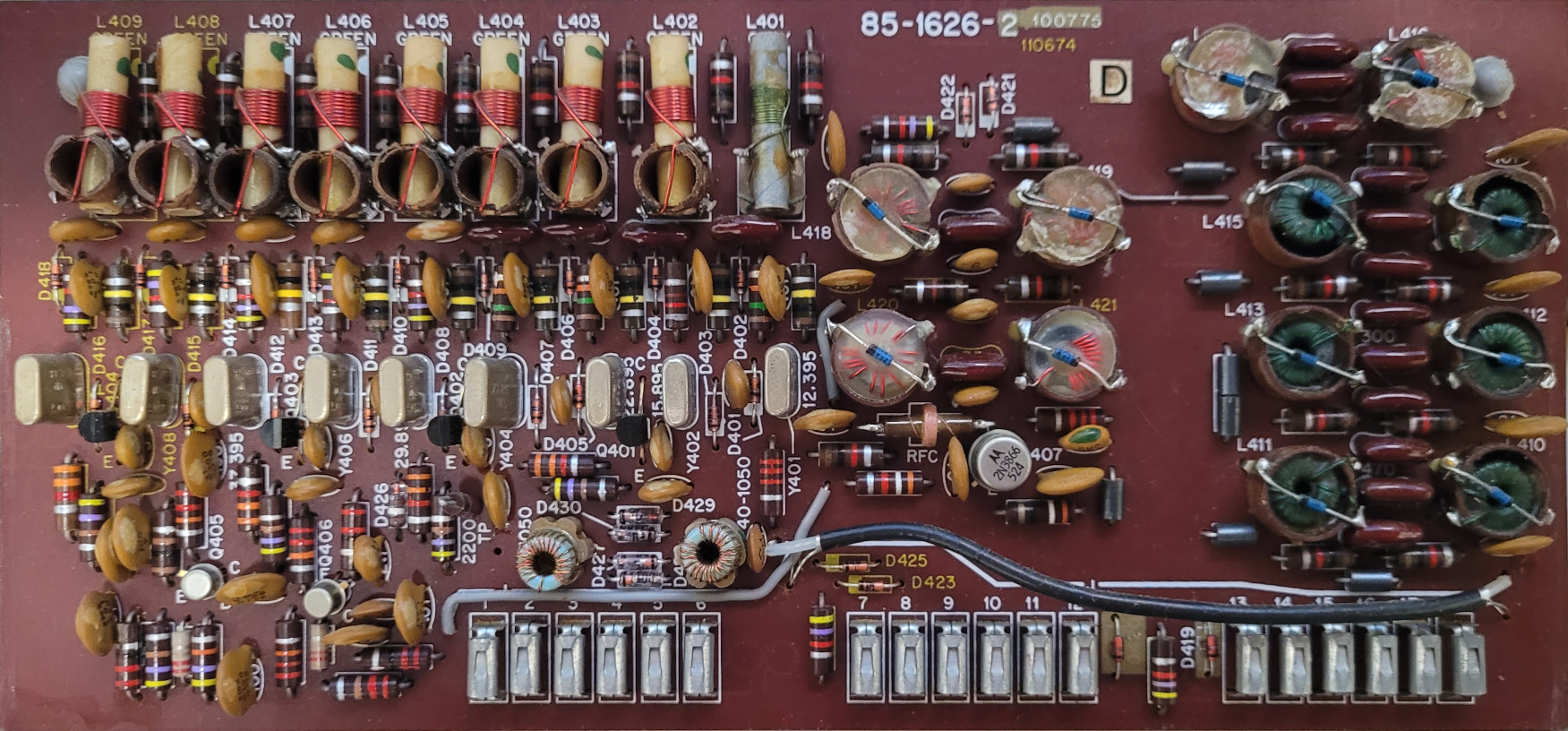

PC Board

Click for Hi-Res image

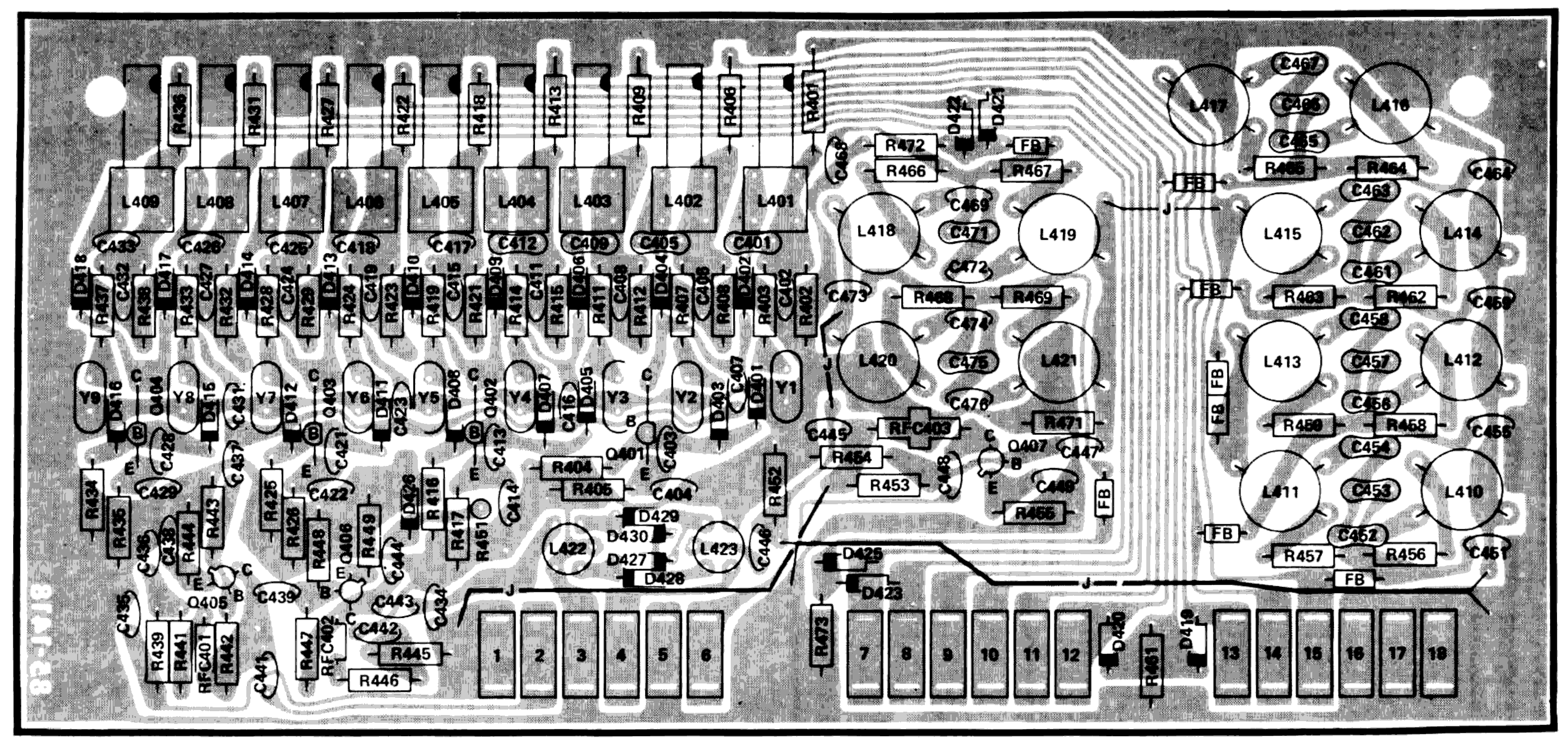

X-Ray

Click for Hi-Res image

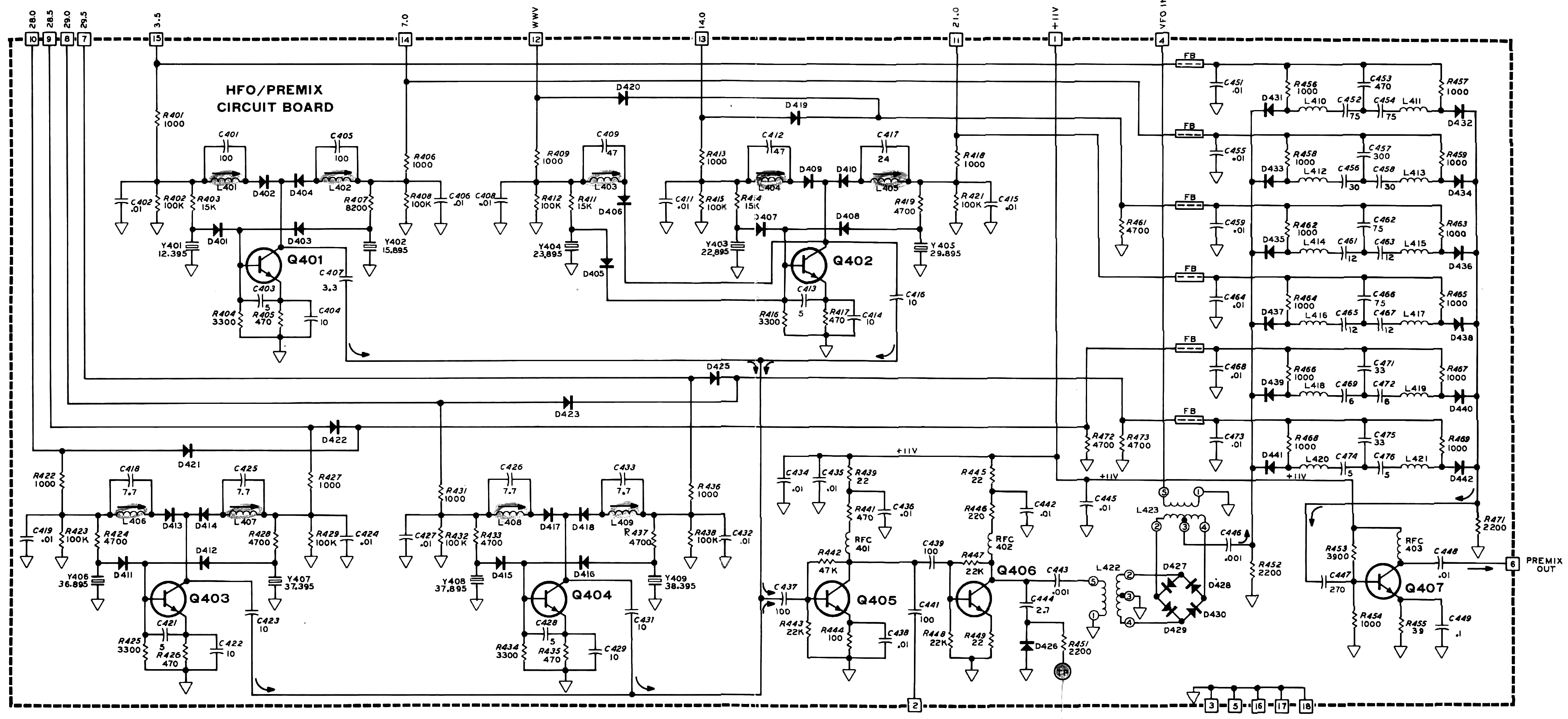

Schematic

Click for Hi-Res image

SB-104A => 85-1418-4

PC Board

Click for Hi-Res image

X-Ray

Click for Hi-Res image

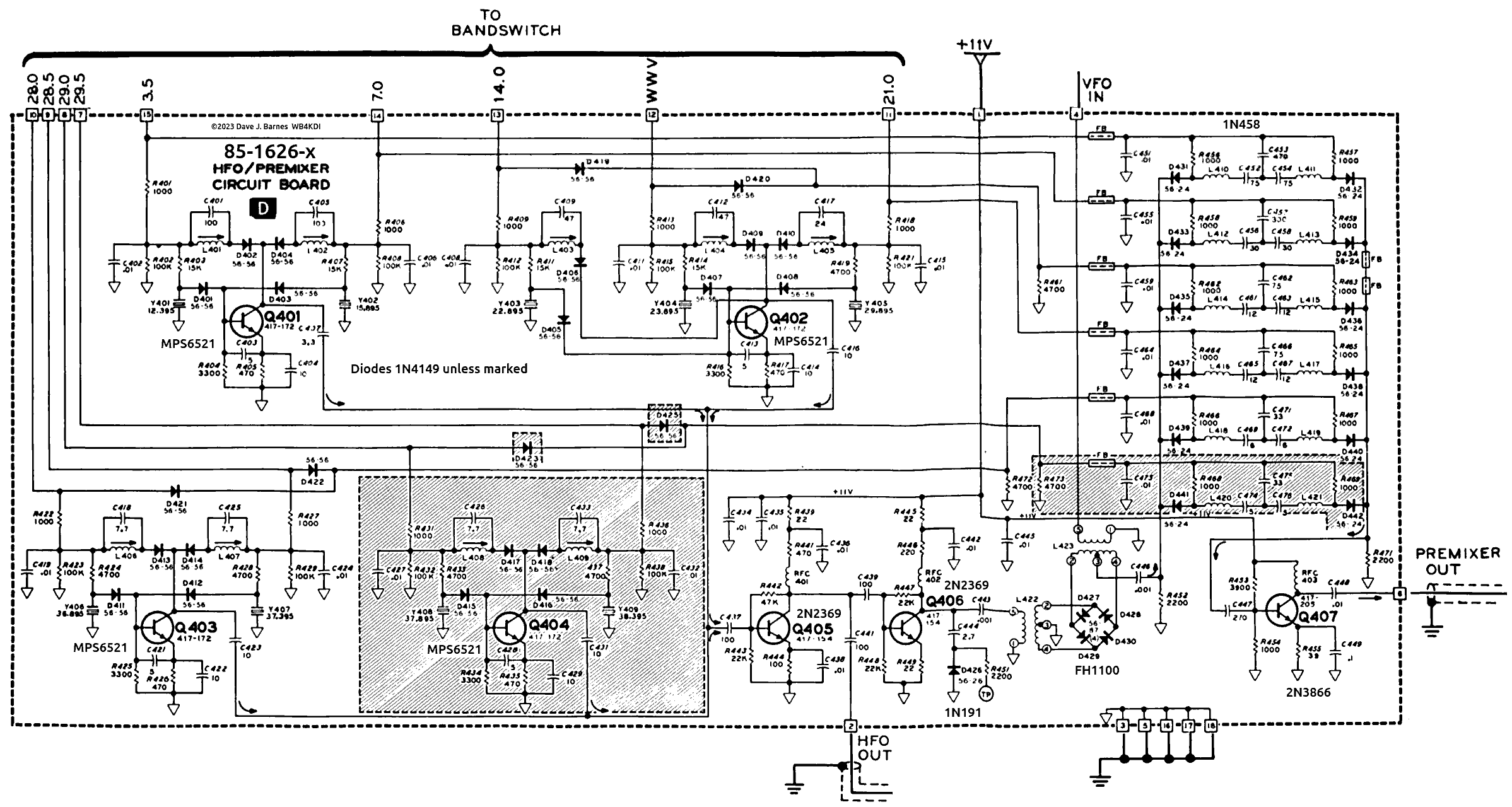

Schematic

Click for Hi-Res image
