B - TX Audio and Voltage Regulator

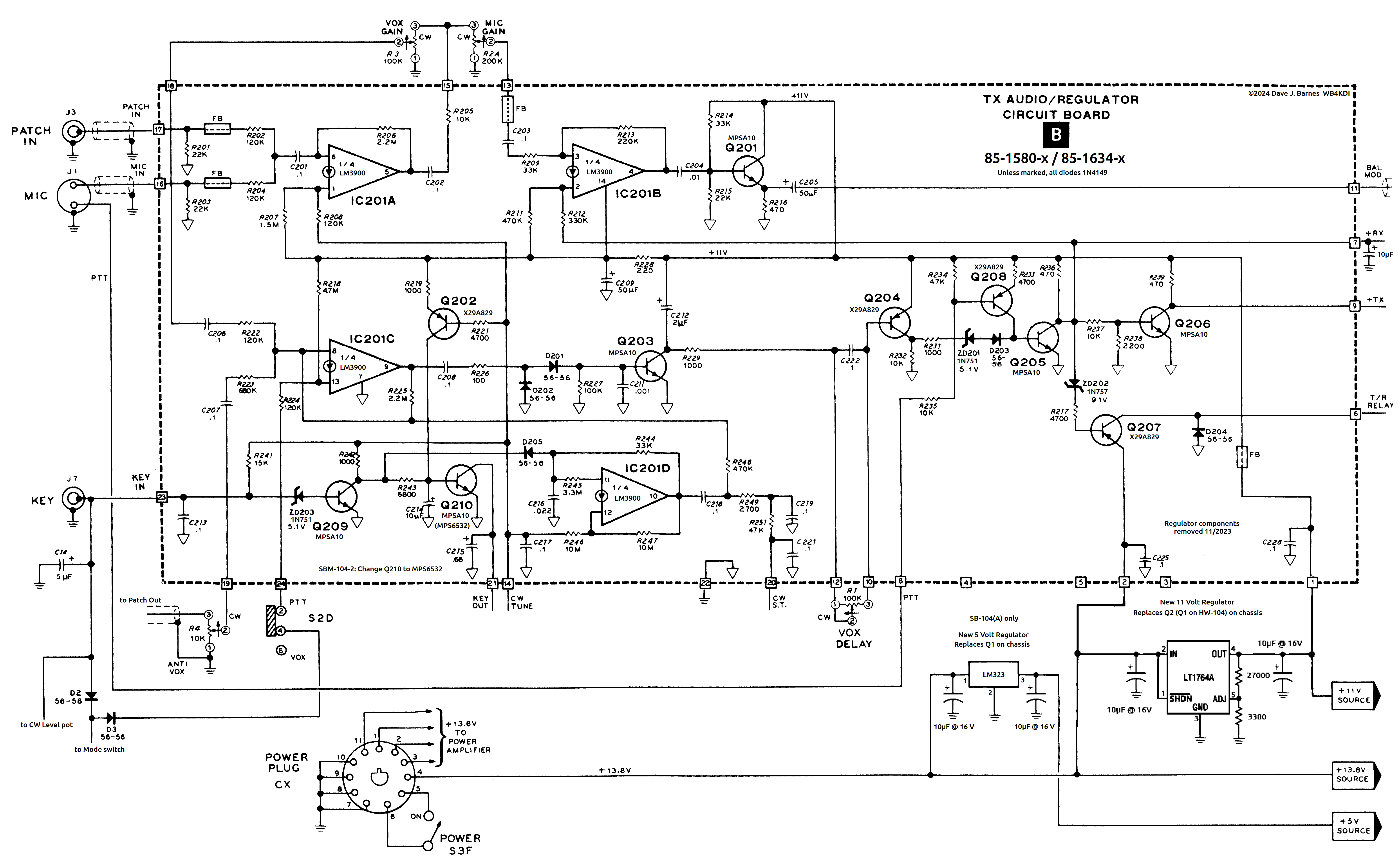

Updated Schematic

[UHD Schematic]

Click for Hi-Res image

Heathkit Changes (May 19, 1976) from SB-104-40

  1. Reduce mic gain
    1. R207 from 4.7M to 1.5M
    2. R209 from 120K to 33K

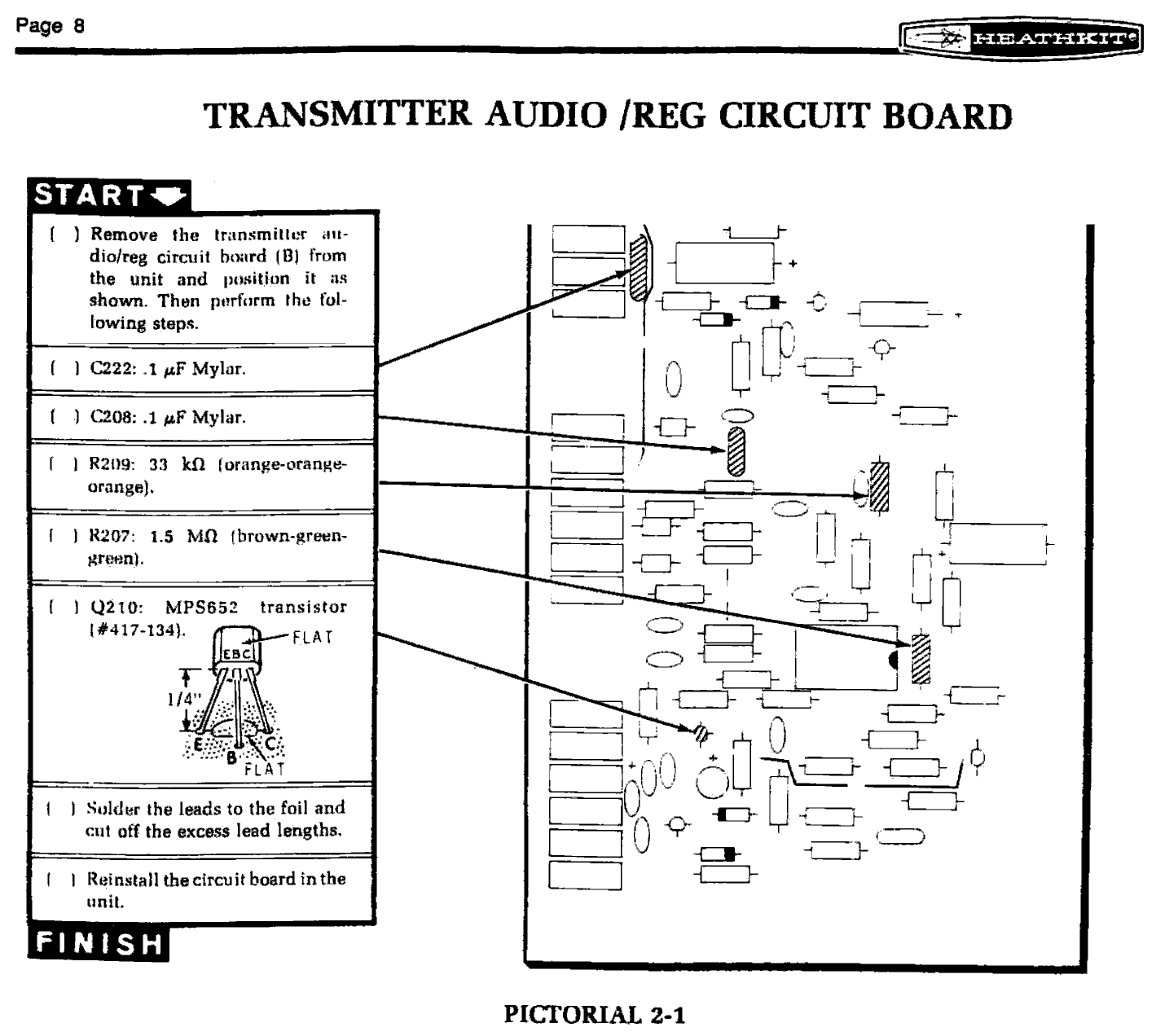

Updates (SBM-104-2)

Click for Hi-Res image

HW-104 => 85-1634-2

PC Board

Click for Hi-Res image

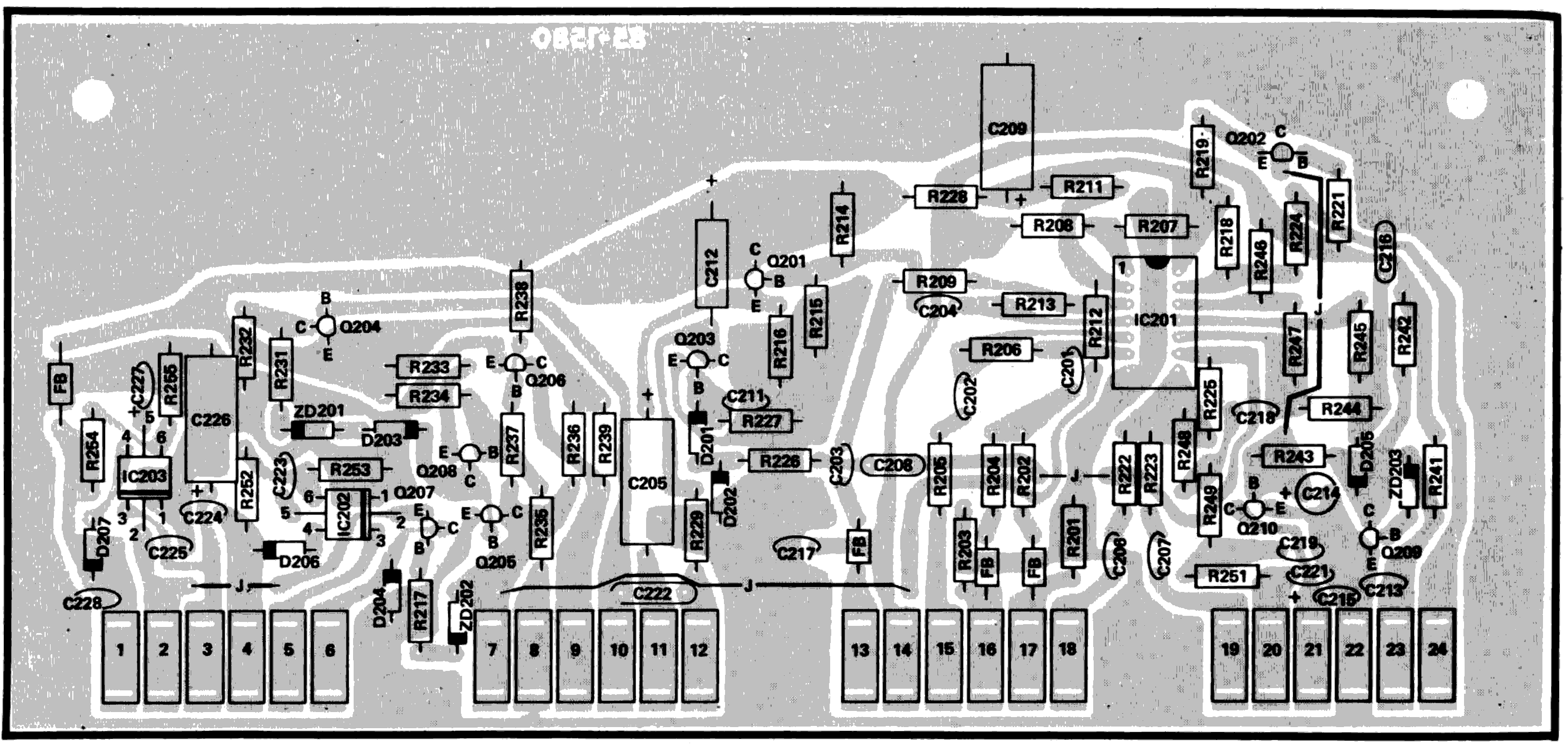

X-Ray

Click for Hi-Res image

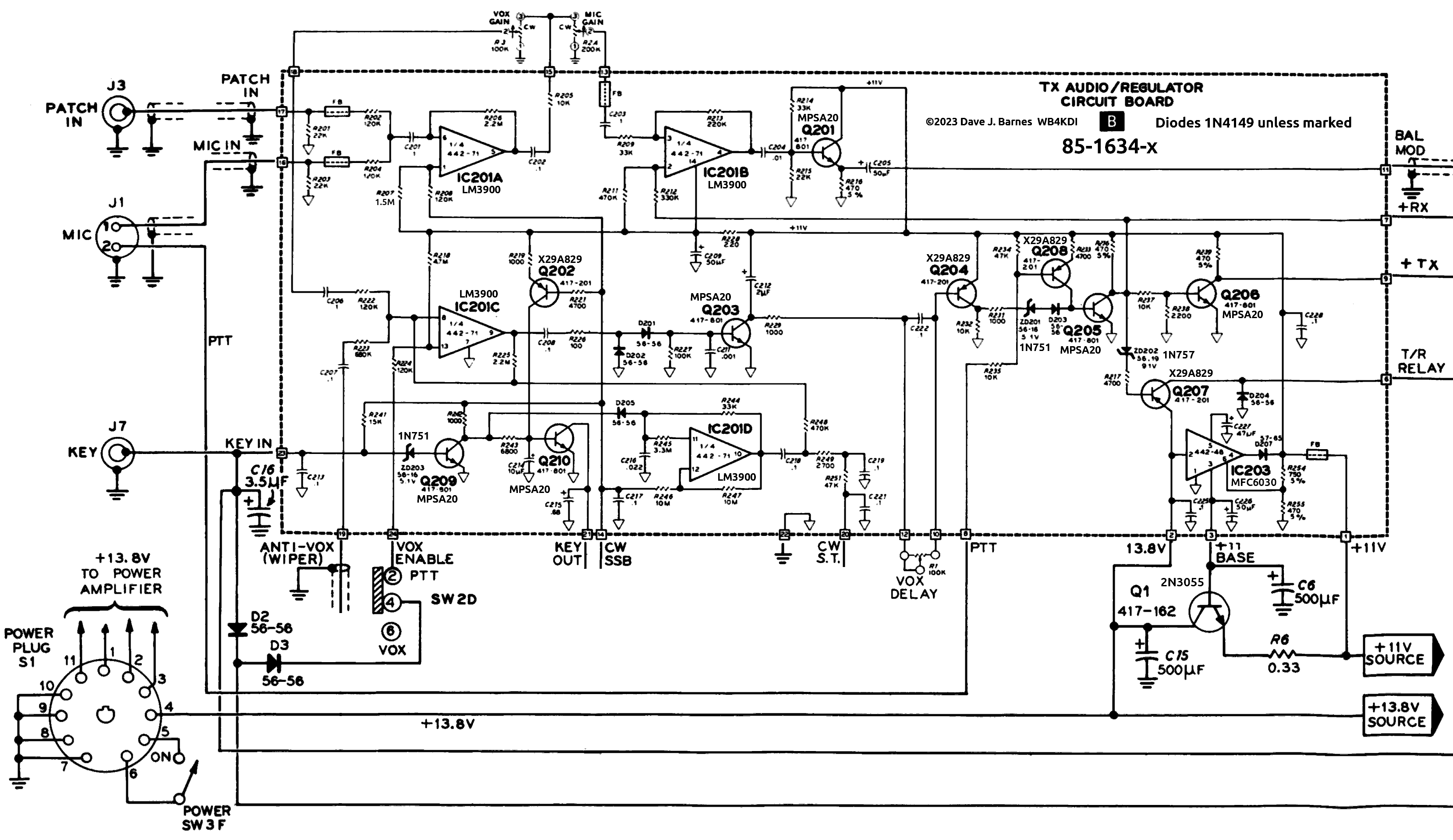

Schematic

Click for Hi-Res image

Regulator components removed 11/2023

Click for Hi-Res image

SB-104A => 85-1580-5

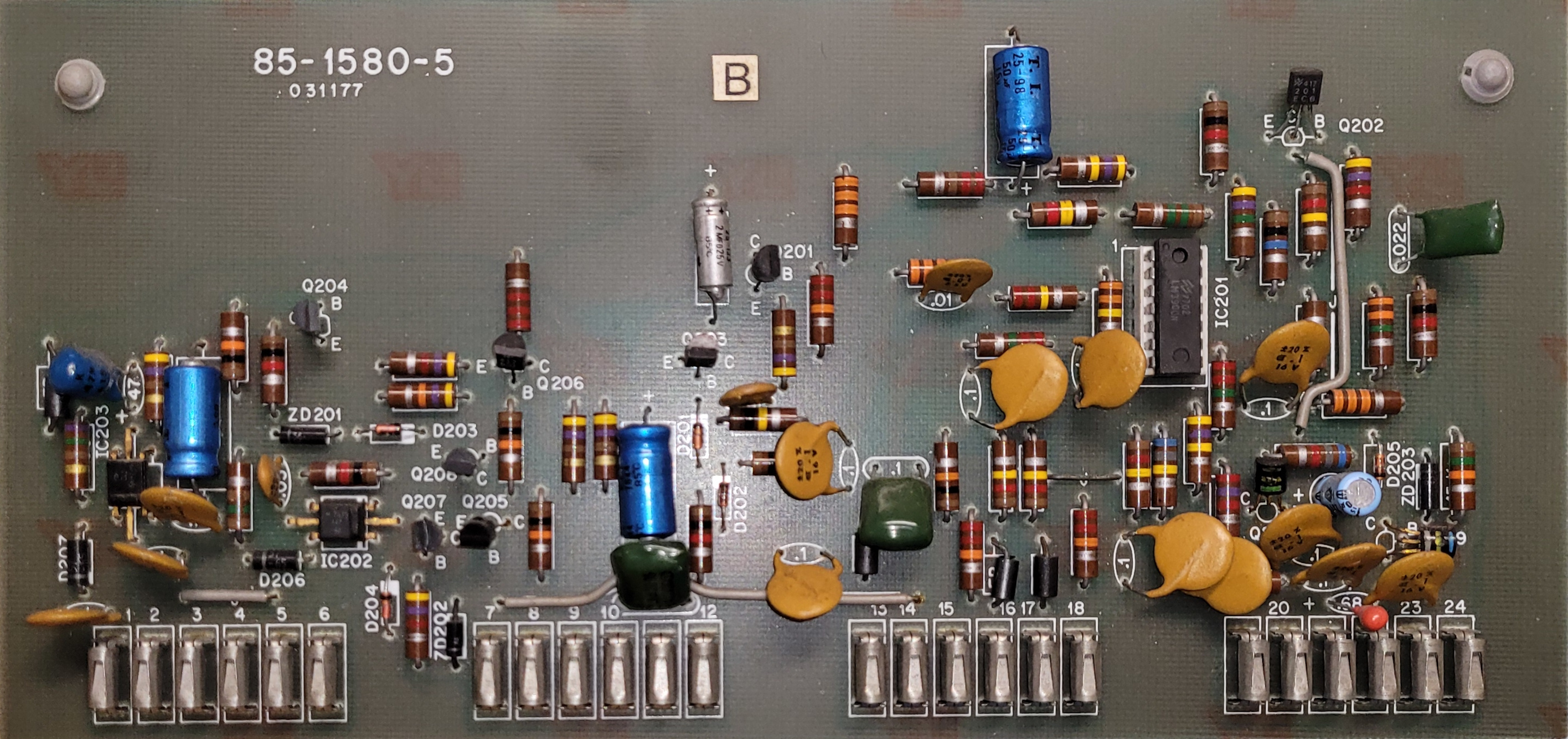

PC Board

Click for Hi-Res image

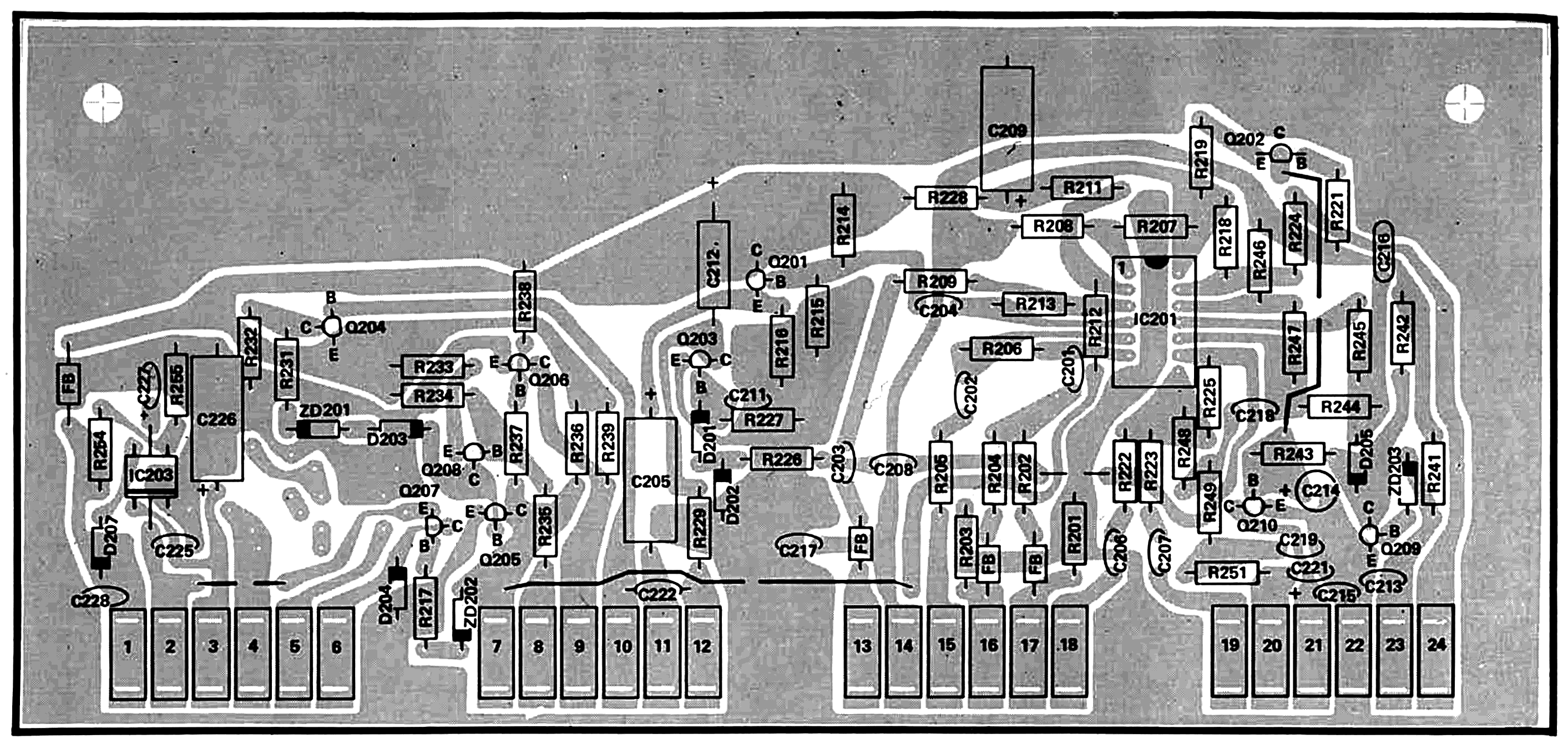

X-Ray

Click for Hi-Res image

Schematic

Click for Hi-Res image
