WELCOME TO
THE WIRELESS PAGE

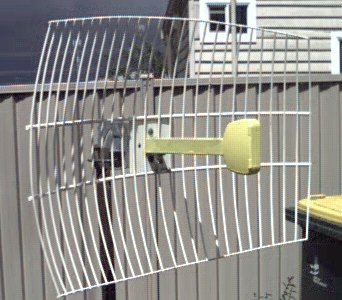

MY HOMEBREW MODIFIED WIRE ANTENNA'S


THIS IS A PAGE ALL ABOUT DEVELOPING A WIRELESS NETWORK USING WIRELESS NETWORK CARDS THAT ARE BEING USE WITHIN THE 2.4 GHZ BAND ISM BAND BY ADDING A MANY DIFFERENT TYPES OF EXTERNAL ANTENNA'S.

We are aiming to establish a fast, free wireless network based on existing off-the-shelf 802.11 equipment utilising radio frequency's around 2.4Gig, allowing us to form a wide network exchanging information and other goodies.We are using various types of IEEE 802.11b hardware for wireless data communication in the 2.4GHz band. This hardware operates license-free!

Here in ballarat we are just starting of in this venture and if you would like to have a look at our web page here it is BALLARAT WIRELESS where you will be able to see what where been up to and whats happening.

You can also have a look at the Ballarat Node Database at BALLARAT NODE DATABASE

WHAT EQUIPMENT I USE HERE


THESE ARE THE TWO CARDS I USE

DWL-660 AND DWL-520+


FOR MY WIRELESS NETWORK I USE A OLD AMD P-400 FOR THE BASE STATION AND ITS SETUP FOR TELNET AND FTP SERVERS AND WITHIN THIS THERE IS THE DLINK DWL-520+ PCI CARD AND ITS CONNECTED TO A MODIFIED WIRE STYLE ANTENNA(SEE ABOVE)

I HAVE A OLD 486 DX4-100 LAPTOP AND I HAVE A DWL-660 DLINK DWL-660 PCMCIA CARD FOR IT

OTHER USEFUL WIRELESS NETWORK SITES

Ballarat Node Database
Geelong Wireless
Dlink Wireless Products

ALLOCATED CHANNELS


There are 11 channels that are allocated for use to use here in Australia in the ism band

Channel 1 = 2411 centre frequency 4watts eirp
Channel 2 = 2416 centre frequency 4watts eirp
Channel 3 = 2421 centre frequency 4watts eirp
Channel 4 = 2426 centre frequency 4watts eirp
Channel 5 = 2431 centre frequency 4watts eirp
Channel 6 = 2436 centre frequency 4watts eirp
Channel 7 = 2441 centre frequency 4watts eirp
Channel 8 = 2446 centre frequency 4watts eirp
Channel 9 = 2451 centre frequency 4watts eirp
Channel 10 = 2456 centre frequency 200 milliwatts eirp
Channel 11 = 24611 centre frequency 200 milliwatts eirp
