replacing the dead Eurovox AM/FM/CD stereo with a modern FM/Bluetooth/MP3 stereo unit, desoldered the multi-pin connector
from rear of the Eurovox to make up a new interface harness between the Eurovox stype connector attached to the internal harness
and interface it to the new JSD-520 stereo, which has the ISO connector.

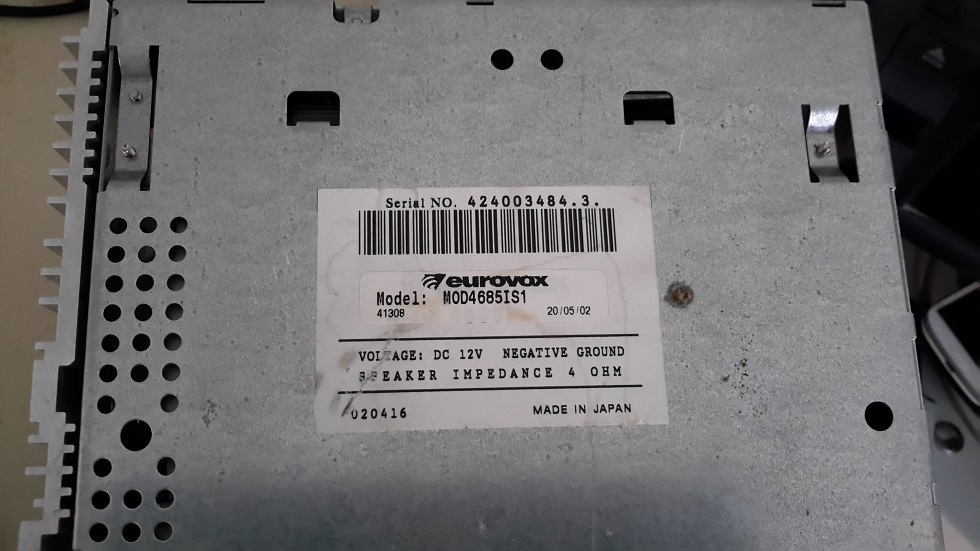

1. Eurovox MOD46851S1



2. view of the front panel of the Eurovox



3. desoldered the connector from the PCB

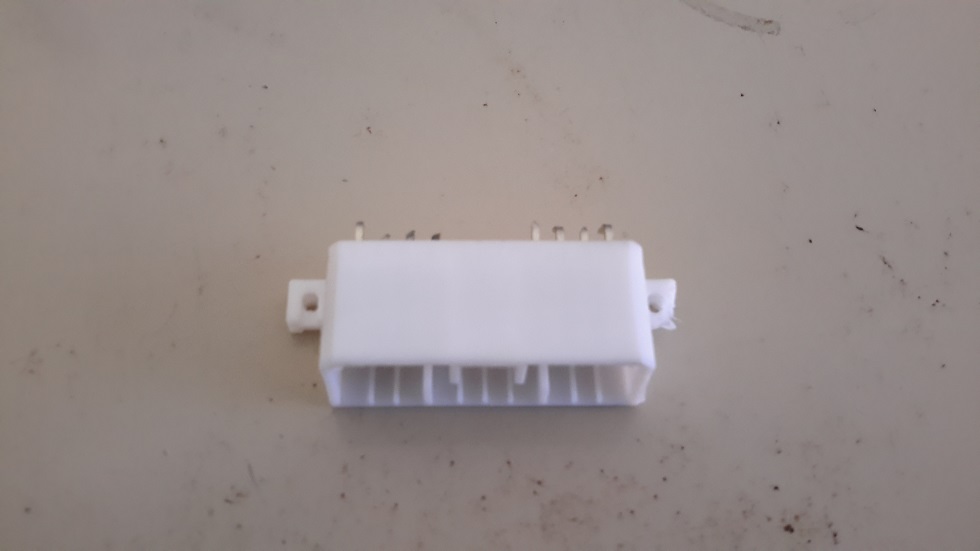

4. this is the connector



5. connector (male side) view



6. connector (solder side) view

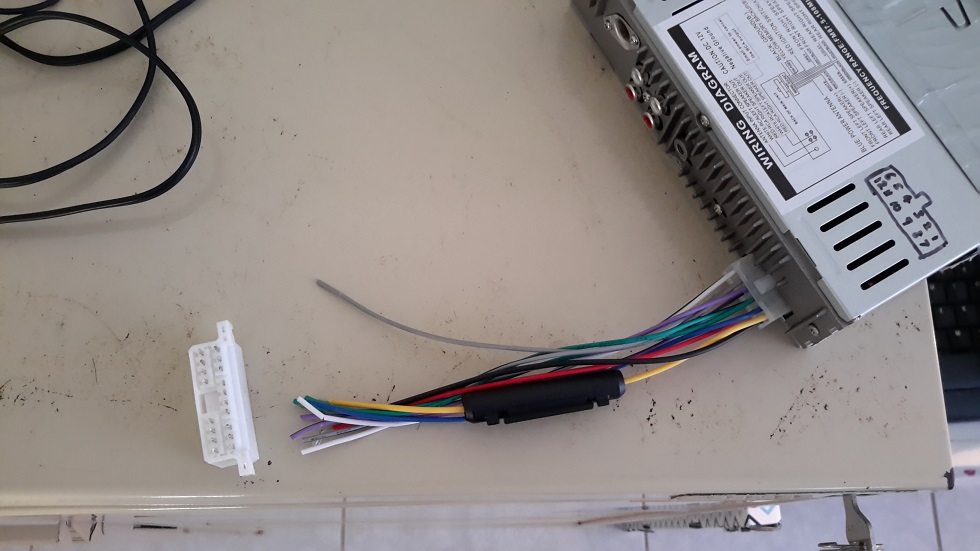

7. soldered the new cable from the new stereo



8. heatshrinked the pins, heat glued the back of the connector when done

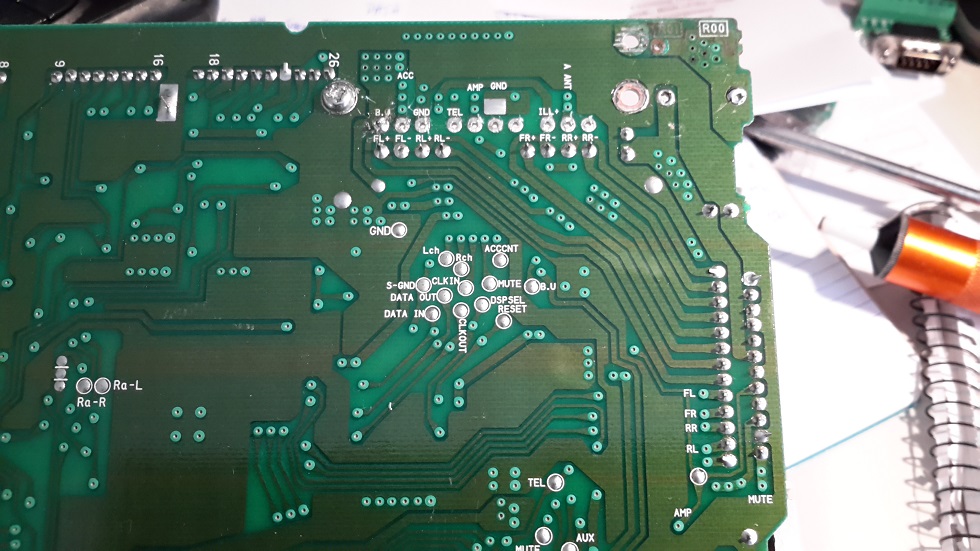

9. this is the rear panel pinouts for the Eurovox MOD46851s1

Addendum:
the FM/MP3/Bluetooth stereo had some intermittent issue, so replaced it with a Nakamichi AM/FM/MP3/BT stereo.
Much better sound and it has AM reception which is very useful when driving out in the country.
