installing the Codan HF transceiver into the Jackaroo

(aka Isuzu Trooper,Isuzu Bighorn,Vauxhall Trooper,Subaru Bighorn,Acura SLX,Chevrolet Trooper,Opel Monterey,Honda Horizon)

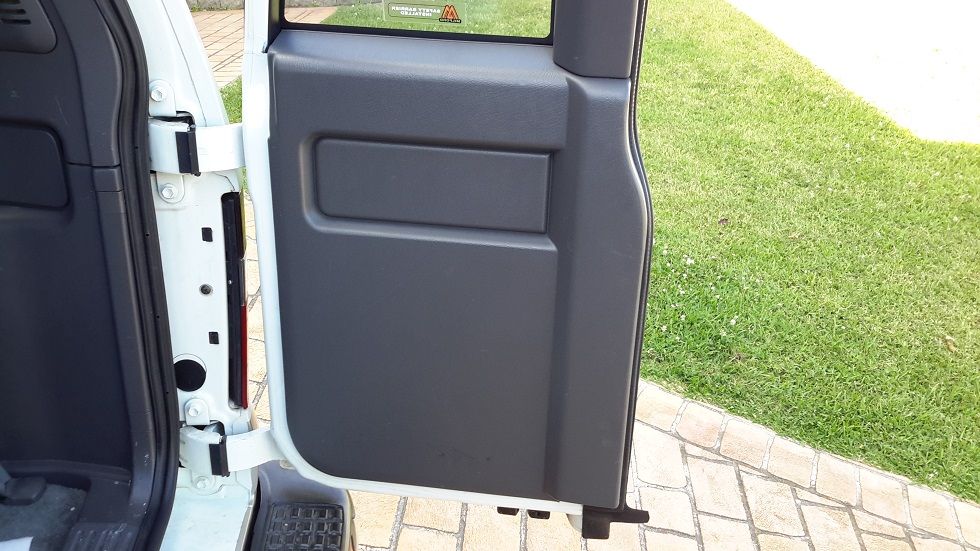

1. rear cargo door

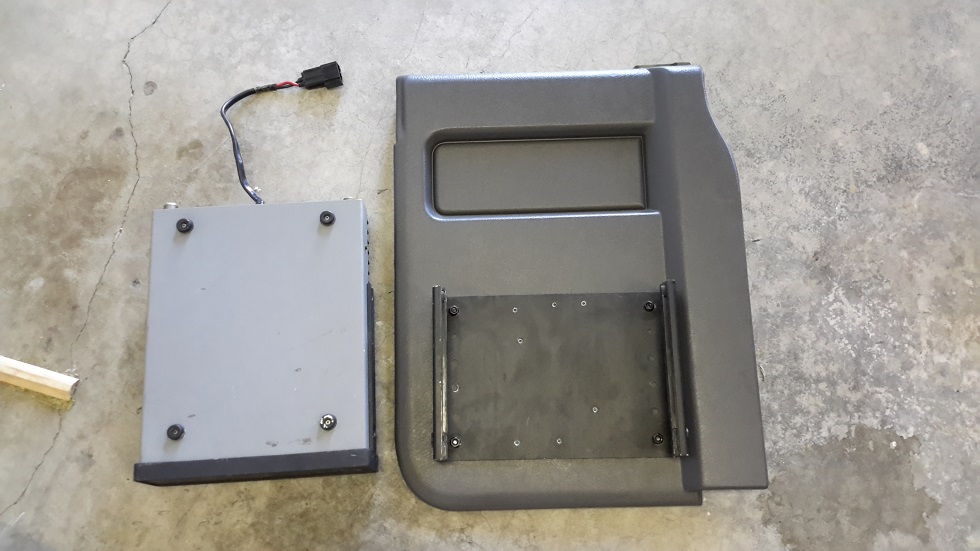

2. Codan bracket fitted



3. added sheet of waterproof foam for noise and heat insulation

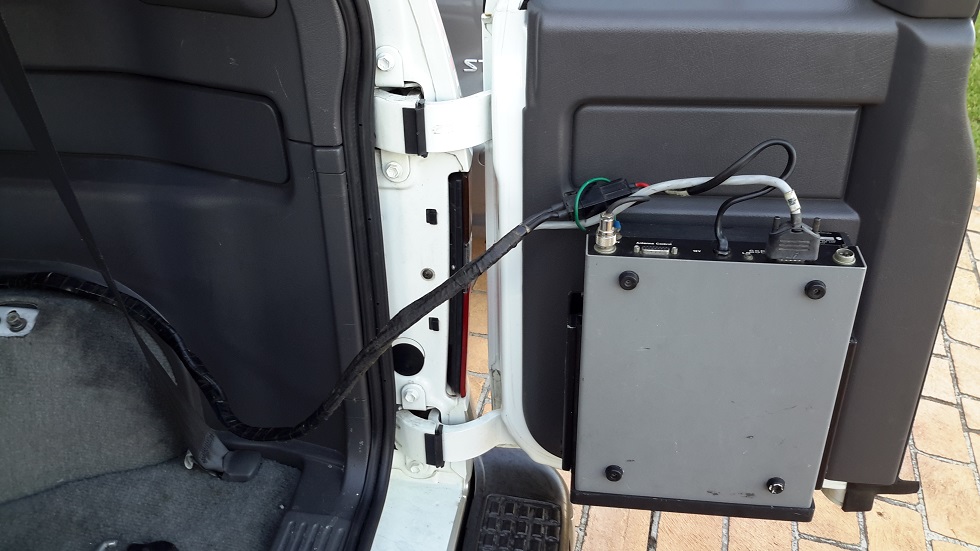

4. Codan installed, ideally it needs a folding shield on a hinge to protect the cables at the Codan

Addendum:
added a plastic box cover for the top of the Codan to protect the cables, lined the box with the white foam,
so that cables are cushioned.  Added Codan Autotuner mounted off the tow bar, HF is so much better from the rear
of the vehicle,  gets the antenna away from the engine and electronics RFI at the front.
