LED Alarm Clock

During the Covid-19 pandemic, I had a lot of time on my hands so I decided to make another clock. This one was to replace an old clock in my bedroom. I have several beefs against many commercially made alarm clocks:

1. Too many buttons and switches, switches become flaky after a while - when you press you get no response then it skips digits
2. Buttons move time ahead only, going back is hell
3. 9V battery backup - batteries are expensive, don't last long, no warning when they fail
4. If power fails clock gains (never loses) time even with good backup battery

The best part was that I had all the parts I needed on hand, including a nice 4 digit LED display, although the display did have its challenges.

the projectInside

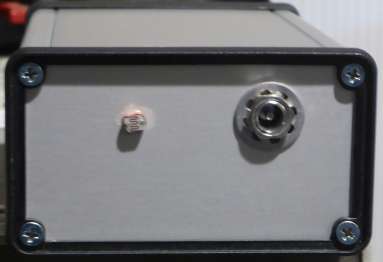

The LED display was the greatest challenge. It was too bright. I even tried using 47K resistors for the segments and it was stilll bright. Some of the clock projects from ebay come with a film to improve contrast, and I would recommend using it if available. My solution was to use Timer2 to limit the time each display is illuminated, and I was able to dim it down quite well. Once the display is dim enough for nighttime use, it is too dim to see during the day, so I added a photocell to increase the brightness during the day. You can see the photocell on the back panel in the photo below.

backfront panel

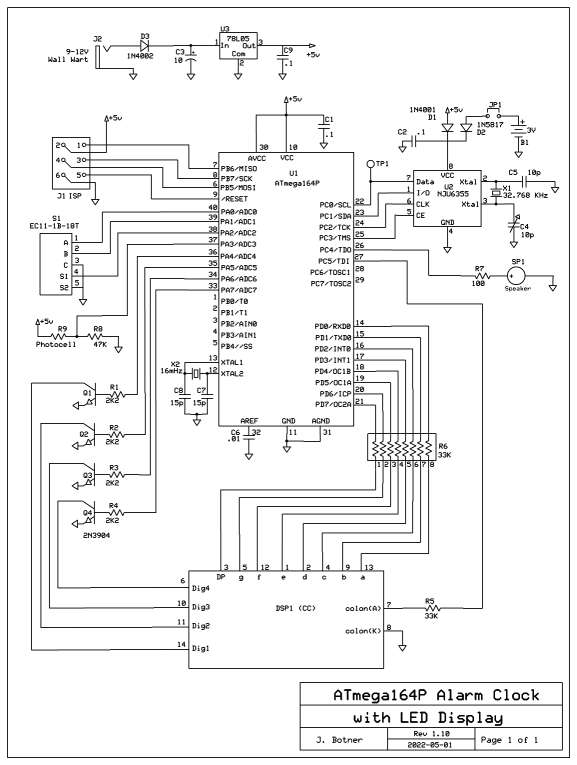

The project uses a tiny speaker for the alarm. At first I was going to use a piezo buzzer, but it was too loud and there is no way to tone it down. If you reduce the voltage with a resistor it just stops buzzing at some point. And modulating the signal produced some wierd sounds but not the desired result. The speaker is driven at 1 KHz from Timer1, and the volume can be controlled by adjusting R7. I put a 500 ohm trimpot there and it works fine.


The photocell is a Photonics Detectors Inc. PDV-P9003, Digikey P/N PDV-P9003-ND. It has a low resistance when illuminated, around 1 to 2K, and a high resistance, > 100K in the dark. Almost any photocell should work here, you can adjust R8 and the trigger threshold voltage in software if necessary. For my first try I chose 47K for R8 and 2.5V for the threshold, and it worked first time. Later I changed the threshold voltage down to 1V to suit my environment. There is a small hysteresis in software to prevent flickering at the threshold point.

The pushbutton rotary encoder is a model EC11-1B-18T made by Changzhou Xinze Electronic Co. It is very similar mechanically and electrically to the CTS series 290 rotary encoder I used before. As a bonus it is easy to panel mount, (as long as you can find a nut that fits it), and works quite well.

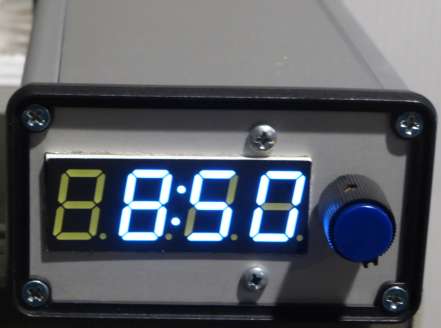

The decimal point on the last digit indicates PM if on, and AM if off. The decimal on the first digit indicates whether the alarm is on or off.

Programming the clock is simple.
Twisting the encoder knob turns the alarm on and off. Going from off to on, the alarm time is displayed for 2 seconds and there is a short beep. Press the encoder button and programming mode is entered. First AL is displayed. To program the alarm time press the button, then you can hours then minutes. After pressing the button, the clock returns to normal display, on the grounds that you will want to program the alarm most often. To program the clock, turn the encoder knob when you see AL (if you press the button you return to normal clock operation). Then CL is displayed. Turn the knob to return to clock display, press the button to program the clock time. When programming time, first hours are shown, adjust with the knob, press the button and minutes are shown, etc. Keep in mind that when clock time programming is complete and the button pressed, the time is updated in the NJU6355 with seconds set to zero.

When power is off the
NJU6355 is powered by its battery, a CR2032 coin cell. Alarm time and setting is stored in EEPROM so it will not be lost. C4, a small 10pf ceramic trimmer capacitor, is used to adjust the clock and it can be done quite accurately if you have a good frequency counter. You must be able to modify main.c to add a call to rtc_test() after initialization is complete. Run the updated program with the frequency counter on TP1, and you should get a signal at 128 Hz. Adjust C4 to get as close to 128.0000 Hz as you can. If your frequency counter is accurate and has enough resolution, the clock should be spot on. Then reload the original program.

NJU6355 is no longer available. I used a DS1302 in this project, it could be used as a substitute here.)

The project requires a 5VDC external power supply. I used a USB type charger wall wart, they all have plenty of current for this project. I even found a USB cable with the barrel type power plug in my collection.

One more note on the display: I ended up using 33K resistors for R5 and R6. In spite of dimming the display in software to 1/120 of the time for each digit, it was still too bright for me. If your display is too bright or too dim, I suggest playing with define LED_TIME_SLICES (in main.h) as well as the value 4 assigned to ucLedTimeSliceLimit (in main.c when setting the display to dim), and resistors R5 and R6. Note that
LED_TIME_SLICES and the value assigned to ucLedTimeSliceLimit must be a multiple of 4. The resistors determine the maximum overall brightness of the display. Greater values of LED_TIME_SLICES will allow for a dimmer display, but there is a practical limit which I found to be 120. Assigning a value greater than 4 to ucLedTimeSliceLimit will also brighten up the display when dim, probably better to just reduce LED_TIME_SLICES. Anyway I spent a lot of time fussing with my display, and I expect a different display might require some fine tuning.

2022-05 Update: Added 78L05 regulator to power supply. Was getting nervous about noisy output from cheap 5V switching power supplies. Of course now you need a 9 or 12V wall wart. If you go any higher make sure the 78L05 doesn't get too hot, or replace it with a 7805.

Download C source code for the alarm clock
