VB2R - THE ANTENNAS


20m yagi 80mphverticals 80mbase 160mvert 160minstall 160mfeed 40m4sq 40mlayout

  1. 3 element monoband yagi used on 20 meters

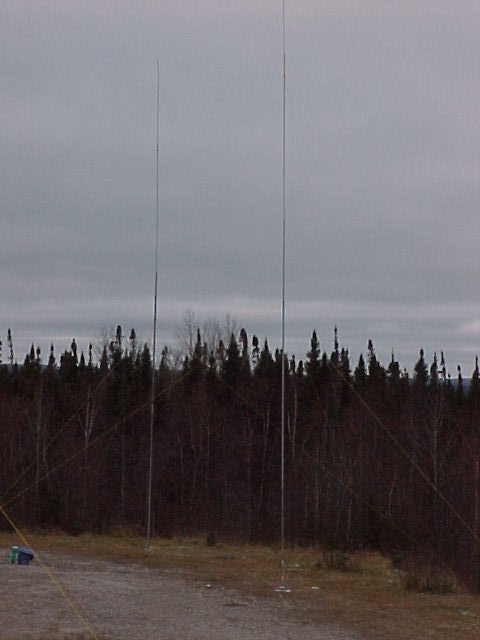

  2. Phased vertical array used on 80 meters

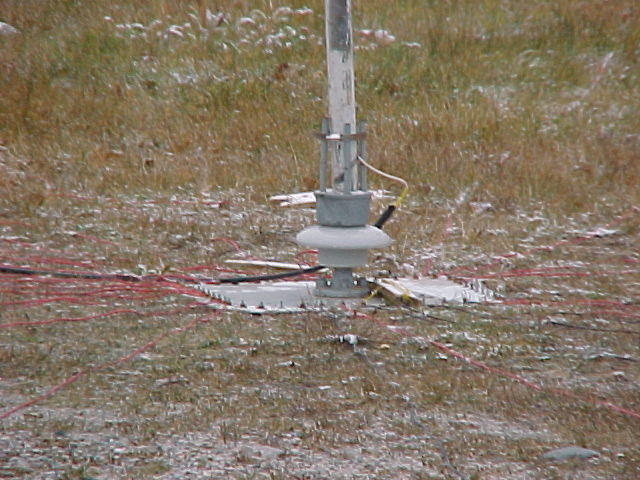

  3. Base of one of the 80 meter phased verticals

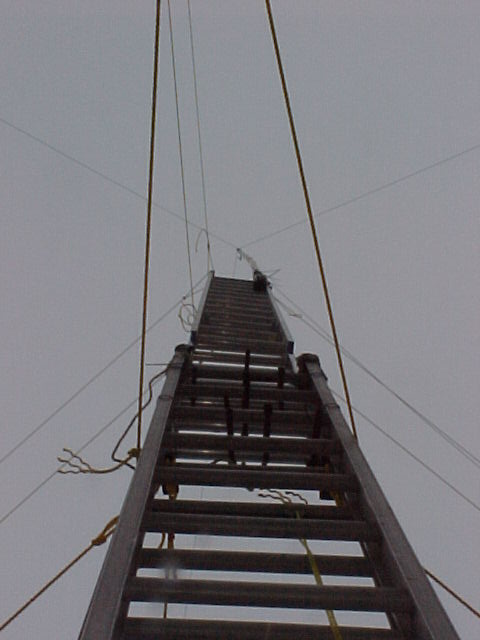

  4. Looking up at the 160m top-loaded vertical
  5. Kevin VE3KJS and Ray VE3HAE installing the 160m top-loaded vertical on a cold, windy, rainy day!

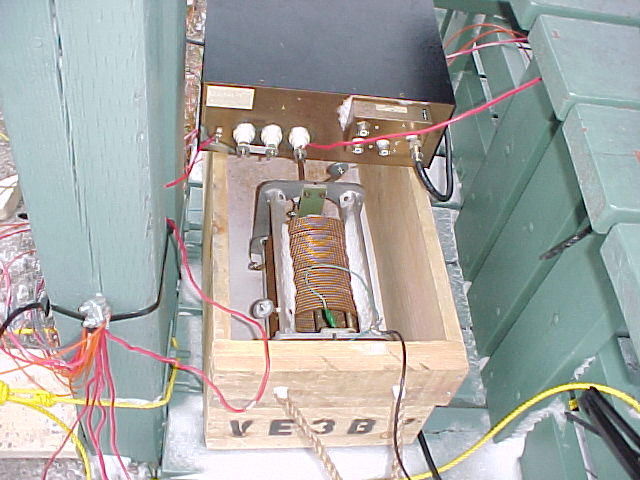

  6. Base of the 160m vertical
  7. 4-square vertical array used on 40 meters
  8. Bob VE3SRE and Dennis NB1B (in the foreground) with Carl VE3BY and Rick VE3VFT (in the background) laying out the 40m 4-square array

15m 15msetup 15&160m 10m&40shack 10minstall

  1. Array of 4 half-square antennas used on 15 meters with 160m vertical in the background.  The tent trailer used for the 15m shack is on the left hand side of the photo
  2. Don VE3DBF and Bob VE3SRE laying out the 15 meter half-square array

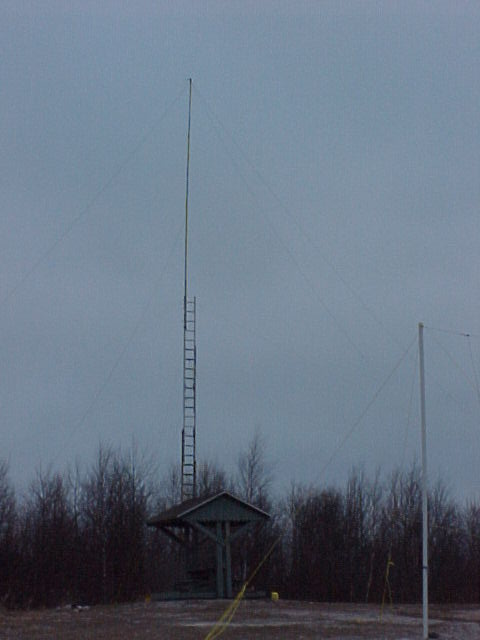

  3. 160m top-loaded vertical (we used an extension ladder along with an extendable mast) with part of 15m half-square array to the right.

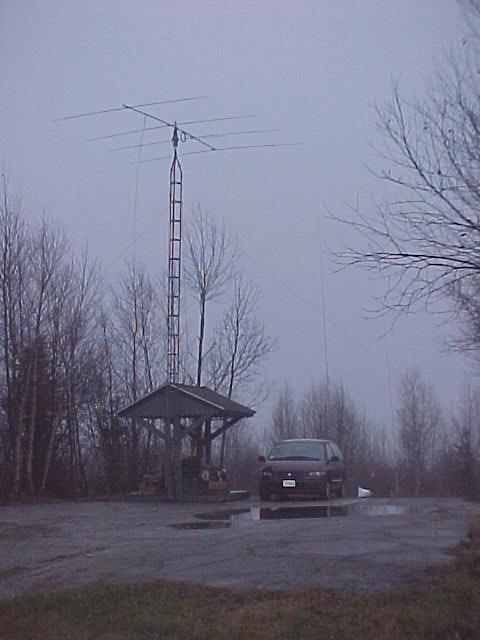

  4. 4 element 10 meter monoband yagi.  Dennis NB1B's mini-van was used for the 40m shack
  5. Installing the 10 meter yagi.  Rick VE3VFT is on the tower, Carl VE3BY on the roof of the picnic table shelter, Bob VE3SRE in the background and Dennis NB1B in the foreground
