UHF Moxon Antenna for FREE

I made this antenna to use on the balcony to communicate with my best friend.
Before this antenna i was using 15w and 1/4 vertical antenna and my signal was about 5 or 7.
When i use this antenna he reported that my signal was 9+ and I was just using 1w handheld transmitter.

I am sorry, I forgot to take photos, because I made this in 2 hours.

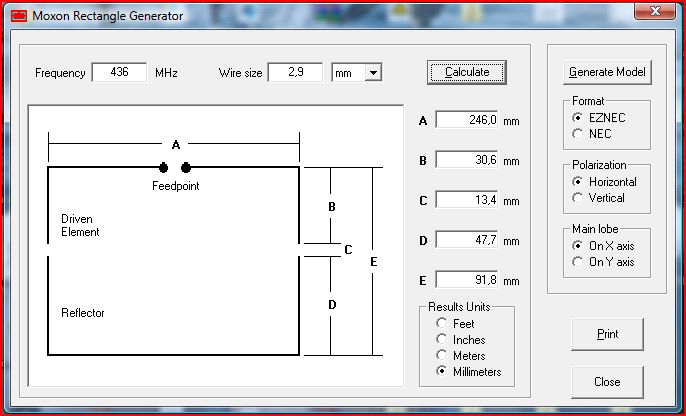

Firstly, I calculated the values by using Moxon Rectangle Generator.


You can get it from here

Parts:
Metal Clothes Hanger
PVC Pipe
RG58

Firstly, cut 5cm piece and put it into microwave oven for 30sec and use medium power.
This is optional but as a general rule, if it gets hot, it is not usable for rf related work.
Afterthat, use a dremmel or other similar tool to make one side of short piece concave.
Glue this short piece to the main body. Use glue on both inside and outside.

Take hanger and make it strait. You can easily throw head part because only body part is enough for 70cm.
According to the picture on the software, cut and make driven elements and reflector.
Drill holes and fit all metal parts. Look through the pipe, set and equalize the spaces between metals according to schem.
Glue the metal parts.
Drill a hole on the driven elements level on the short piece and push a rg58 through.
It is easy to bend the cable over the pipe if you drill the hole with an appropriate angle.
Solder rg58 cable to driven elements.
Glue the rg58, if you have extra, fill inside.
Make a coil around short piece of pipe.
Drill another hole on the body and push all the remaining cable through.
Glue and isolate everywhere that looks you weak.
