NMEA Converter for Kenwood TH-D7

This is a small microcontroller project that converts nmea data from gps to Kenwood TH-D7 HT.

Kenwood TH-D7 is a FM dual bander with built-in tnc and aprs options. It has external GPS connection to receive position data from gps
and send it over aprs net. Unfortunately, there is bug on the tranceivers firmware.
When I am doing a research over it, i found this site that explains the problem:
http://www.webalice.it/hotwater/Potator.htm

Tranceiver only accepts old version of NMEA but my gps is new !

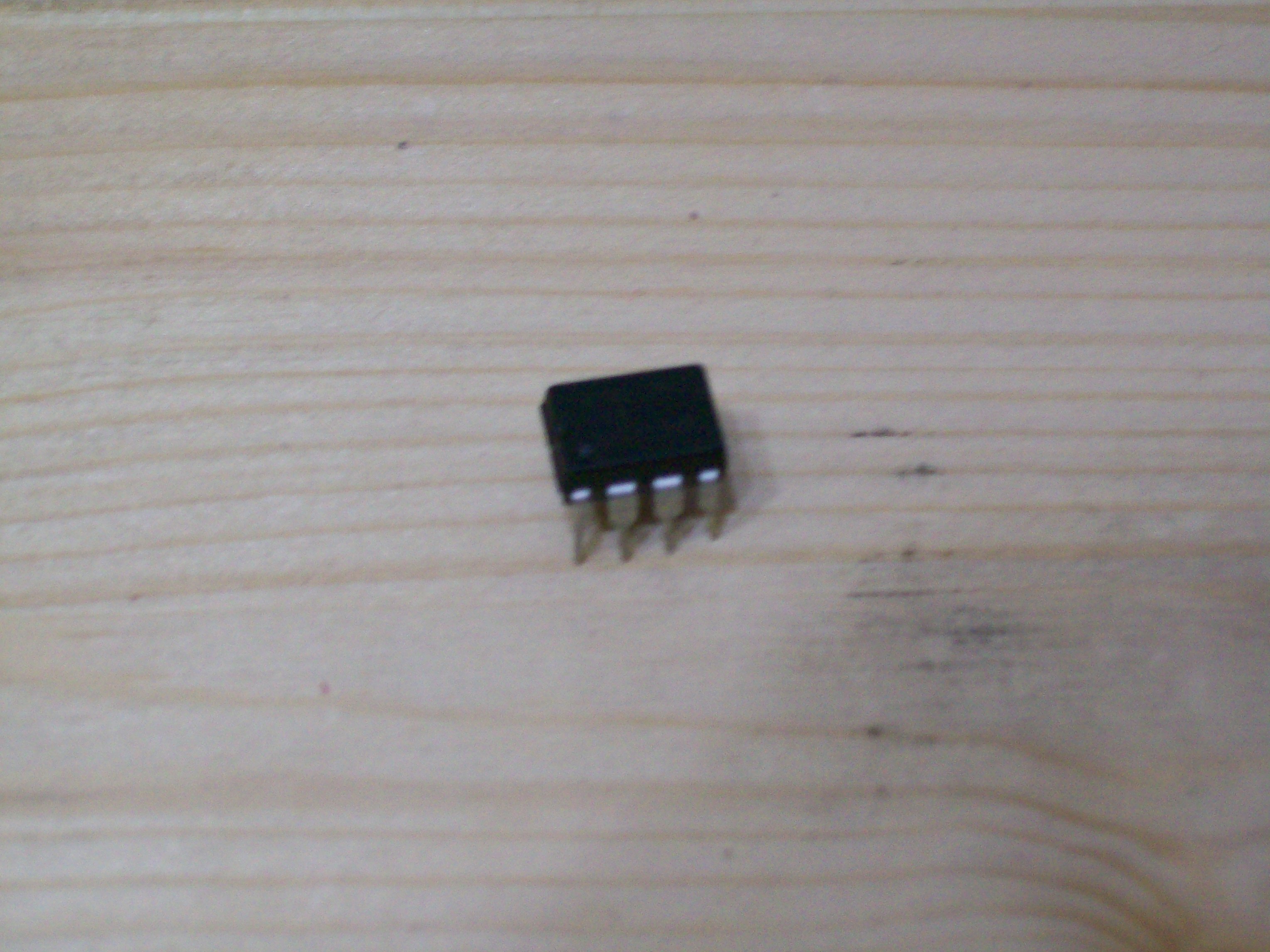

I tought that PIC 16F628 is too 'big' for this job, so i decided to use small 8 pin mcu and selected PIC12F675.
I wrote a very very noob code and tested it, after some corrections it worked.
It basically waits for $GPRMC sentence, takes specific datas, calculates checksum and sends them in right format.

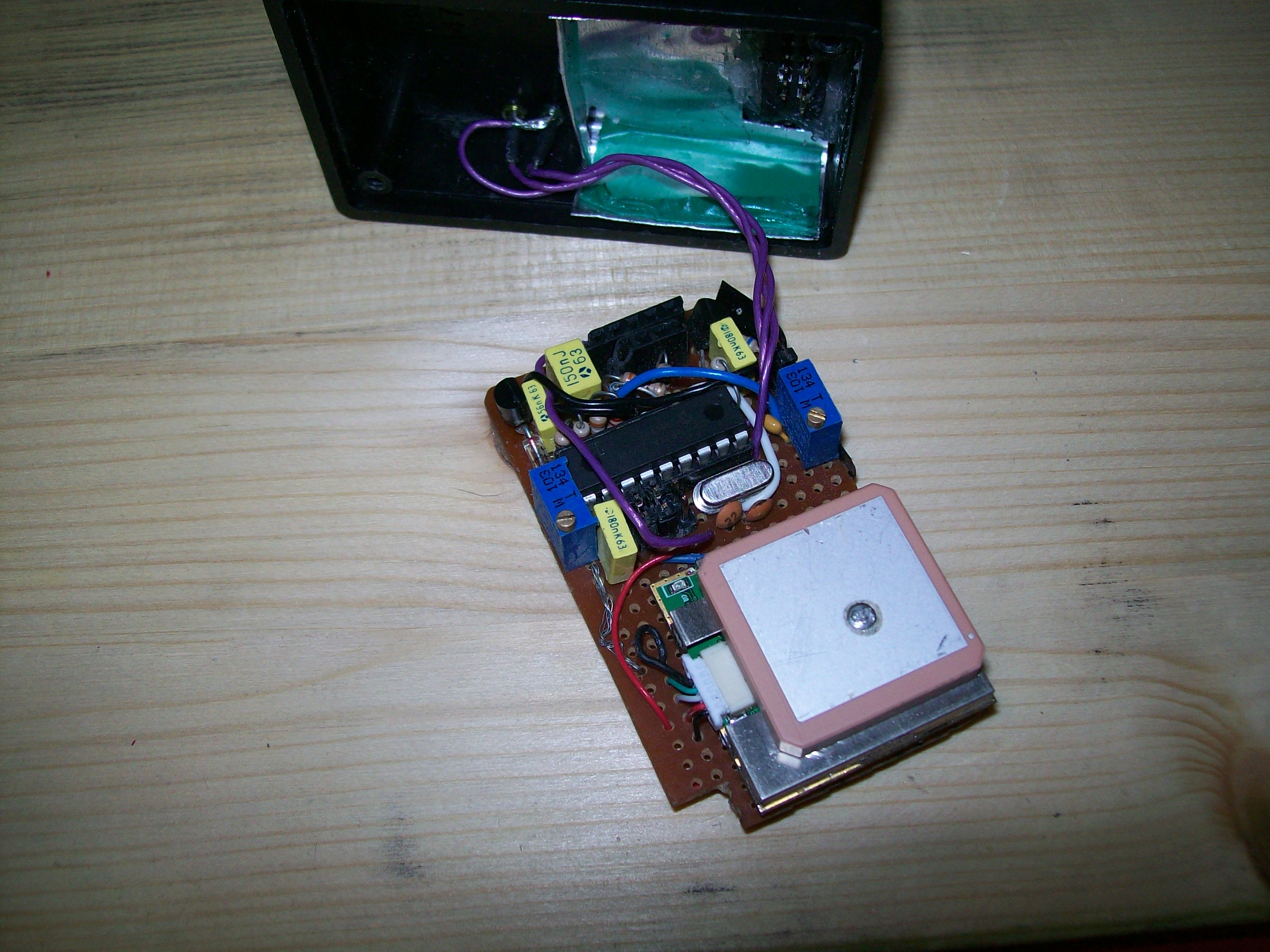

A made a small Black Box a few years ago. There is a gps and a tinytrak circuit in it but I can also get a serial gps data from it.
I decided to keep my Kenwood HT intact and put this chip in to this black box. There is also a 10MHz xtal in it, so there is no need to use a second xtal.
I took and bend the pins of pic, put a 100n smd capacitor on supply line*, clock* input wire*, data input* and data output* connections.



right click and choose "save target as": C Source Code HEX File
