Location: 2m/10m SSB transverter

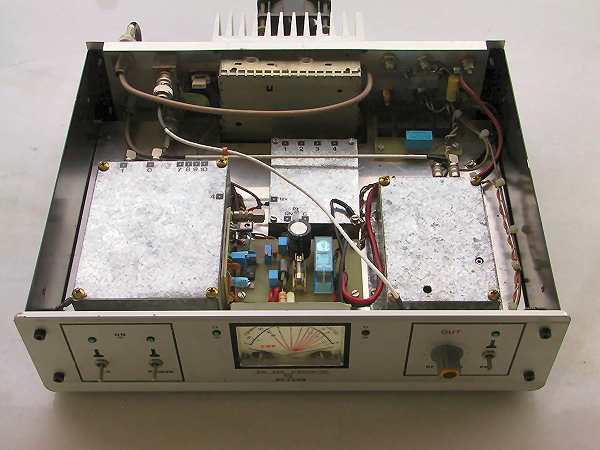

50W 2m ssb transverter

This is my homebrew 10m/2m transverter. I finished it on 1998 using high quality components . It is based on G4DDK suffolk transverter from VHF-UHF DX BOOK .

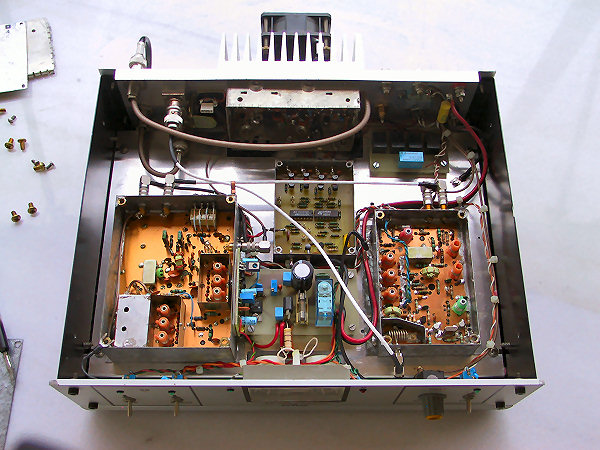

Inside...

.

At the left is the TX module. At the right the RX module. At the center is the sequencer and the low drop voltage regulation pcb.

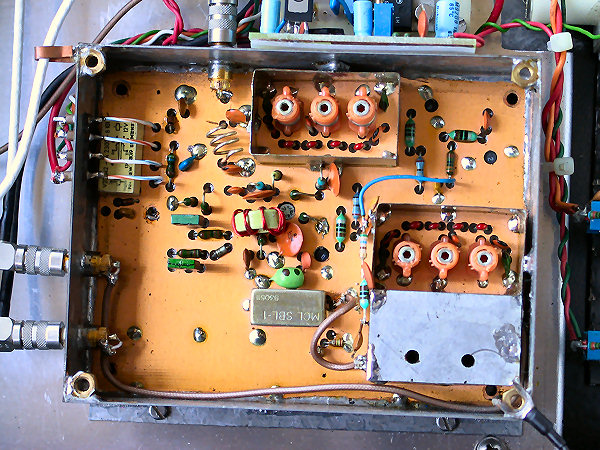

The RX module

TRX sequencer and Low drop voltage regulation pcbs.

The output power module .The PEP is 50W.
