Como fazer escala para medidores ==== How to make a meter scale english scrol down
Como medir o angulo que o ponteiro percorre (span - degrees no software)

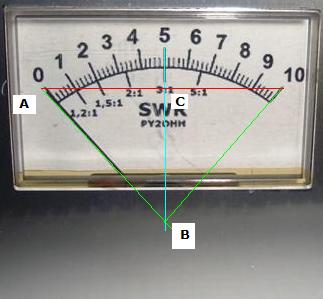

1. Medir o comprimento do ponteiro desde o eixo principal até o final da marca ZERO = linha verde na foto medida AB.
2. Medir o comprimento do final da marca Zero ao final da ultima marca (10 na foto) = linha vermelha
dividir esta medida por 2 = AC
3. Calcular AC / AB

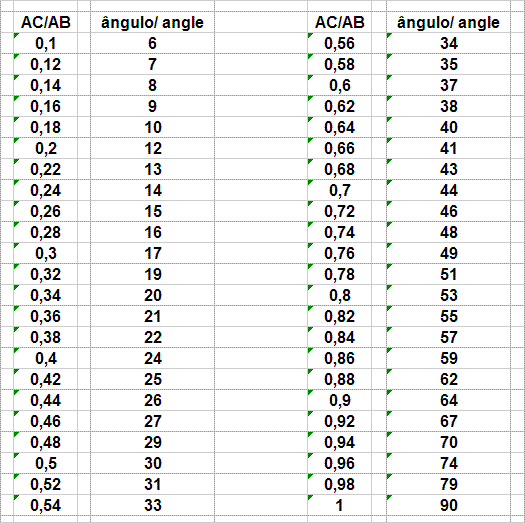

Procurar na tabela o angulo e multiplica-lo por 2

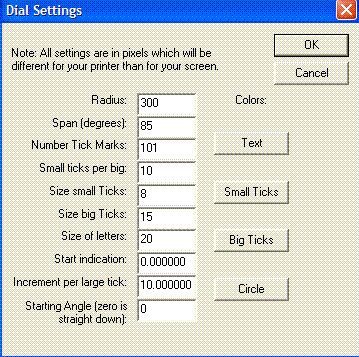

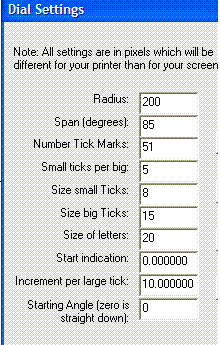

Exemplos de ajustes settings
exemplo 1

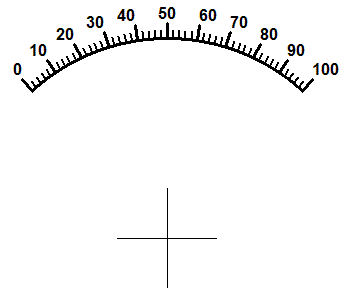

resultado
exemplo 2

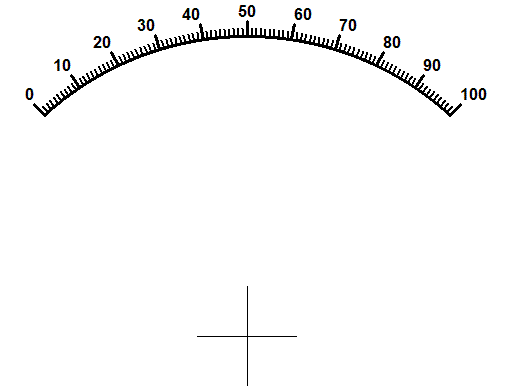

resultado

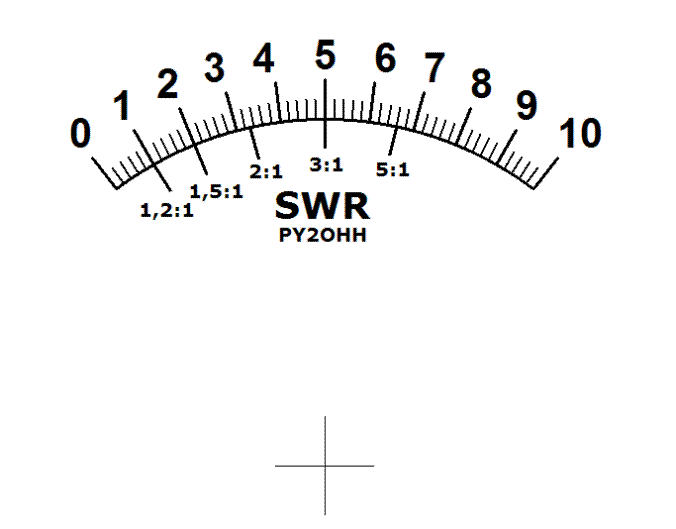

Resultado depois da edição em windows PAINT
Acerto de escala :
1. Faça o grafico com o software coloque um raio grande.
2. Faça um print screen
3. Edite com o Paint, recorte e copie
4. Abra um novo arquivo no Paint, cole e grave
5. Imprima meça o que saiu.
6. Calcule quanto é necessario aumentar ou diminuir para obter o desejado.
7. Abra o arquivo no paint e redimensione (aumentando ou diminuindo) em imagens - alongar.
Escala corrigida imprimir com otima qualidade
Outros exemplos de escalas -
para variavel de acoplador

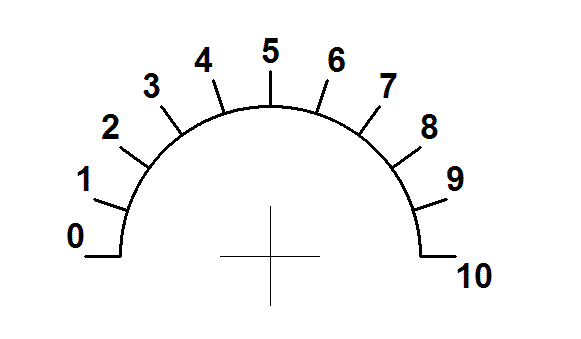

Para chave de onda de acoplador

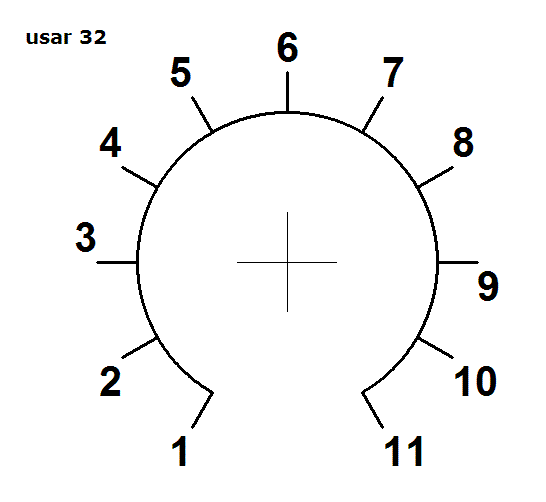

nota a dica usar 32 é a redução necessária para minha impressora.
73 de py2ohh miguel
==============================================================
==============================================================
==============================================================
How to make a meter scale english scrol down
How to measure the angle (span - degrees )
1. Measure the length from pointer axis to final (top) of ZERO mark = green line verde in the picture AB measurement.
2. Measure the length from the end (top) of ZERO mark to end (top) of last mark (10 in picture) = red line
divide this measurement by 2 = AC
3. Calculate AC / AB
Find in the table the angle and multiply by 2
Settings exemples
exemple 1
result
exemple 2
result
Result of a dial after windows PAINT edtion
Scale correction:
1. Make the graphics with DIAL software put a large radius.
2. Make a print screen
3. Edit with Paint, cut and copy.
4. Open a new file in Paint, cole and save as .gif format
5. Print and measure the results.
6. Calculate how is needed to enlarge or shirink for to get the desired result.
7. Open the file in Paint and redimension (enlarge or shirink).
Make modifications as you want then print in hight quality.
Others exemples of scales
Variable capacitor in a coupler
Multi position switch in a coupler
note the tip "usar 32" is the redution or shirink for setup my printer.
73 de py2ohh miguel
