PCB USDX with FST3253 TSSOP com ATMEGA328

Esquema
Squema

Observação : dependendo do modelo ou fabricante do CI os pinos 1 e ou 15 podem não ser aterrados, consulte o datasheet.

Note: depending on the IC model or manufacturer, pins 1 and 15 may not be grounded, see the datasheet.

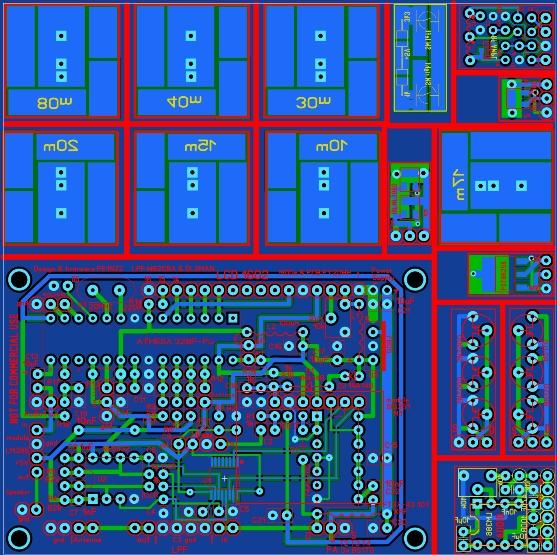

Layout Total da PCB
Arquivo GERBER desta placa

PCB Total Layout
GERBER file of this board

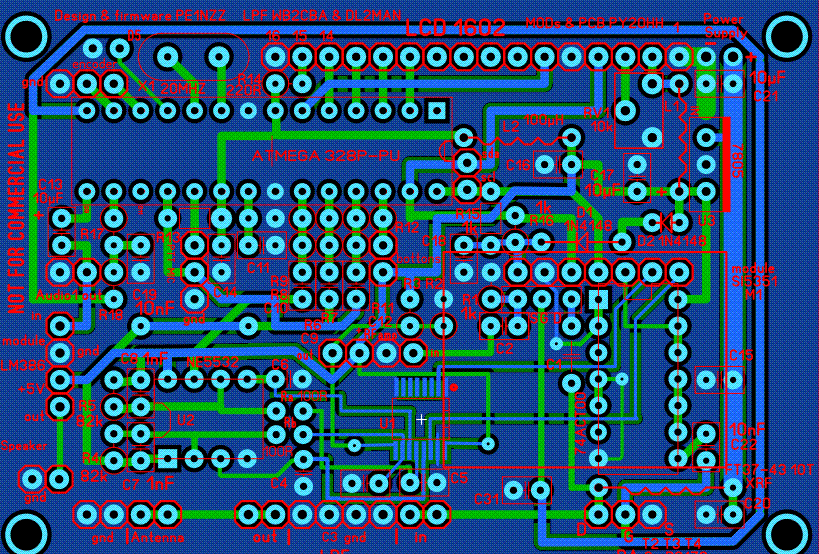

Layout da PCB no detalhe

PCB layout in detail

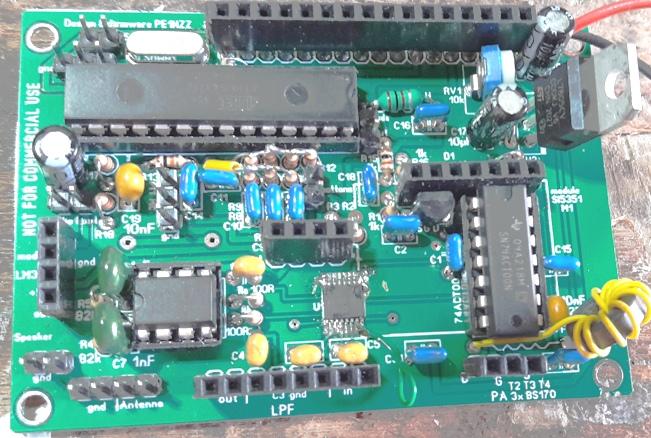

Foto da montagem
Assembled PCB

Note que existem 3 erros na PCB (no SSOP), corrigidos por jumpers. Nos arquivos gerber estão corrigidos.

Note that there are 3 errors on the PCB (in SSOP), corrected by jumpers. In the gerber files are fixed.

73 de py2ohh miguel
