ENGLISH begins after portuguese...please look down

CHAVE IAMBICA DE CW POR TOQUE

Como não consegui um esquema de chave para CW por toque resolvi dar uma estudada no assunto.

Estas chaves descritas operam em conjunto com circuitos eletronicos de chaveamento, como o K8 e outros.

A primeira chave funciona com DC e se estiver muito bem aterrada não funciona.

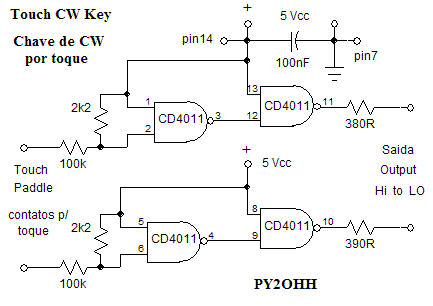

Esquema

A alimentação pode ser com um 78L05.

Este circuito montei experimentalmente junto com um K8, como não uso chaves iambicas em CW o Celso PY2XT testou e aprovou.

Vou montar uma versão SINGLE para operar como em PICA-PAU (manipulador ou chave de CW simples).

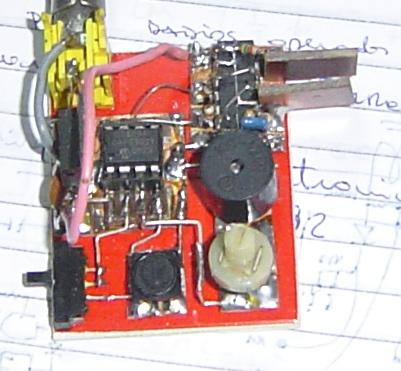

Fotos

Como não funcionava quando o radio estivesse bem aterrado, resolvemos testar outro tipo de AC ou com oscilador

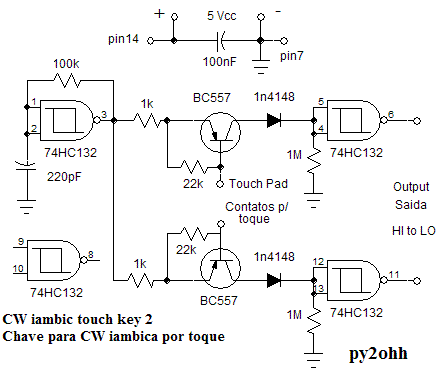

Esquema

O circuito tem um oscilador e o chaveamento fica por capacitancia nas bases dos transistores.

Não testei com outros CIs mas creio que o CD4093 funcione bem.

Gostaria que caso algum colega monte e OPERE com um tx que mande seus comentarios.

73 de py2ohh miguel

========================================================

IAMBIC TOUCHING CW KEY

I search the WEB looking for electronic circuits fora touch paddle, but I dont find one, then I made these simple designs.

These keys work together with a electronic key like K8.

The first is a DC type and if the transmitter has a good ground it dont works

Schematics

The 5 V may be supplyed by a 78L05 IC.

This circuit I build in a board with the K8, but I dont use iambic paddle or key in CW and my friend Celso PY2XT aprouved th circuit.

I will build a single key to operate like a Straight Key..

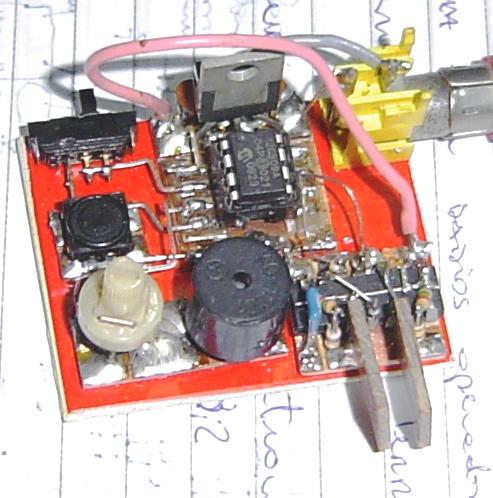

Pictures of first touch key

The secon Key has a oscillator and is AC type and operates in all conditions.

Schematics

I dont test with other IC but I think that a CD4093 work well.

I would like if someone build and USE these circuits with a transmitter, will send coments about it.

73 de py2ohh miguel
