MC3361

O integrado MC3361 utilizado comercialmente em telefones sem fio de 49MHz tem alguns pontos interessantes para ser estudados. Ele pode ser encontrado em sucatas de telefone sem fio (na base ou no movel).

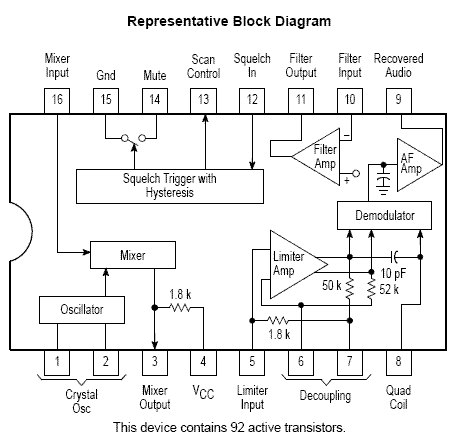

Vejamos o datasheet

Conforme o datasheet trata-se de um CI para recepção de FM banda estreita com dupla conversão, com frequencia maxima de 60MHz.

O primeiro mixer vem com oscilador incorporado e pode perfeitamente ser aproveitado até 60MHz, é uma celula Gilbert equivalente ao NE602 em funcionamento, que pode ser aproveitado em um receptor por exemplo.

O amplificador operacional tambem esta separado dos demais circuitos e pode ser aproveitado com préamplificador de audio ou filtro ativo de audio.

Vamos vasculhar a WEB para termos mais ideias de uso

RX 40MHz

FM RX

RX de conversão direta

Ainda vasculhando a internet encontramos um CI similar o MC3357 muito utilizado em equipamentos de VHF de radioamadores ou comerciais. Com o MC3362 tem muitos circuitos na WEB mas é dificil de encontrar e muito caro.

RX FM para 6m

RX superheterodino CW para 40m

Vamos experimentar o mixer do MC3361, fazendo um simples RX de 40m.

Aproveitamos o Mixer e o amplificador operacional interno, daria ainda para aproveitar o oscilador interno mas resolvemos usar um VXO que dispunhamos.

Para montar um oscilador utilizando o MC3361 considere pino 1 base e pino 2 emissor de um transistor NPN, ligue como em um oscilador Colpitts os valores dos componentes serão iguais aos valores de qualquer oscilador na mesma frequencia (escolha XL=XC entre 40 e 80). Não é necessario ligar resistores. Os osciladores com ressonador ceramico VXOs poderão seguir a receita normal.

Outros tipos de front end poderão ser utilizados, copie de outro TRX da minha pagina.

Para alterar a frequencia do RX modifique o front end e o oscilador, sintonizando ambos para a faixa desejada, é possivel fazer um RX de 160m até em 6m.

Esquema



A sensibilidade foi muito boa a seletividade compativel com outros RX de conversão direta.Captamos muitas estações do exterior em CW e japoneses em SSB. Utilizamos nossa antena V-invertida com o ponto central a 6m de altura.

RETORNAR

MC3361 (tks to David KM6BEG for the translation)

The IC is used in narrow band FM RX in 49MHz wireless phones (max. freq. 60MHz). It has some interesting internal parts worthy of study. The MC3361 is easy to find in surplus, and can be purchased through Ebay and Amazon.

Look the datasheet



The first mixer is a Gilbert Cell mixer with an oscillator, not connected to the others parts. It is a NE602 equivalent, which may used to build a RX as in our example.

It has a operational amplifier, which is also not connected internally to other parts, that could be used as pre-amplifier or an active audio filter.

More ideas for it's use can be found on the web such as...

RX 40MHz

FM RX

RX direct conversion

A similar IC, the MC3357, is used in commercial and ham VHF rigs. The MC3362 is also interesting, but it is hard to find in Brazil, and very expensive

RX 6m FM

RX 40m superheterodyne CW

To test the MC3361 mixer, we built a 40m DC RX.

We used the mixer and the Op-amp. it is possible to use the internal oscillator, but we already had a VXO on hand to use.

To build an oscillator using a MC3361, I think that pin 1 is the base and pin 2 is the emitter of a NPN transistor, connected as a Colpitts oscillator. The components values will be like other oscillators in the same frequency range (to calculate, use XL=XC between 40 and 80 Ohms). It is not necessary to connect external resistors.

Other kinds of front ends may be used. Look for values in other TRX on my WEB page.

To change the band, change the front end and the VFO, tuning both to same desired frequency. it is possible to build a RX for all HF bands including 6m.

Schematics



Results

Sensitivity and selectivity are on par with other DC RX. We listened to DX stations (JA, K, ZL etc) in CW and some SSB (JA). We used an inverted “V” with the center height at 6m
