Currupaco

Because the high interest raised by the DSB projects, we decided to publish a circuit we have mounted and worked very well, in spite of it has no box yet and haven’t been practically tested, as everything we publish here was duly tested in the home-brewing shop and in QSOs.

We are publishing in order to show that DSB is more useful than AM and trying to incentive the folks to mount phone rigs. This project is very simple and with 2 stages (audio amplifier and front end filter) turns into a transceiver.

The circuit hearth uses the well known TA7358 mixer as a balanced modulator (Gilbert Cell), the audio comes from an electret microphone (coming from a dead telephone set), goes through a preamplifier using a general usage NPN transistor.

From there it follows towards the balanced modulator where it modulates the signal that comes from the VXO (in the TA7358, too), in the output it goes through a buffer with a 2N3904, then a driver using 2x2N3904 transistors in parallel.

And finally it drives a BD139-16 in the power amplifier

Be aware that DSB and SSB can be amplified in amplifiers which are not put in class C – the transistors base has DC polarization.

In the shop table the power went over 5W on a 50 Ohms resistive load without the Pi low pass filter.

Anybody who try to build this circuit and have any doubt or question, send me an Email

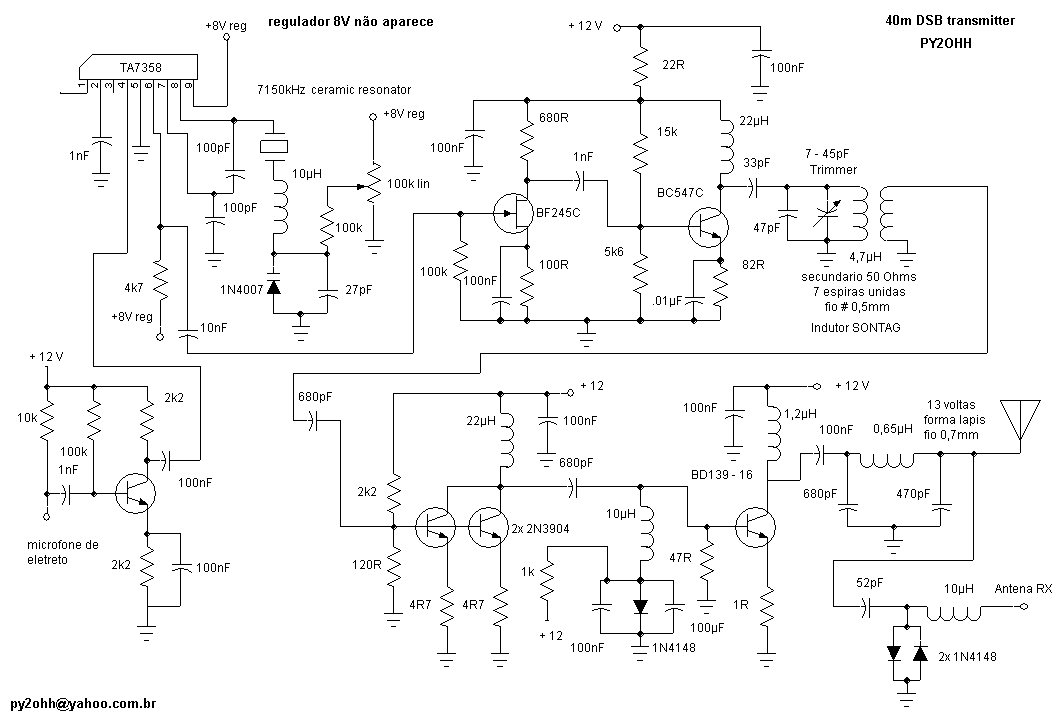

Circuito do CURRUPACO

[email protected] (remove the x)

Home

Currupaco

Devido ao alto interesse despertado pelos projetos DSB, resolvemos publicar um circuito que montamos e funcionou muito bem, apesar de não ter ido para a caixa e não passar pelo teste prático. Pois tudo que colocamos aqui foi devidamente testado na bancada e em QSOs.

Estamos publicando afim de mostrar que DSB é mais prático que AM e incentivar o pessoal a montar rádios para fonia. Este projeto é muito simples e com 2 estágios (amplificador de áudio e filtro de entrada - front end) acrescentados vira um transceptor.

O coração do circuito utiliza o conhecido mixer do TA7358 como modulador balanceado (Gilbert Cell), o sinal vindo do microfone de eletreto (vindo de um falecido aparelho telefônico) passa por um pré amplificador com um transistor NPN de uso geral.

Daí segue para o modulador balanceado onde modula o sinal vindo do VXO (também do TA7358) na saída passa por um buffer com um 2N3904 seguindo para um driver que tem 2 transistores 2n3904 em paralelo.

Finalmente aciona um BD139-16 no amplificador de potência.

Nota-se que DSB e SSB podem ser amplificados por amplificadores que não sejam classe C - a base dos transistores tem polarização de CC.

No circuito em bancada a potência nos picos passou de 5W em carga resistiva de 50 Ohms sem o circuito tanque em Pi.

Quem se propuser a montar este circuito e tiver qualquer dúvida mande um Email

Circuito do CURRUPACO

[email protected] (retirar o x)
