AMA-TIRI = storm beam, flashing in TUPY language (brazilian indian) The AMA-TIRI

After the success of the CANARINHO, CURRIRA and the CURUMIM we decide to build a QRPp transmitter, now for 10m . This is the AMA-TIRI.

I love to surf in QRP homebrew Web sites, we found good ideas, like the NewJerseyFireball a Tx for 10,20 and 40m using a 28,322 kHz clock TTL oscilattor can. In Japan we found the Otakuchi a can TTL oscilattor driving a Pixie, forming a 40m transceiver. Other ideas we found in QSL-NET, but in nowdays unfortunate, it is blockead to brasilian users

In the last month we receive a catalogue from a electronic shop, wich had a 28322kHz can oscilattor (datasheet) in the middle of 10m band, it cost me R$2,80 (US$1.00). I buy it !

Then, in a saturday evening I build a oscilattor :

The schematic

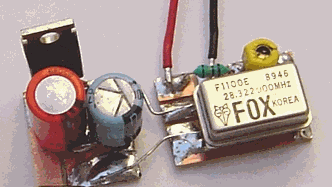

4 components - a flash to build and to operate



It is a basic oscilattor, eating 40mA at 5V, the output RF pass trought a band-pass-filter, in order to eliminate the odds harmonics in the square waves and all other harmonic frequency. We choose a XL/Xc near 180 Ohms and we adjust for maximum signal on a receiver.

When it was All Done , I call by phone, my friend PY2XT Celso, who lives in a city near my house, about 5 km (3 milles) straight but not visible, asking he for to listening my CW signals.... he do it, using a handy Sony scanner and also using a transceiver, I should listen too by phone feedback.... despite he dont have a 10m antenna.

We will have many things to do ... increase the power.... build a DSB/CW transceiver...

Still plugged ....

73

Miguel

[email protected] please remove the x



  O AMA-TIRÍ "Raio, corisco em tupi-guarani" Ama-tirí

 Depois do sucesso do CANARINHO, do CURRUIRA e do CURUMIM resolvemos montar um novo tx agora para 10m . Assim chegamos ao AMATIRI.

Há muito tempo surfando pela WEB encontramos o Fireball um TX para 10, 20 e 40m. Ainda encontramos o Otakuchi um transceptor tipo Pixie com oscilador a TTL. Outras montagens podem ser vistas no site QSL-NET, que infelizmente esta bloqueado para acessos brasileiros.

Outro dia recebemos um catalogo de uma loja especializada que dispunha do oscilador clock TTL para 28322Khz (datasheet) no meio da faixa de 10m, por R$2,80 (US$1,00). Compramos !

Em uma tarde de sábado montamos um oscilador conforme esquema abaixo :

4 componentes - um raio na montagem e funcionamento

Trata-se do oscilador básico que consome 40mA em 5V, mais um filtro passa faixa com XL próximo de 180 Ohms , ajustamos para a máxima saída, monitorada em um receptor.

Telefonamos para o Celso, PY2XT , que mora em uma cidade vizinha a uns 5km em linha reta não visível, para que corujasse nosso sinal e ... ele estava recebendo num escanner Sony .... no transceptor recebia muito bem o CW, que eu conseguia ouvir graças ao retorno do telefone, mas ele não dispunha de uma antena para 10m.

Vamos continuar os testes, aumentar a potência e fazer um transceptor DSB /CW ....

Continue plugado ....

73 a todos

Miguel

[email protected] remova o x
