FT8 : Transceptor DSB para a banda de 12m
FT8 : DSB transceiver for the 12m band

Aqui temos uma primeira versão do Tranceptor DSB para 12m, cristalizado e QRP.
Em 12m temos perodicamente boa propagação, como já havia realizado muitas experiencias com QRPp em 12m, com otimos resultados, resolvemos montar um QRP simples com componentes comuns.

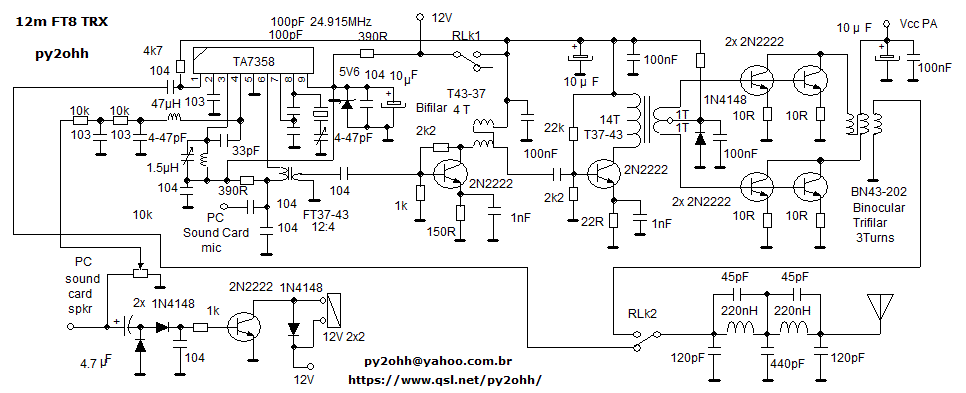

Esquema :
Here we have a first version of the DSB Transceiver for 12m, crystallized and QRP.
On 12m we periodically have good propagation, as we had already carried out many experiments with QRPp on 12m, with excellent results, we decided to build a simple QRP with common components.
Scheme:




Usei o TA7358 ou LA1185 no RX.
Um 2N2222 / rele para comutar automaticamente o RX ou TX.
O amplificador de RF temos um buffer com 2N2222 , outro 2N2222 no driver e no PA temos 4 2N2222.
O driver + PA funciona bem até os 6m (54MHz). O circuito foi montado a partir de informações do site do SM0VPO .
Com pequenos ajustes e operando com 12V em Vcc e 22V em Vcc PA (somente a alimentação do PA) podemos chegar até 1,5W.
Pequenas alterações foram feitas no Modulador DSB, comparadas com nossos antigos esquemas com o TA7358.
Alteramos a entrada de modulação para o pino 4.
A tensão +Tx, vinda do rele para o pino 1 do TA7358, via 4k7, é usada para silenciar o RX, pois tanto o RX como TX funcionam ao mesmo tempo.
A explicação do funcionameto do Rx pode ser vista aqui

I used TA7358 or LA1185 on RX.
A 2N2222 / relay to automatically switch RX or TX.
For the RF amplifier we have a buffer with 2N2222, another 2N2222 in the driver and in the PA we have 4 2N2222.
The driver + PA works well up to 6m (54MHz). The circuit was assembled from information on the
SM0VPO website.
With small adjustments and operating with 12V at Vcc and 22V at Vcc PA (only the PA power supply) we can reach up to 1.5W.
Small changes were made to the DSB Modulator, compared to our old schemes with the TA7358.
We changed the modulation input to pin 4.
The +Tx voltage, coming from the relay to pin 1 of the TA7358, via 4k7, is used to silence the RX, since both RX and TX work at the same time.
The explanation of how the Rx works can be found
here



QSOs:

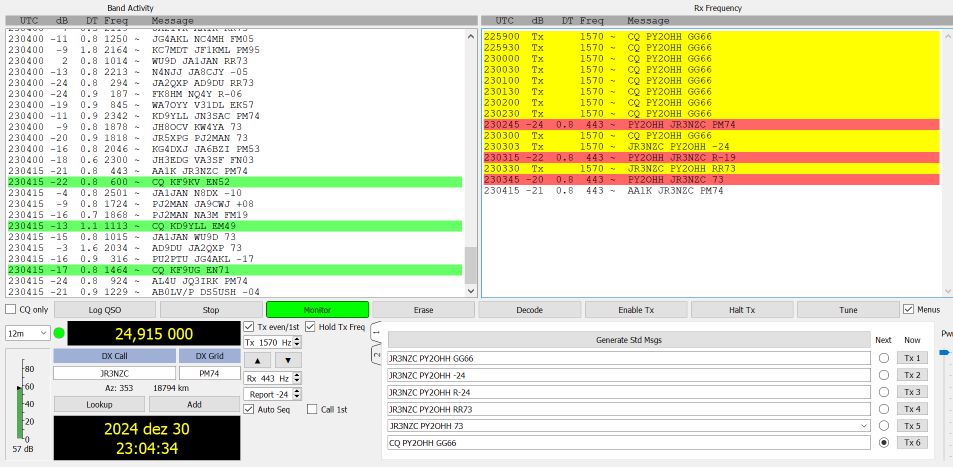

No primeiro ajuste e teste consegui um contato com Japão :

No primeiro ajuste e teste consegui um contato com Japão :




Estava chamando geral, sem maiores intenções, quando percebi que havia uma estação contestando, fiquei muito surpreso e feliz, pois era uma estação antipoda.
Após este QSO fiz outro com os USA.

I was calling everyone, without any major intentions, when I realized that there was a station responding, I was very surprised and happy, because it was an antipodean station.
After this QSO I made another one with the USA.

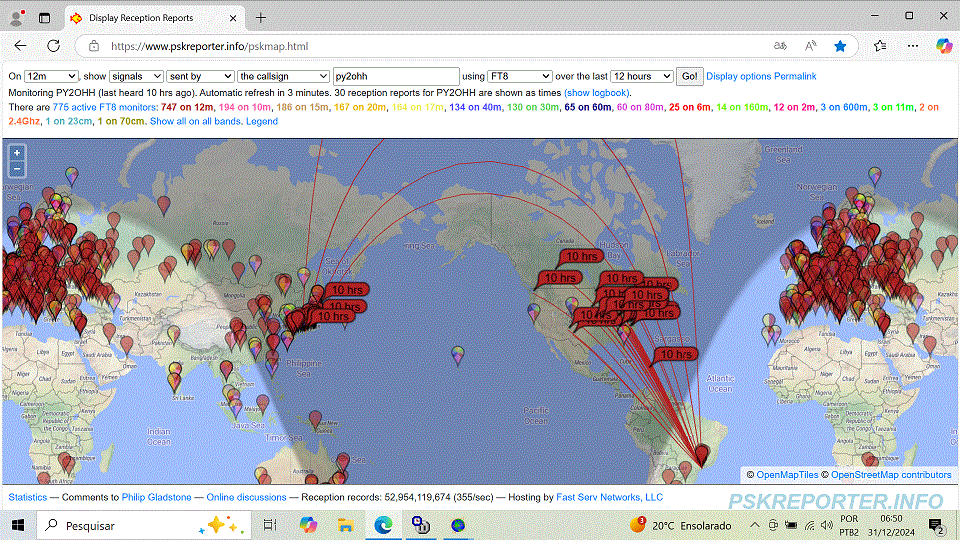

Na manhã seguinte acessei o PSKreporter, para retirar a imagem de como haviam me recebido na noite anterior:

The next morning I accessed PSKreporter to retrieve the image of how they had received me the night before:



Fotos do prototipo :
Esta montgem é a soma de modulos, que foram desenvolvidos e testados individualmente e não tem boa aparencia, aparecendo ainda outros componentes de testes de desempenho.

Prototype photos:
This assembly is the sum of modules, which were developed and tested individually and does not look good, with other performance test components still showing.

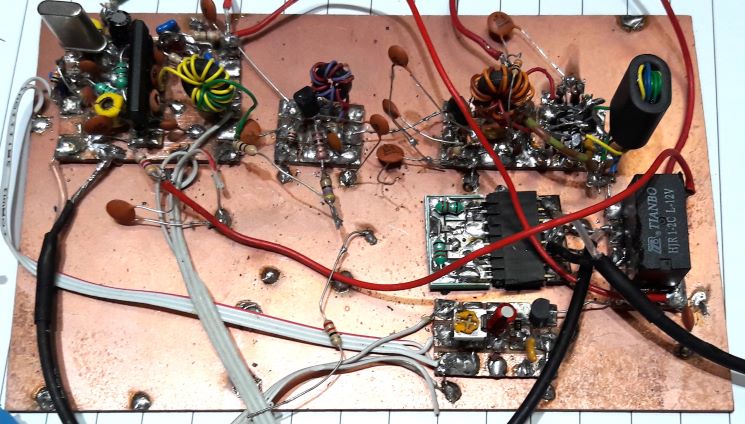

Montagem geral
General assembly

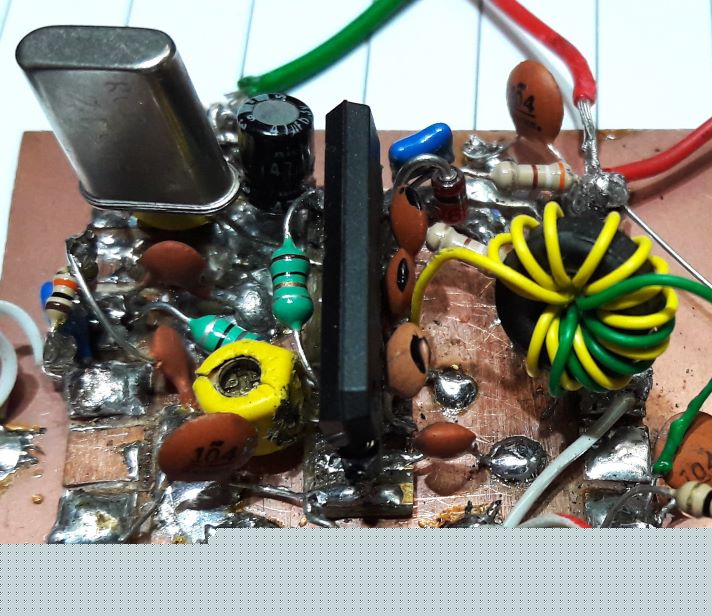

Receptor e modulador DSB
DSB receiver and modulator

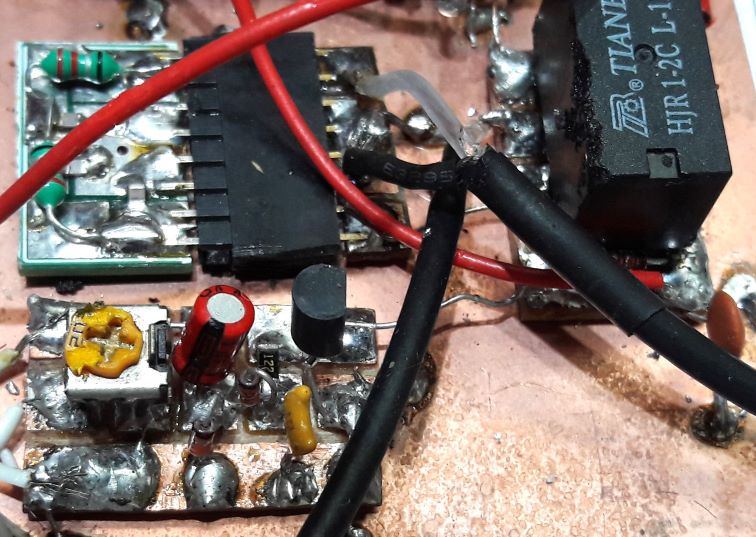

Filtro passa baixa, rele de comutação RXTX e circuito de acionamento da comutação.
Low pass filter, RXTX switching relay and switching drive circuit.

73 de py2ohh miguel
Uso uma antena longwire de 16m, 7m de altura com acoplador.
I use a 16m longwire antenna, 7m high with a coupler.
