Sony XDR-F1HD Seeeduino Modification

This very usefull modification, detailed here, was undertaken in Sept 2012.
The latest software has considerably-expanded command functions that were not available then.

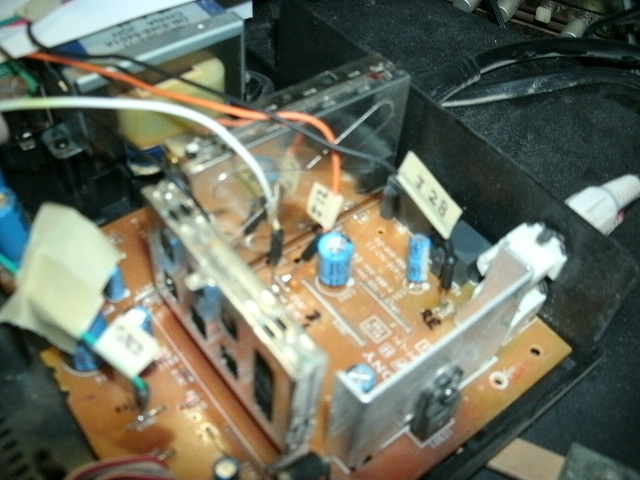

early fuzzy photo of my Sony-Seeeduino setup
(jumpers were later bundled and exited thru a drilled hole in the rear apron)



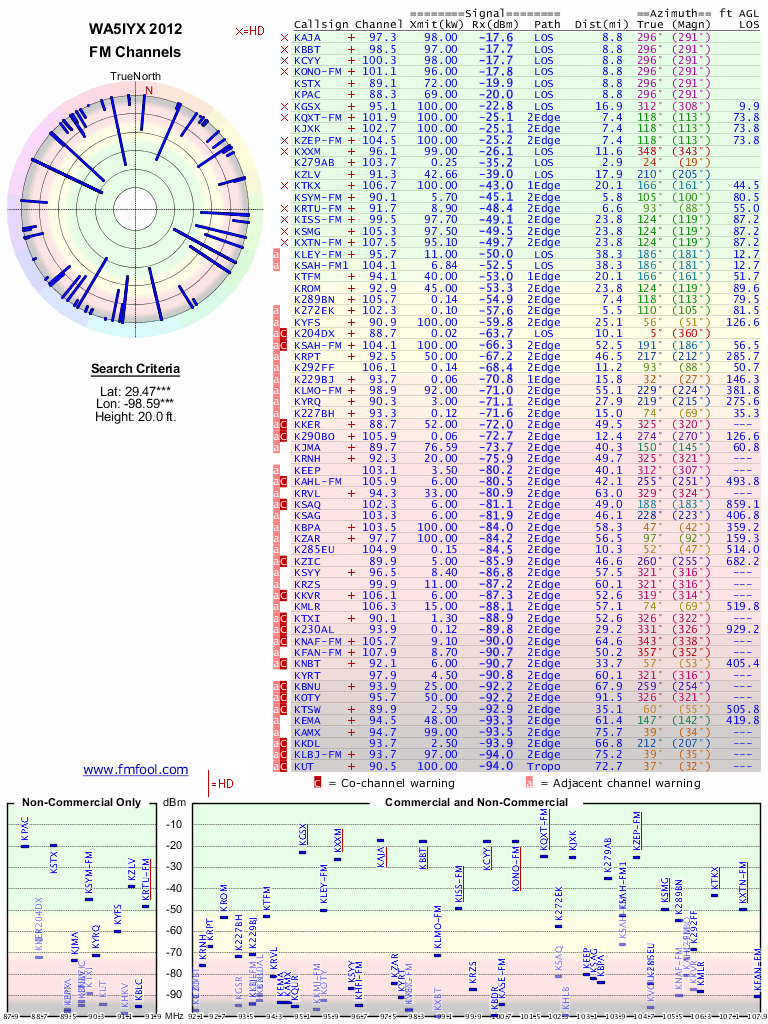

This graph was obtained by using the "S" option numeric data dump at 100-kHz intervals with the numbers entered into Lotus Works Chart Maker and the two (88-98 MHz and 98-108 MHz) graphs
being joined and calls added with PSP4 - an admittedly-arduous process not likely repeated.

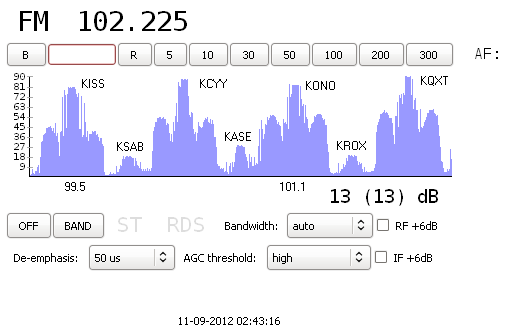

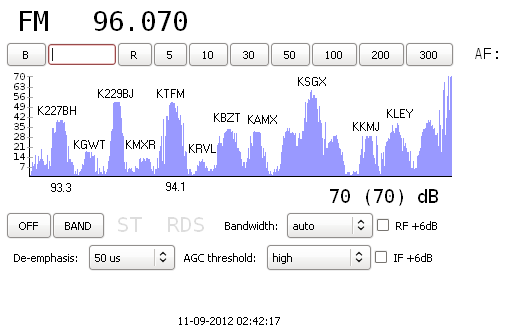

After the graphic interface was implemented (again, more extensive there now than when I did it in Sept 2012) some of these initial results were obtained
(the saved png images, with date stamp dd-mm-yyyy, were modified in PSP4, with the calls and freqs being added)









On each set of these graphs the IBOC (HD) "sidebands" of the locals are very evident.

98-108 MHz scan Sept-08-2012 - 1914 CST
(the dynamic vertical scale continually adjusts to just fit in the max signal level on the display)




scan showing part of ATSC (DTV) KCWX-DT-5 (76-82 MHz) with prominent pilot at 76.310

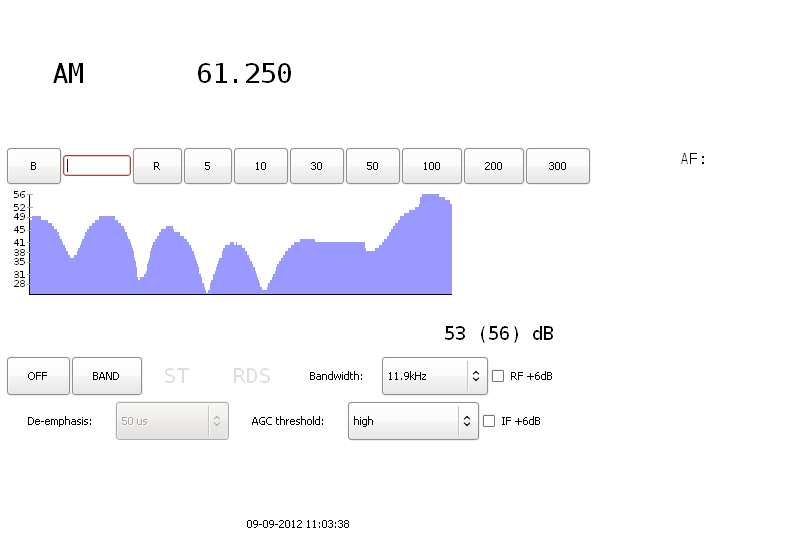

showing fading effects (mostly due to aircraft)
on XHPN-3's 61.250 NTSC video carrier




RDS decoding on KXBJ 96.9
(European PTY set so not matching US system)

At almost the same time the RTL2832U USB dongle system was "discovered" with its ability to show a more-dynamic spectrum-analyzer-like display so the initial
flurry with the Seeeduino quickly (somewhat unfairly) rapidly abated.  However, that device (in 2-MHz wide segments) was subject to saturation/overload and
spurious responses from much of the local high-intensity 88-108 MHz environs at this location as seen in this YouTube video.




SDR# display centered on local 105.3 MHz - 09-14-2012 - 2018 CST

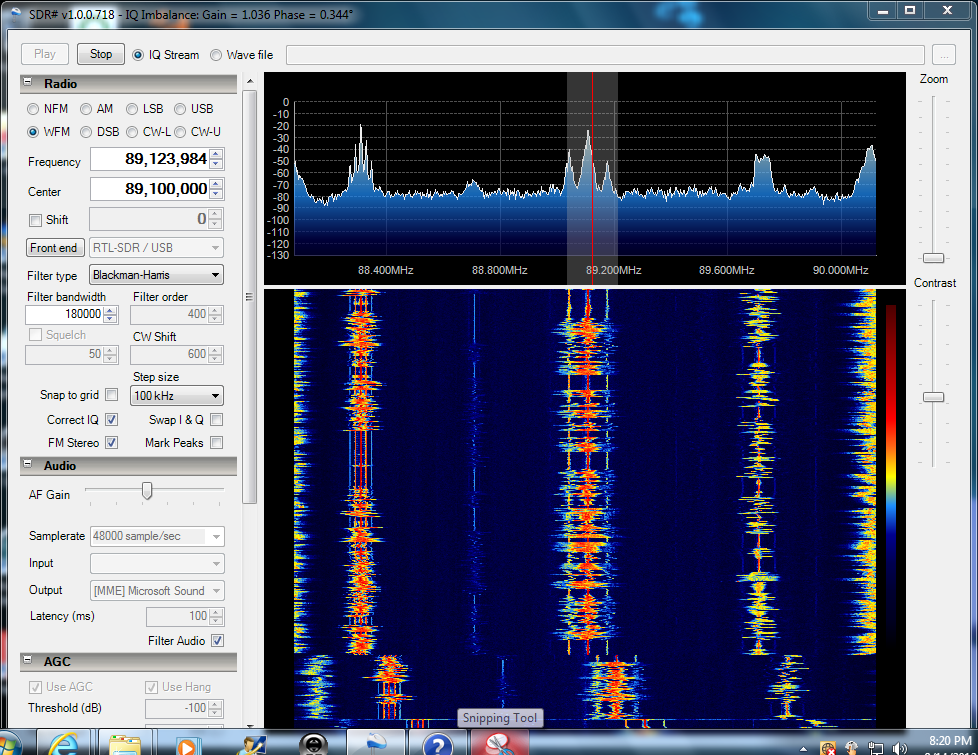

SDR# display centered on local 89.1 MHz - 09-14-2012 - 2020 CST
(those are SCA sidebands on it and 88.3)

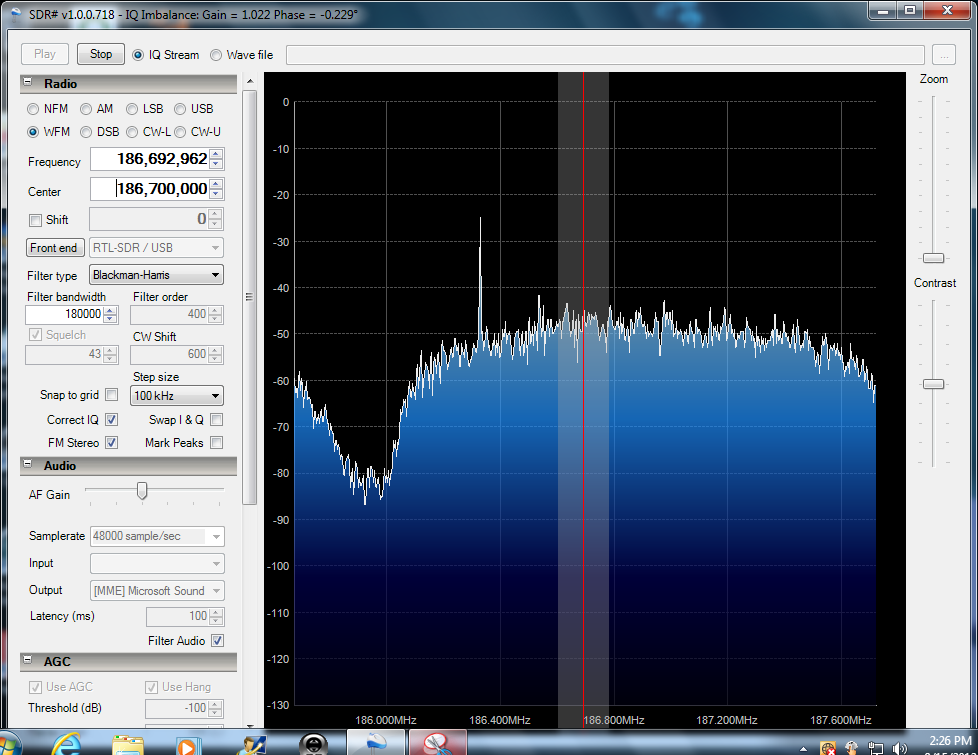

SDR# display showing KLRN-DT-9 pilot (186.310 MHz) - 09-15-2012 - 1426 CST

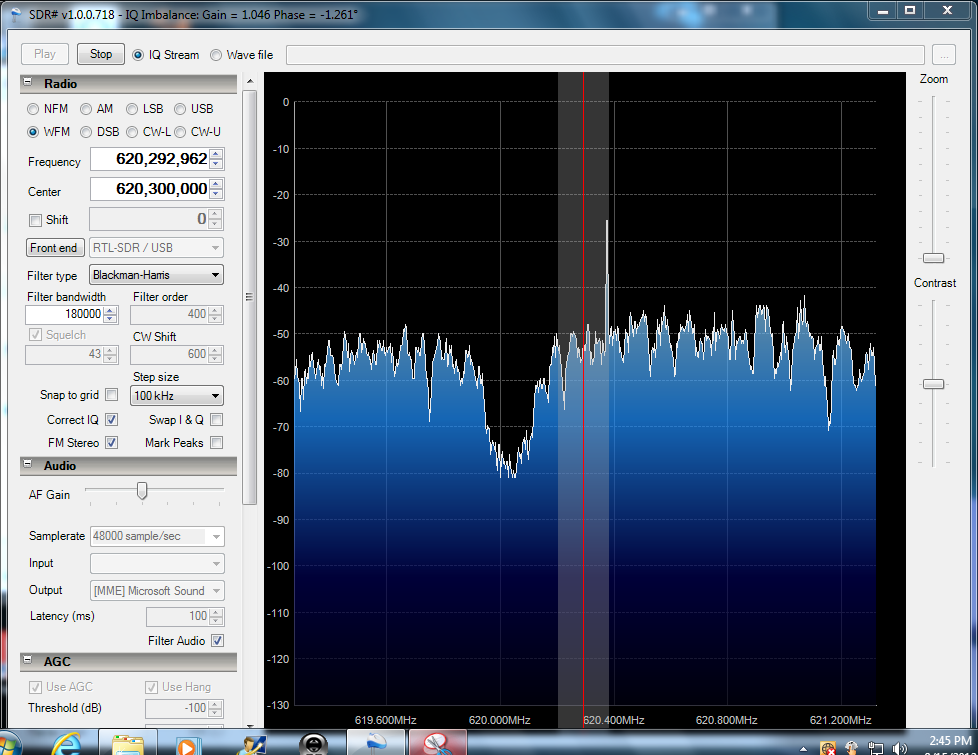

SDR# display showing KENS-DT-39 pilot (620.310 MHz) - 09-15-2012 1445 CST
(part of KVDA-DT-38 is on the left)

(the following png images have had text added to them with PSP4)



SDR# display showing ASCII pagers between Ch 4 and Ch 5 (72-MHz) - Sept 19, 2012




SDR# display showing WVLA-DT-34 pilot (non-decoding) and local KNIC-CA-34 NTSC video carrier - Sep 23, 2012

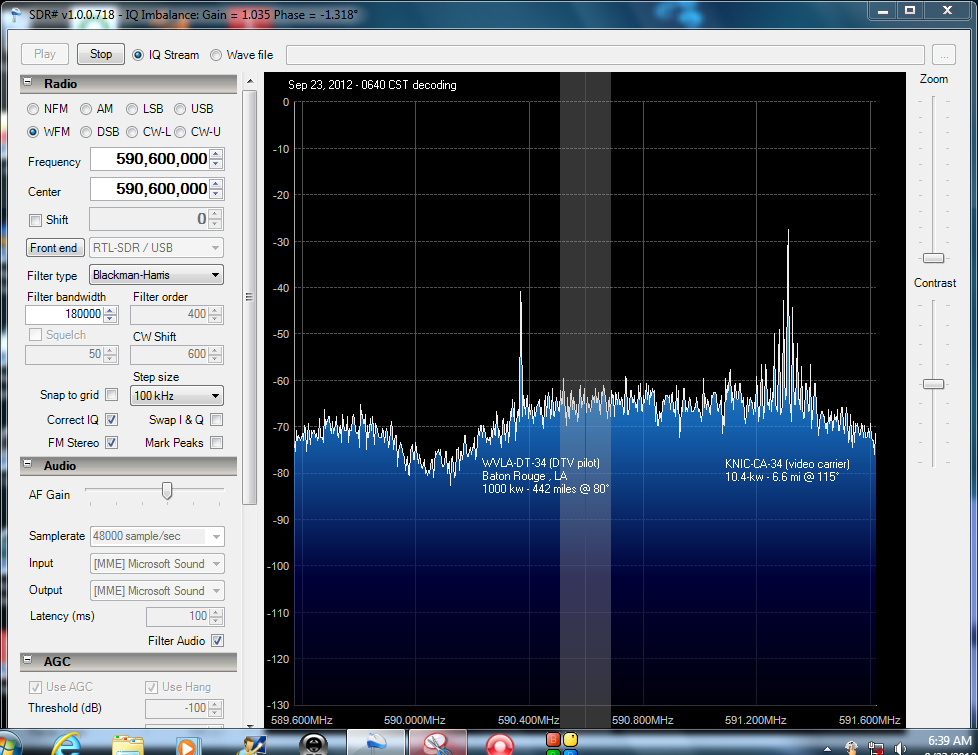

SDR# display showing WVLA-DT-34 pilot (decoding) and local KNIC-CA-34 NTSC video carrier - Sep 23, 2012



SDR# display 89.1-90.9 MHz - Sept 23, 2012

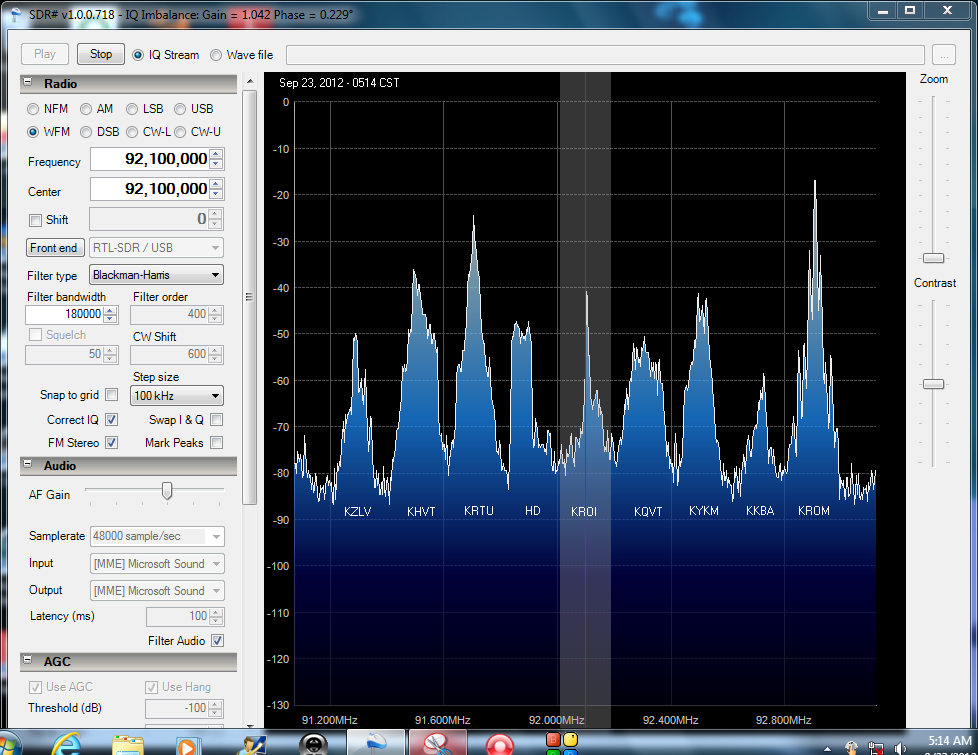

SDR# display 91.3-92.9 MHz - Sept 23, 2012

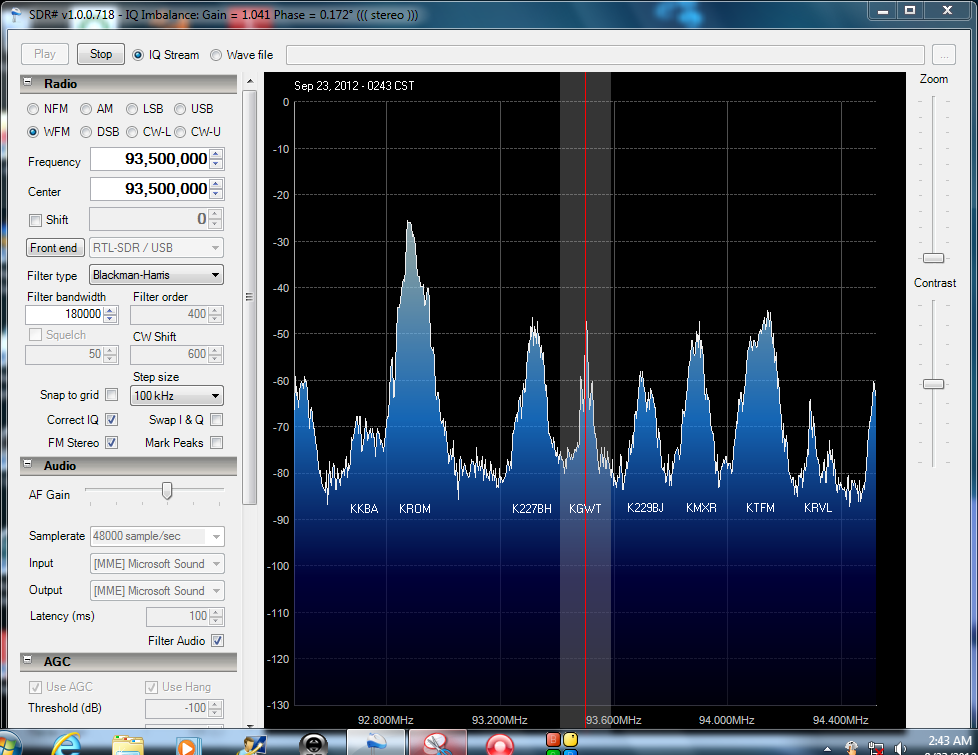

SDR# display 92.7-94.3 MHz - Sept 23, 2012

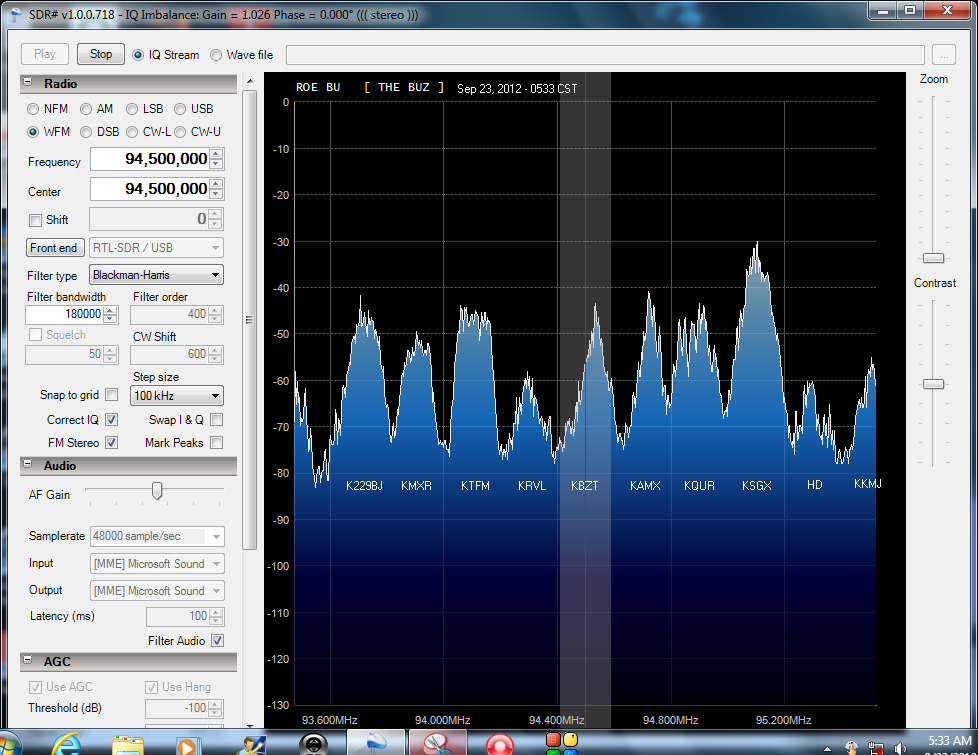

SDR# display 93.7-95.5 MHz - Sept 23, 2012

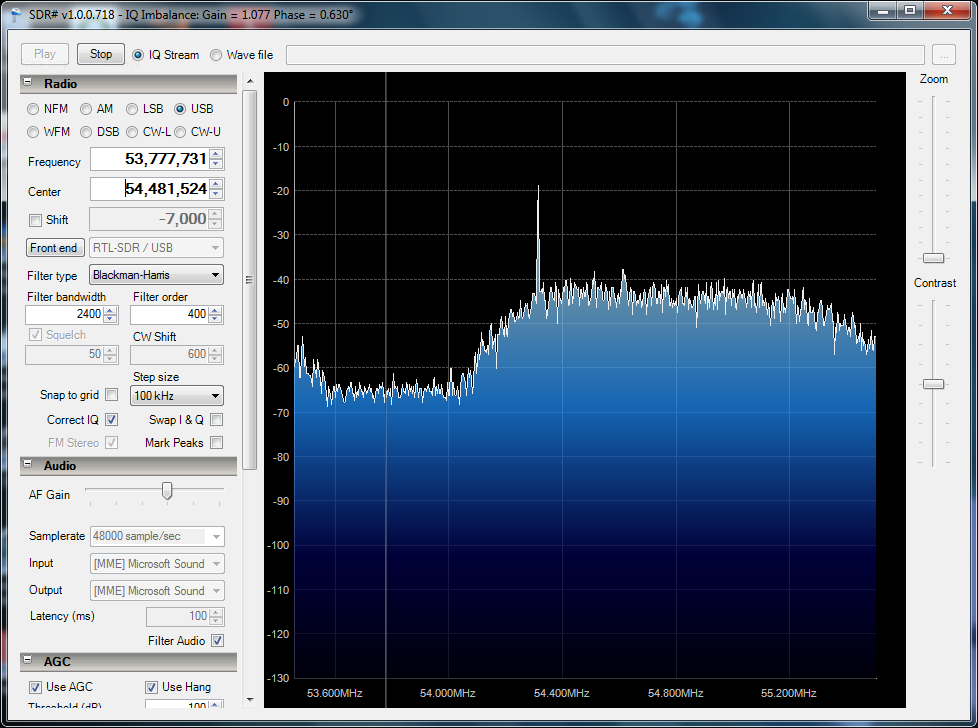

SDR# display of KOTA-DT-2 pilot (54.310 MHz) via Es - 05-14-2013 - 1126 CST

KOTA-DT-2 May 19, 2013 showing Es QSB & "rolling" MUF

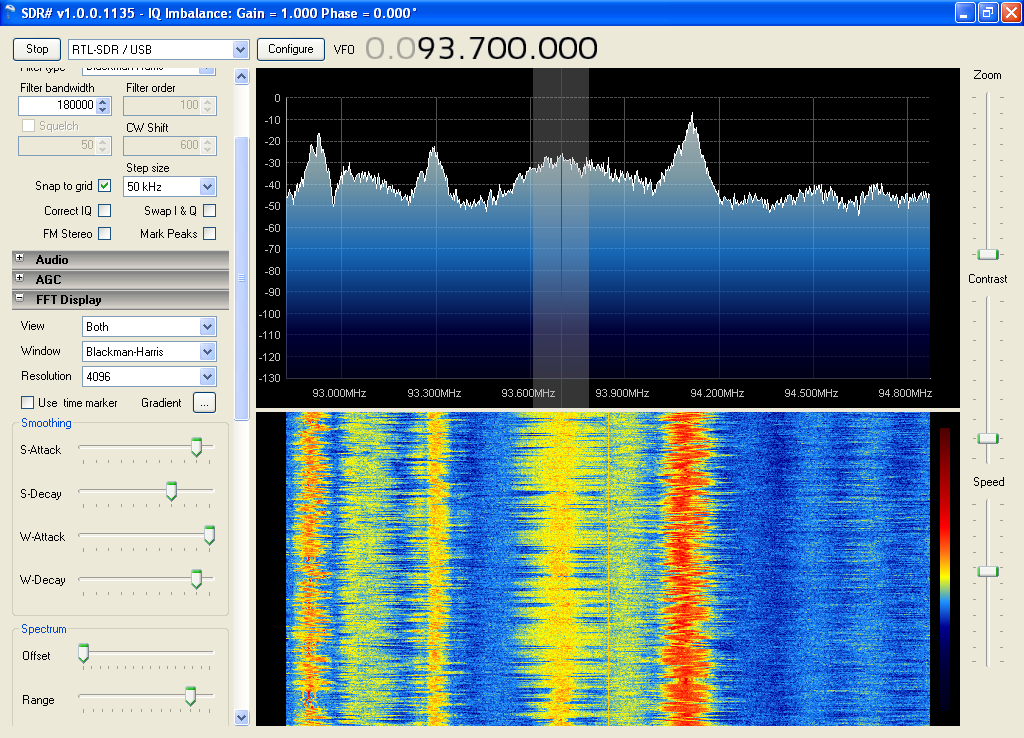

SDR# display Jul 8, 2013 - badly overdeviating by local 93.7 LPFM

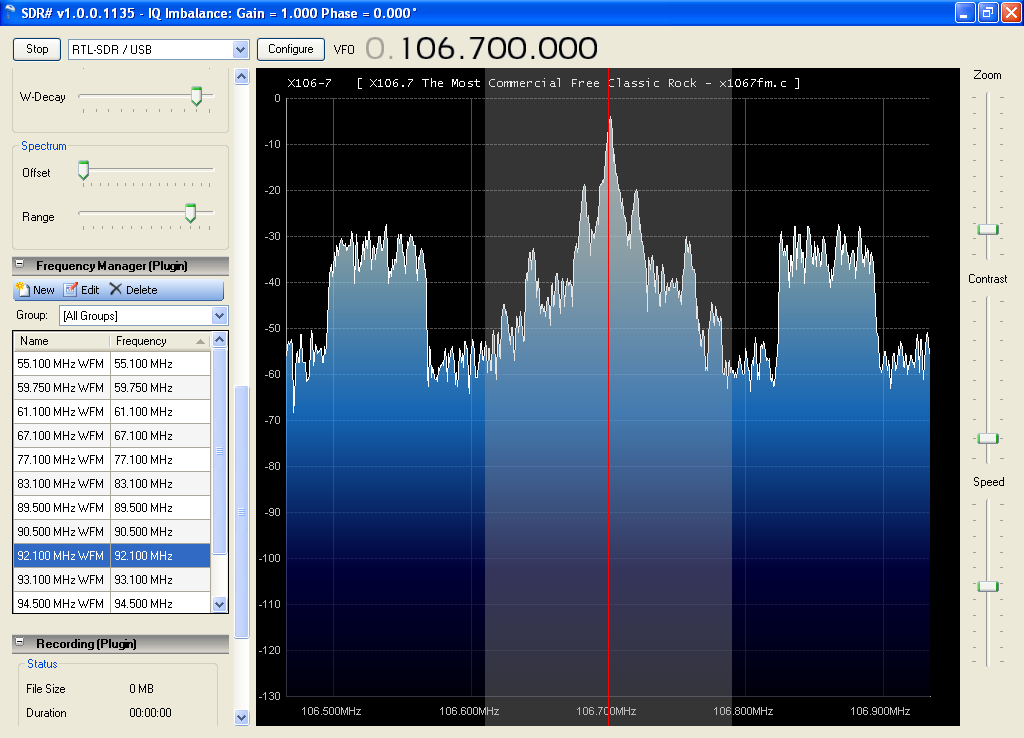

SDR# display Jul 9, 2013 - close-up of local 106.7 HD - note how sharp the sidebands fall off at 106.5 and 106.9
