Radio hobby
MK2 tube tester construction

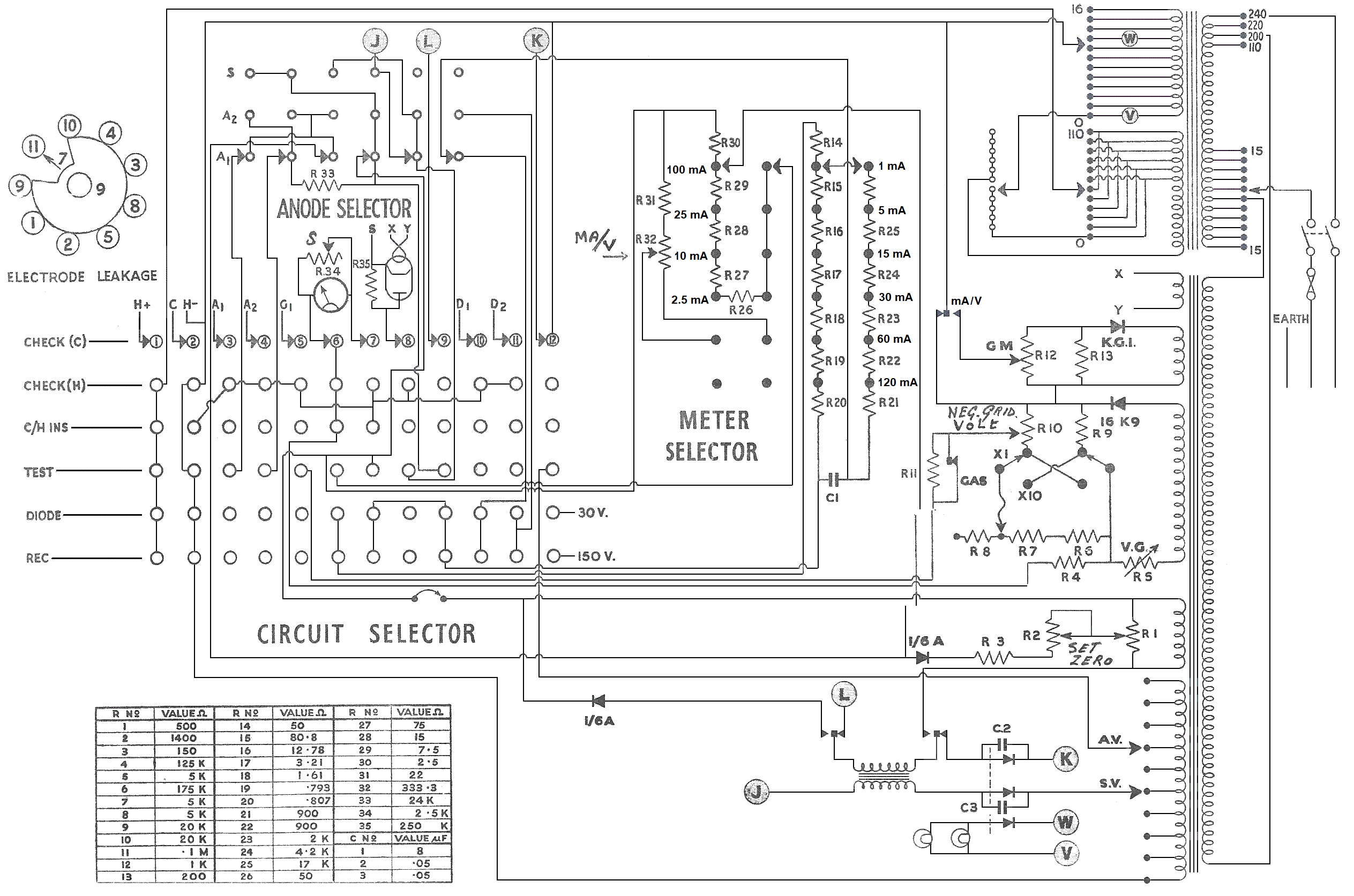

MK2 tube tester drawing

MK2 tube tester drawing 30025

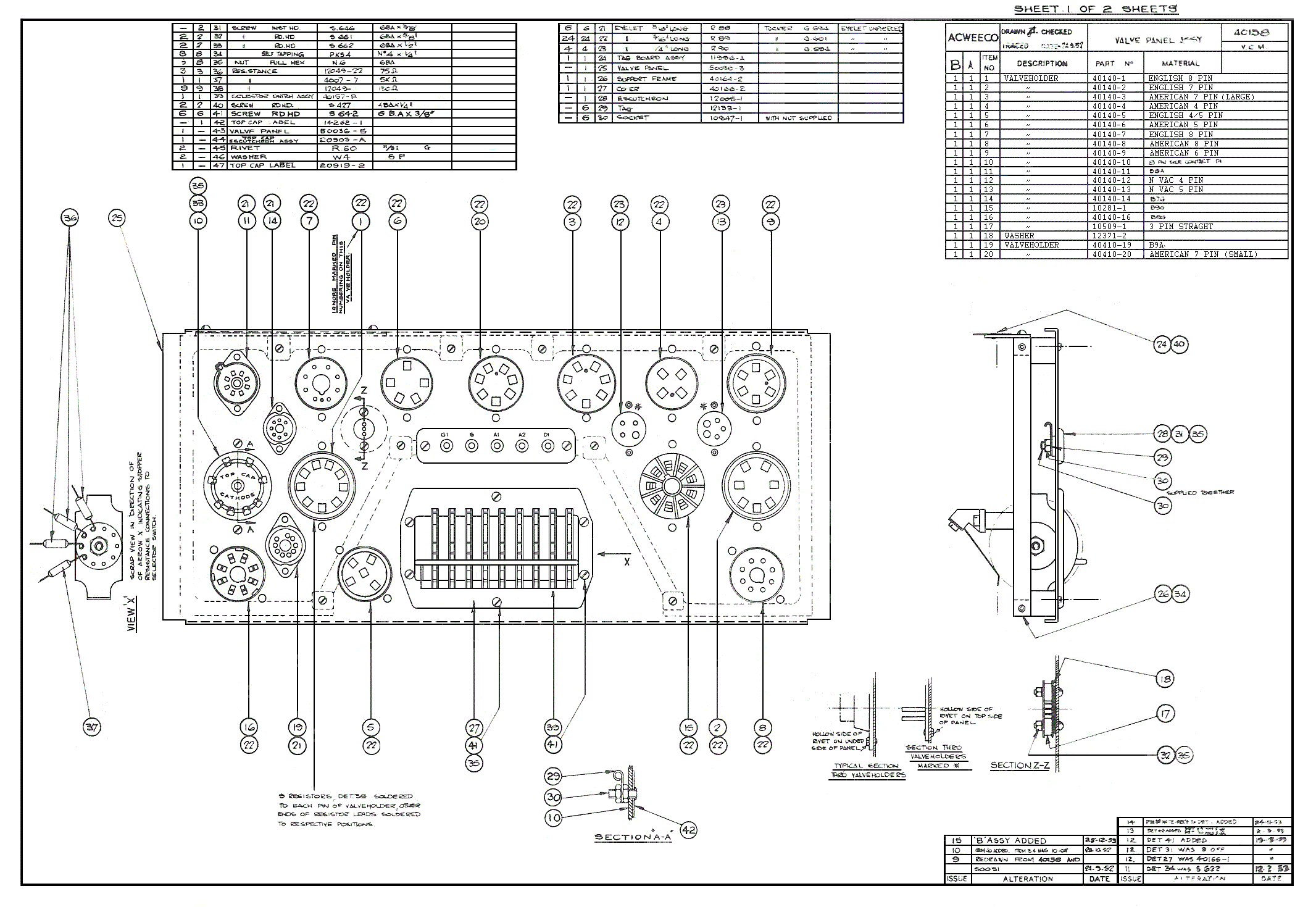

MK2 tube tester drawing 40158

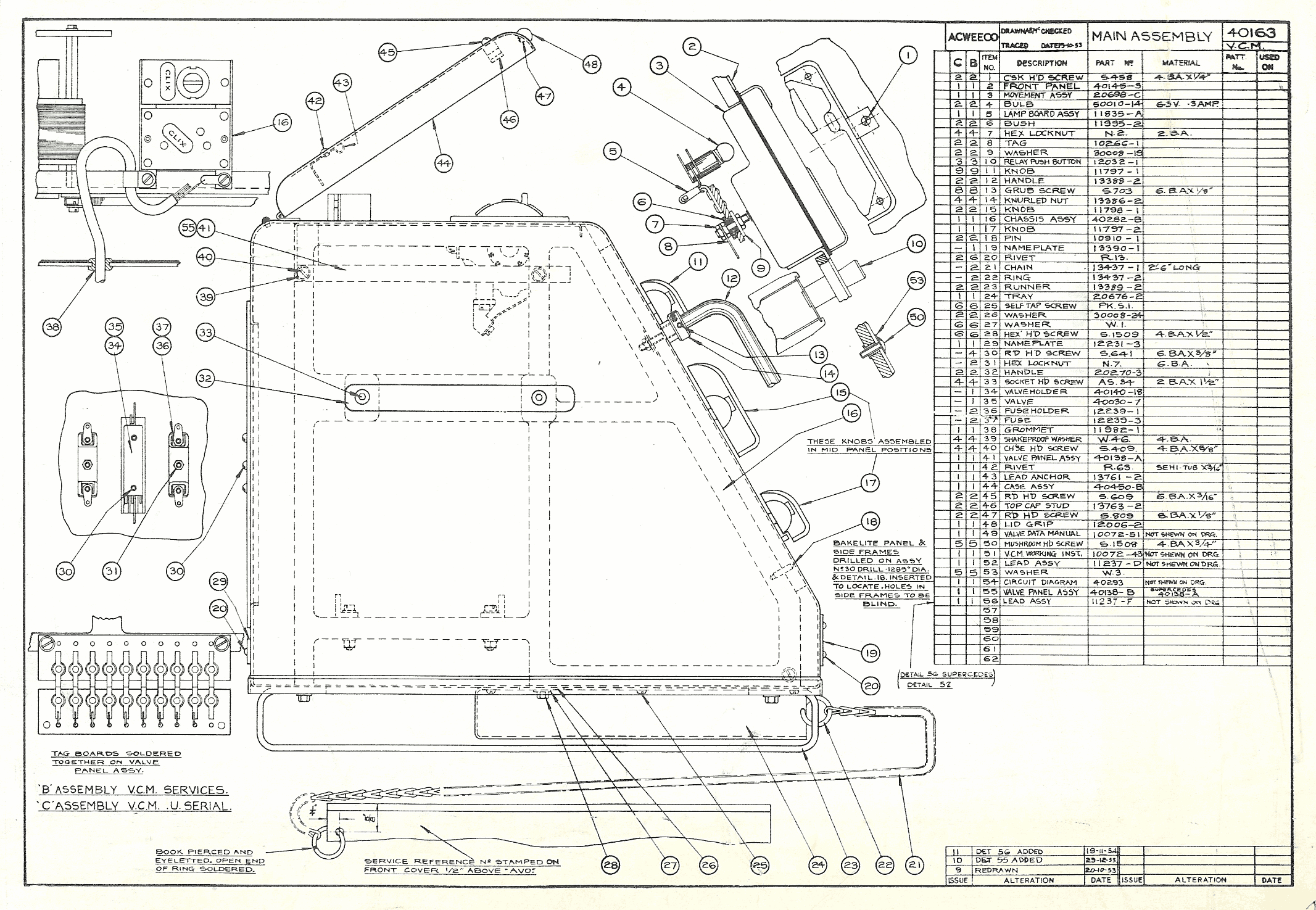

MK2 tube tester drawing 40163

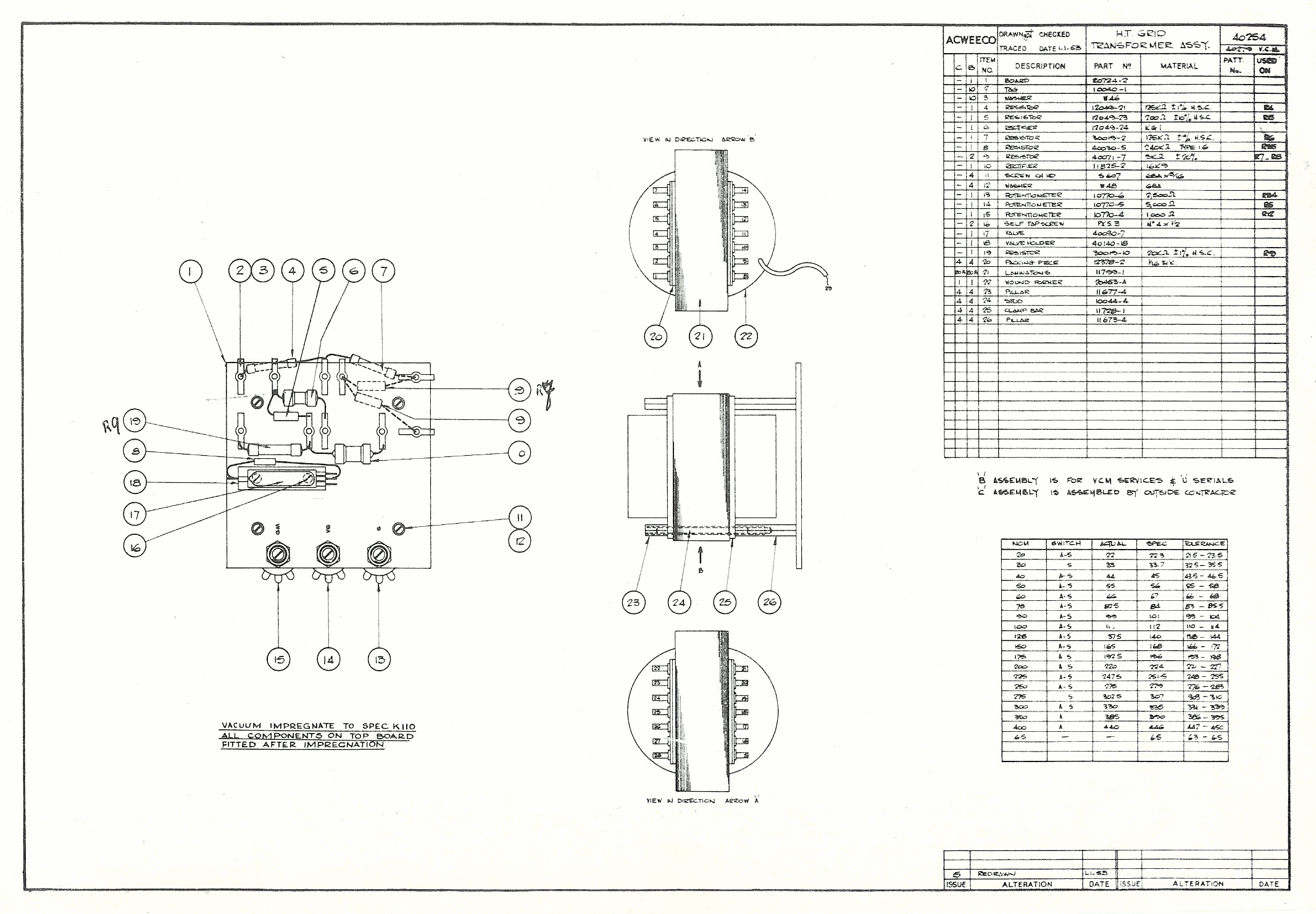

MK2 tube tester drawing 40254

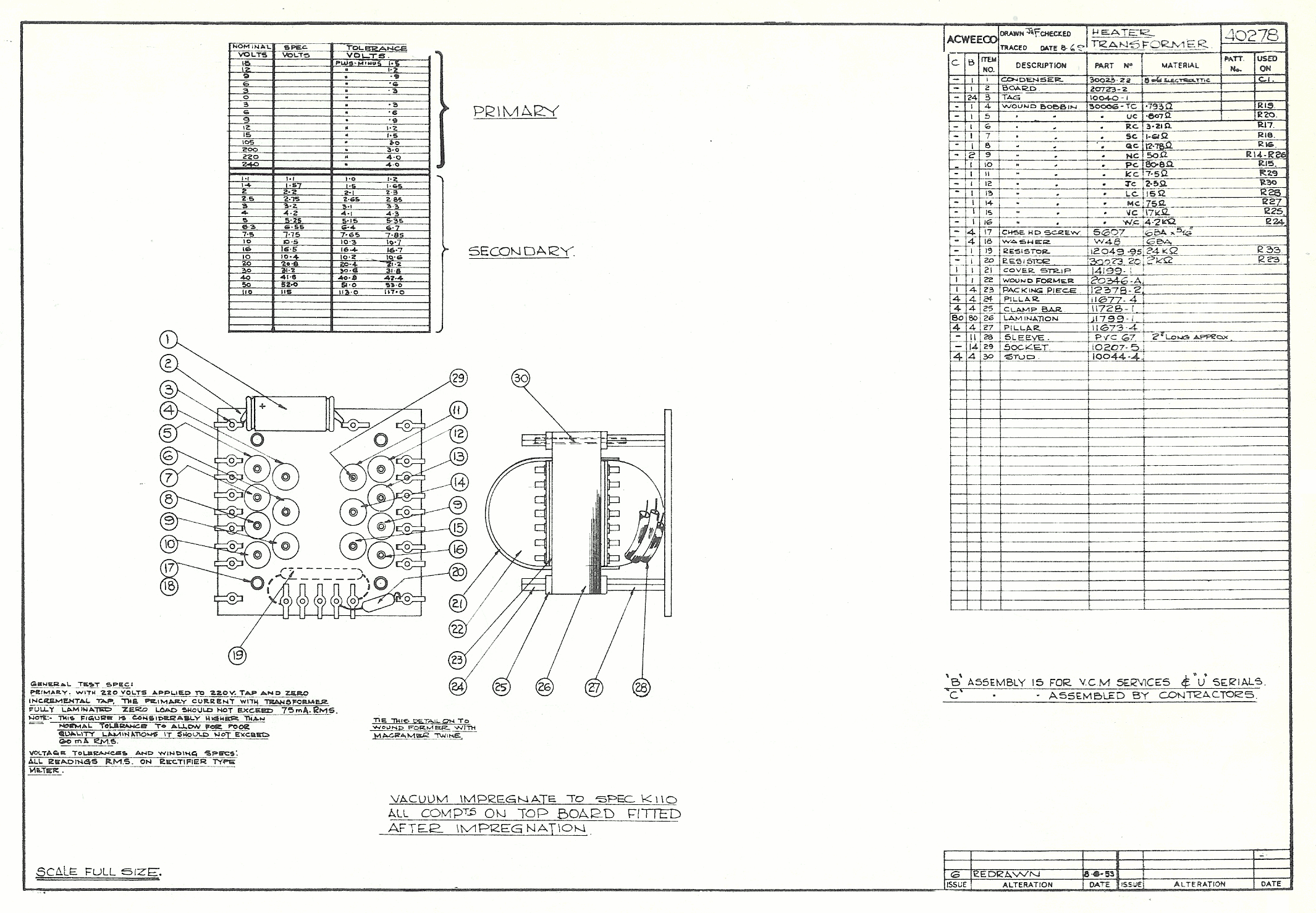

MK2 tube tester drawing 40278

MK2 tube tester drawing 40279

MK2 tube tester drawing 40281

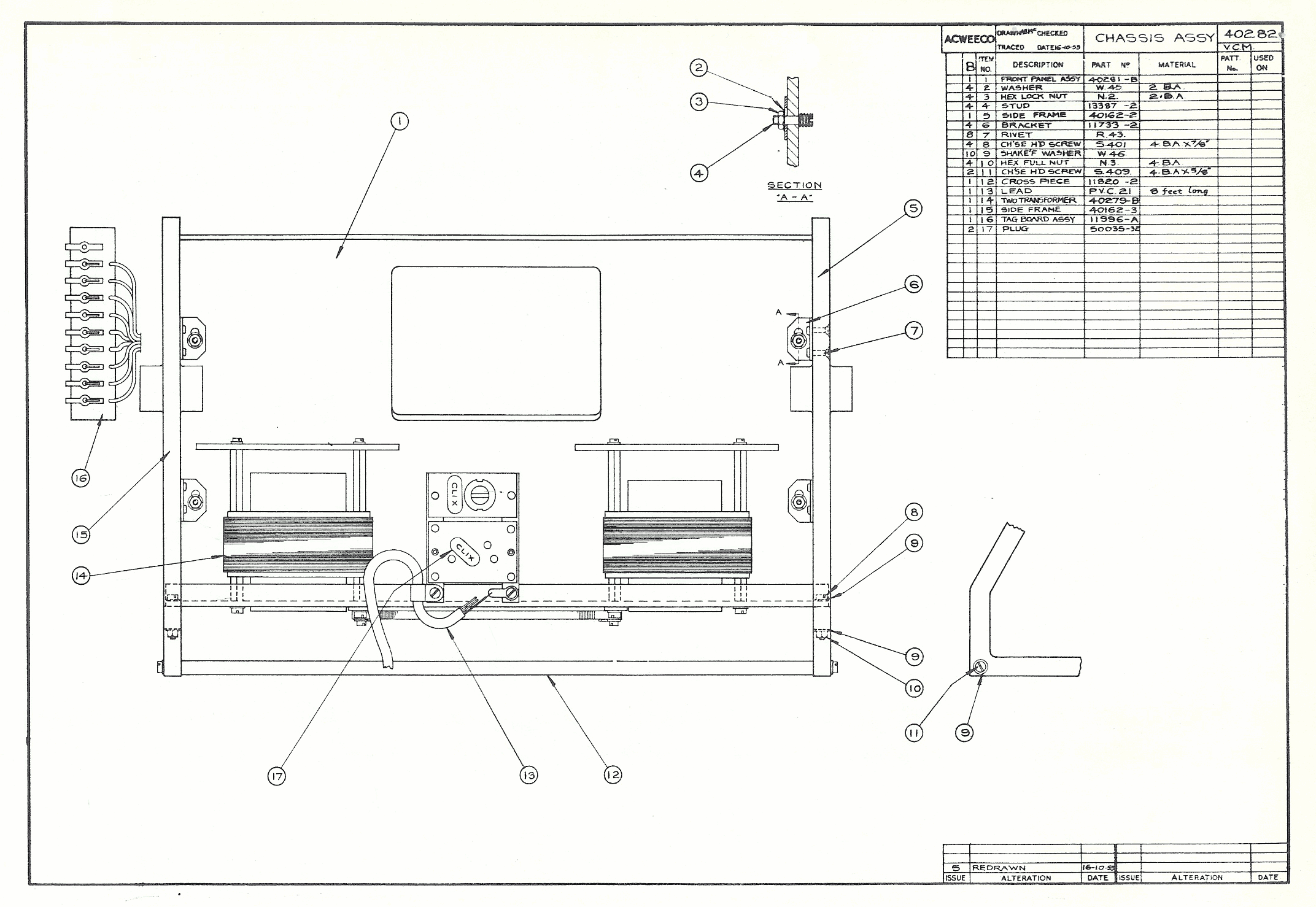

MK2 tube tester drawing 40282

Pagina terug
