ATV Receiver

Home Made(own design) By PE1RJU

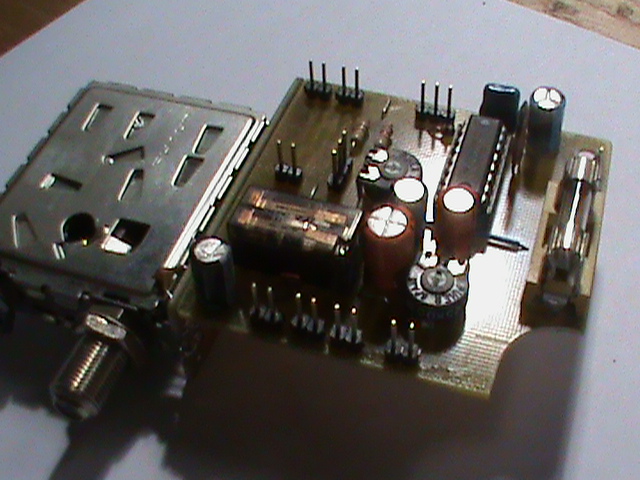

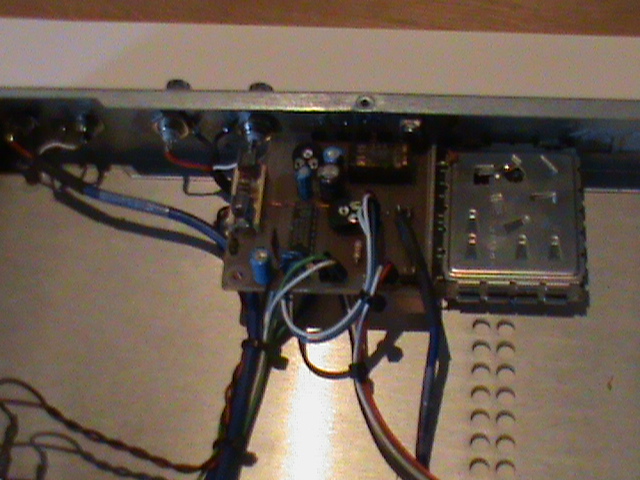

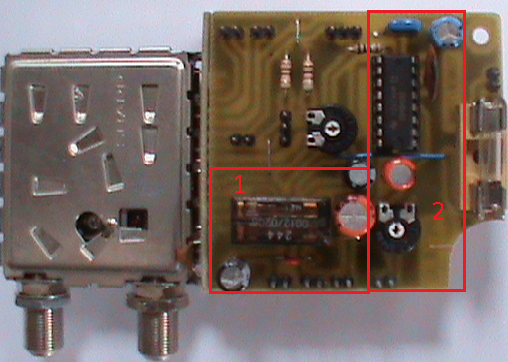

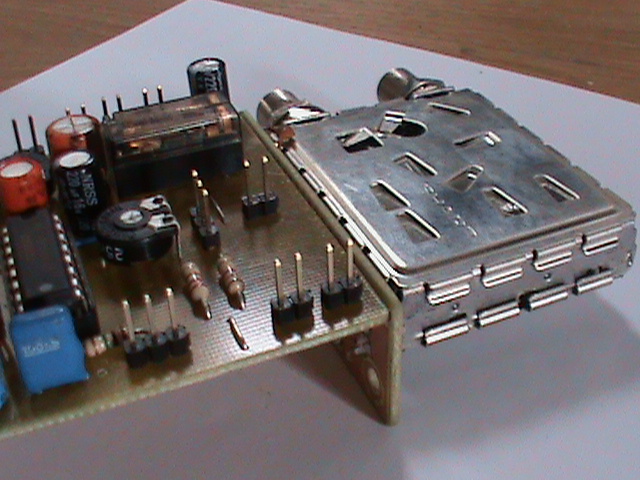

SHARP Frontend

1= LNB A/B Switch
2= Signal Beep Detection

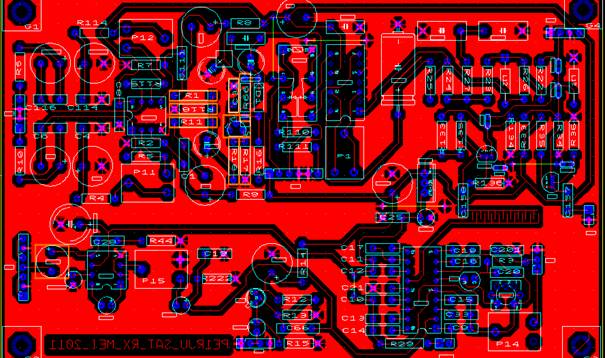

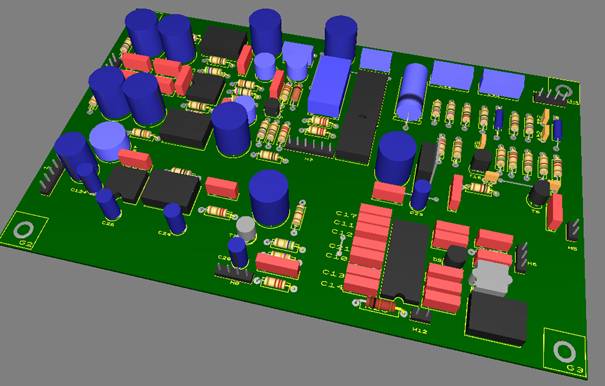

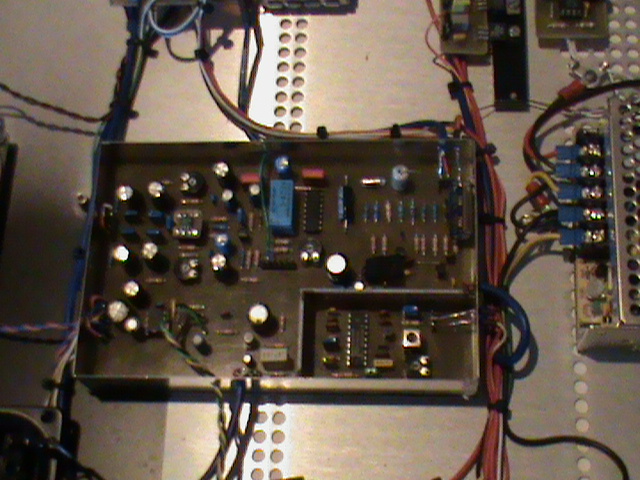

Main Audio / Video PCB

1=  LF Amp
2= LF Out
3= Audio Detection 5-8MHz  TDA 7000
4= Nicam Option
5= Dual Video Output LT1253
6= Video Pal Neg/Pos & Video Amp NE592
7= Video Filter
8= 5Volt

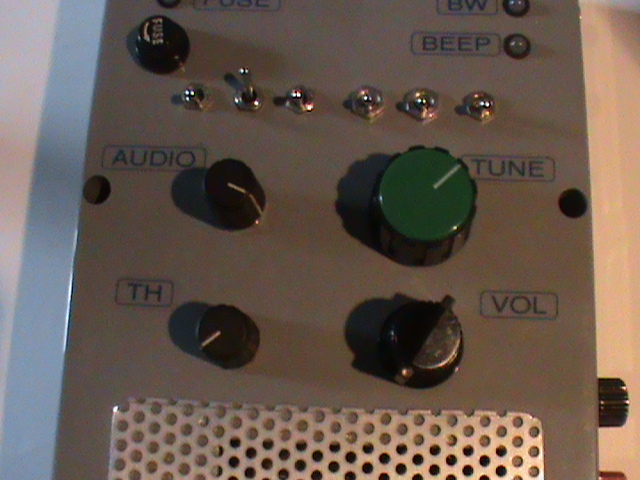

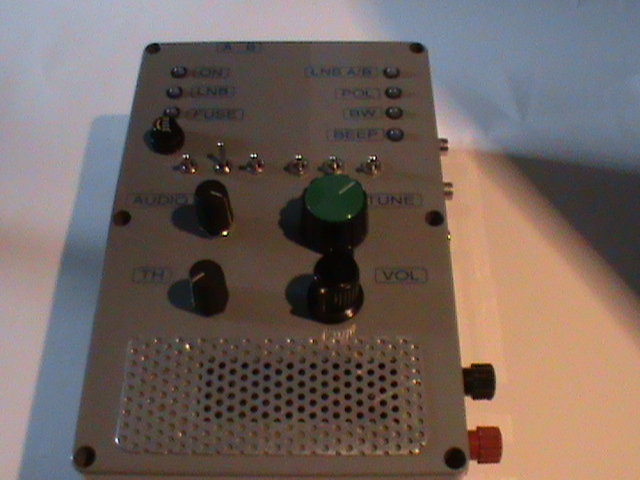

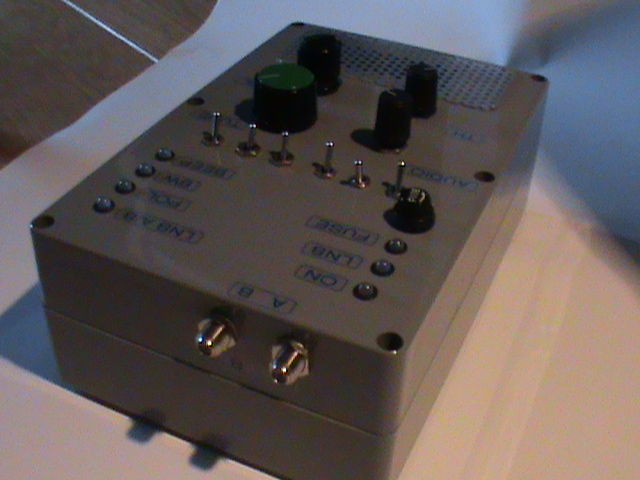

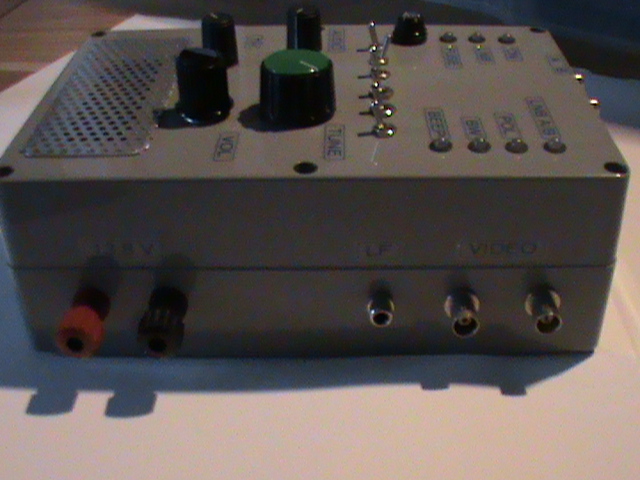

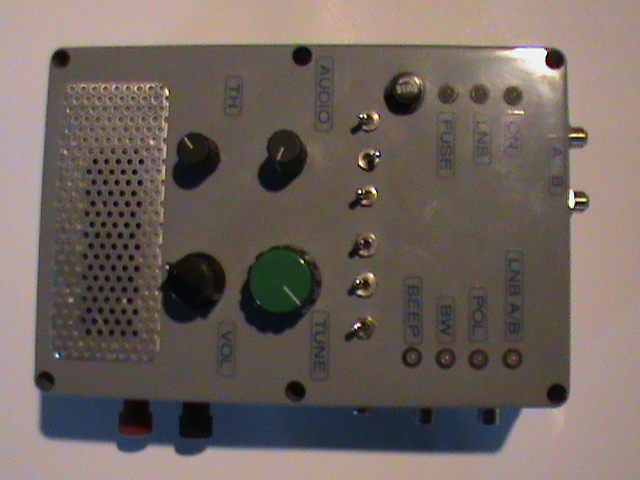

Mobil Receiver (12Volt)

Design see above

TH= various threshold

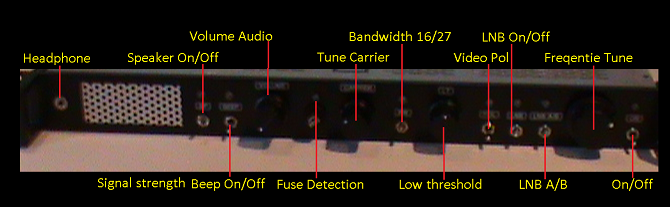

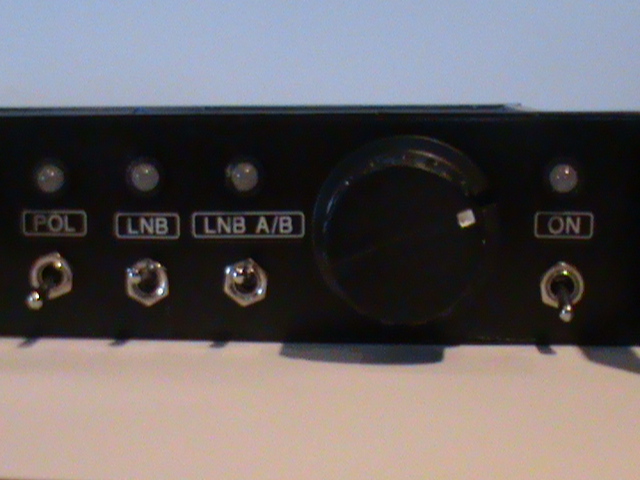

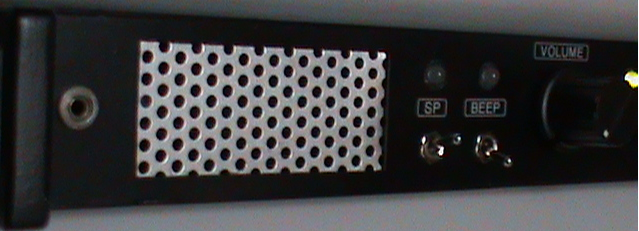

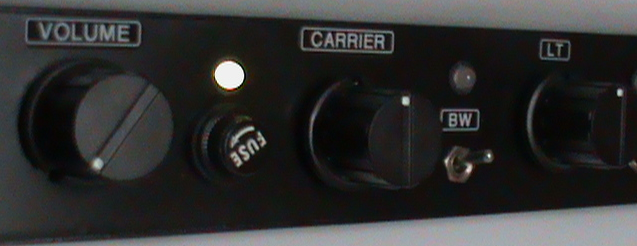

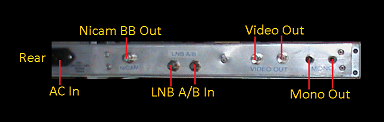

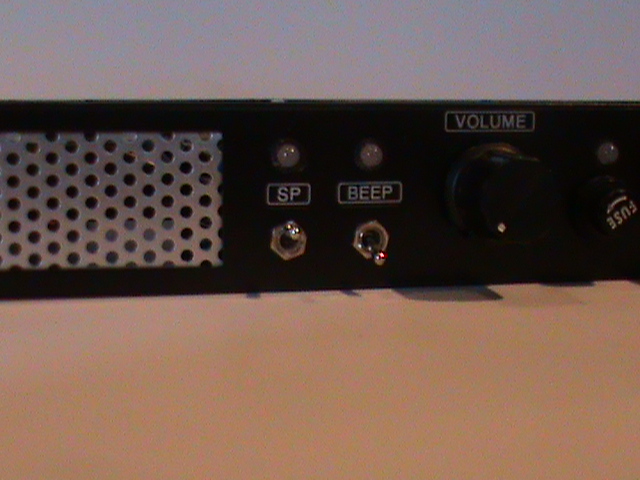

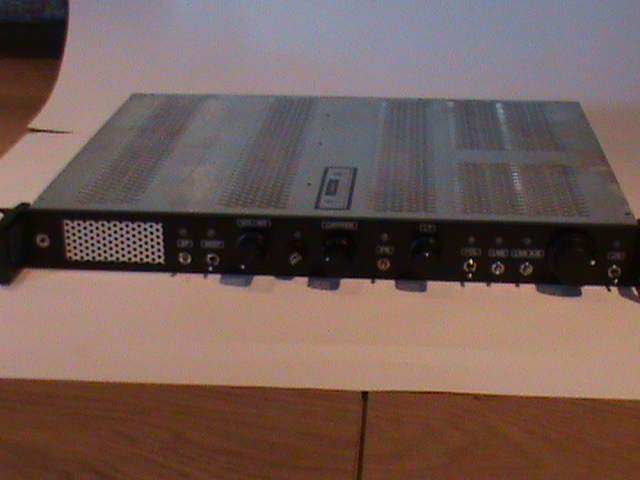

 19" Receiver
