Loop Antenna
&

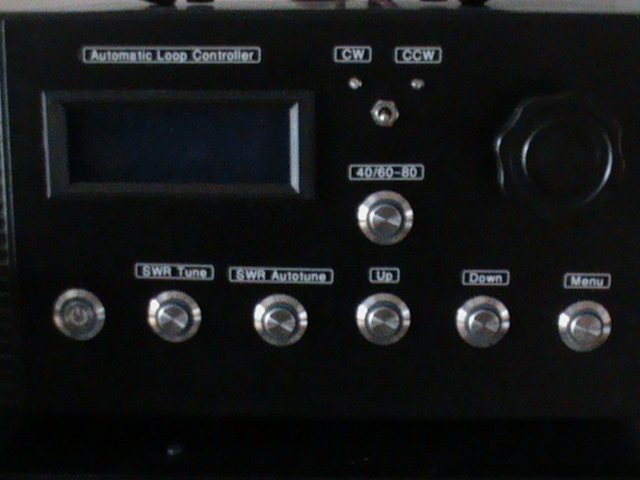

Automatic Magnetic Loop Controller

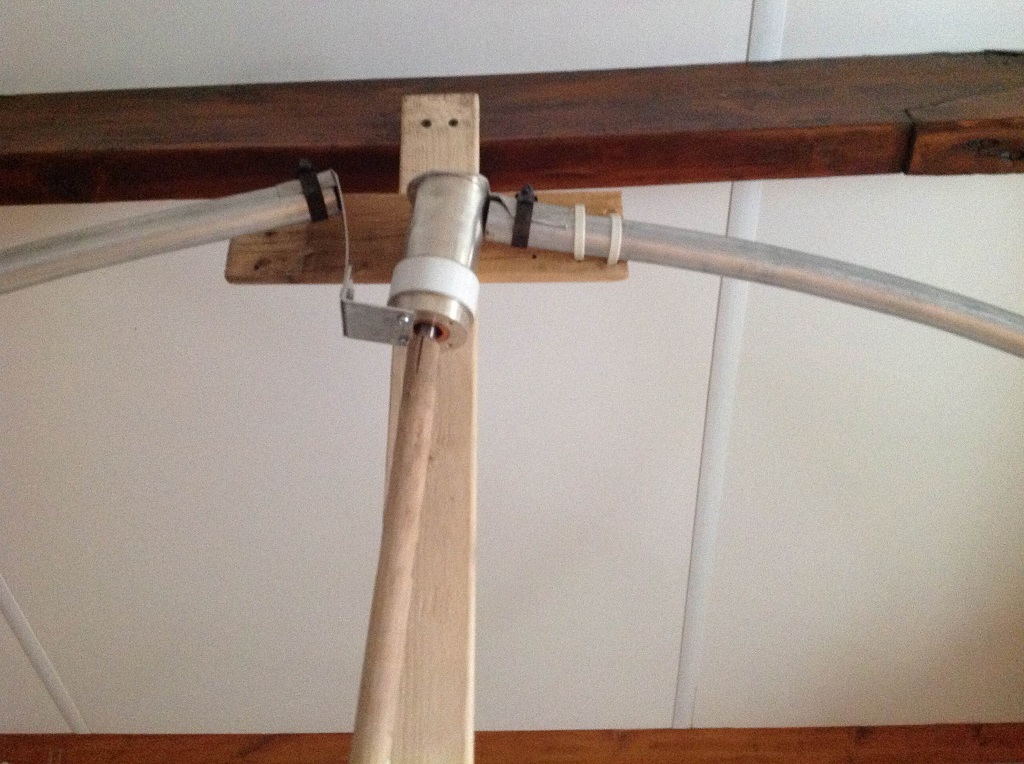

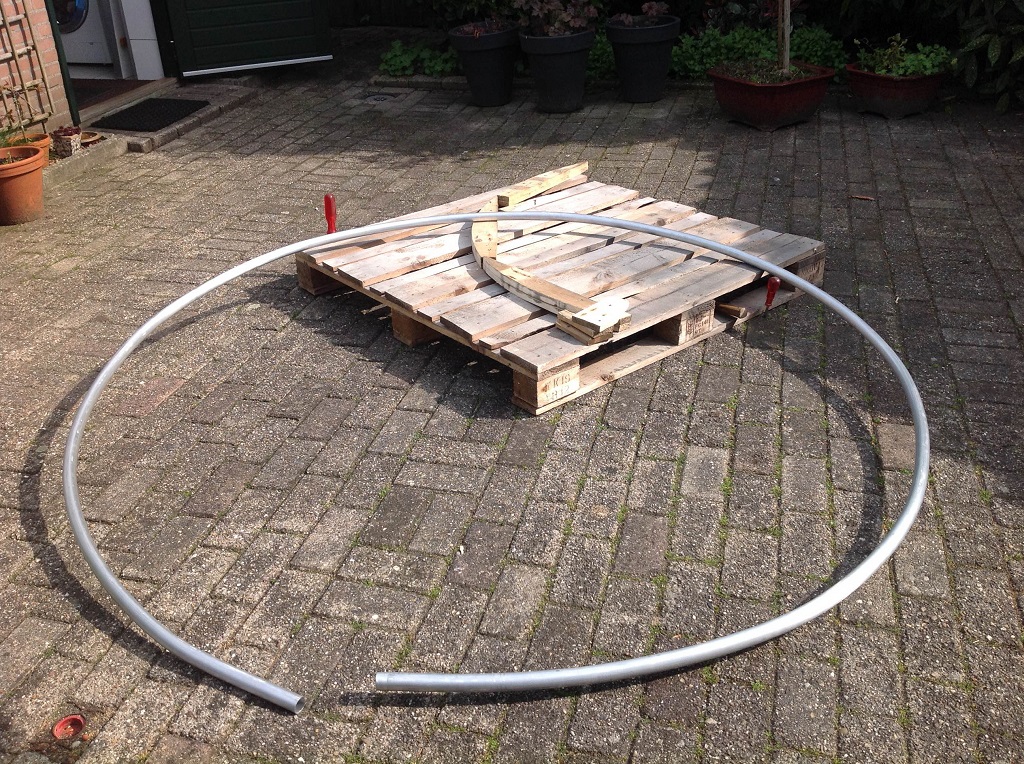

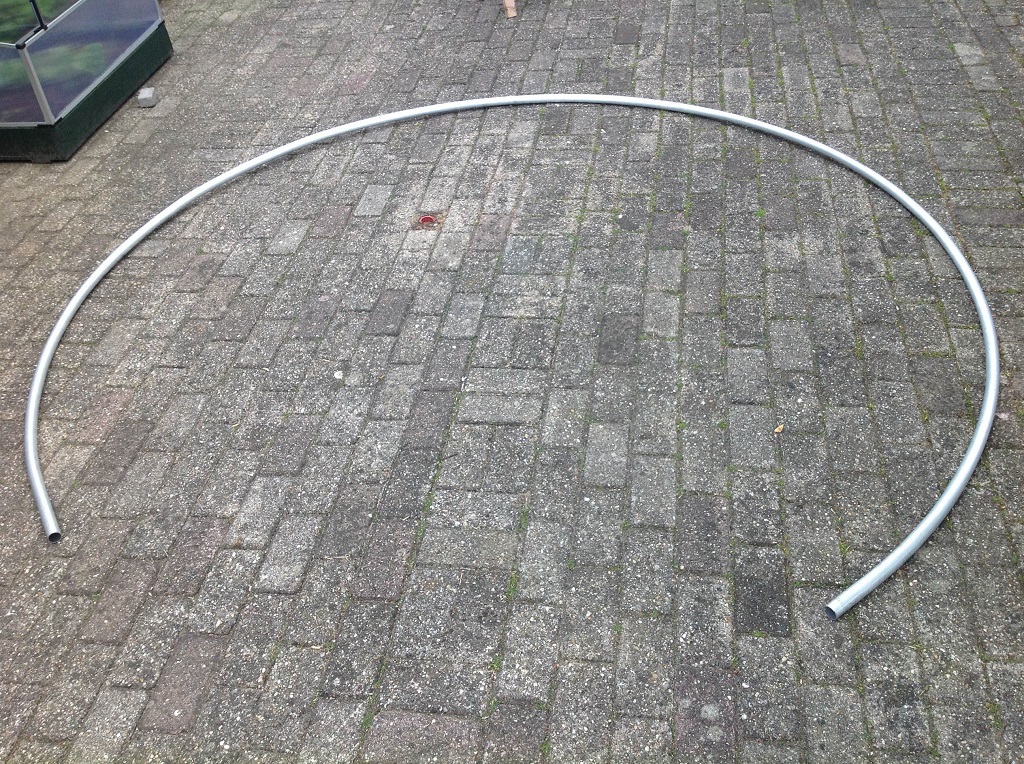

Handmade loop
For 2 & 1 Meter Loop

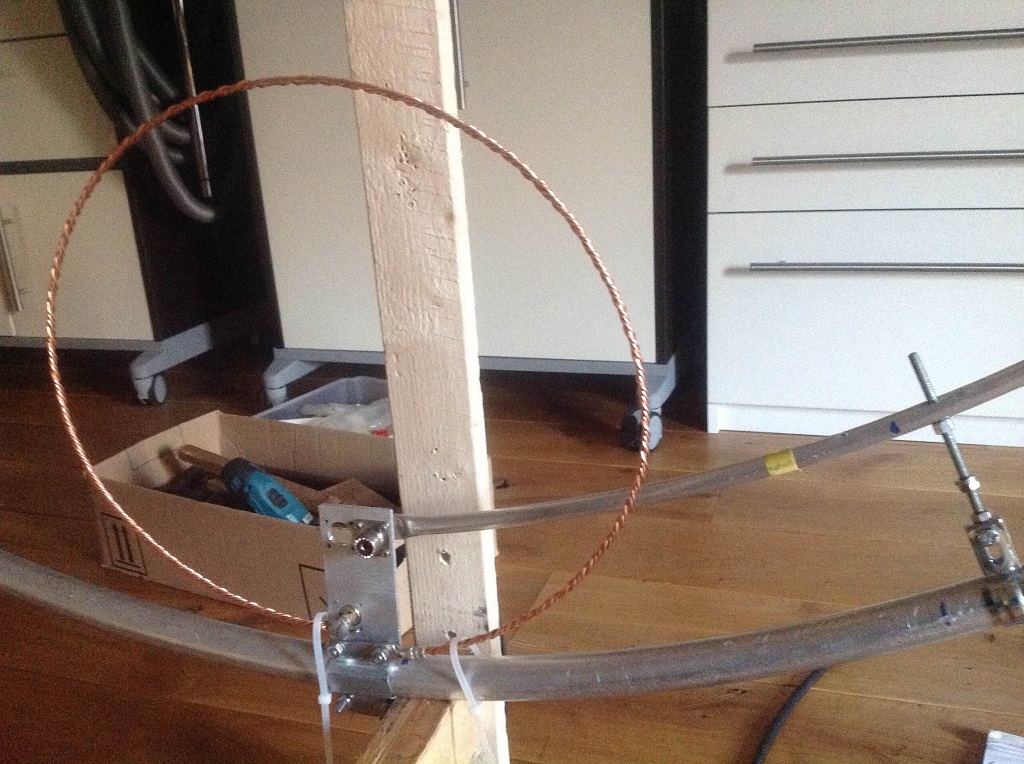

Test Mode inner loop Coax
manually operated

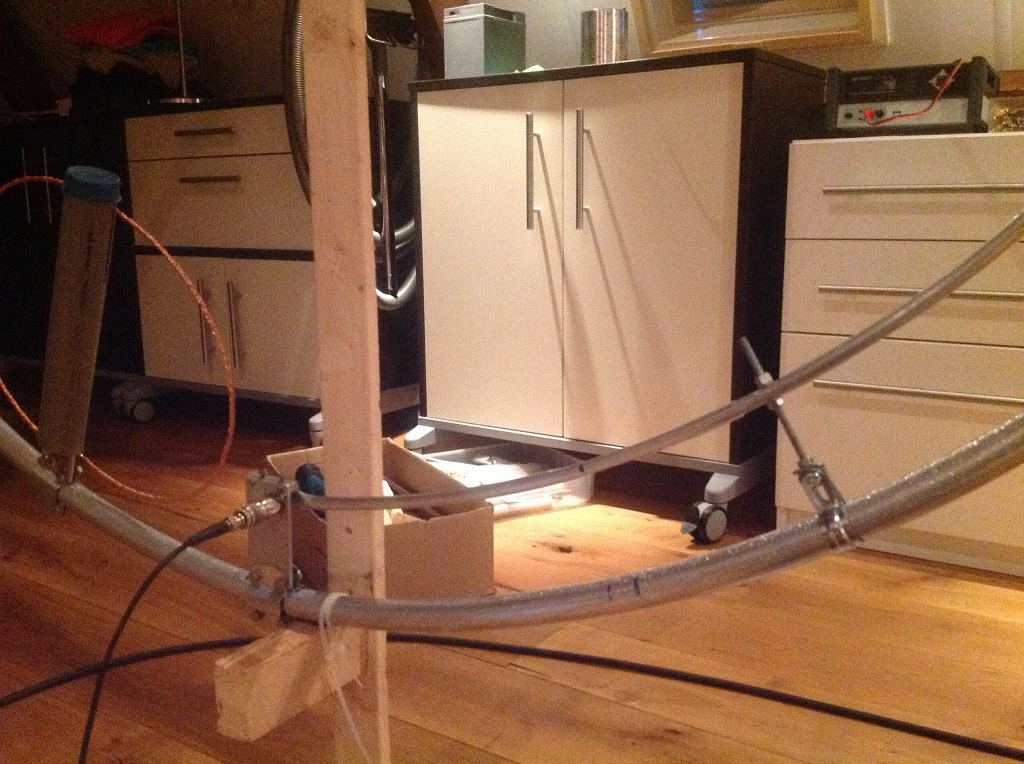

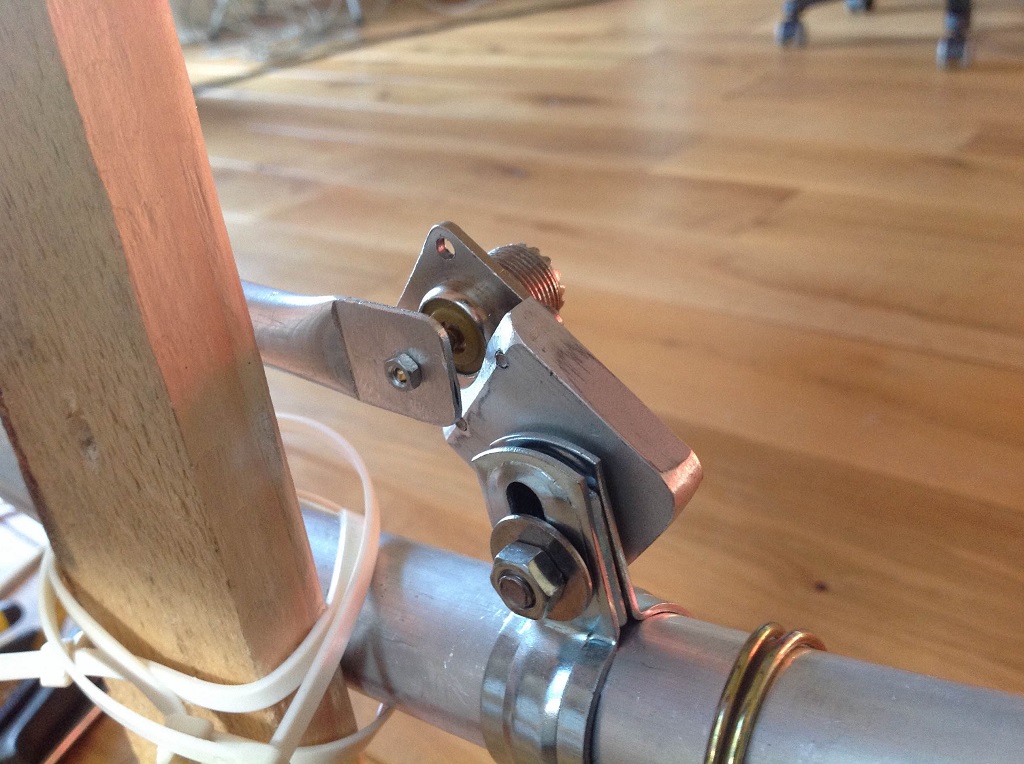

Test mode gamma match
Tuning a magnetic loop antenna takes some time.
More info Tuning a magnetic loop ON6YC
More test

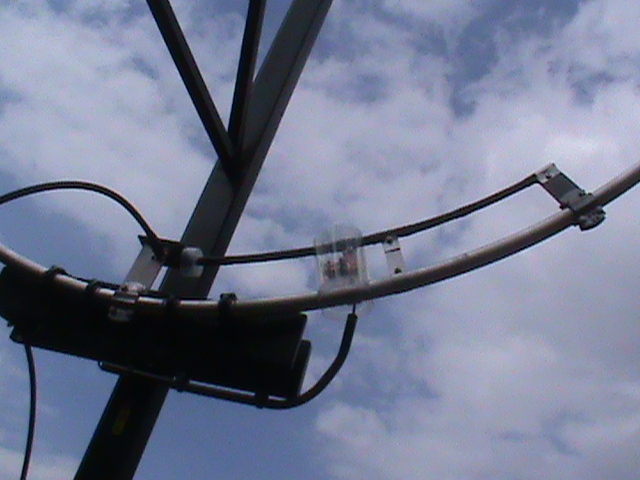

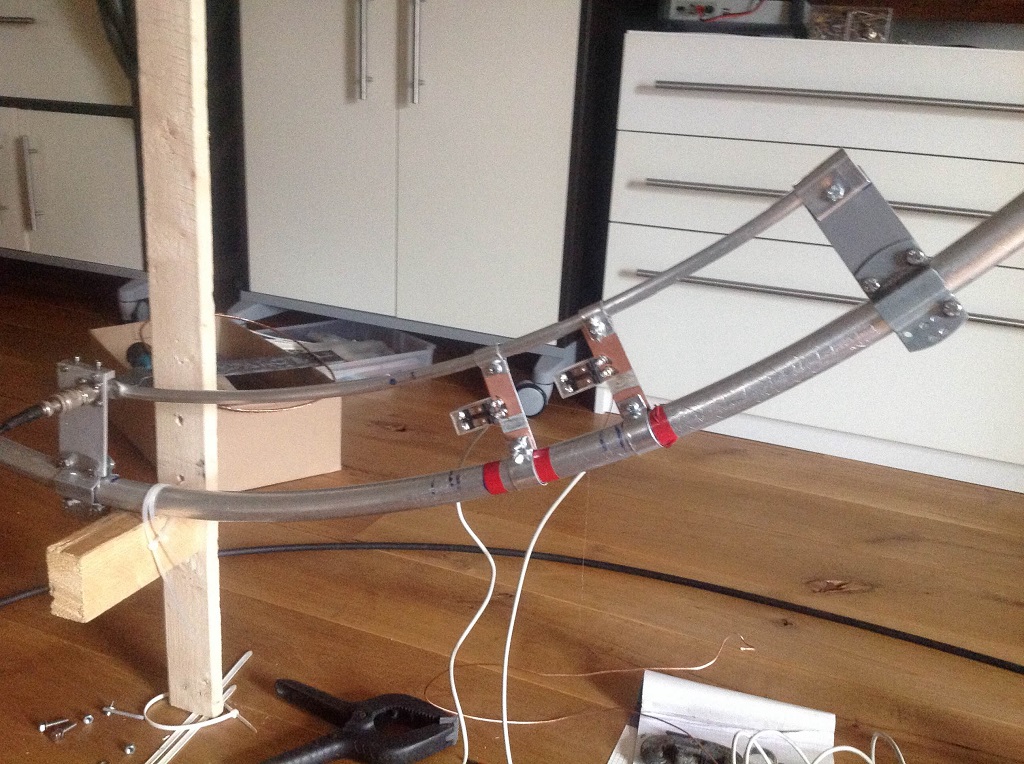

Inner loop combine Gamma match

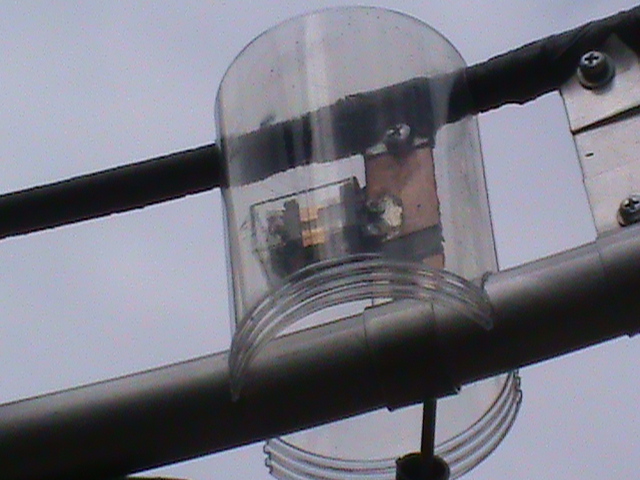

test Gamma Relais
test results gamma rerails and final conrtuction best performance for 3 bands
for this construction 1 relais is needed
80 M 3.7 MHz 2 relais up

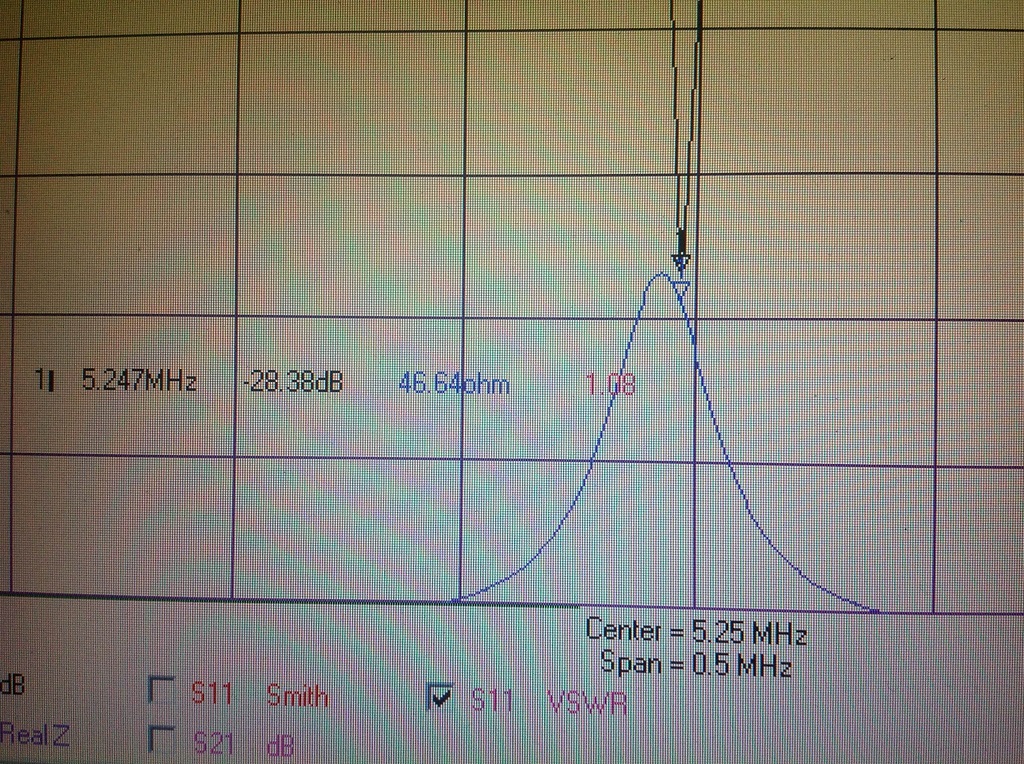

60 M 5.250 MHz 2 relais up
40 M 7.2 MHz 1 relais up (right relais) replaced alu strip
Auto operated

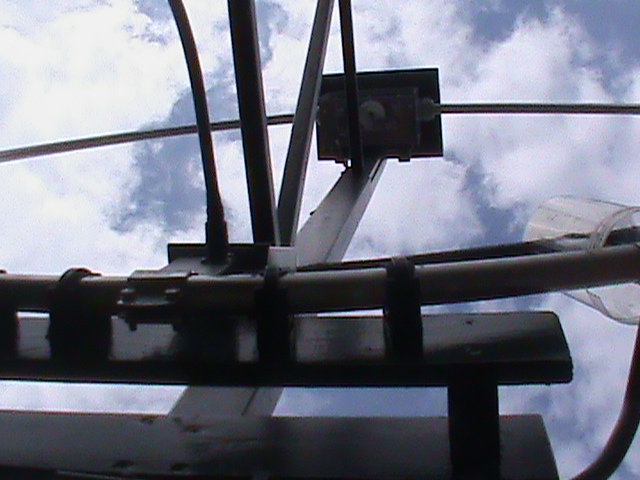

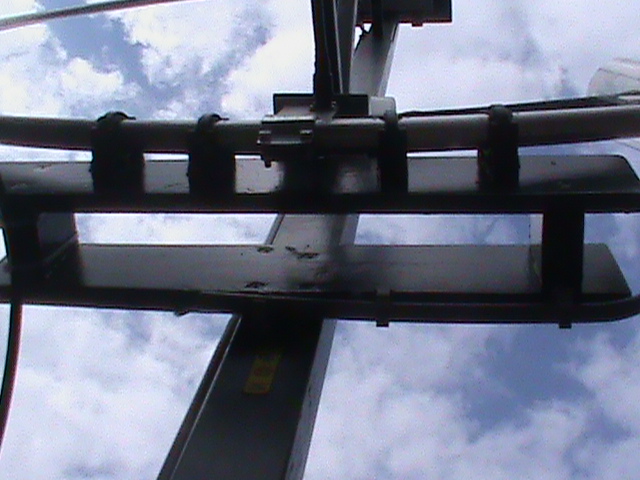

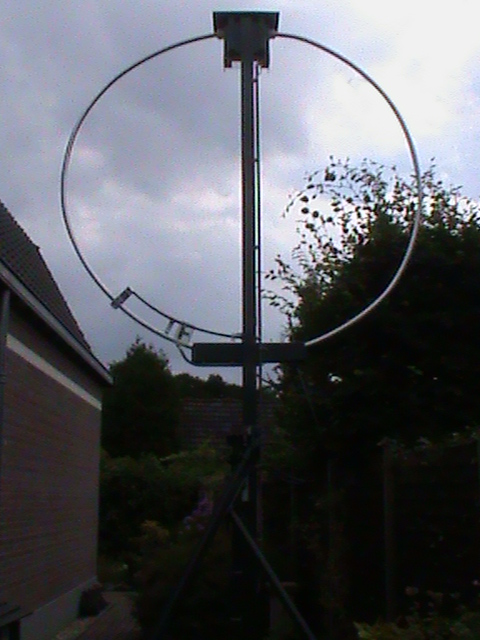

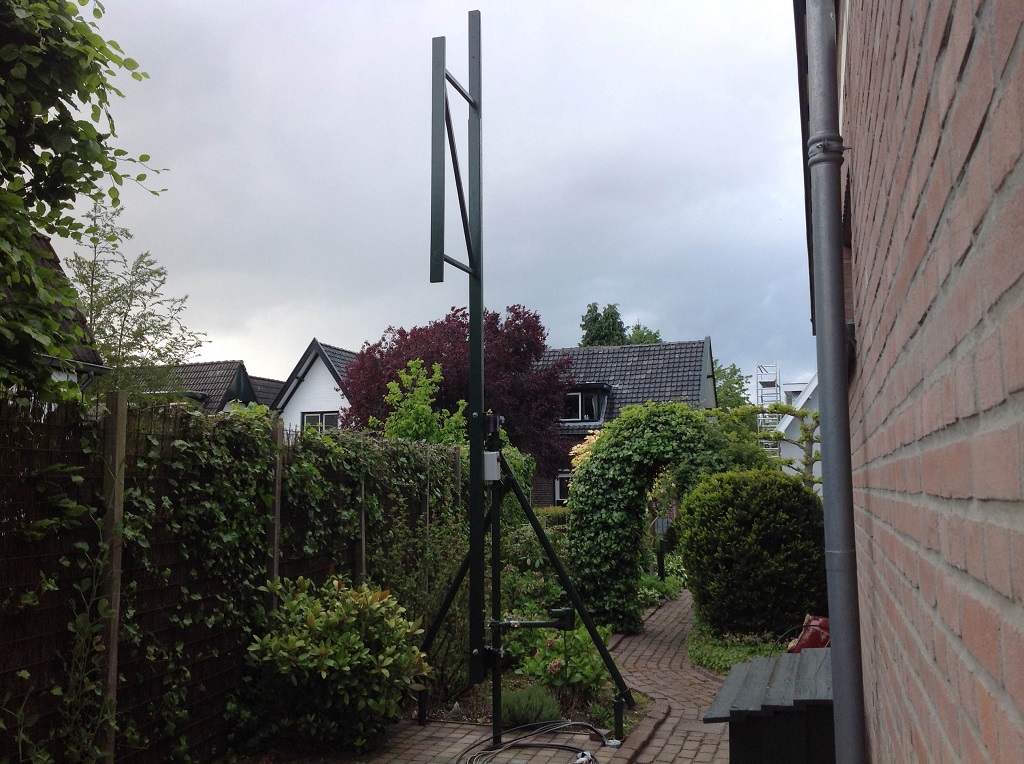

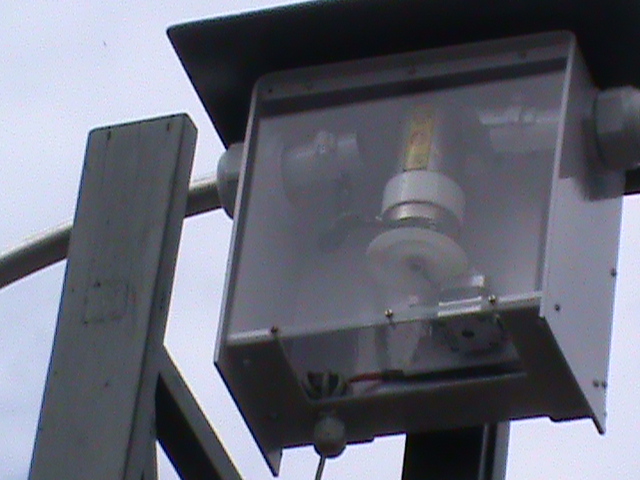

Outside
Rotor

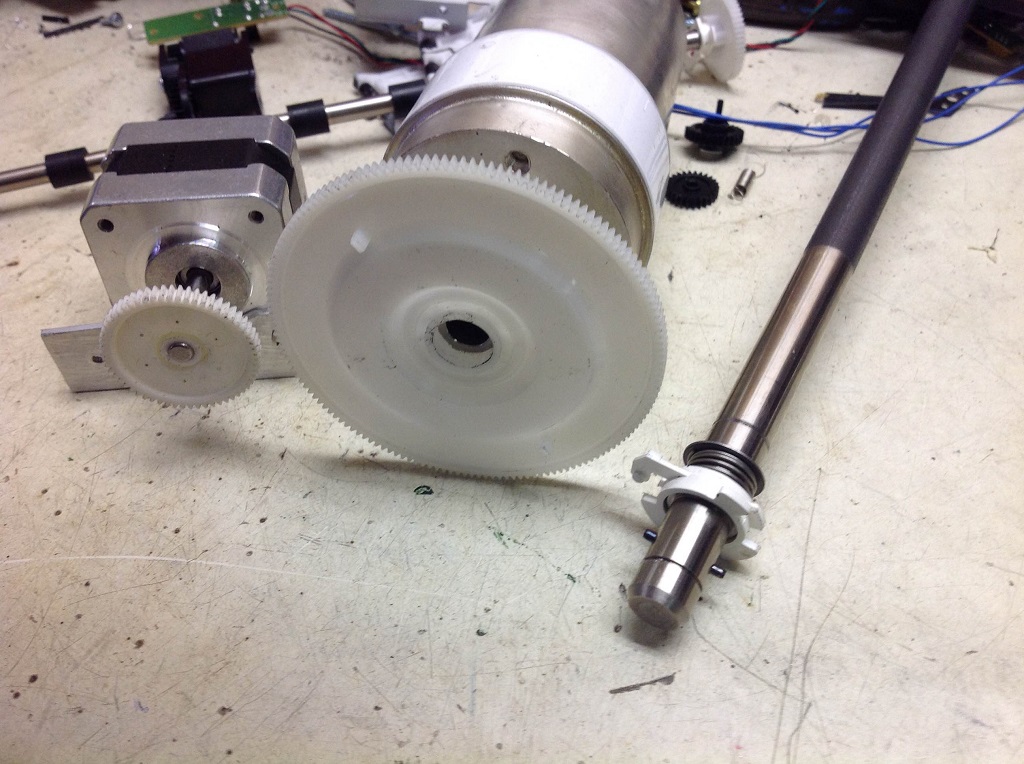

Parts from Epson printer
Test Mode

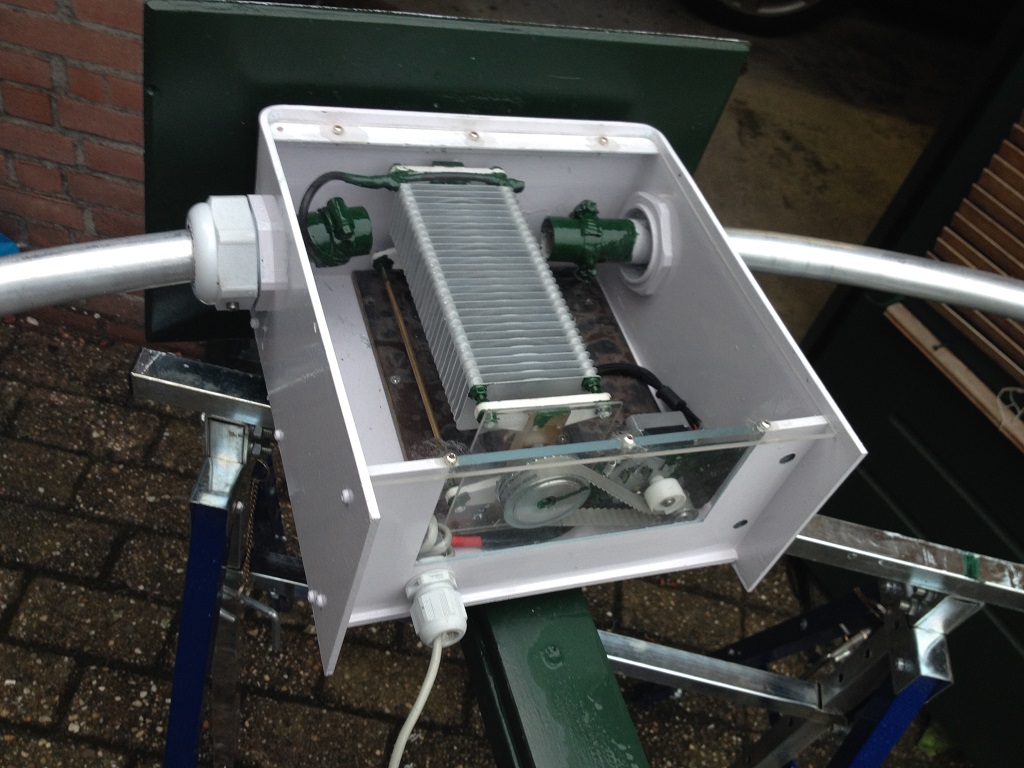

replacement for the capacitor vacuum to air for less deviation

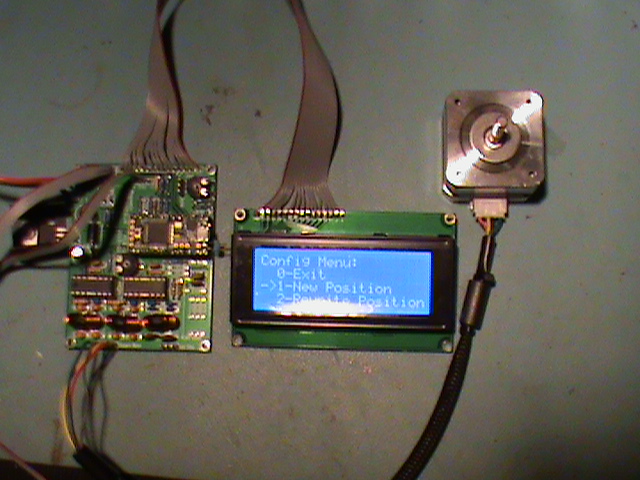

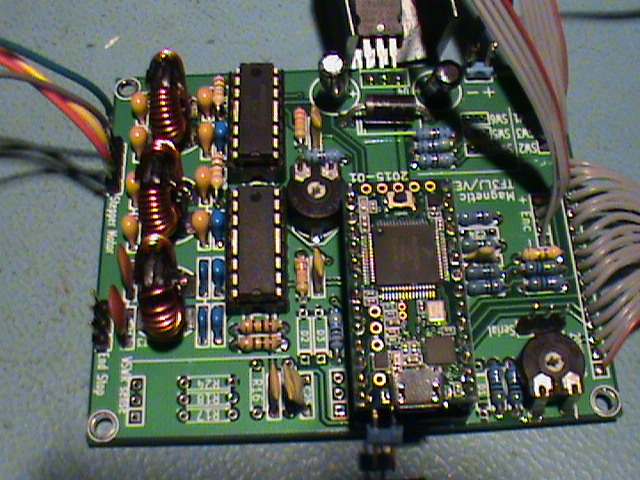

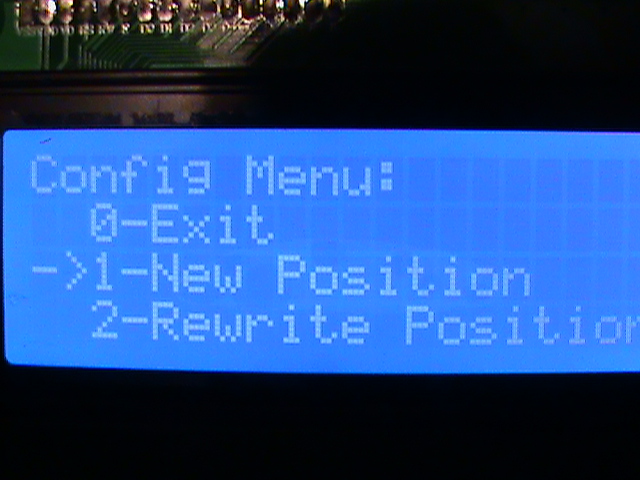

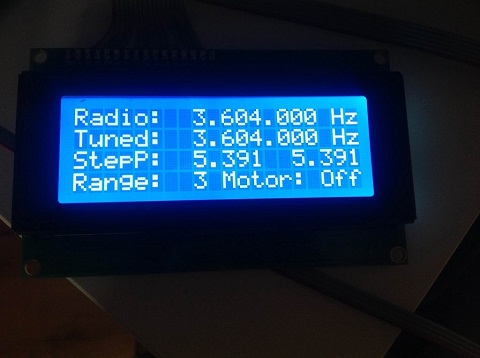

Loop Controller
HF SWR Meter/Bridge
FT DX 3000 HF Set
