70cm WFM

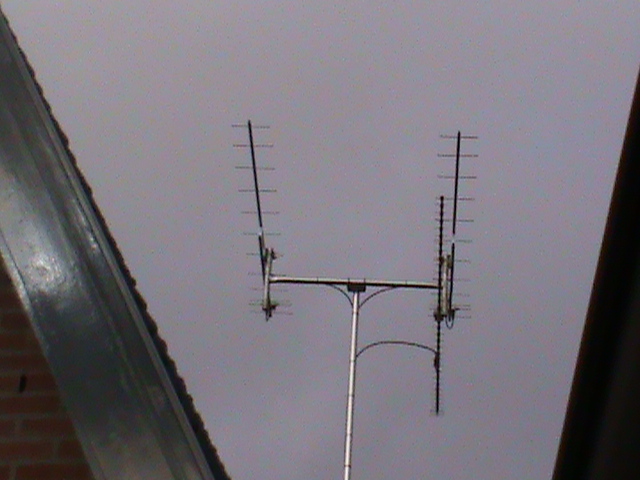

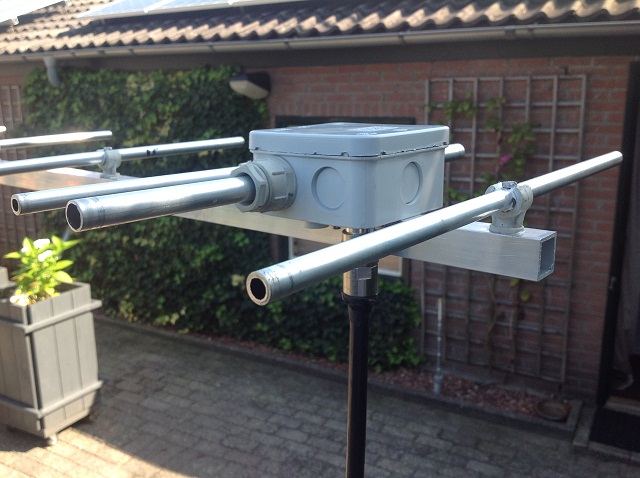

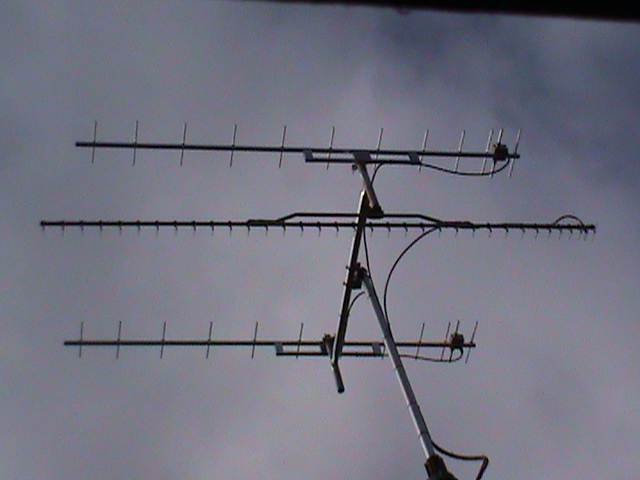

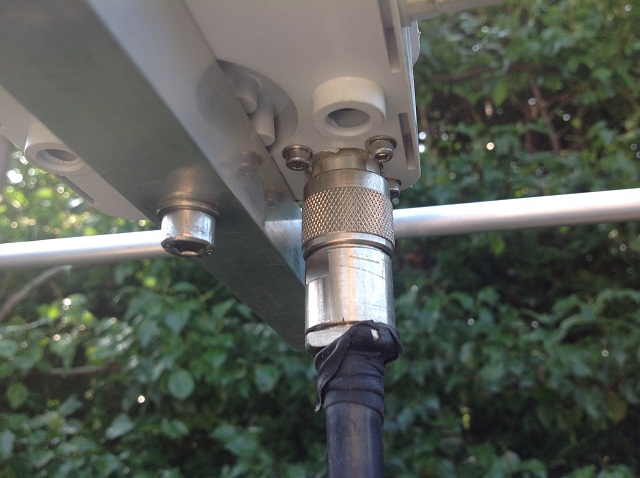

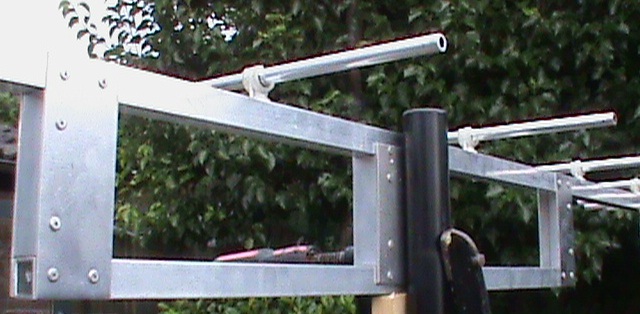

12 Elements  70cm long Yagi ( For WFM ) Gain 13,8dBd

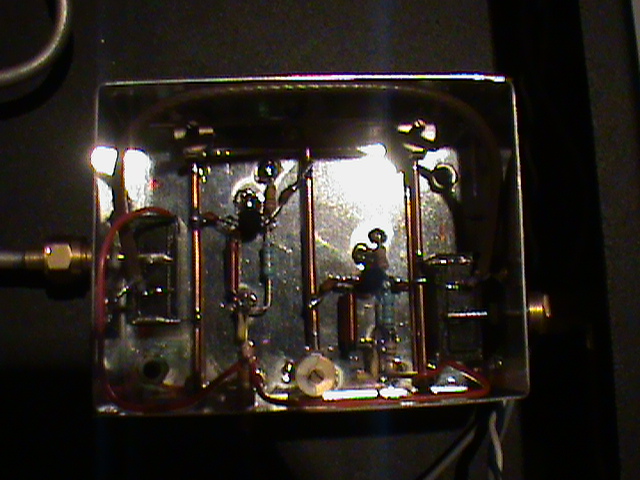

Interdigital Filter 70cm

For more details see

DK7ZB  (link)

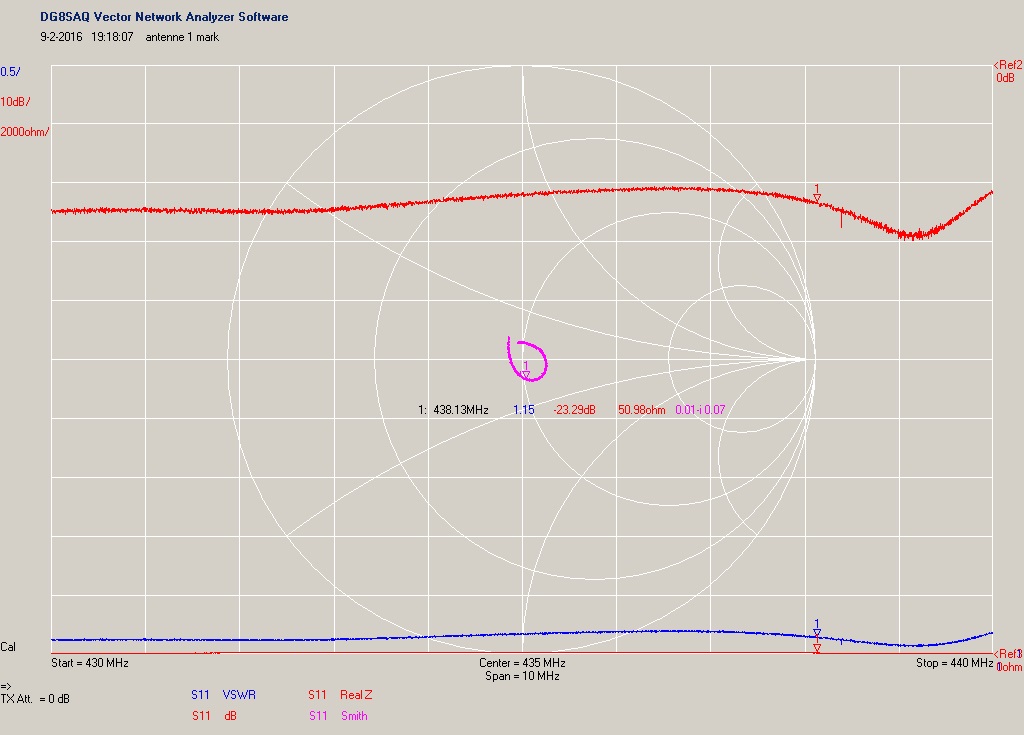

SWR @ 435MHz

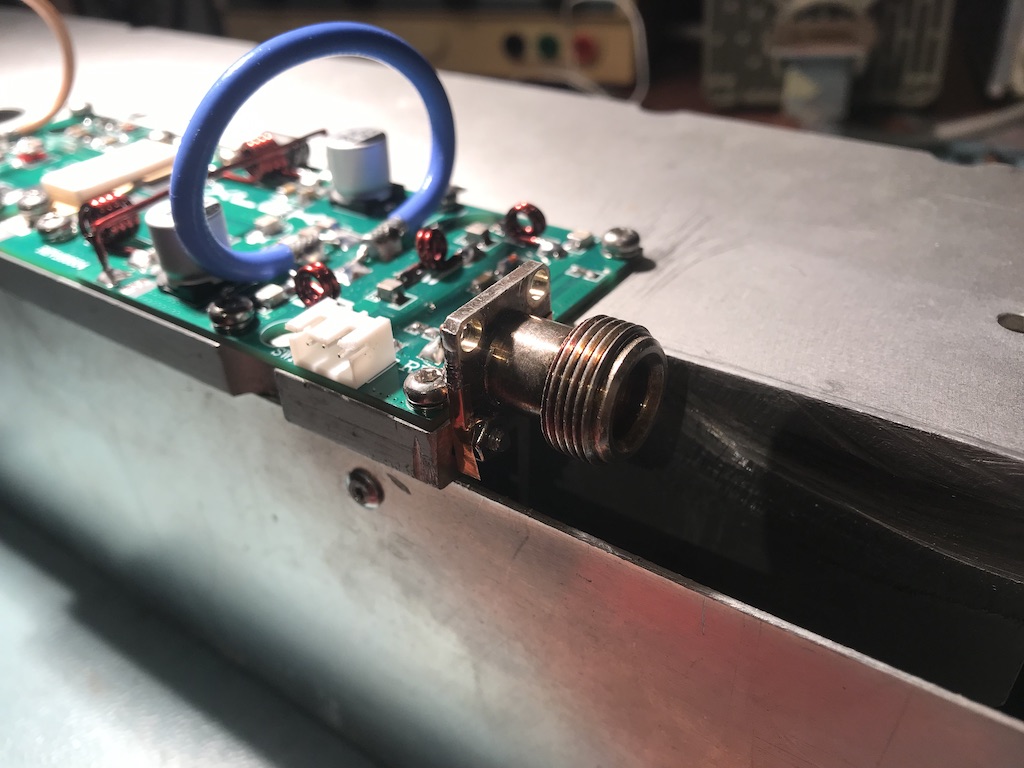

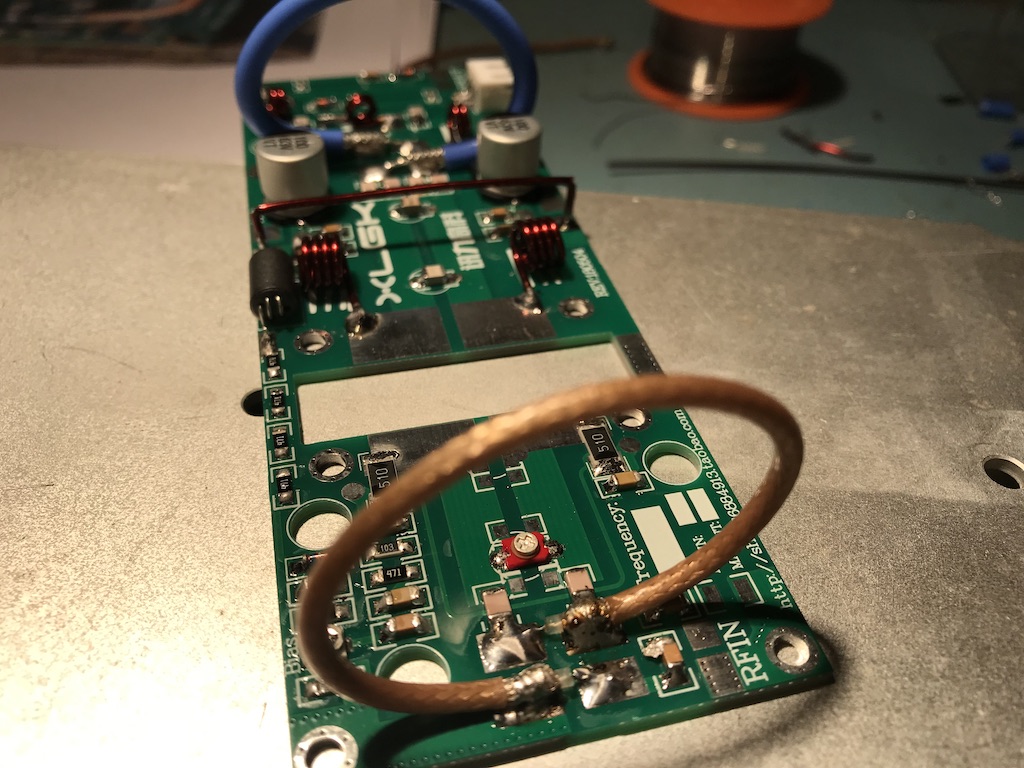

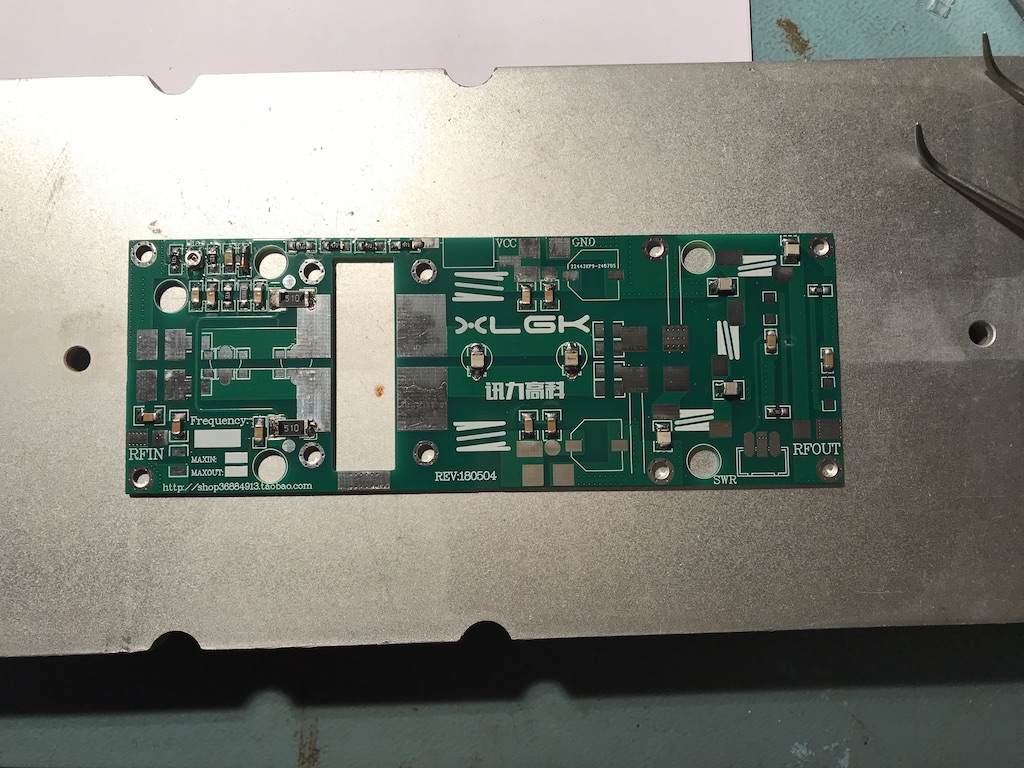

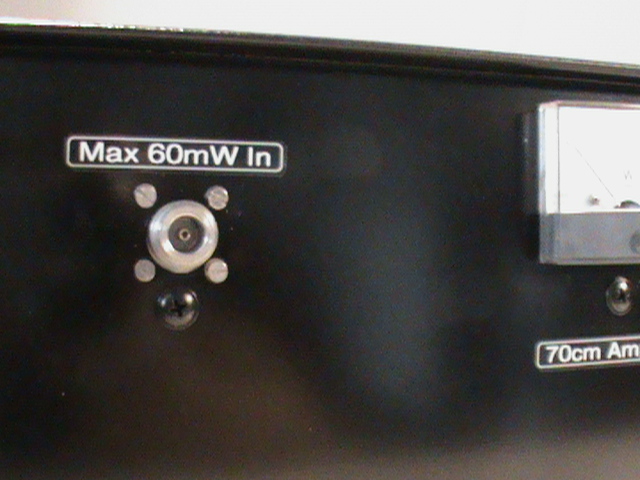

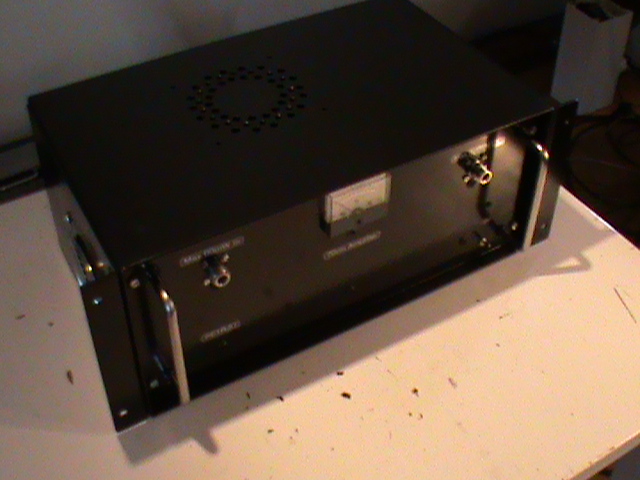

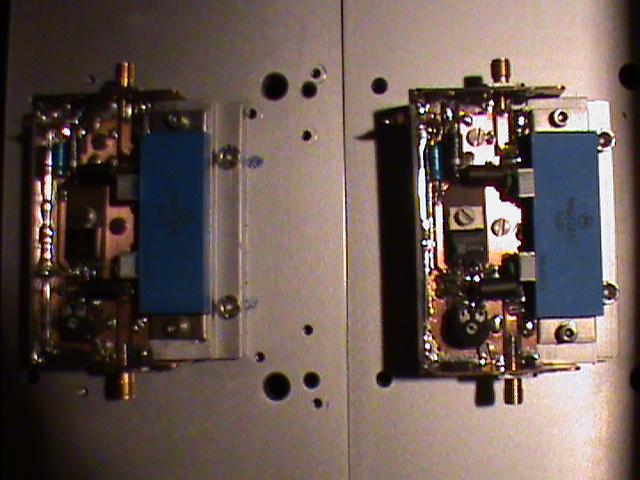

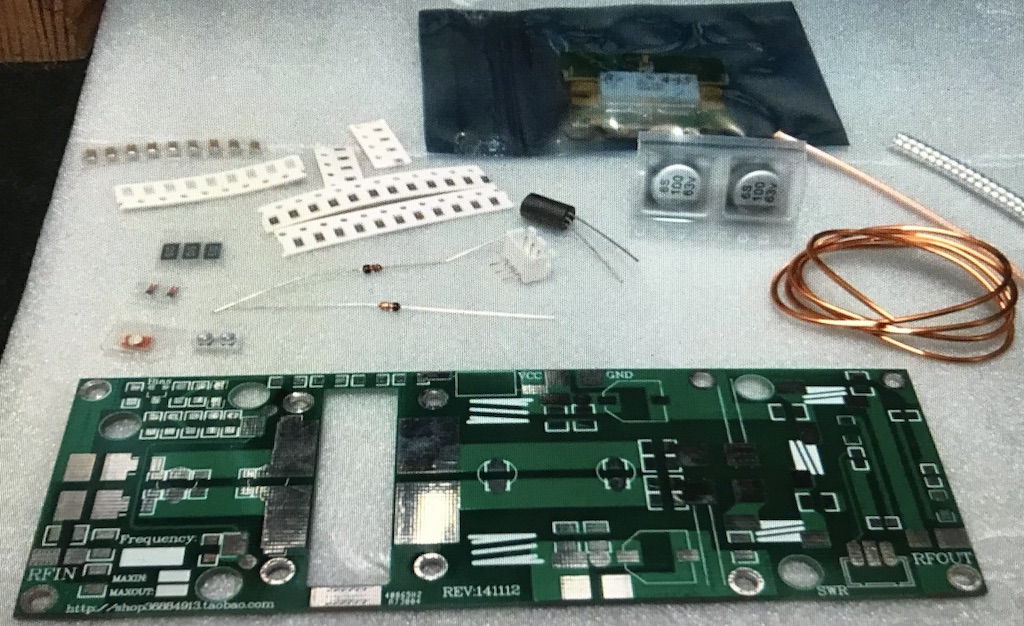

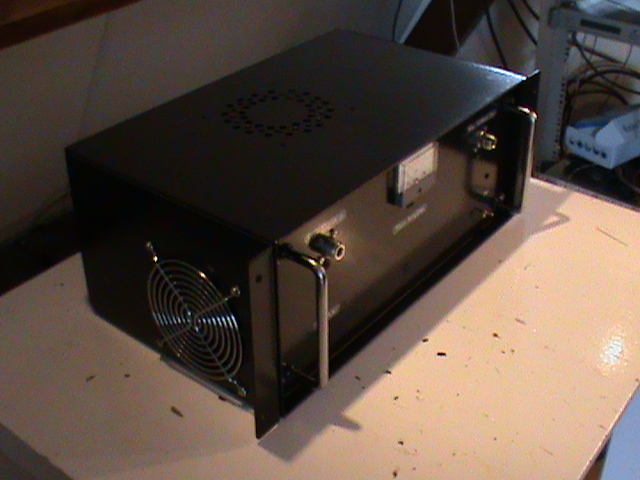

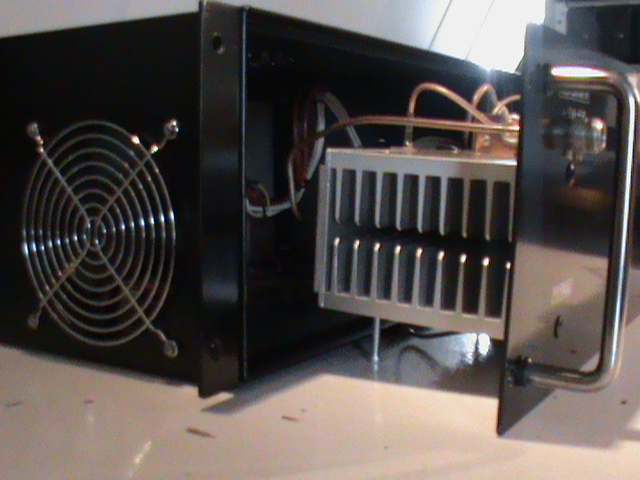

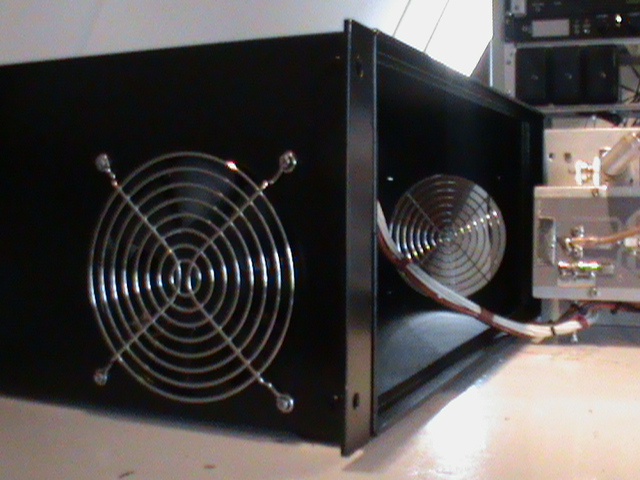

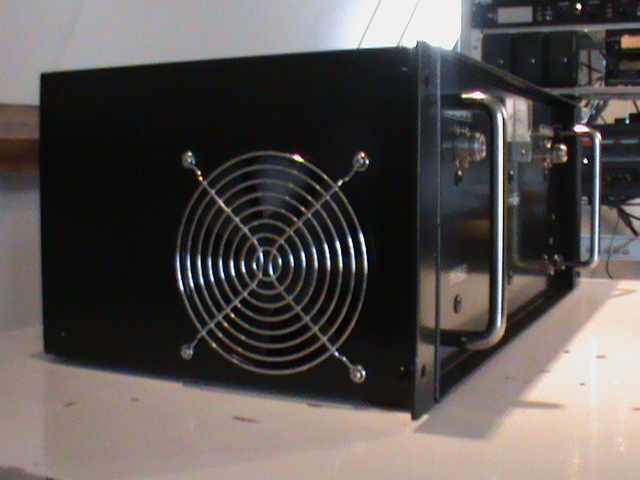

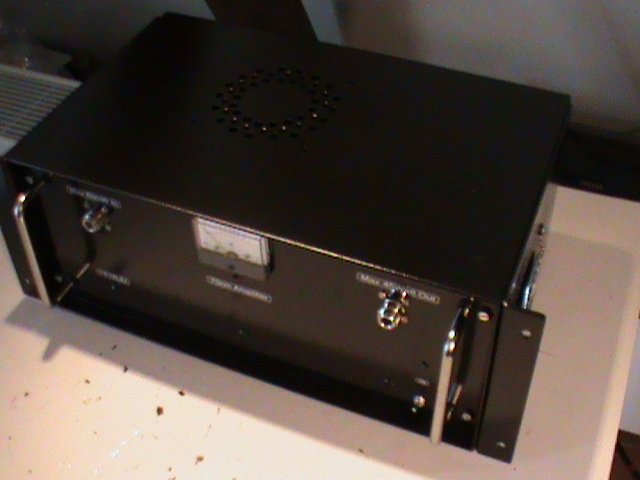

Amplifier MHW 720 A2

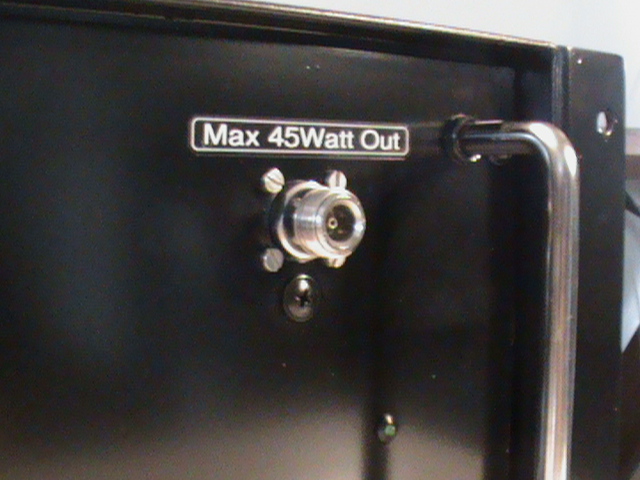

40mW in 22Watt out  @ 12Volt

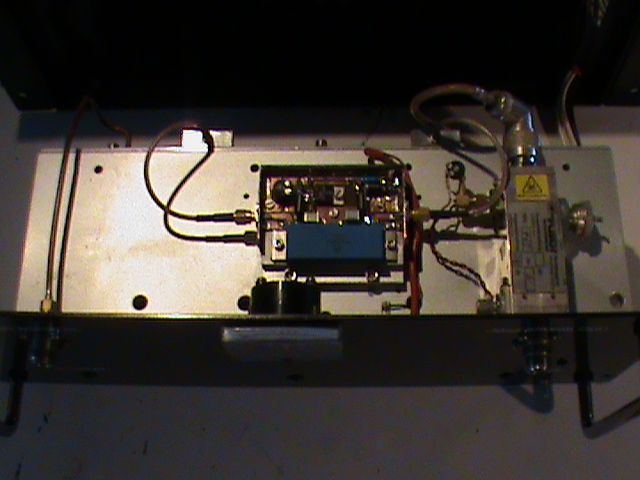

Combine 2x MHW 720 A2

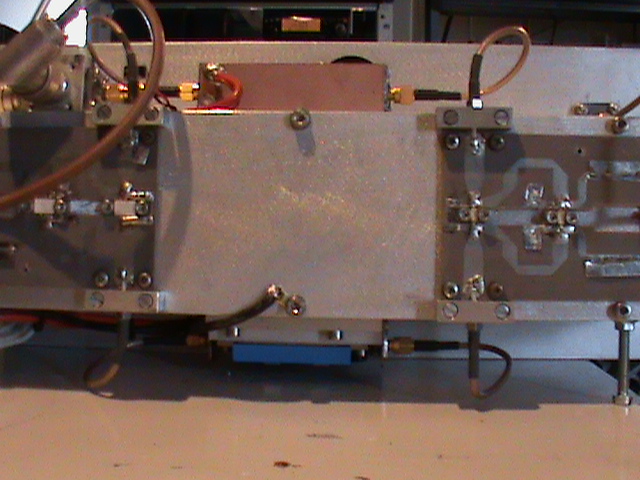

Build in pictures

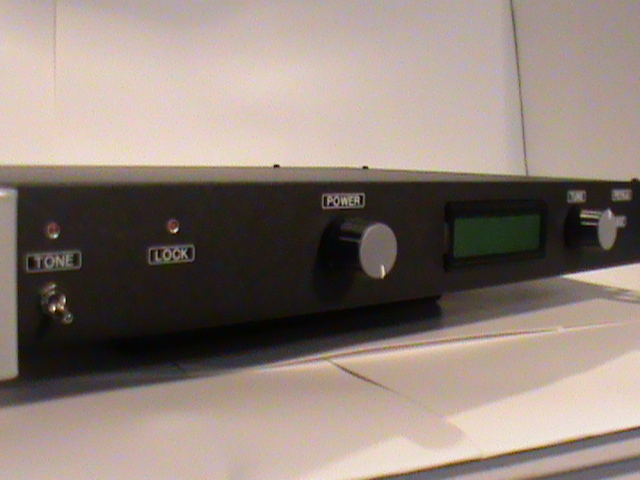

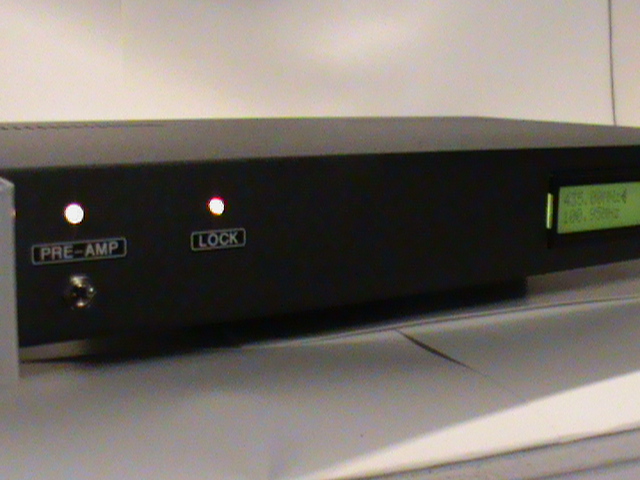

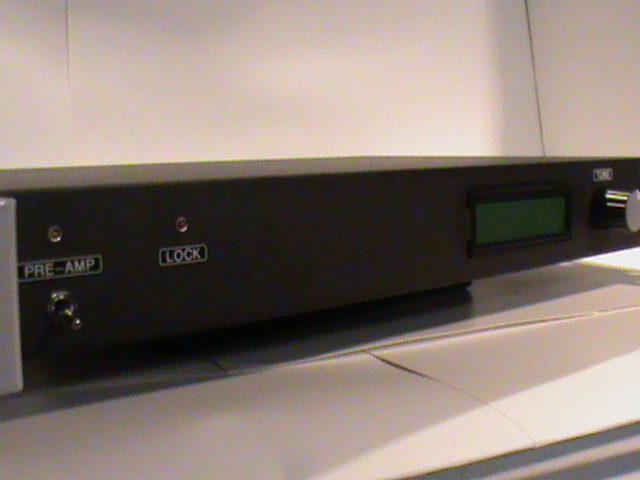

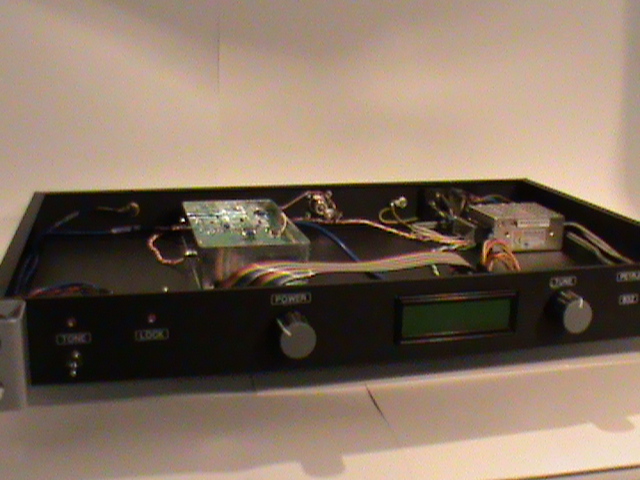

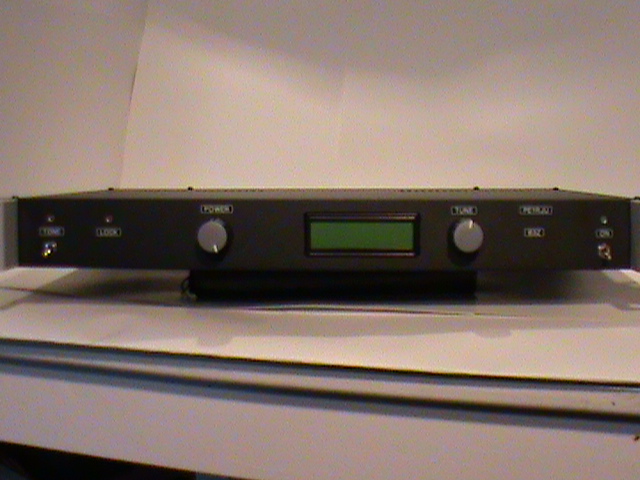

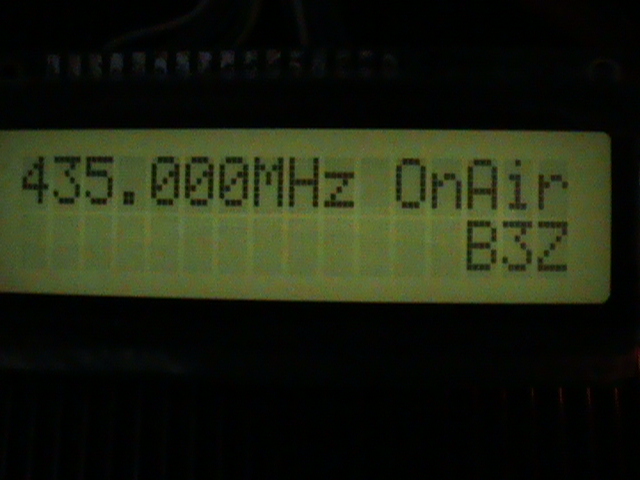

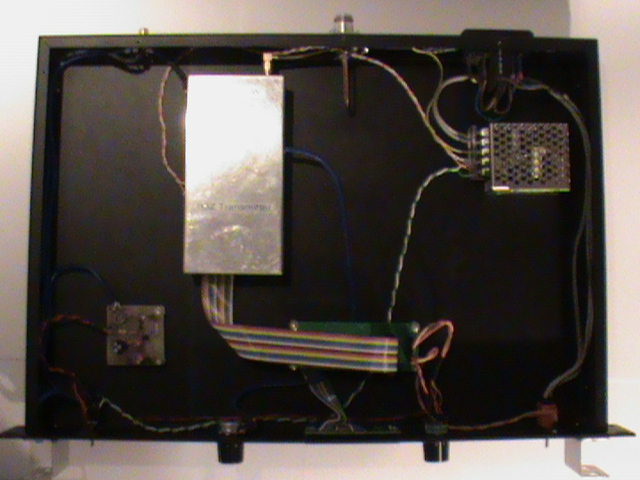

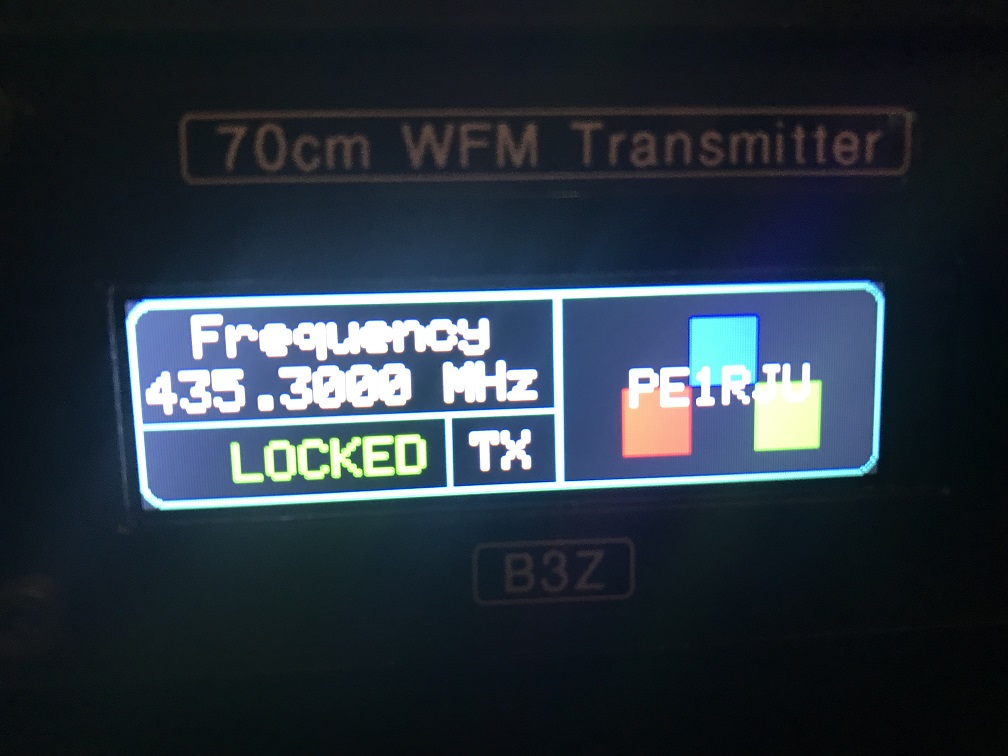

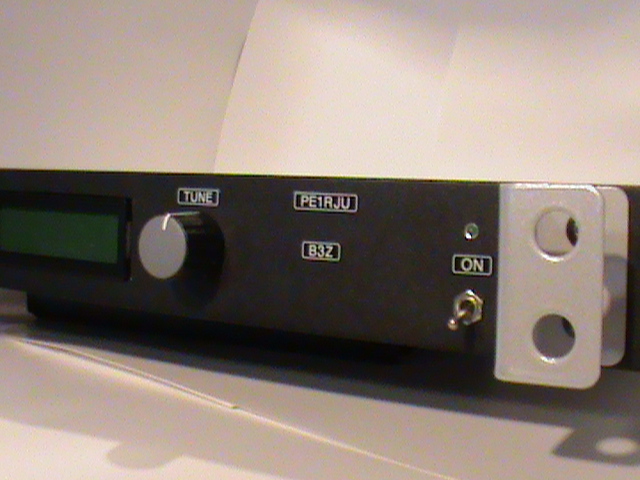

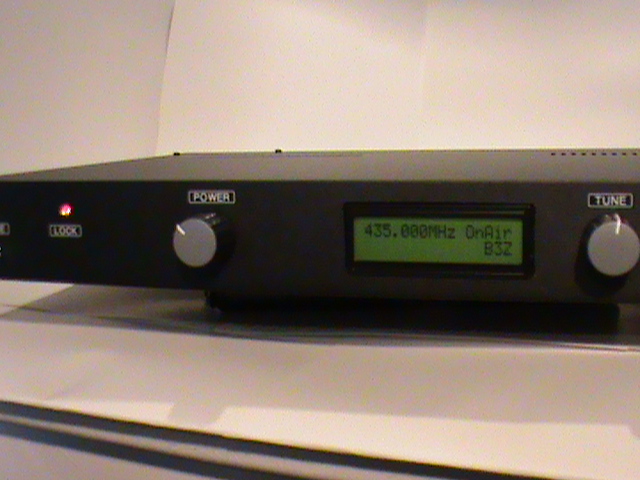

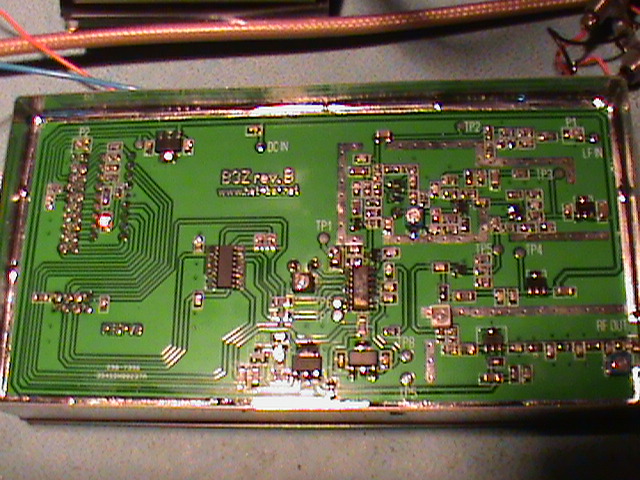

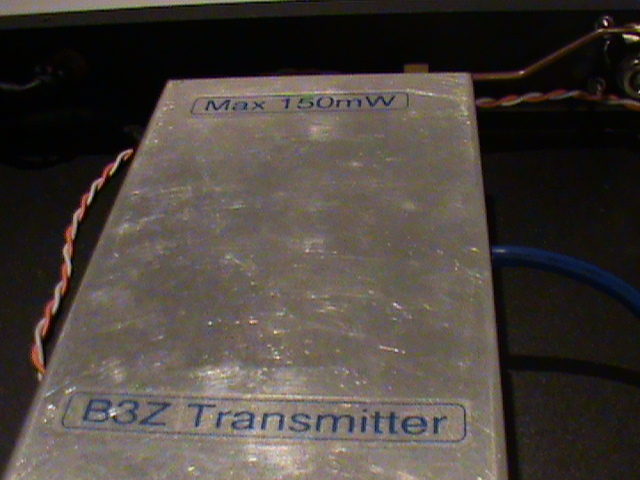

B3Z 70cm WFM Transmitter

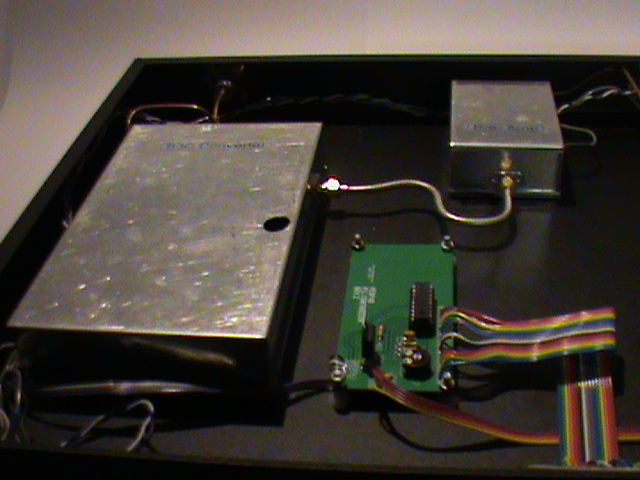

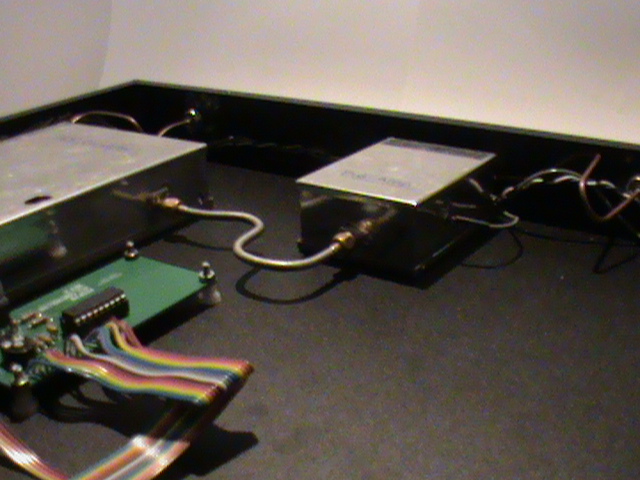

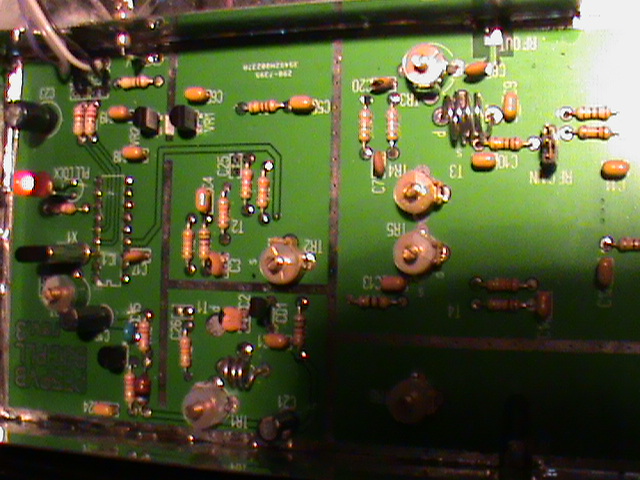

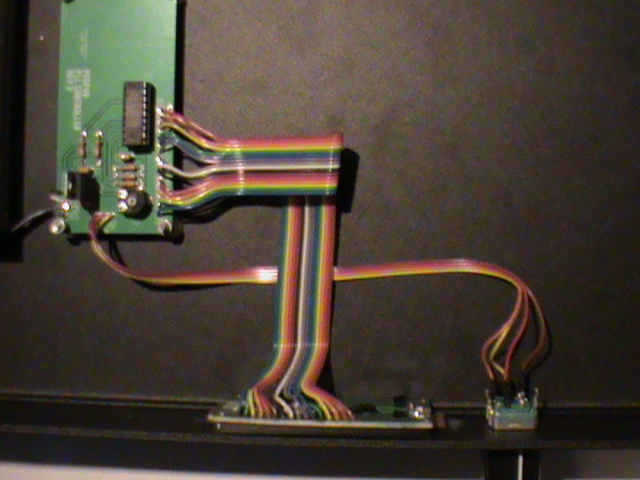

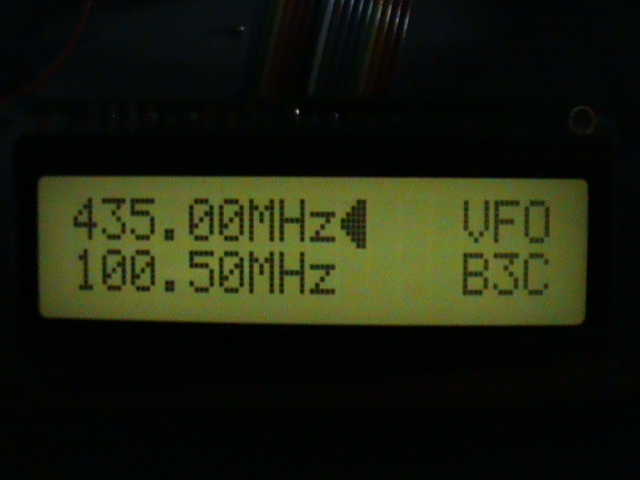

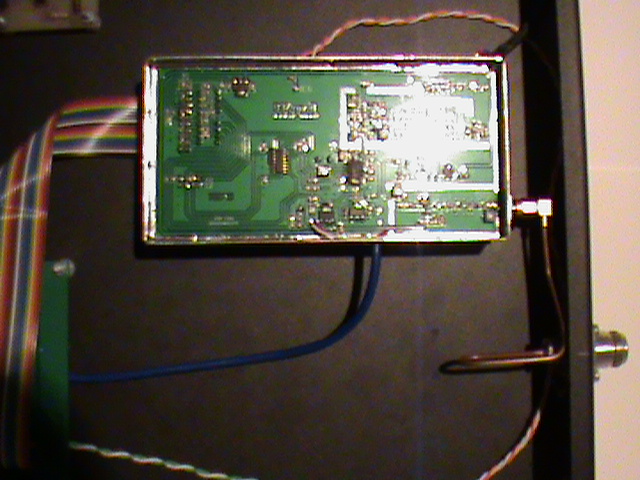

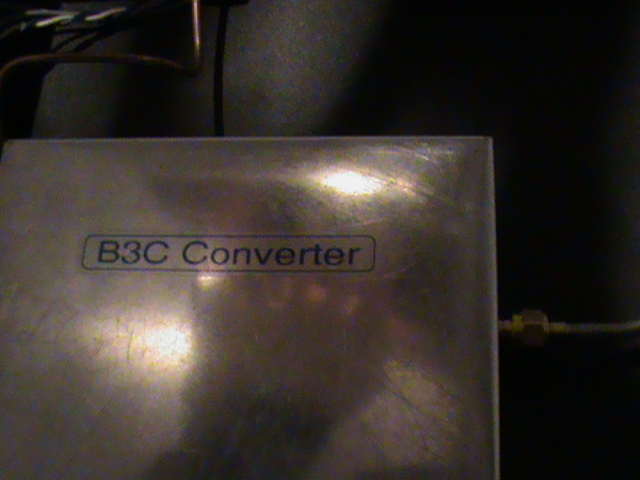

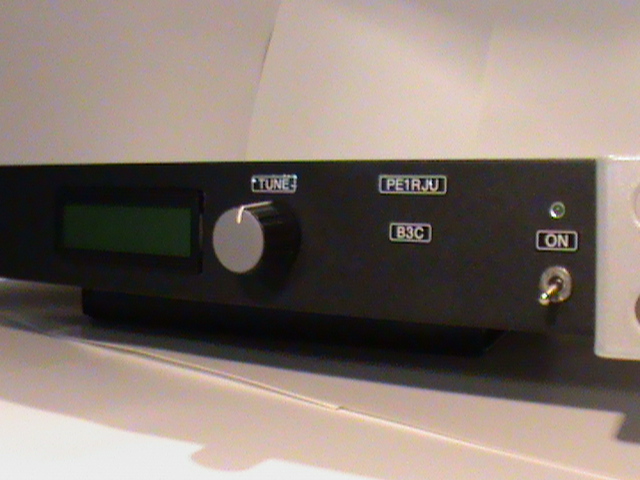

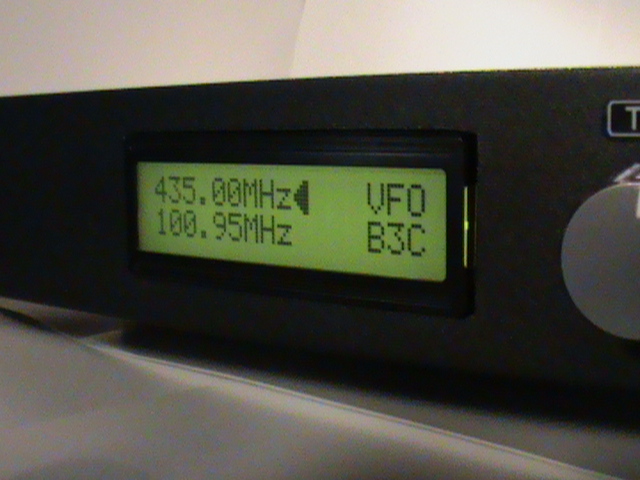

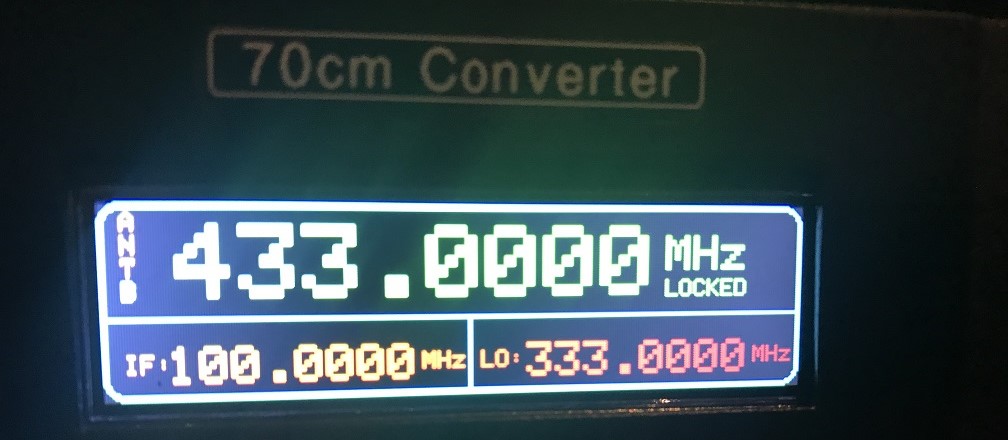

B3C   70cm WFM Converter

for more details see PE5PVB

Made in 1990

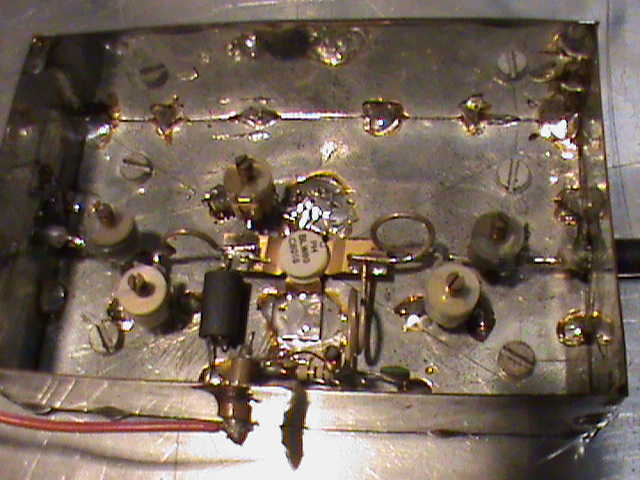

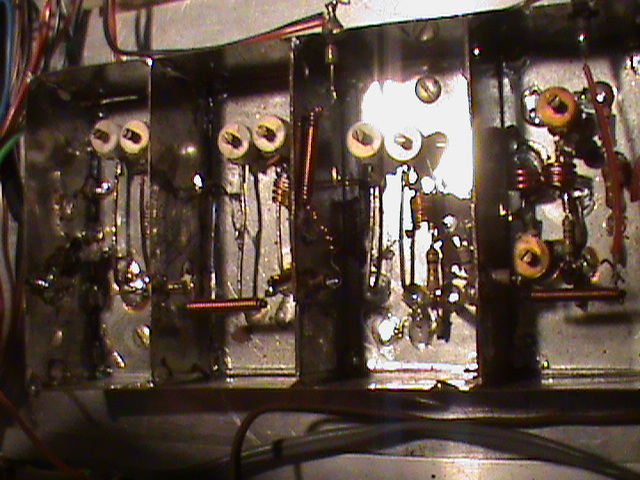

Old 60cm WFM  (Pirate) Transmitter build to 70cm WFM

LO x2 x2
