| 20M Antennas |
 |
| 3 Element homebrew yagi |
| The 3 element homebrew yagi is a conventional design with a driven element, director and a reflector, the antenna is driven using homemade balun. The boom length is 5 Metres (16'3"). This antenna is very lightweight as the elements are made from wire running along the side of 6M long fishing poles which are strapped to a piece of angle which is screwed to the boom. A full construction article will be appearing soon in some of the radio magazines. This is the first time this antenna has been used and it performed perfectly. |
 |
| 2 Element homebrew yagi |
| The 2 element homebrew yagi is a non-conventional design with a driven element and a director, the antenna is driven using a delta match and 1/2 wave 4:1 balun. The boom length is 2 Metres (6'6"). We didn't use the 2 element beam in CQWW as the new 3 element one performed so well. |
 |

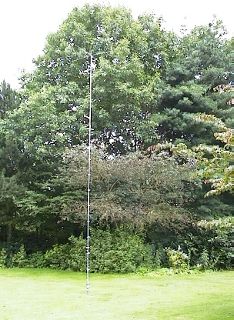

| 20/40/80 Linear loaded vertical |
| This is another homebrew antenna by PA3HBB, it is 7.736M high (~23') and uses linear loading to match 40 and 80M. |
 |
| Cushcraft AP8A multi-band vertical |
| The Cushcraft is the only antenna we have which is commercial and unmodified. It sits in the garden in the middle of the 50 sq metre groundplane at ground level. |
