Index of /p/pe2jeb/foto/Sailor_HF/Sailor_T1130

[ICO]NameLast modifiedSizeDescription
[DIR]Parent Directory  -

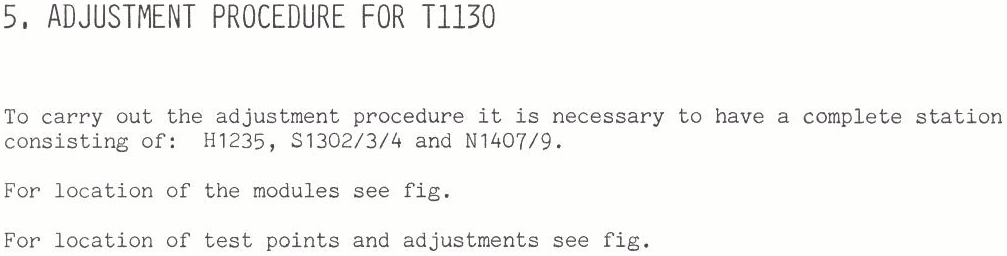

[IMG]Adjustment_procedure_page-0.gif10-Jan-2009 18:00 24K
[IMG]Adjustment_procedure_page-1.gif10-Jan-2009 18:00 166K
[IMG]Adjustment_procedure_page-2.gif10-Jan-2009 18:00 174K
[IMG]Adjustment_procedure_page-3.gif10-Jan-2009 18:00 121K
[IMG]Adjustment_procedure_page-4.gif10-Jan-2009 18:00 124K

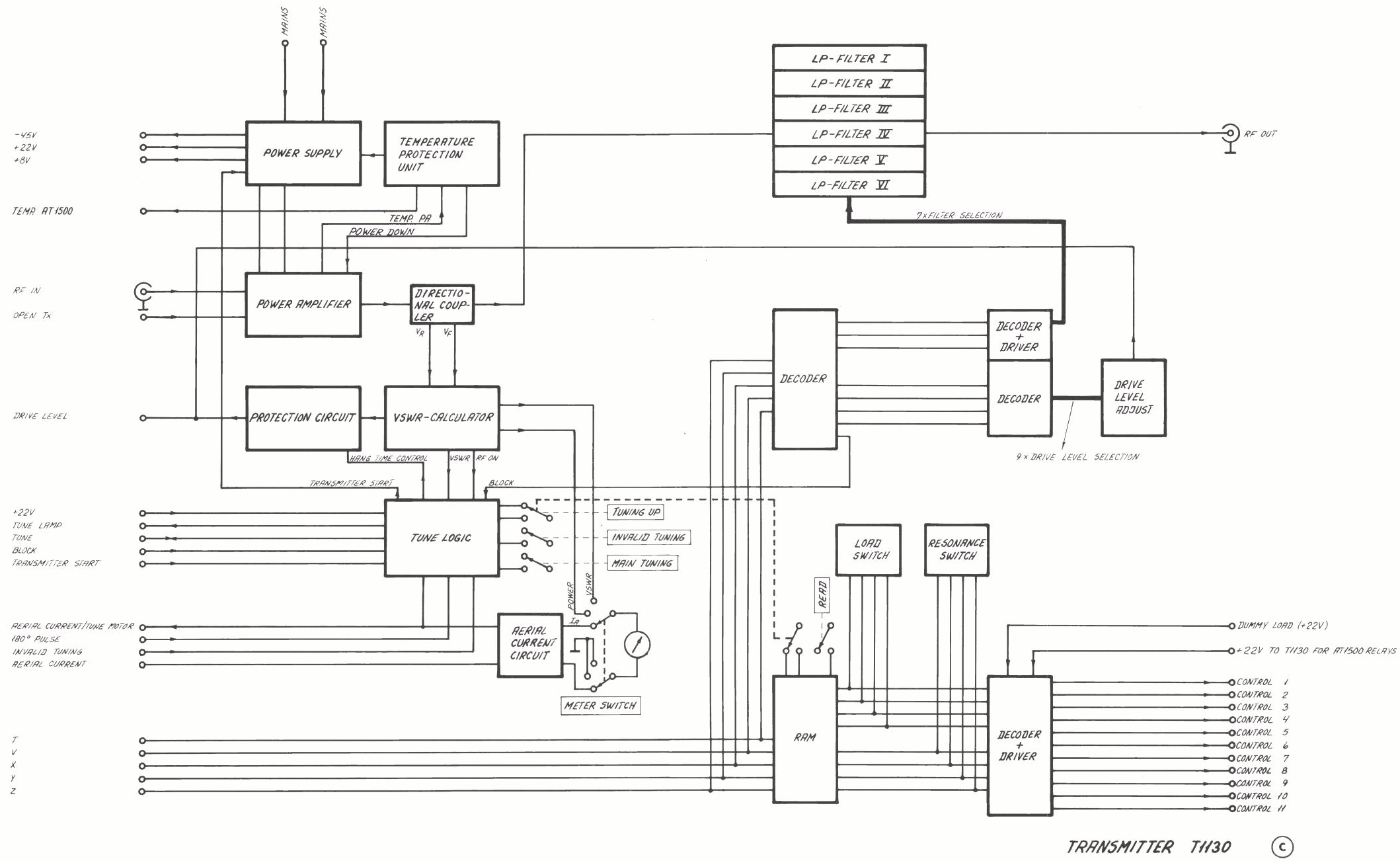

[IMG]Block_schema.gif10-Jan-2009 18:00 161K
[IMG]Circuit_description_300_block-schema.gif27-Jun-2004 18:00 270K

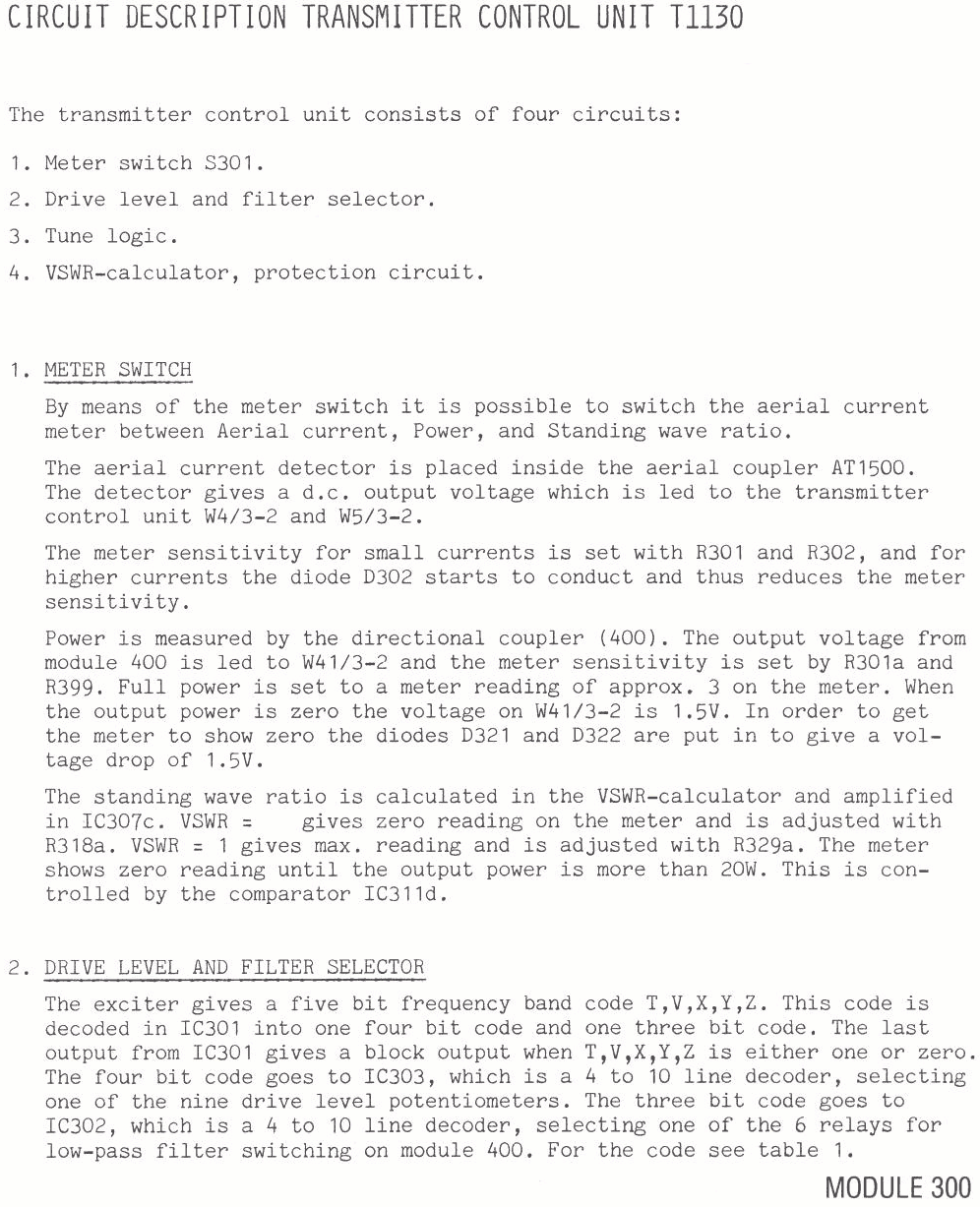

[IMG]Circuit_description_300_page-1.gif27-Jun-2004 18:00 177K
[IMG]Circuit_description_300_page-2.gif27-Jun-2004 18:00 186K
[IMG]Circuit_description_300_page-3.gif27-Jun-2004 18:00 163K
[IMG]Circuit_description_300_page-4.gif27-Jun-2004 18:00 122K
[IMG]Cover.gif10-Jan-2009 18:00 23K
[IMG]Filter_switch_and_directional_coupler_400_page-1.gif10-Jan-2009 18:00 153K
[IMG]Filter_switch_and_directional_coupler_400_schema.gif24-Dec-2013 13:23 123K
[IMG]Filter_switch_and_directional_coupler_400_view.gif10-Jan-2009 18:00 260K
[IMG]Function_check_page-0.gif10-Jan-2009 18:00 35K
[IMG]Function_check_page-1.gif10-Jan-2009 18:00 157K

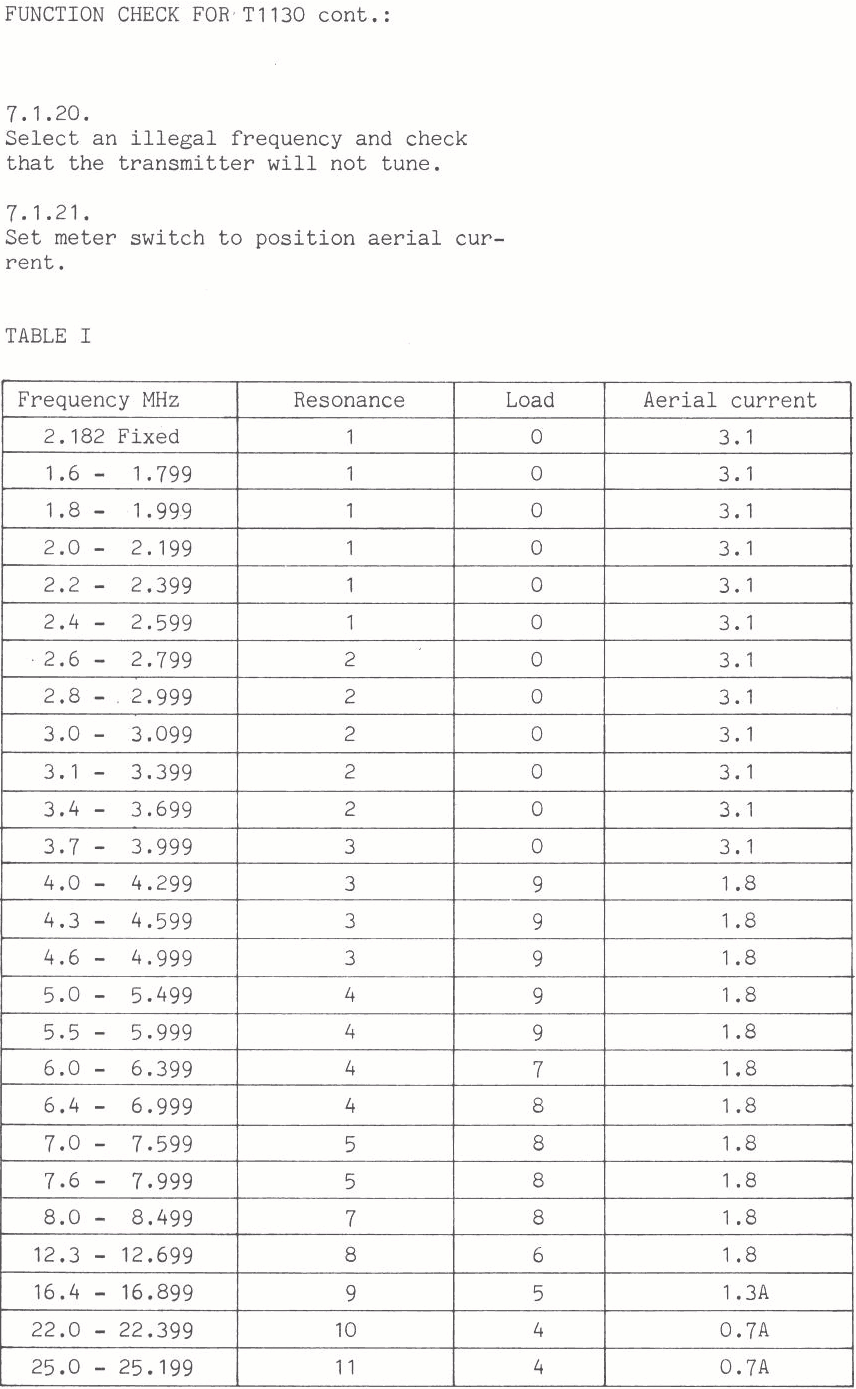

[IMG]Function_check_page-2.gif10-Jan-2009 18:00 120K
[IMG]Function_check_page-3.gif10-Jan-2009 18:00 125K

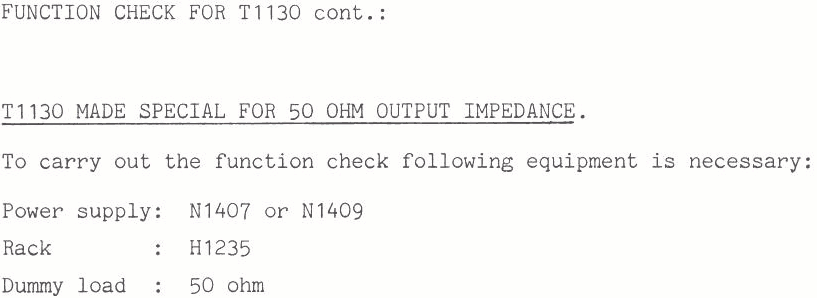

[IMG]Function_check_page-4.gif10-Jan-2009 18:00 21K

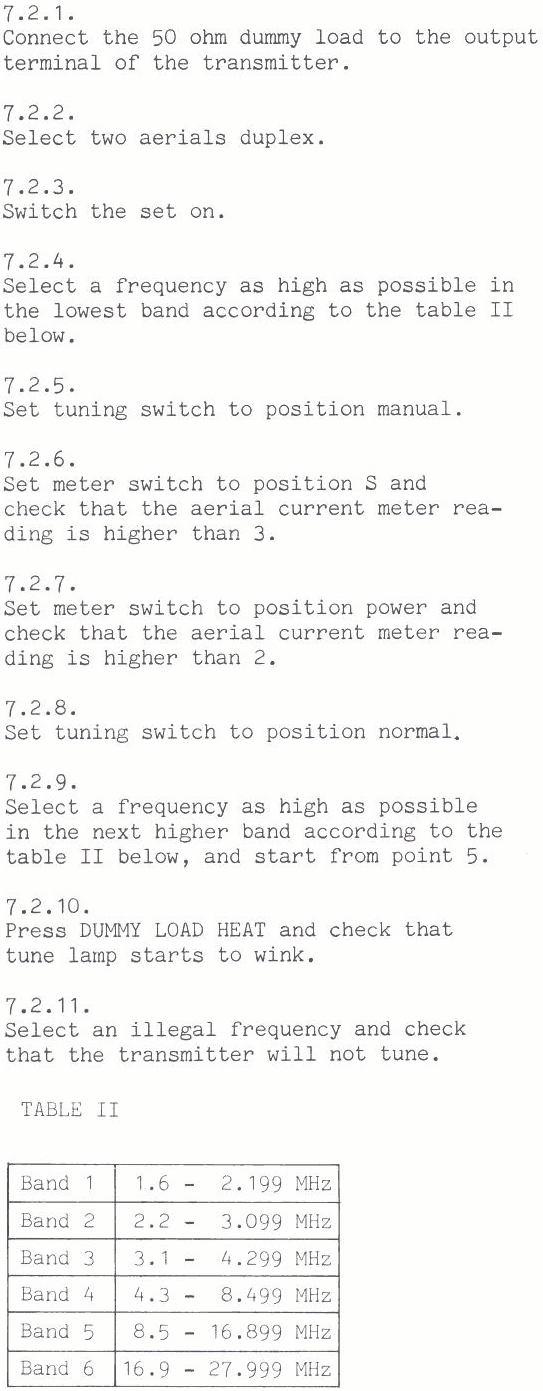

[IMG]Function_check_page-5.gif10-Jan-2009 18:00 91K
[IMG]Input_filter_200_schema.gif20-Dec-2014 11:34 83K
[IMG]Input_filter_200_wiring.gif10-Jan-2009 18:00 32K
[IMG]Instructions.gif10-Jan-2009 18:00 189K
[IMG]Low_pass_filters_800_schema.jpg26-Aug-2008 18:00 190K
[IMG]Low_pass_filters_schema.jpg10-Jan-2009 18:00 478K

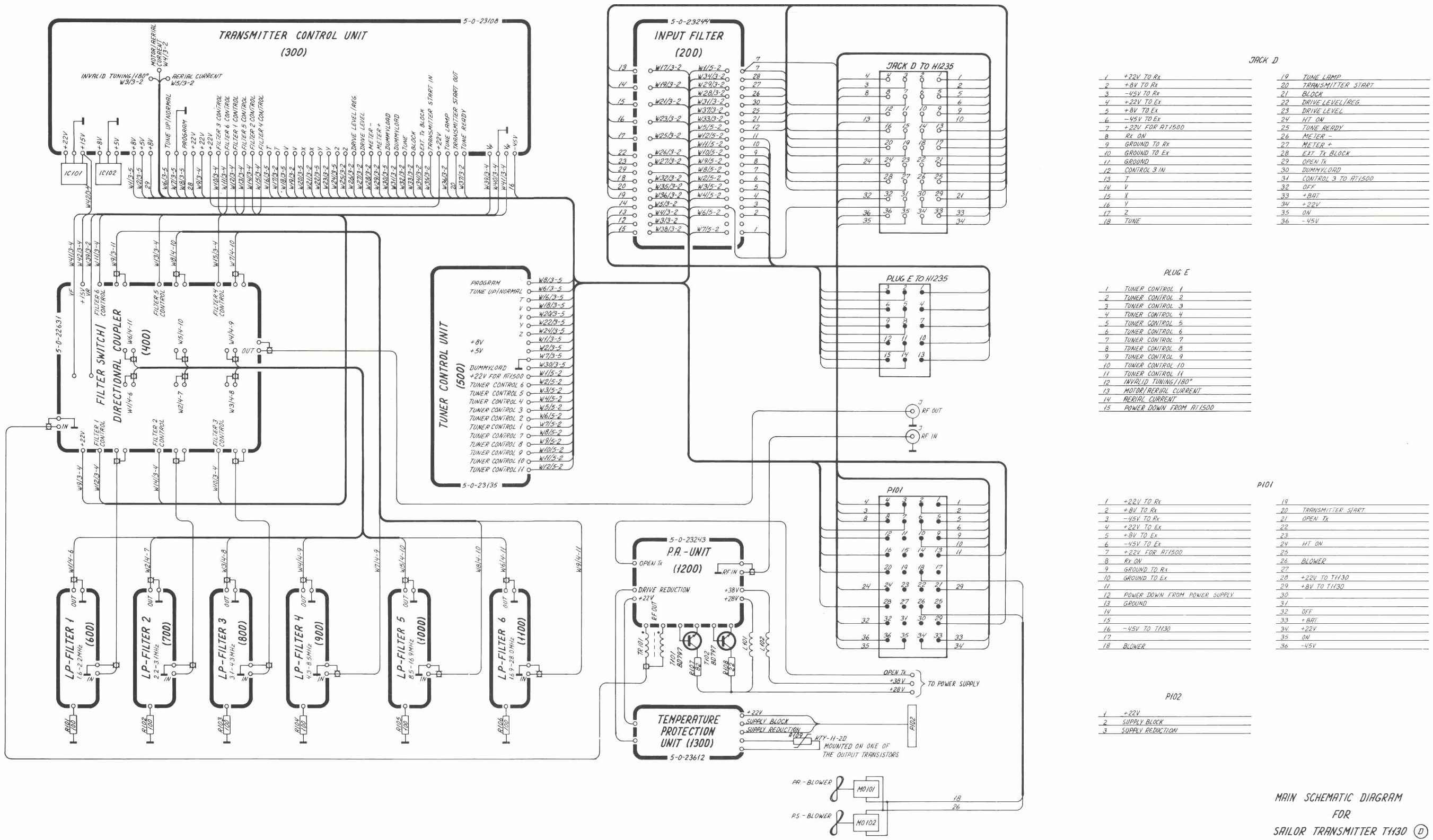

[IMG]Main_schematic_diagram.gif10-Jan-2009 18:00 442K

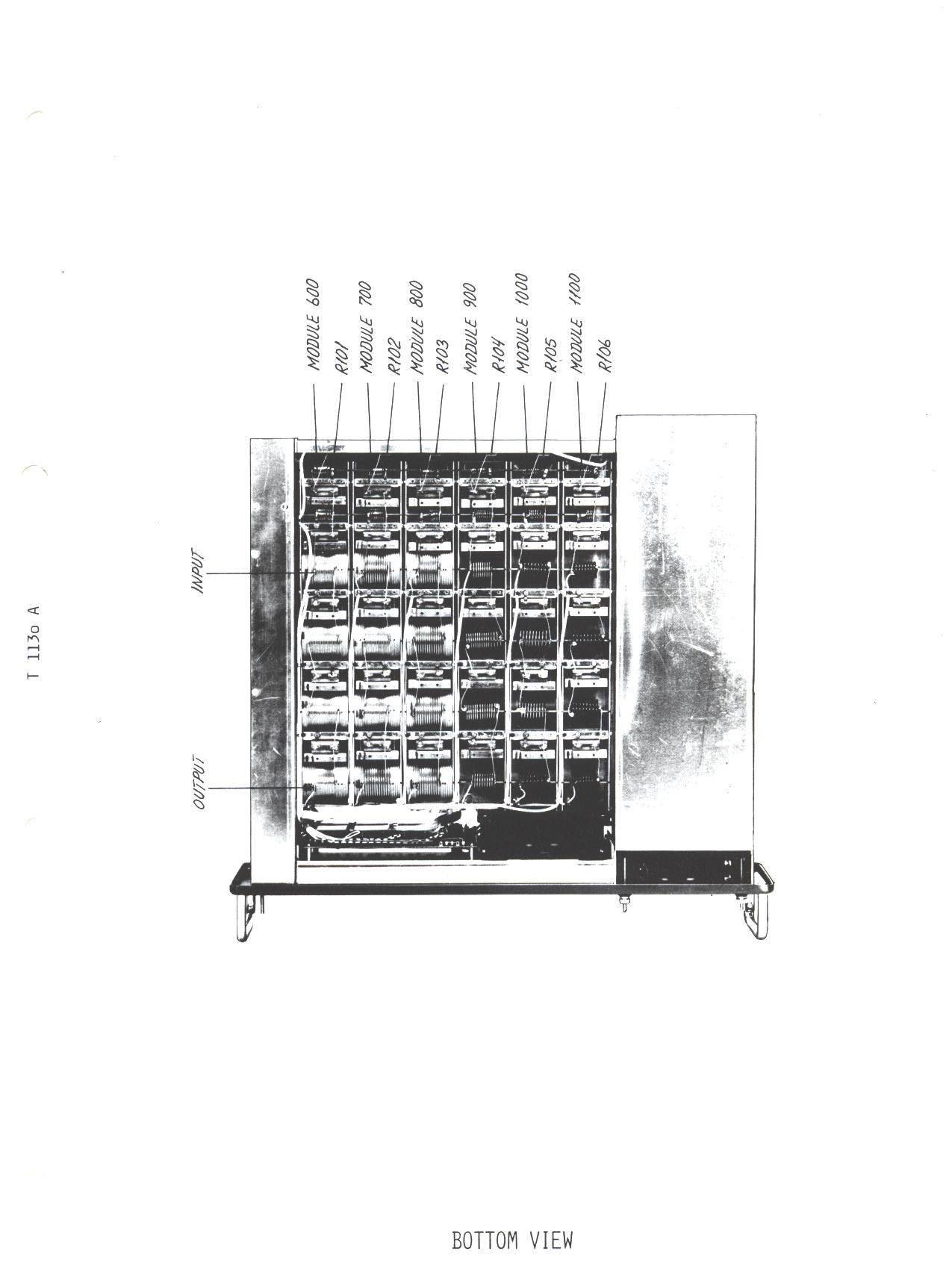

[IMG]Module_location.jpg10-Jan-2009 18:00 143K

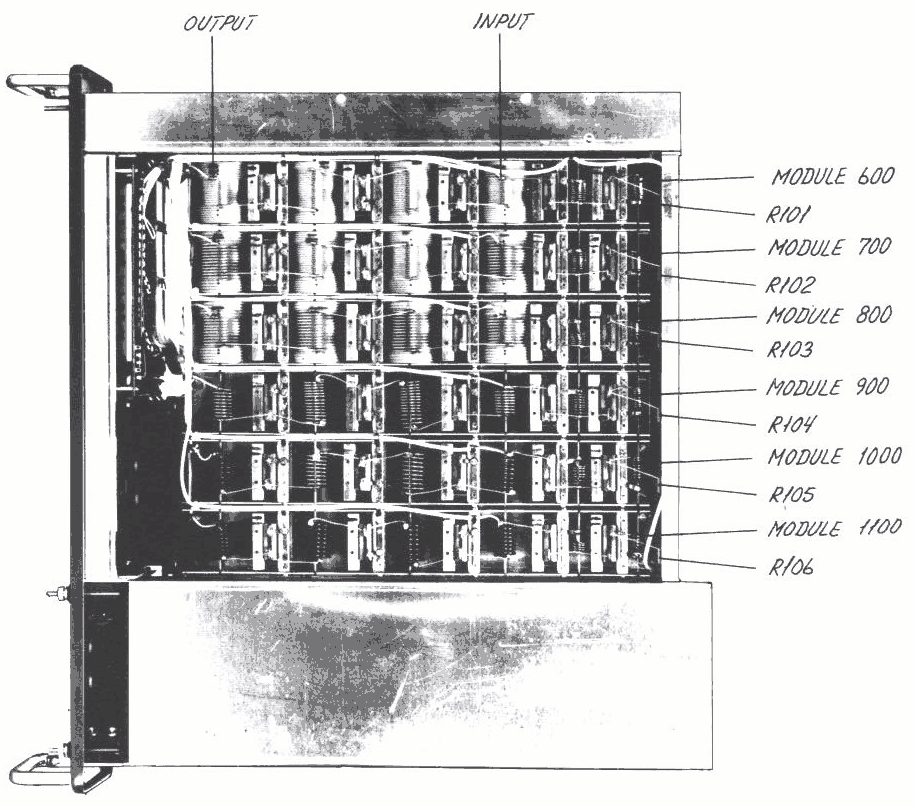

[IMG]Module_location_page-1.gif10-Jan-2009 18:00 135K

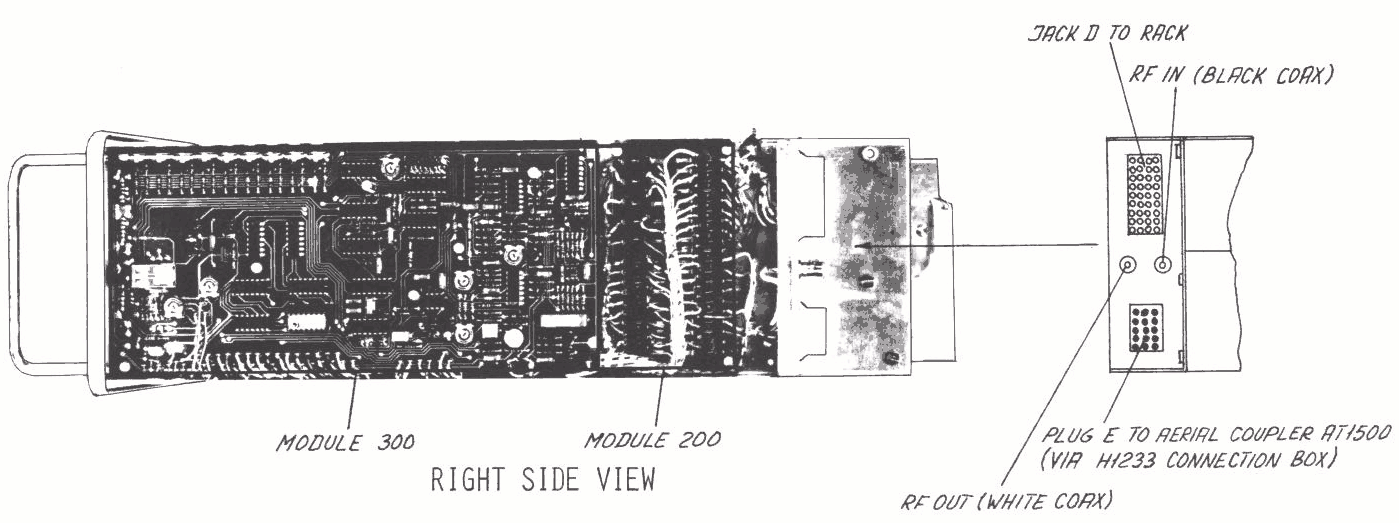

[IMG]Module_location_page-2.gif10-Jan-2009 18:00 109K

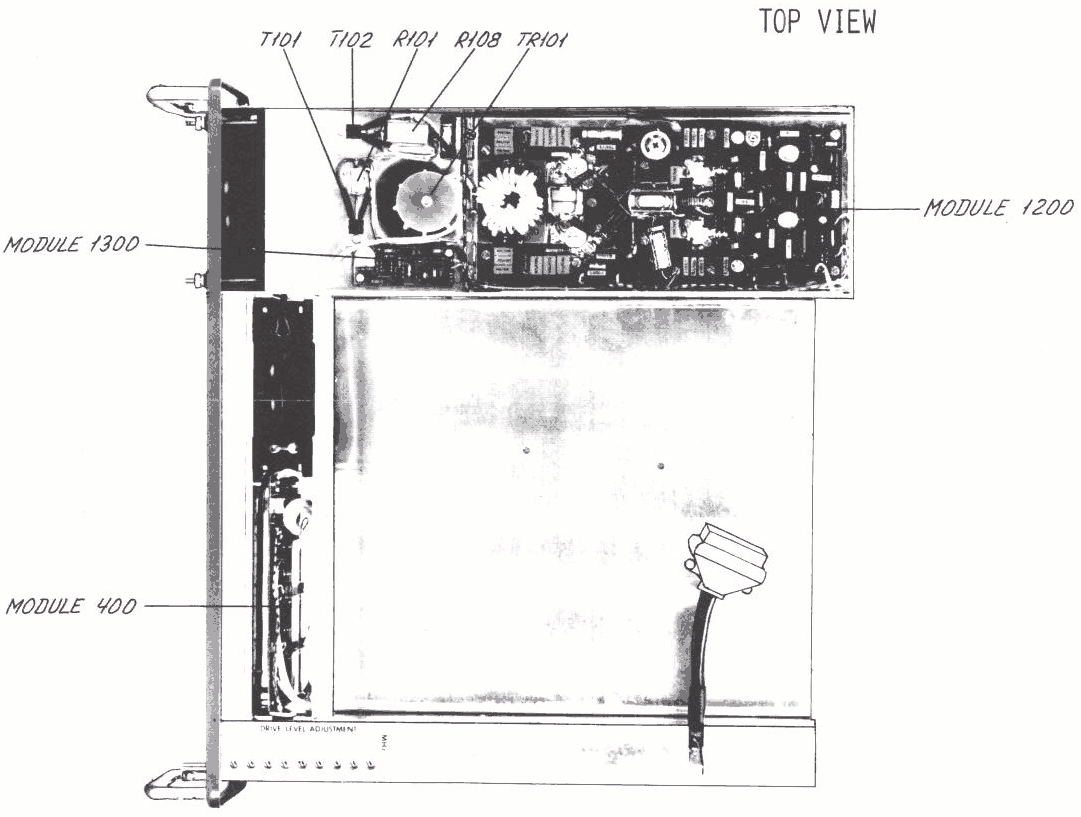

[IMG]Module_location_page-3.gif10-Jan-2009 18:00 93K
[IMG]Module_location_page-4.gif10-Jan-2009 18:00 77K
[IMG]Performance_check_page-1.gif10-Jan-2009 18:00 141K

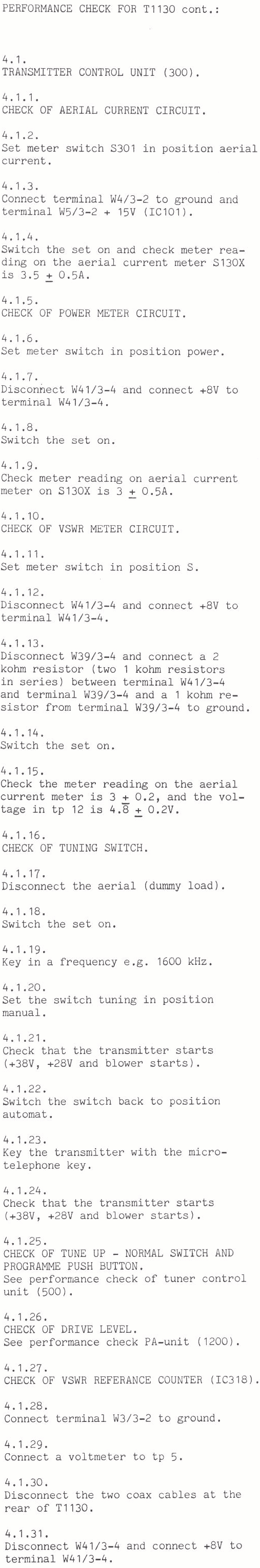

[IMG]Performance_check_page-2.gif10-Jan-2009 18:00 173K
[IMG]Performance_check_page-3.gif10-Jan-2009 18:00 204K
[IMG]Performance_check_page-4.gif10-Jan-2009 18:00 67K

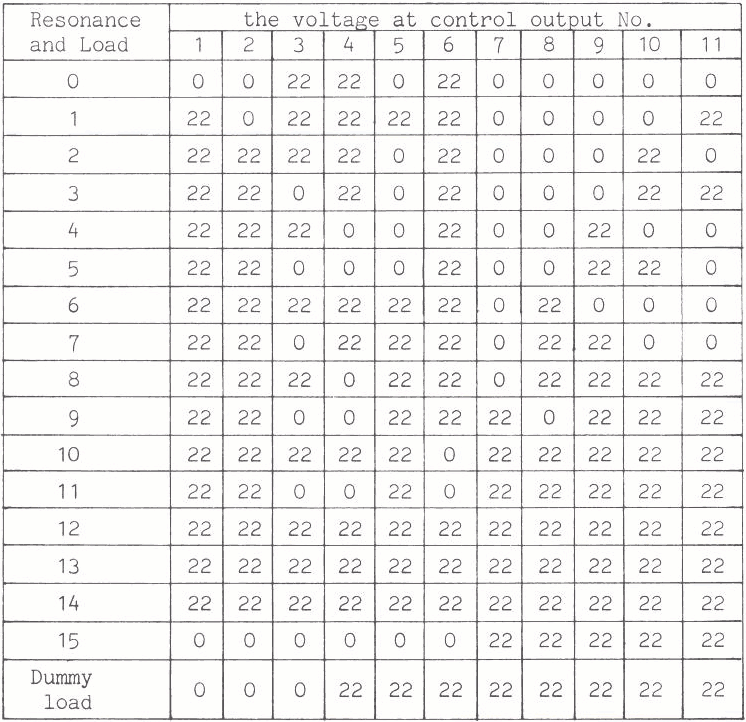

[IMG]Performance_check_page-4a.gif10-Jan-2009 18:00 104K
[IMG]Performance_check_page-5.gif10-Jan-2009 18:00 68K
[IMG]Performance_check_page-5a.gif10-Jan-2009 18:00 120K
[IMG]Performance_check_page-6.gif10-Jan-2009 18:00 186K
[IMG]Performance_check_page-7.gif10-Jan-2009 18:00 185K
[IMG]Performance_check_page-8.gif10-Jan-2009 18:00 182K
[IMG]Performance_check_page-9.gif10-Jan-2009 18:00 183K

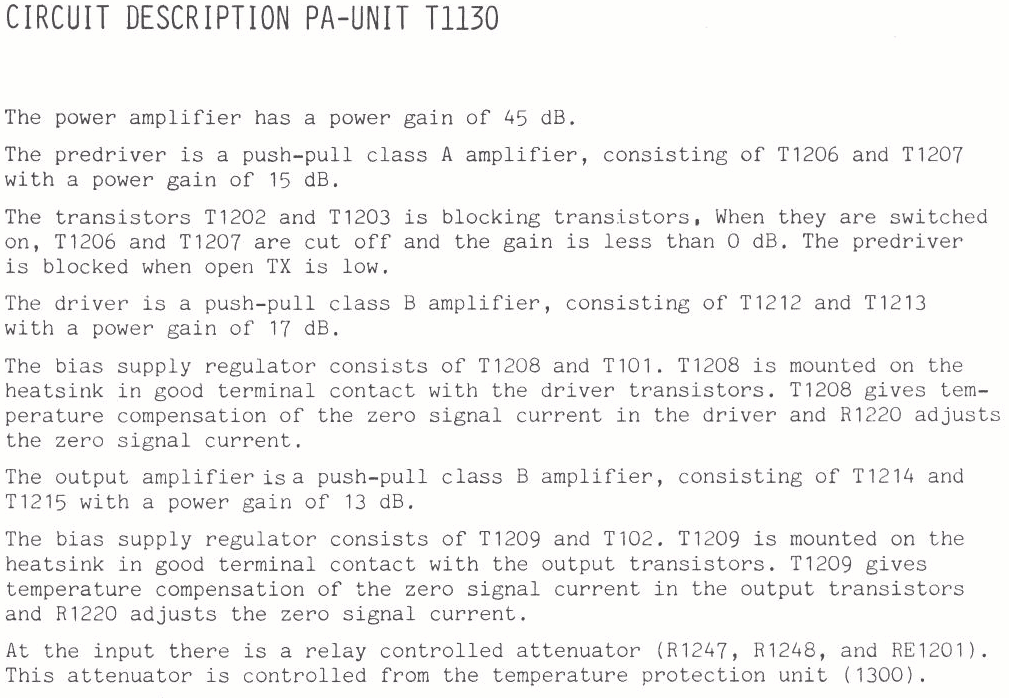

[IMG]Power_amplifier_1200_page-1.gif10-Jan-2009 18:00 111K
[IMG]Power_amplifier_1200_schema.gif10-Jan-2009 18:00 332K

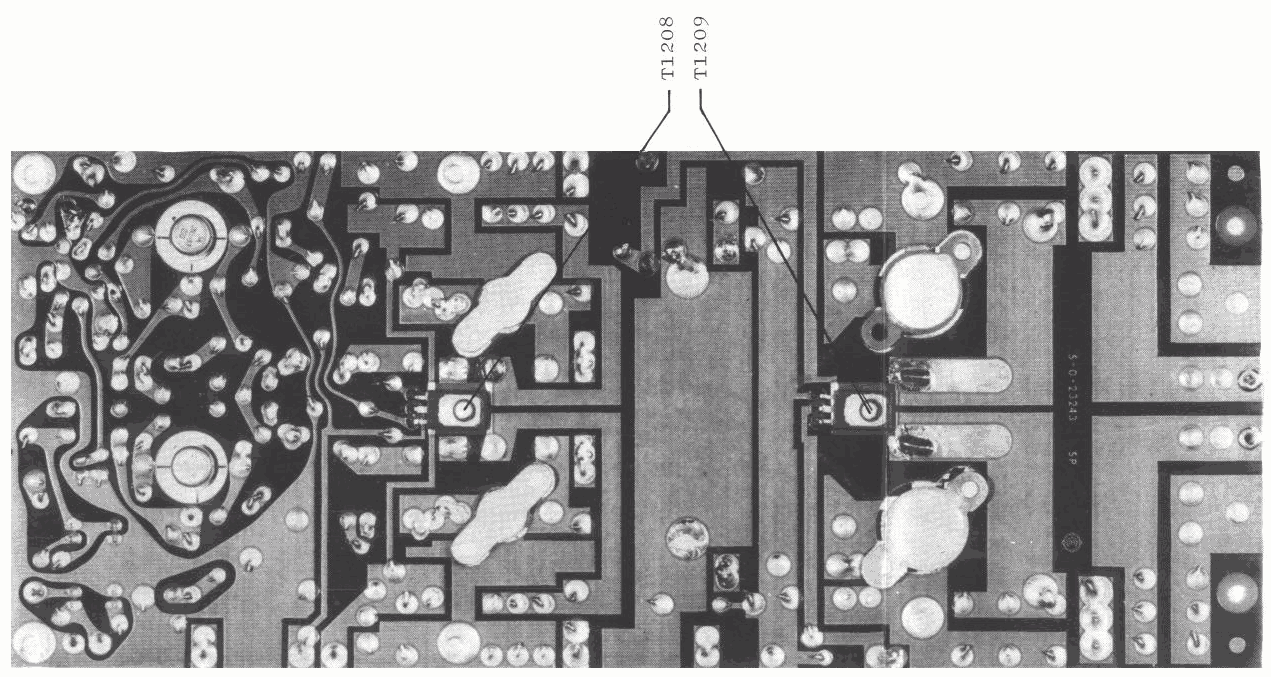

[IMG]Power_amplifier_1200_view_page-1.gif10-Jan-2009 18:00 234K

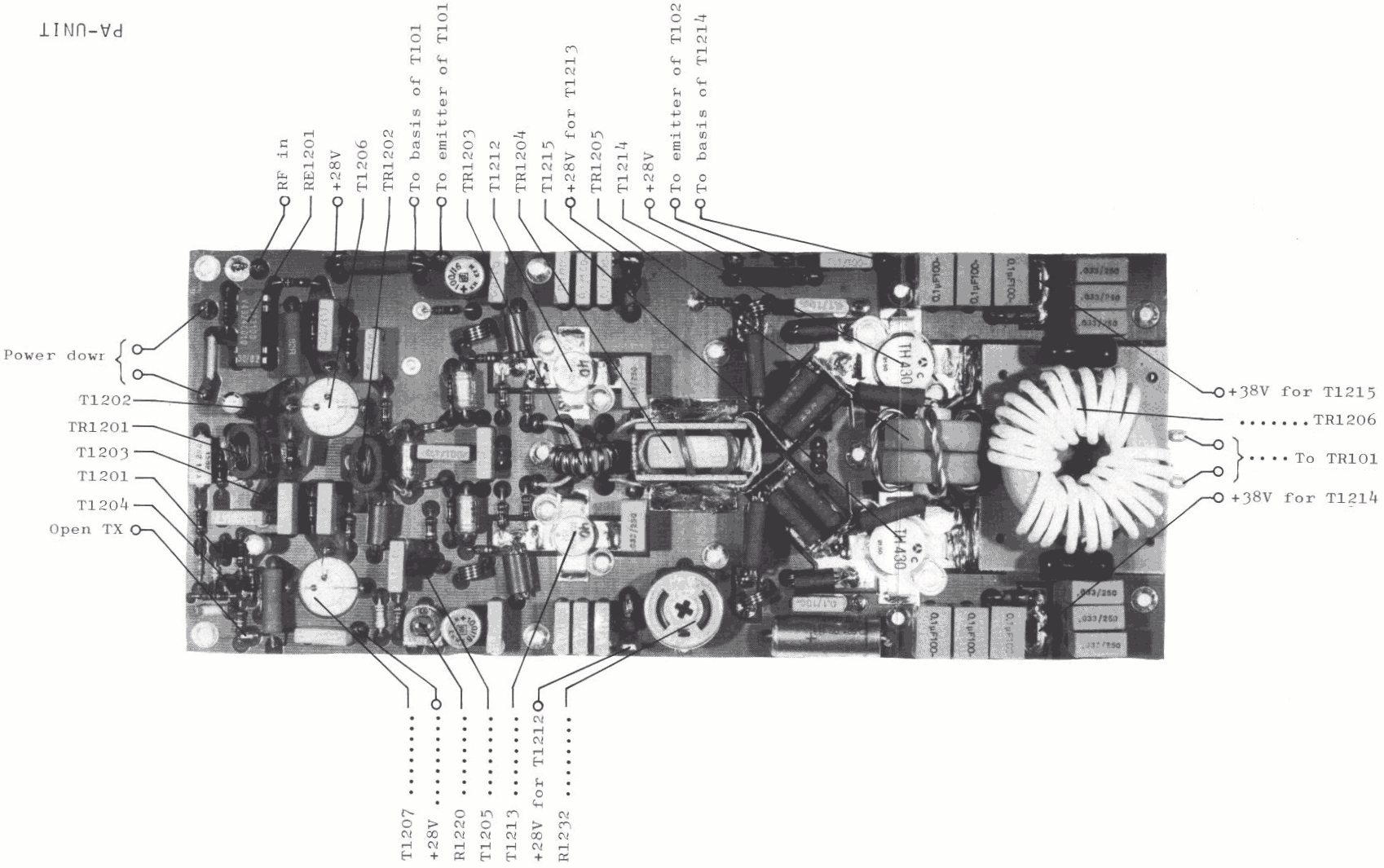

[IMG]Power_amplifier_1200_view_page-2.gif10-Jan-2009 18:00 228K

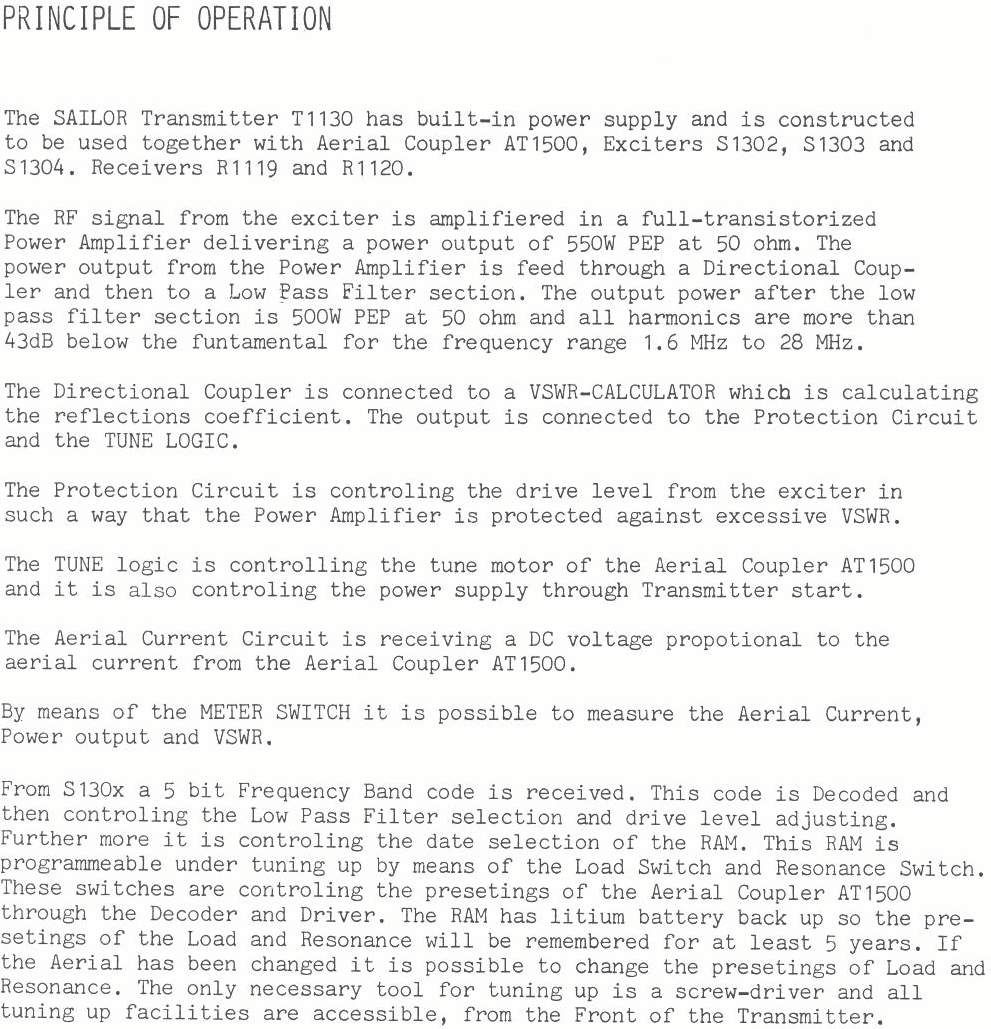

[IMG]Principle_of_operation_page-1.gif10-Jan-2009 18:00 184K
[ ]SAILOR ZENDER T1130.DOC10-Jan-2009 18:00 156K
[ ]SAILOR ZENDER T1130 rev.1.DOC24-Sep-2021 17:22 303K
[IMG]Service_page-1.gif10-Jan-2009 18:00 55K

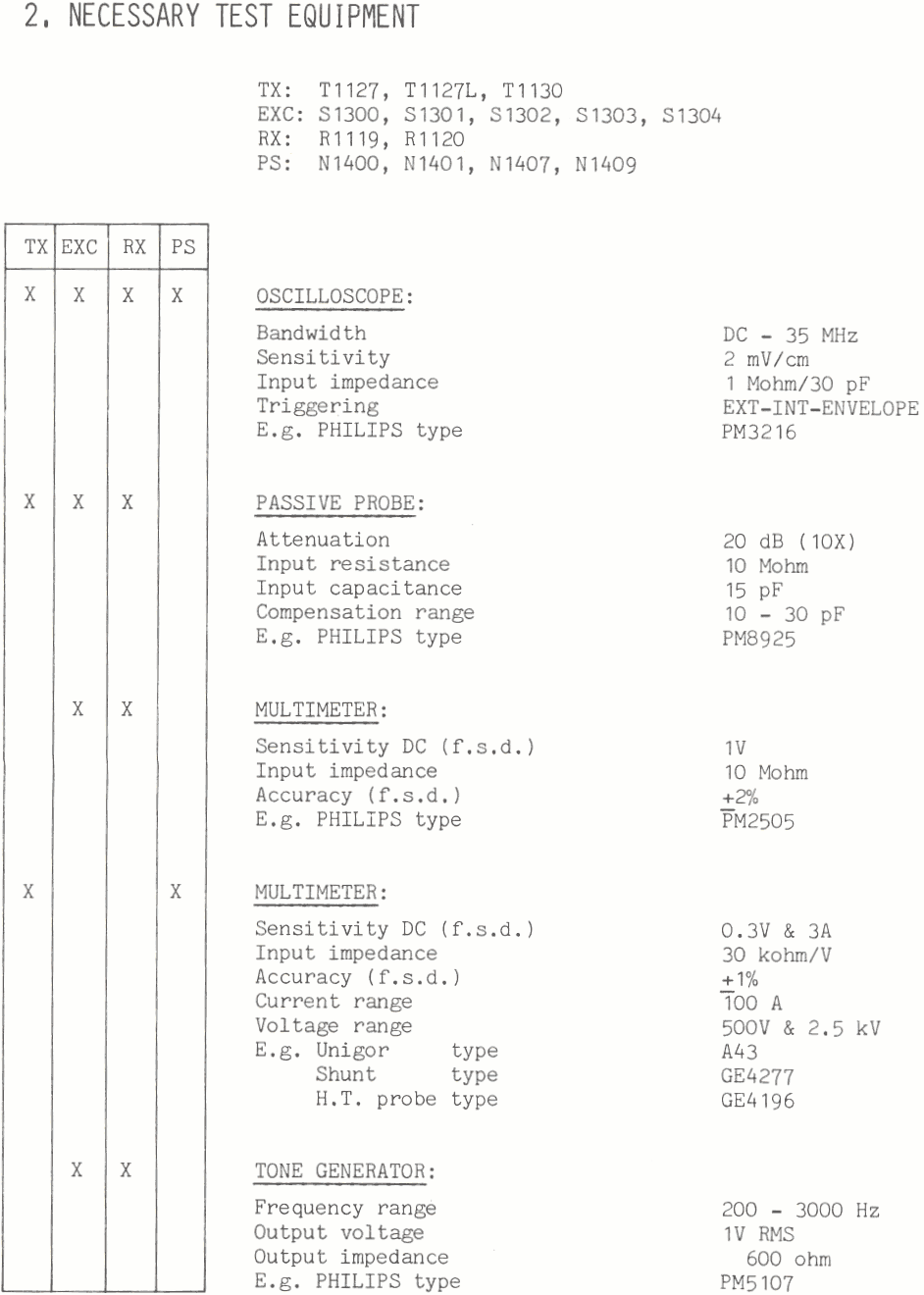

[IMG]Service_page-2.gif10-Jan-2009 18:00 75K

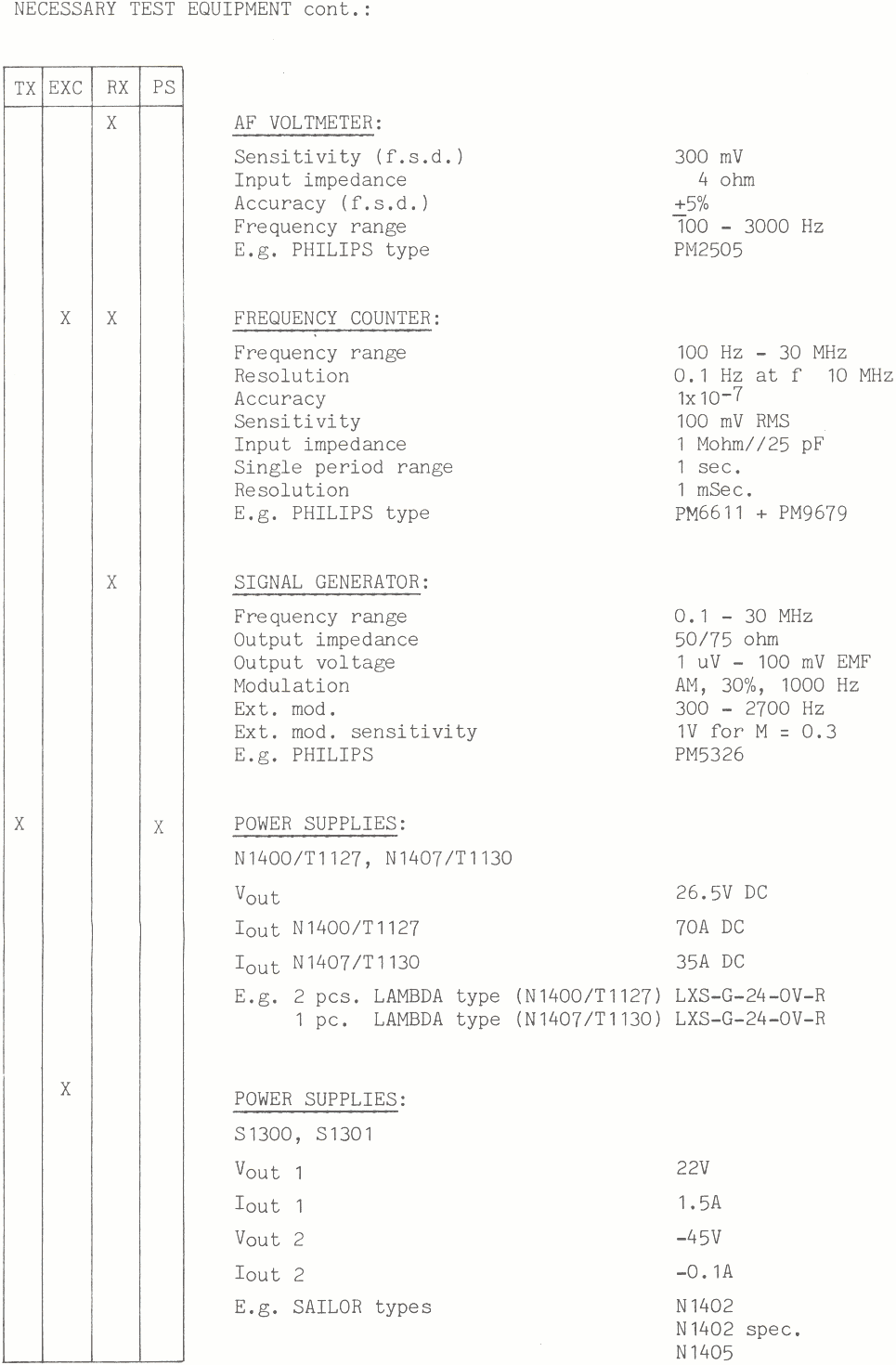

[IMG]Service_page-3.gif10-Jan-2009 18:00 66K

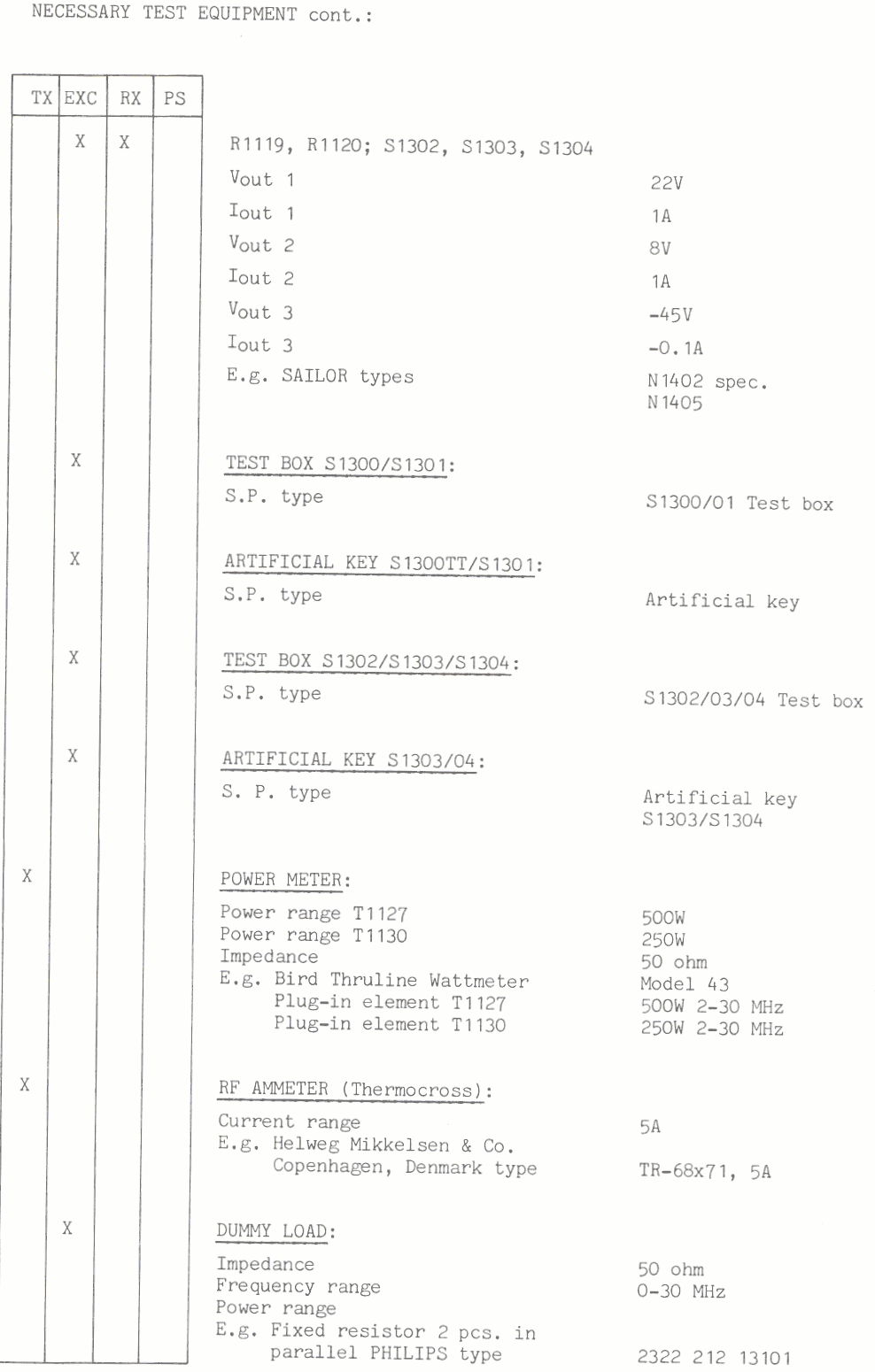

[IMG]Service_page-4.gif10-Jan-2009 18:00 79K

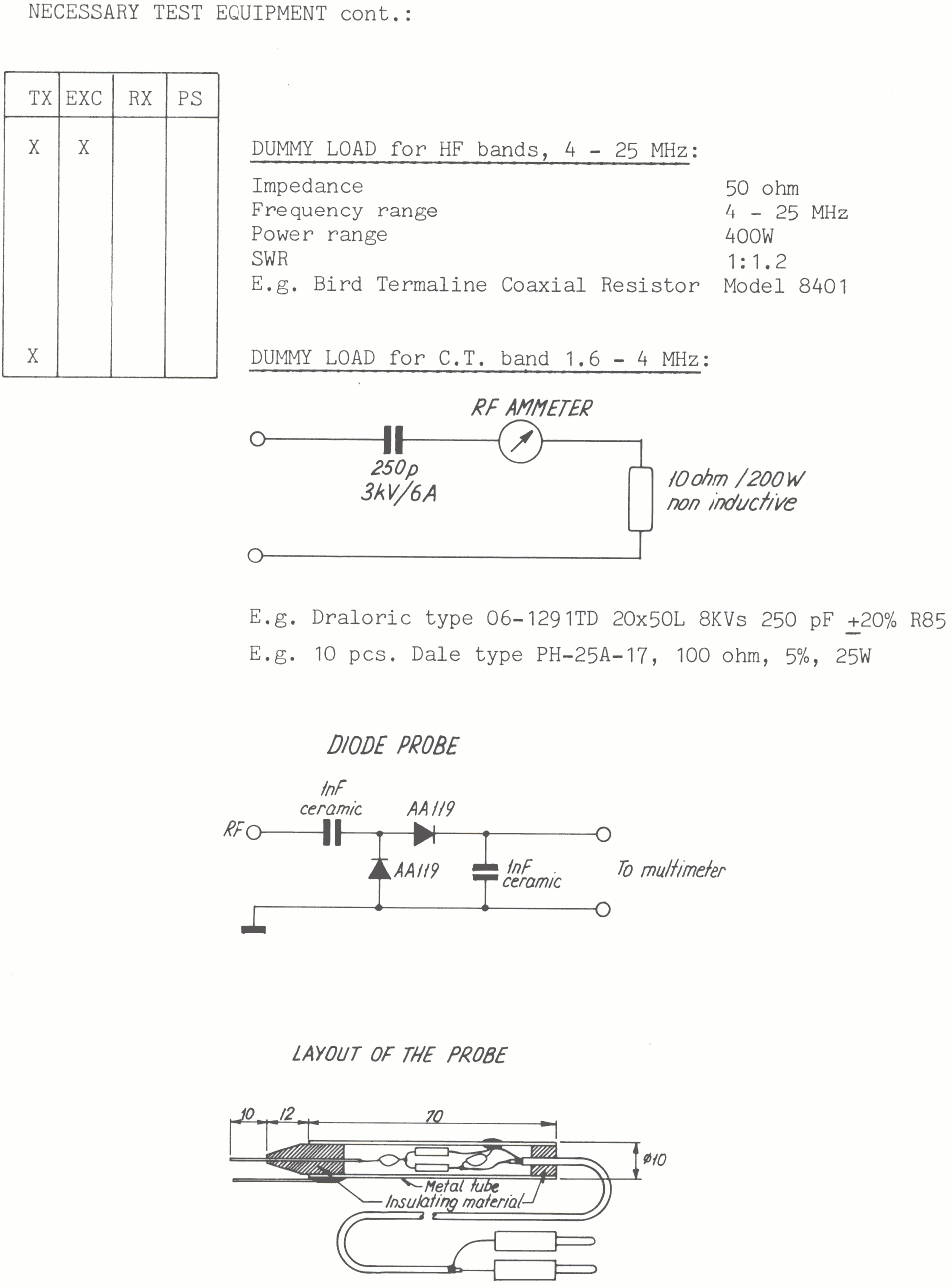

[IMG]Service_page-5.gif10-Jan-2009 18:00 43K
[IMG]T1130.gif10-Jan-2009 18:00 32K
[ ]TH-430.pdf10-Jan-2009 18:00 148K
[ ]TH-430 power FET.doc10-Jan-2009 18:00 46K

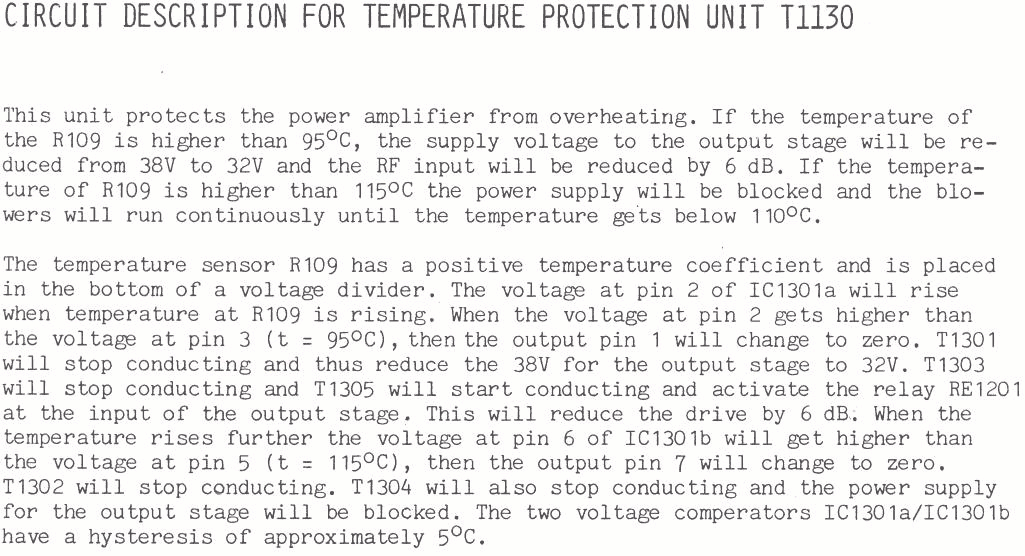

[IMG]Temperature_protection_1300_page-1.gif10-Jan-2009 18:00 119K

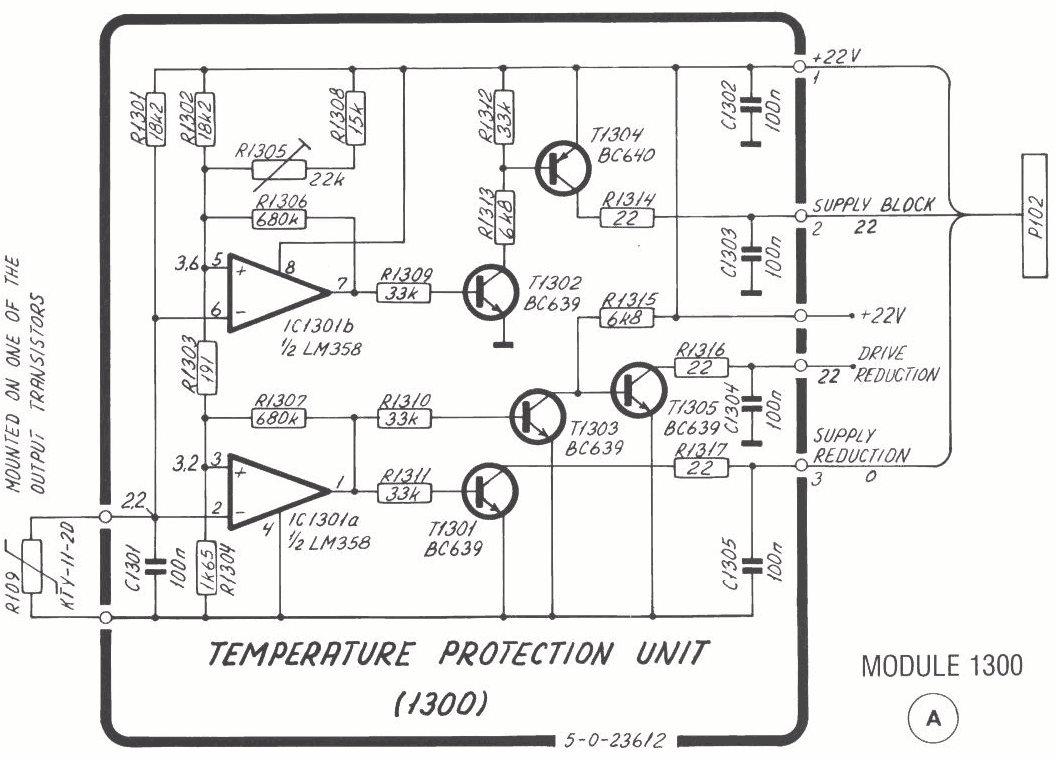

[IMG]Temperature_protection_1300_schema.gif10-Jan-2009 18:00 93K
[IMG]Temperature_protection_1300_view.gif10-Jan-2009 18:00 51K

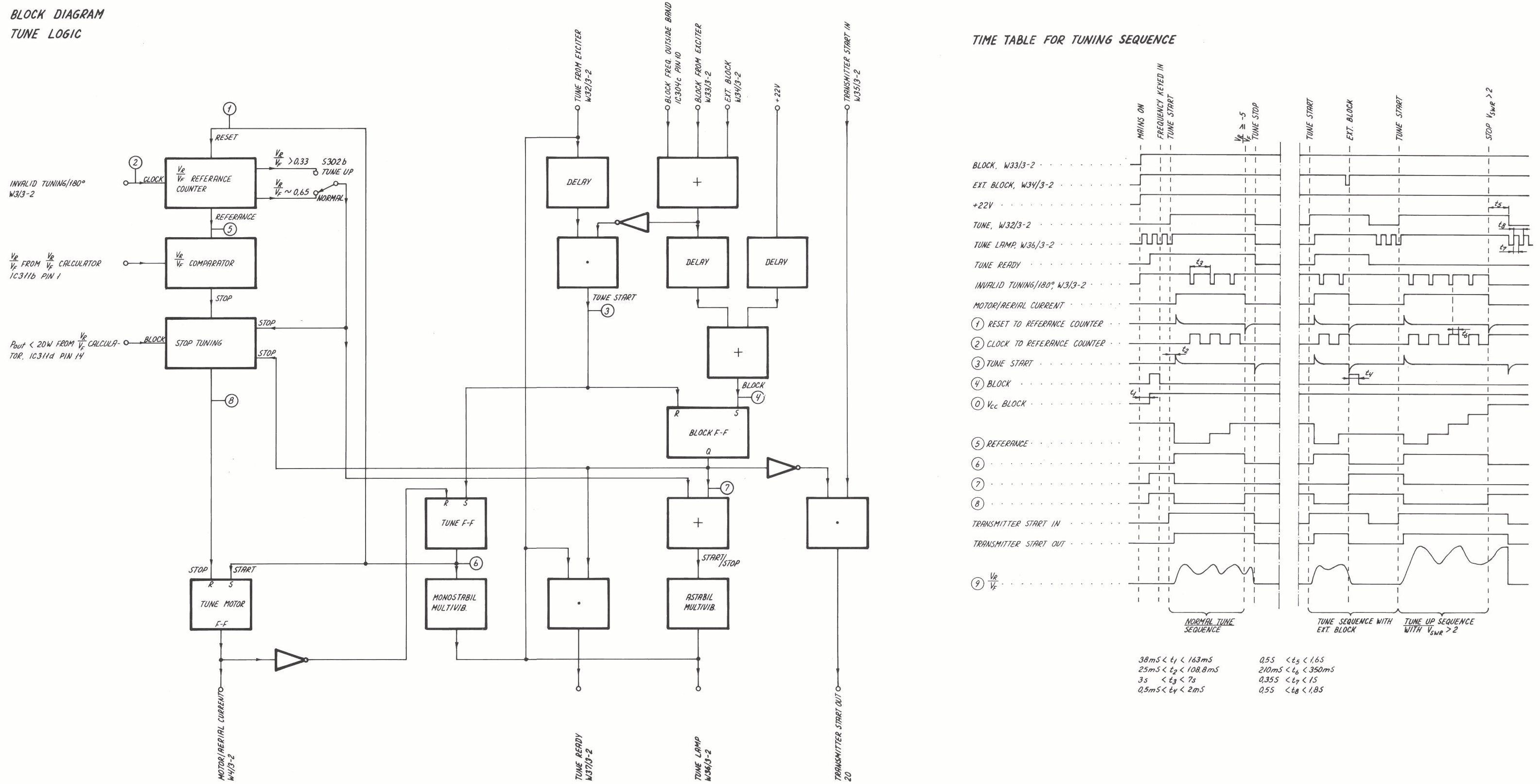

[IMG]Transmitter_control_300_block-schema.gif10-Jan-2009 18:00 270K
[IMG]Transmitter_control_300_page-1.gif10-Jan-2009 18:00 177K

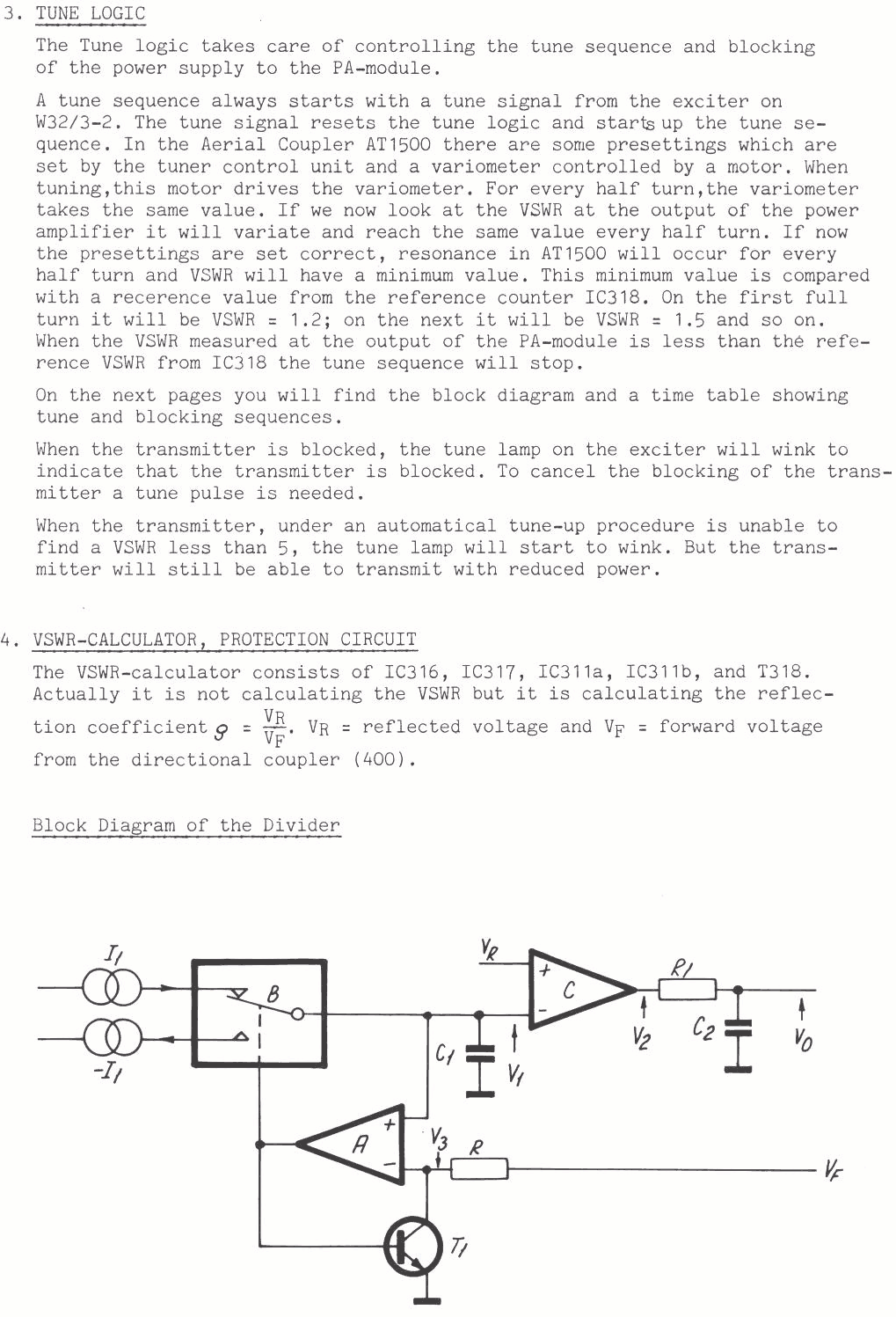

[IMG]Transmitter_control_300_page-2.gif10-Jan-2009 18:00 186K

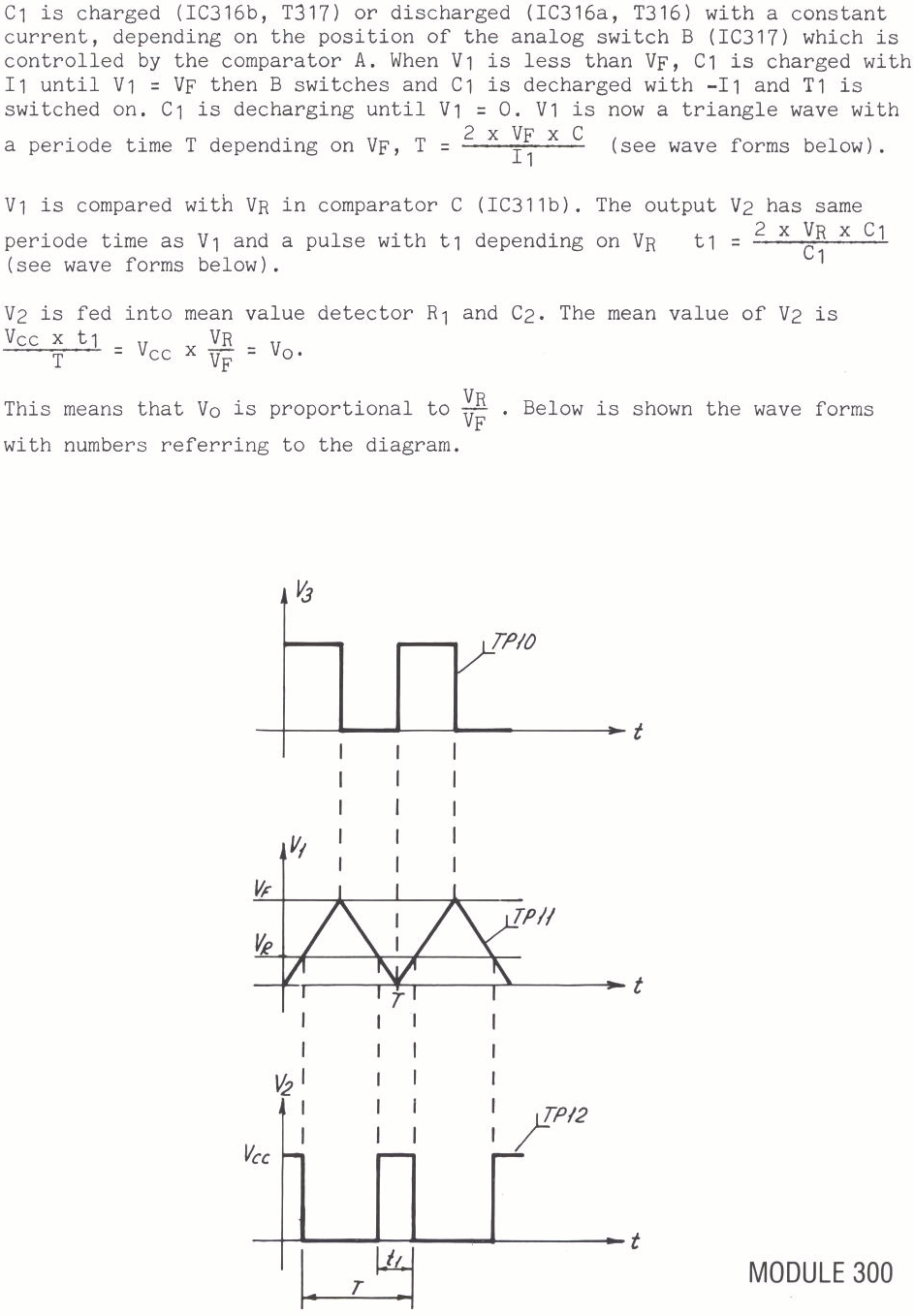

[IMG]Transmitter_control_300_page-3.gif10-Jan-2009 18:00 163K

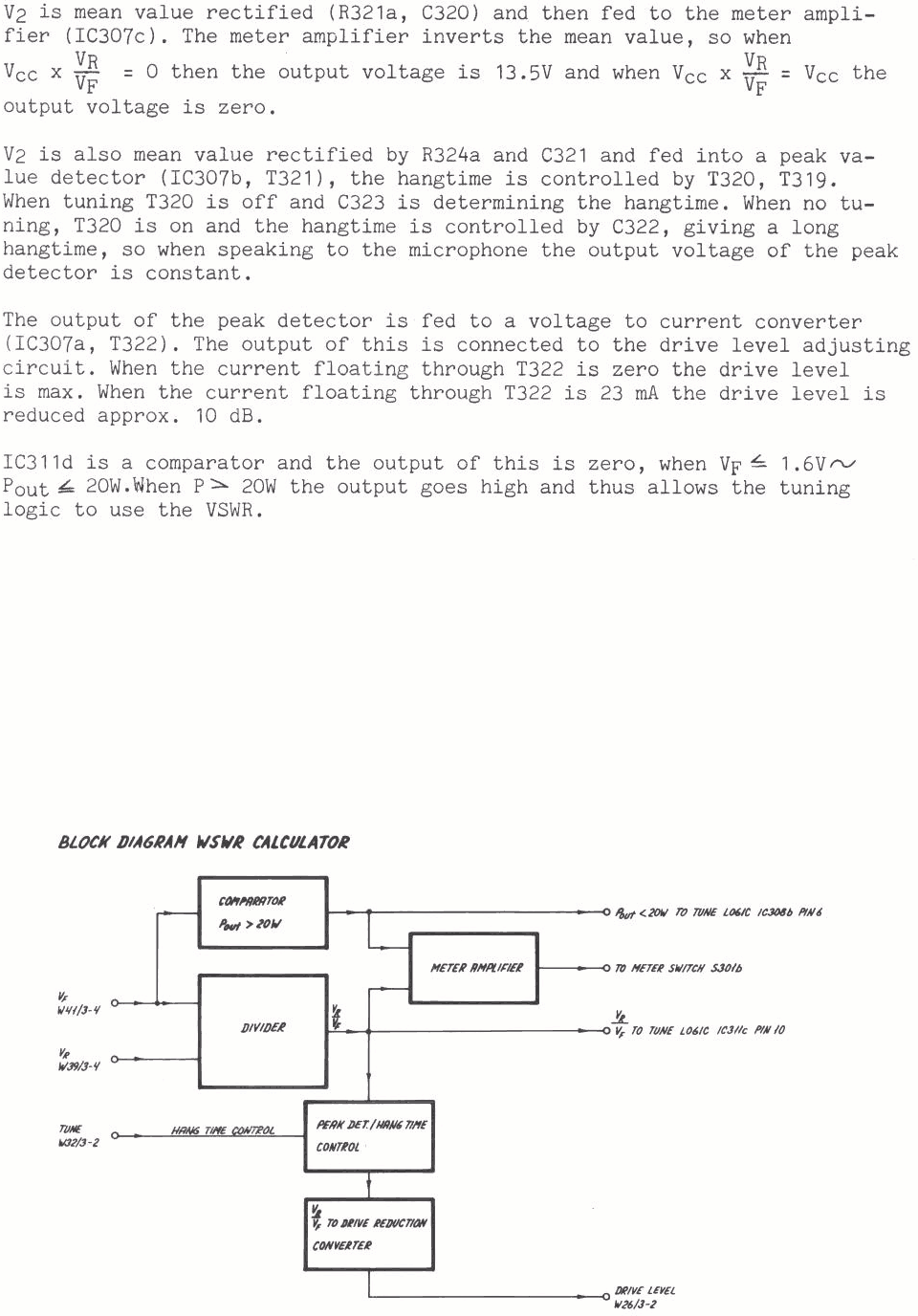

[IMG]Transmitter_control_300_page-4.gif10-Jan-2009 18:00 122K

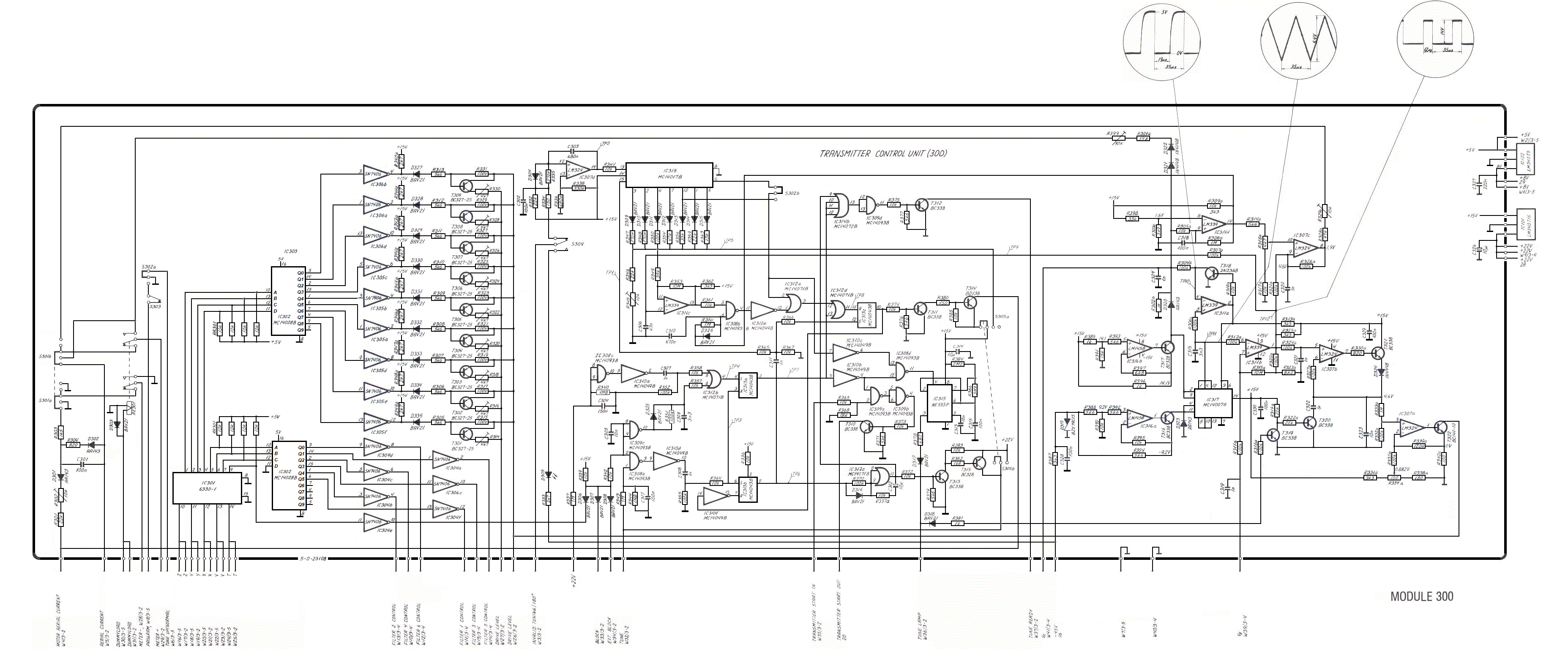

[IMG]Transmitter_control_300_schema.gif05-Oct-2021 13:20 355K
[IMG]Transmitter_control_300_tabel-1.gif10-Jan-2009 18:00 166K

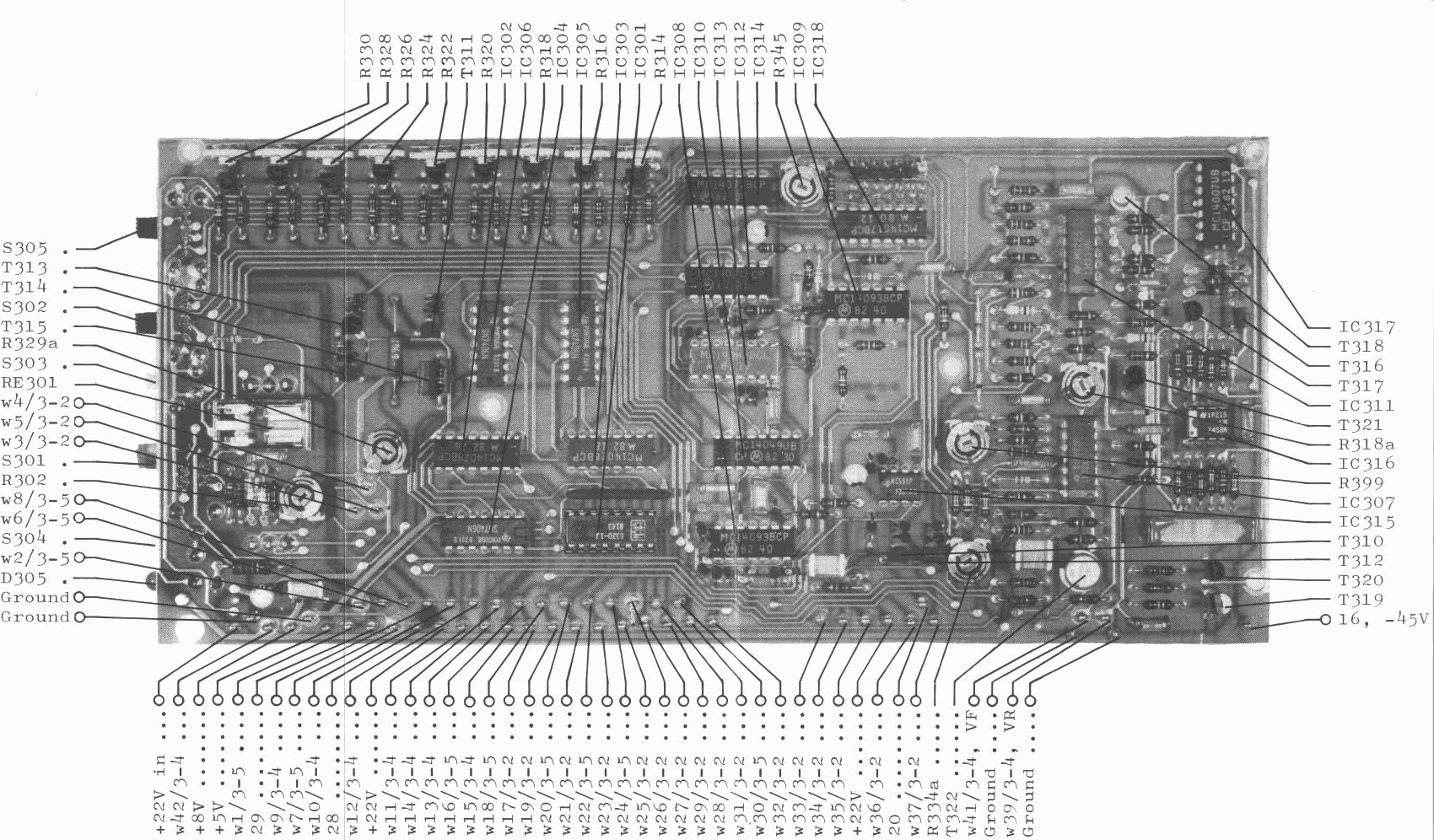

[IMG]Transmitter_control_300_view_page-1.gif10-Jan-2009 18:00 406K

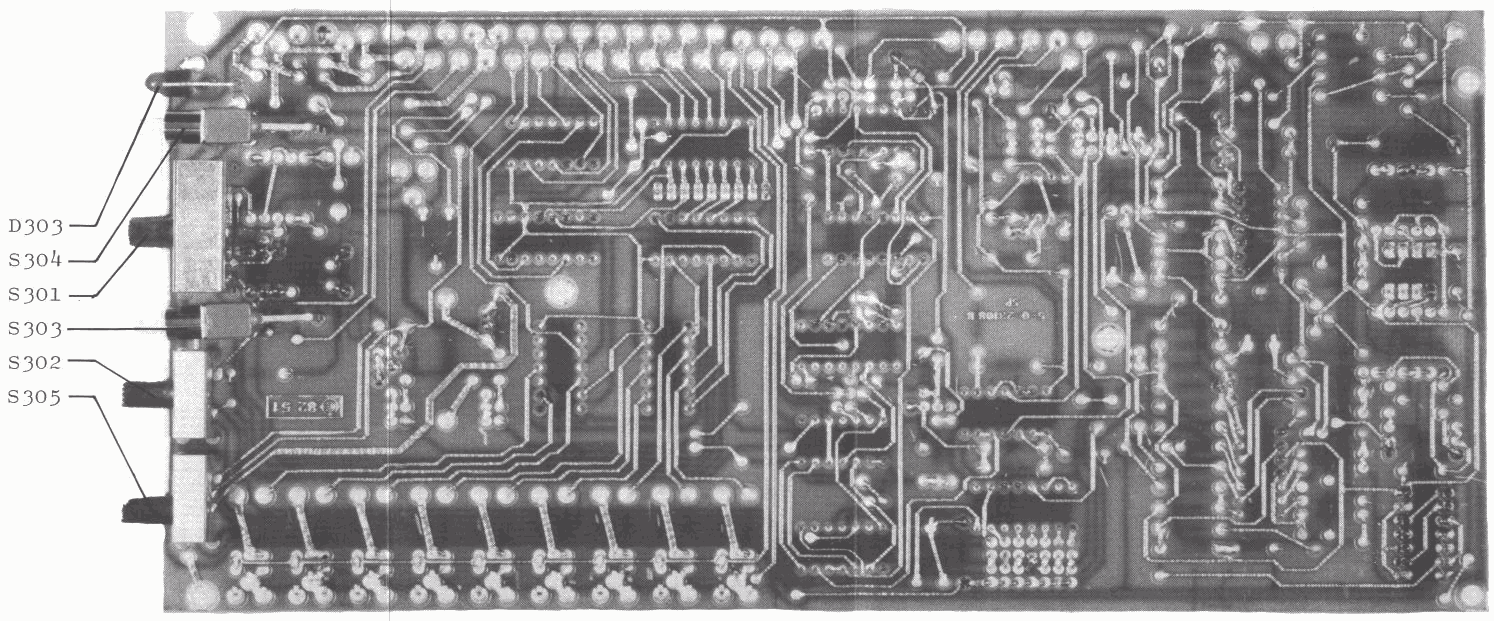

[IMG]Transmitter_control_300_view_page-2.gif10-Jan-2009 18:00 346K

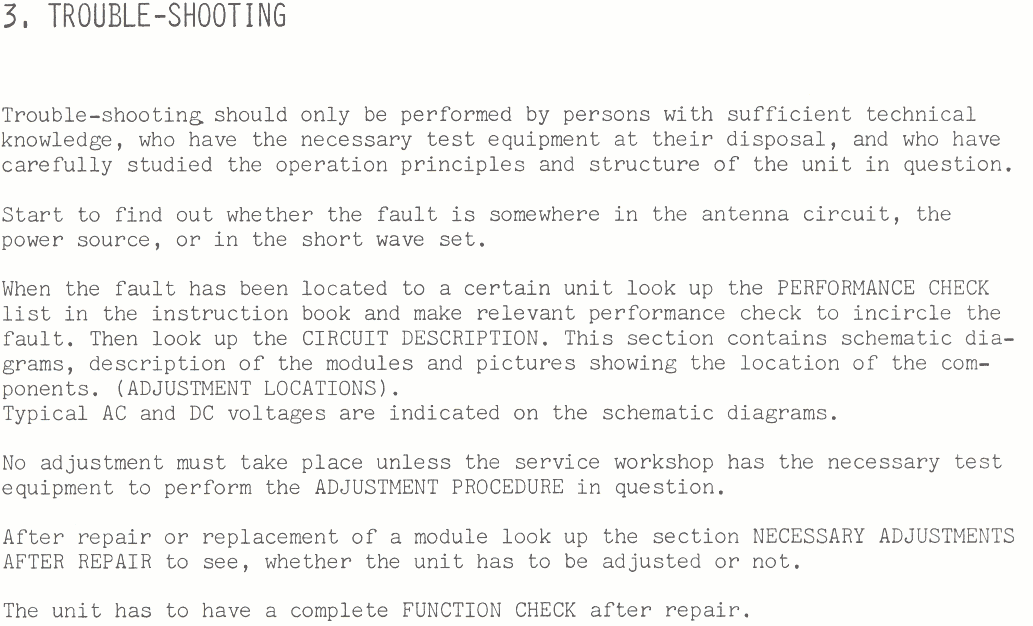

[IMG]Trouble_shooting_page-1.gif10-Jan-2009 18:00 54K

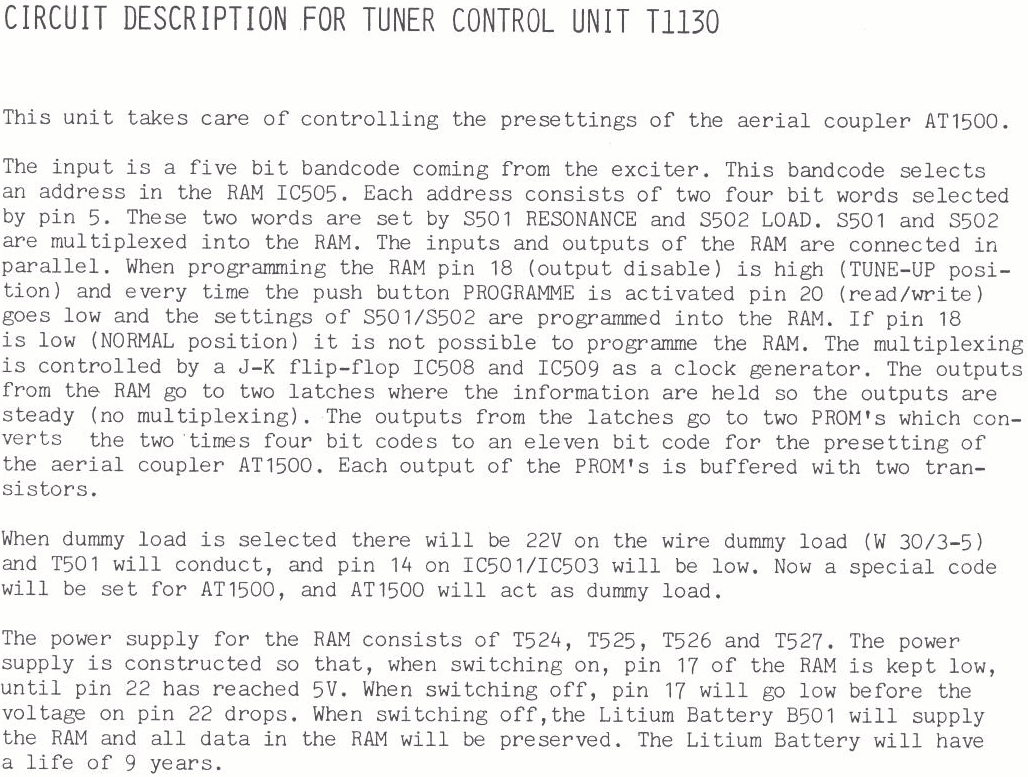

[IMG]Tuner_control_500_page-1.gif10-Jan-2009 18:00 162K

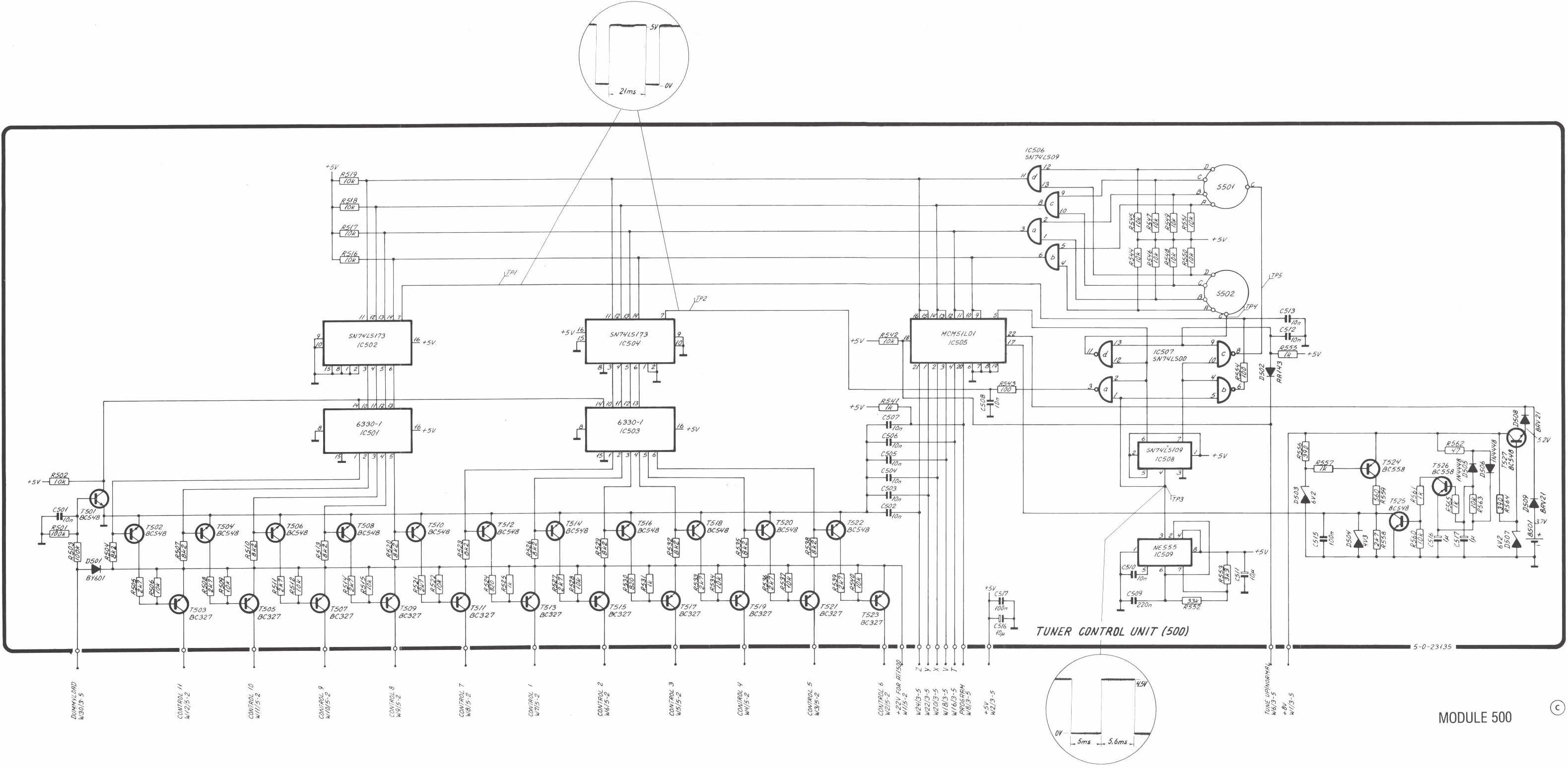

[IMG]Tuner_control_500_schema.gif15-Jan-2021 06:24 313K

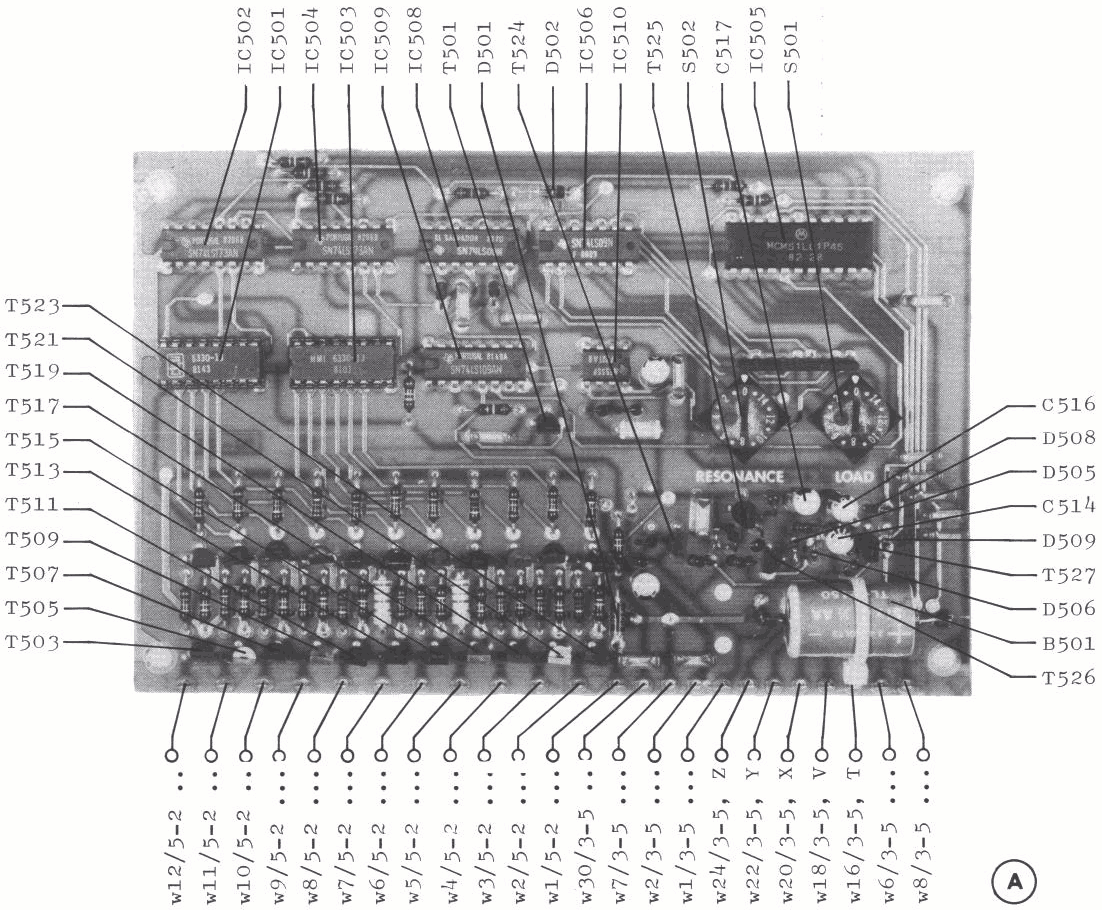

[IMG]Tuner_control_500_view.gif10-Jan-2009 18:00 236K
[IMG]Tuning-up_procedure_Tabel_page-1.gif20-Aug-2009 18:00 164K
[IMG]Tuning-up_procedure_Tabel_page-2.gif20-Aug-2009 18:00 91K

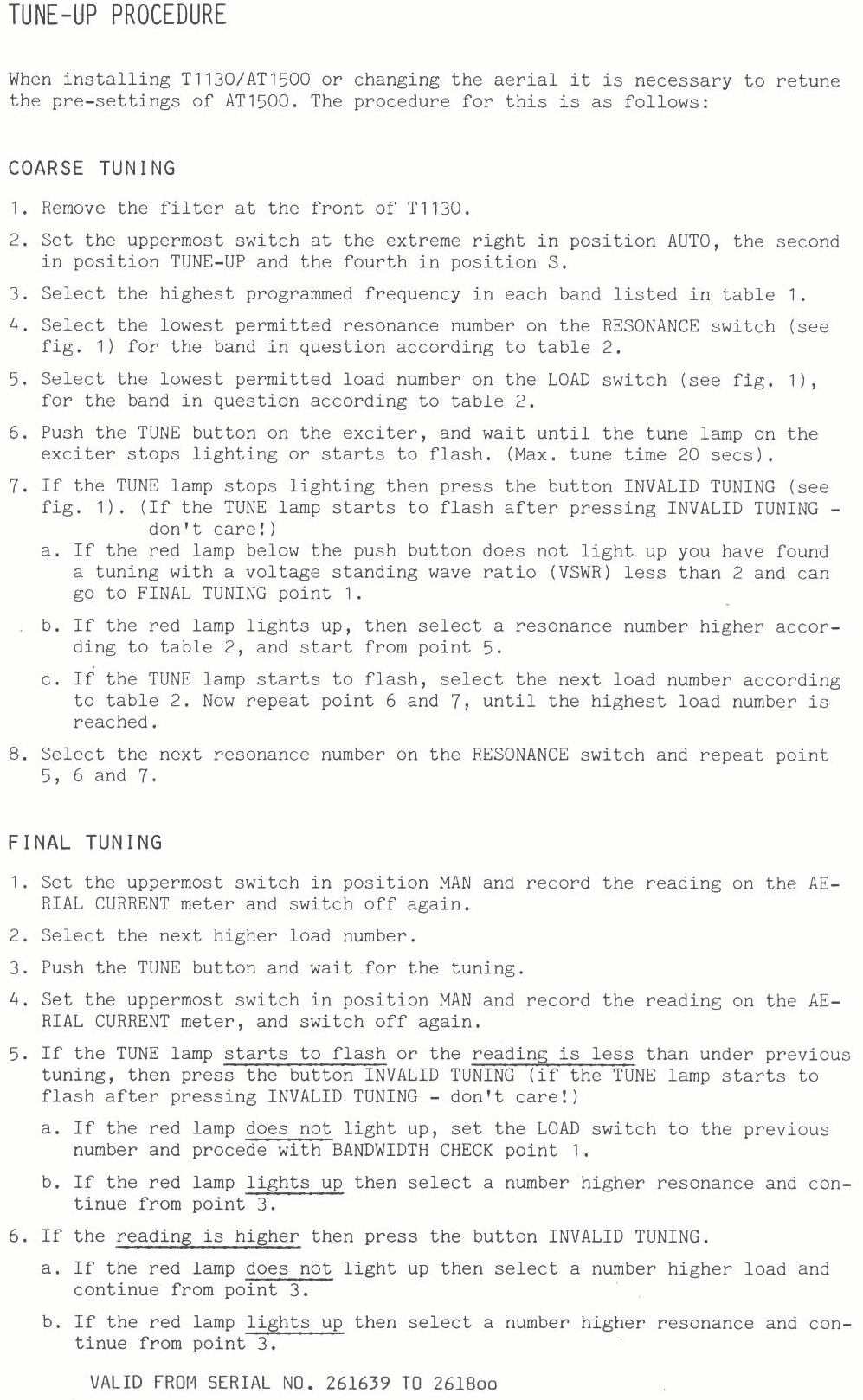

[IMG]Tuning-up_procedure_page-0.gif10-Jan-2009 18:00 229K

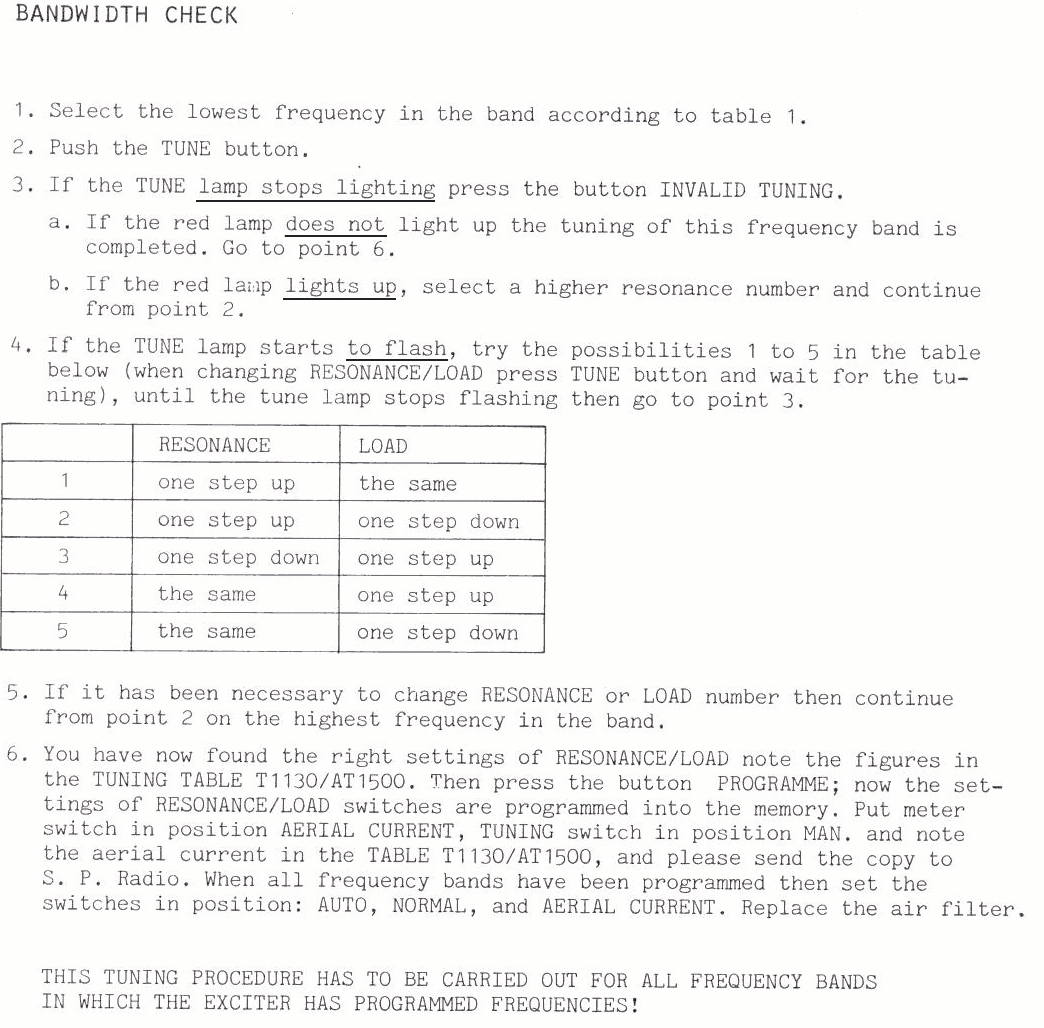

[IMG]Tuning-up_procedure_page-1.gif10-Jan-2009 18:00 140K
[IMG]Tuning-up_procedure_page-2.gif10-Jan-2009 18:00 220K
[IMG]Tuning-up_procedure_page-3.gif10-Jan-2009 18:00 206K

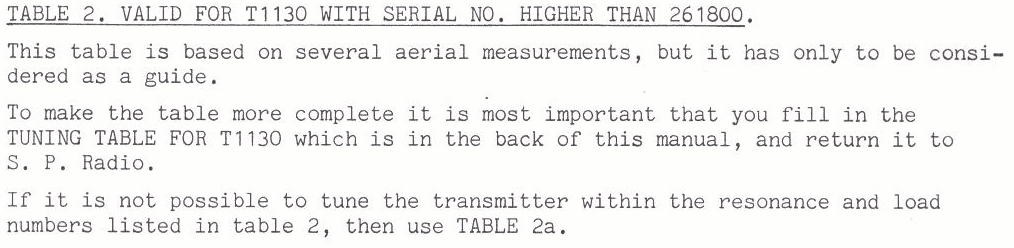

[IMG]Tuning-up_procedure_page-4.gif10-Jan-2009 18:00 39K
[IMG]Tuning-up_procedure_page-5.gif10-Jan-2009 18:00 355K
[IMG]Tuning-up_procedure_page-6.gif10-Jan-2009 18:00 154K
[ ]WS_FTP.LOG20-Dec-2014 12:03 33K
[ ]antenne impedantie1.xls10-Jan-2009 18:00 190K
[ ]antenne impedantie 2.xls10-Jan-2009 18:00 189K
[ ]general_description.doc10-Jan-2009 18:00 21K
