Optimized 6/9 element VHF Yagi Antenna

By Guy, de ON6MU

VHF Yagi antenna optimized beam for 2-meter band (144 Mc - 148 Mc)

Note: the antenna can also be tuned between 142...148MHz

Interesting antennas and stuff:

Pictures and details of the optimized VHF Yagi antenna

Greg SP5LGN, and how he made it:

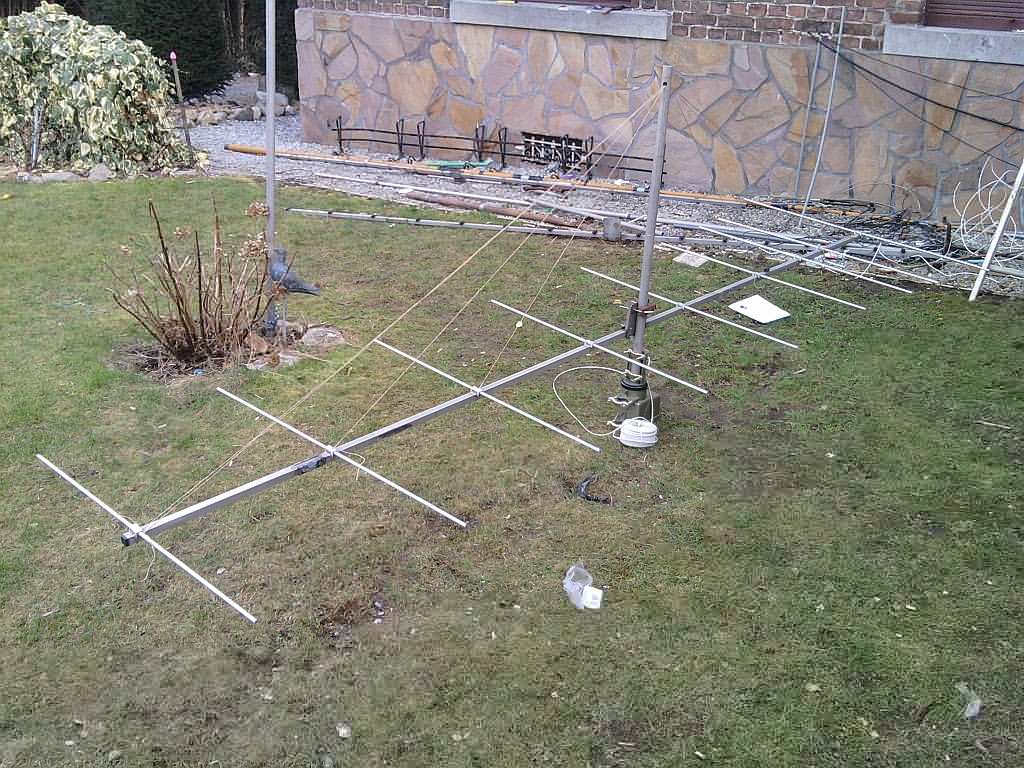

click to enlarge (VHF Yagi SP5LGN) how SP5LGN made the antenna gamma match VHF and UHF home made antenna's de ON6MU, by Greg SP5LGN VHF Yagi 9 element
click to enlarge the images

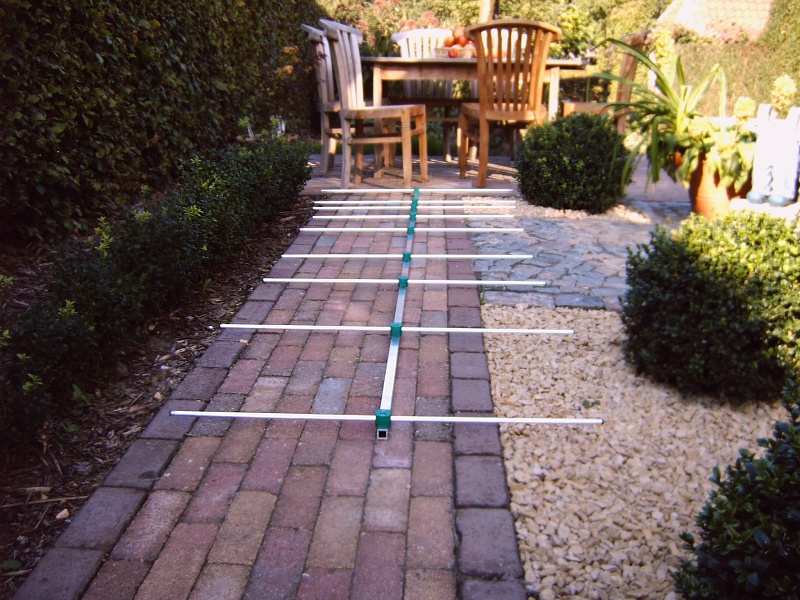

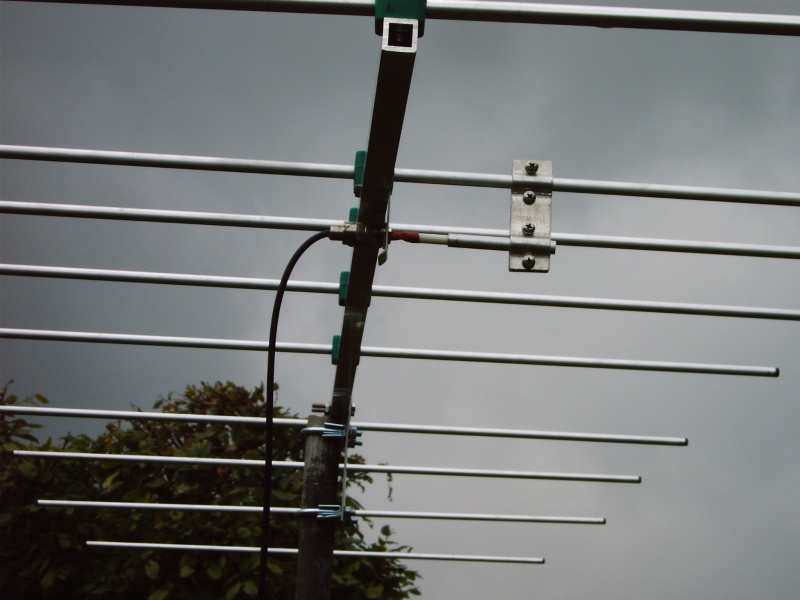

How Luc ON5DL made it:
How Luc ON5DL made the 9 element yagi the 9 element vhf yagi on ON5DL boom he made this antenna in two hours!
click to enlarge the images

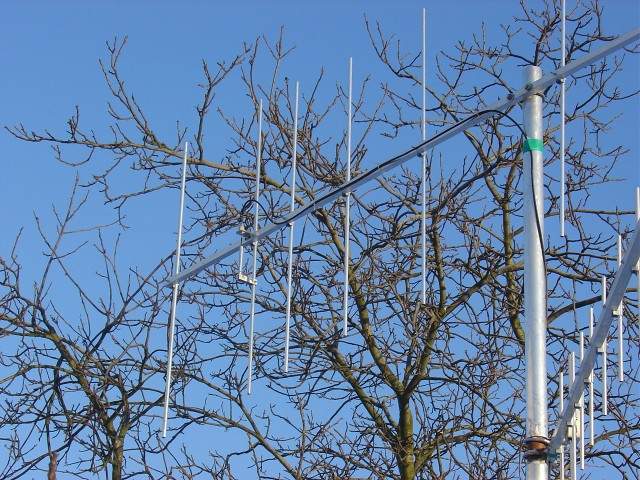

How Geert ON3GVG made it:

Thanks Geert!

Charles KC8VWM and how he made my optimized VHF Yagi Antenna RE-A144Y6/9:

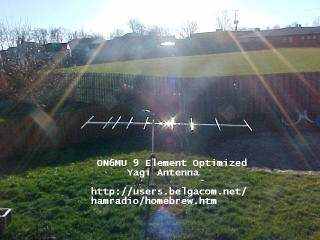

ON6MU 9el Yagi Antenna Design
VHF Yagi antenna optimized beam for 2-meter band (144 Mc - 148 Mc)

The computer optimized 9 el. homebrew antenna is performing very well. I have
made many long distance contacts using the ON6MU VHF Yagi antenna. I have the antenna
located only 35 feet above the ground. (See antenna photo titled KC8VWM to
see how high it is mounted on my house.)

The very first day I put up the ON6MU antenna, I contacted two stations in
Toronto Canada which is located 507 km. away from me. Other stations I
contacted were located in other states like Buffalo, New York, Pennsylvania,
Indiana,  Tennessee, Michigan, and West Virginia.

I was also picking up weak EME signals later that evening on 144.127 MHz.
using mode JT65B.

Back to front and measurements:

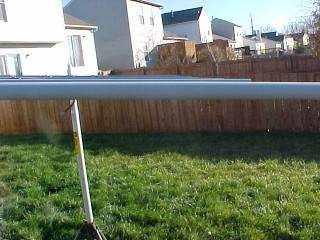

Checking Element Alignment
VHF hamradio VHF antenna

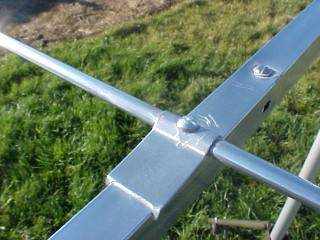

Element Mounting Method
VHF Yagi antenna optimized beam for transmitting on 2-meter band (144 Mc - 148 Mc)

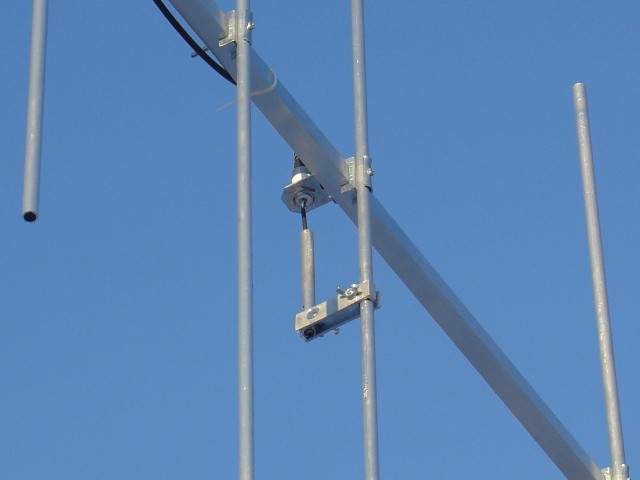

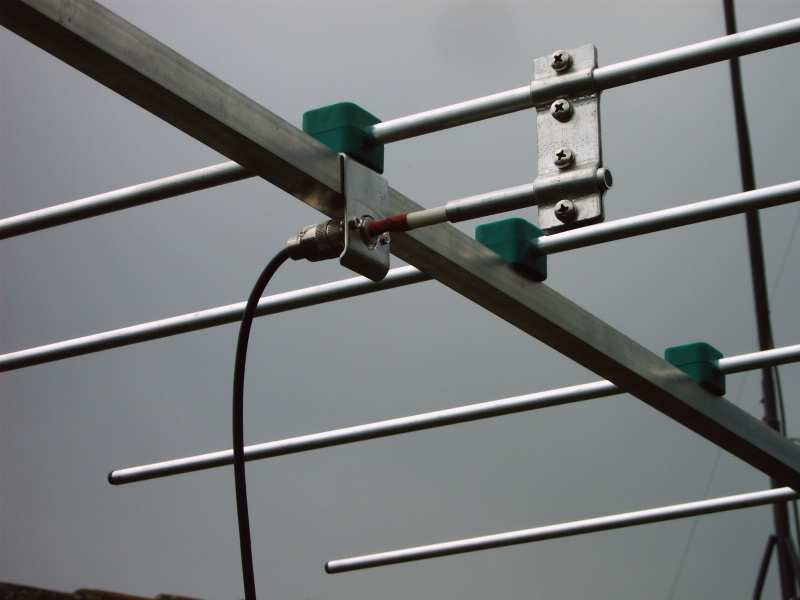

Gamma Match Closeup

Gamma match mounting

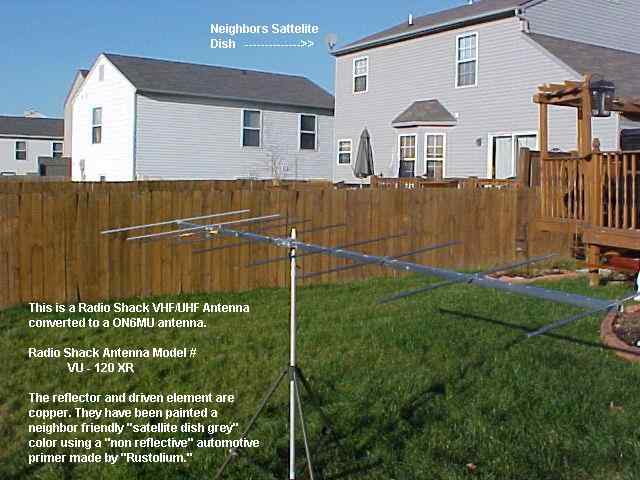

Converted from a radio shack VHF Yagi antenna:

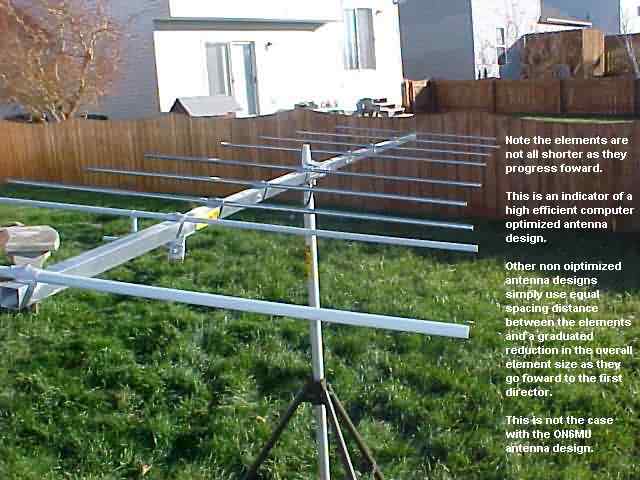

Right side view: notes on the element layout/design and why:

Left side view: tuned and ready to install

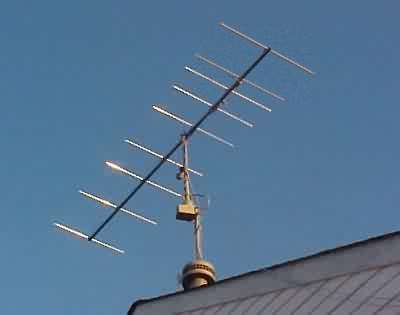

KC8VWM QTH: the ON6MU VHF optimized antenna mounted on top of the roof

 The original TV antenna model (Radio Shack VU 120 XR) I used for the entire
 construction of the ON6MU antenna design can be found here:



 Charles KC8VWM
Thank you for the feedback and photo's Charles!

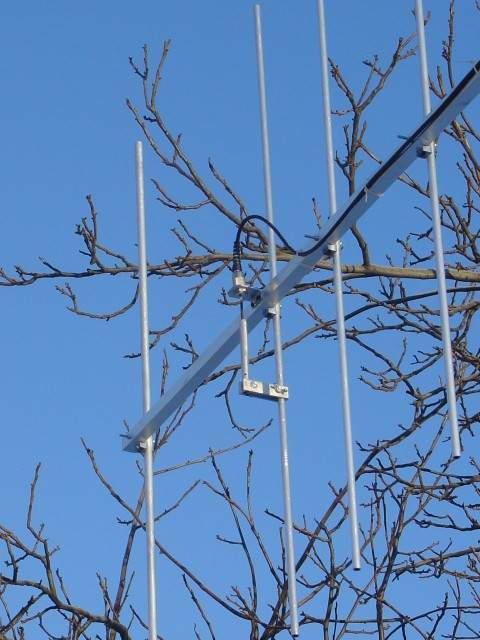

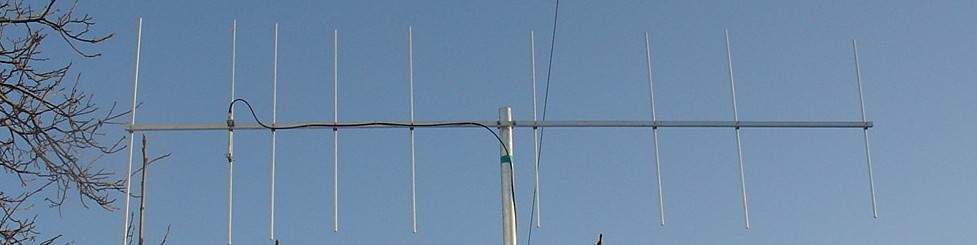

My Yagi 9-element version
made by ON2BJS

Thanks Bechir

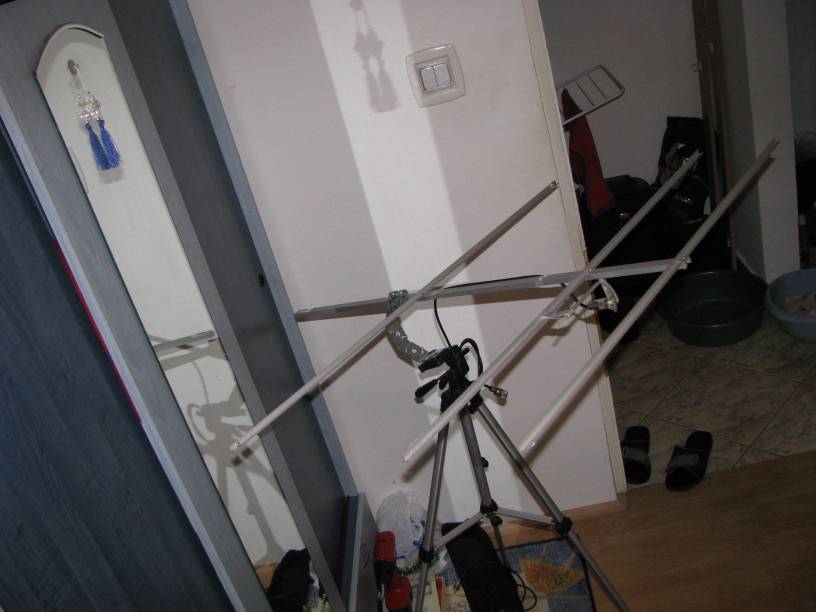

3-element VHF homemade (portable) yagi

Note: the antenna can also be tuned between 142...148MHz



click to enlarge click to enlarge
Pictures on how SWL Voiculescu Eduard made it.
click to enlarge
Thanks Eduard!

These are some examples of PA0CDR

click to enlarge
Thanks Gerlof
