| Homemade

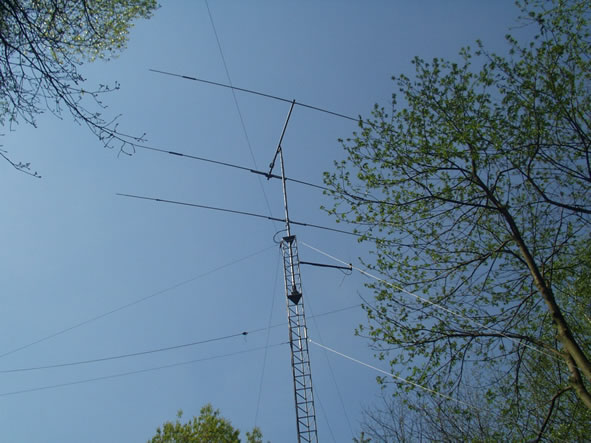

guyed tower (17m) Construction and installation ON4CJK |
 |
|
Fritzel FB23 for 14, 21 and 28 MHz Homemade dipole for 18 and 24 MHz rotor CDE Ham II Wire dipole for 7 MHz |
 |
|
Homemade groundplane with 4 elevated radials for 10 MHz
|
 |
|
Quarterwave wire vertical for 7 MHz + quarterwave inverted L for 3.5 MHz (at the same feedpoint) over 16 x 20 m long surface mounted radials |
|

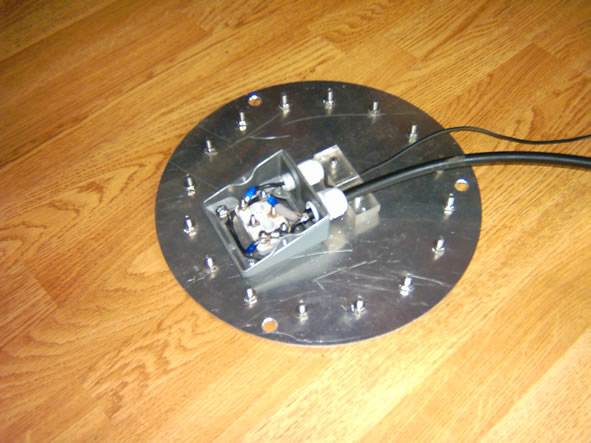

Bottom plate
|
 |
|
ON4CJK, who is a far better shooter than I am, aiming at the right branch of the "support" tree
|
 |
|
7 MHz vertical
|
 |
|
3.5 MHz inverted L going up the tree
|
 |
|

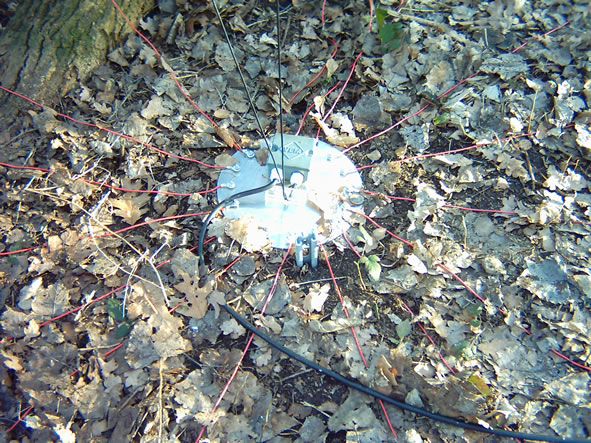

Bottom plate with elements and radials installed
|
 |
| INSIDE |
 |
| COME IN... |
|

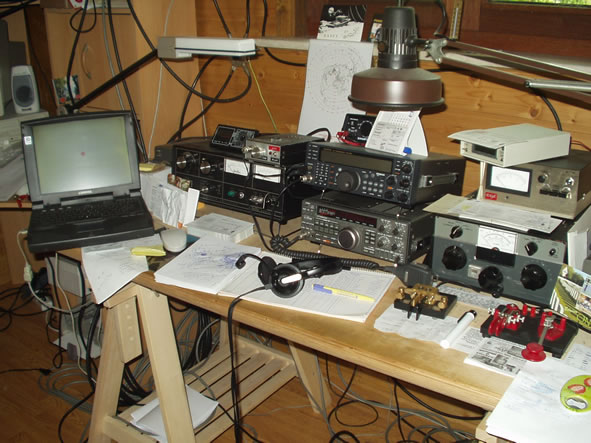

It's not always that messy, sometimes it's worse...
|
 |
|

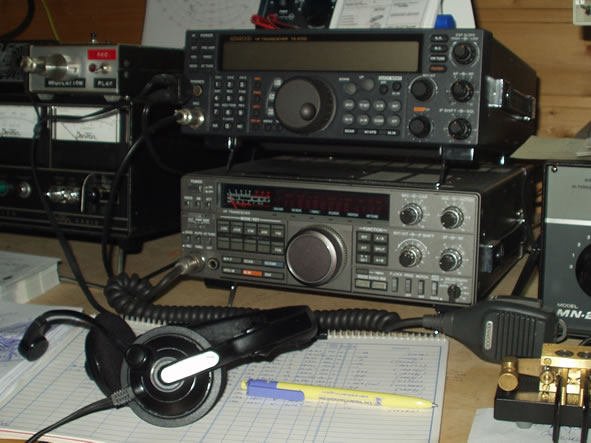

Kenwood TS 570 DG Kenwood TS 440 S |
 |
|
Drake MN 2000 antenna tuner with roller inductor
|
 |
|

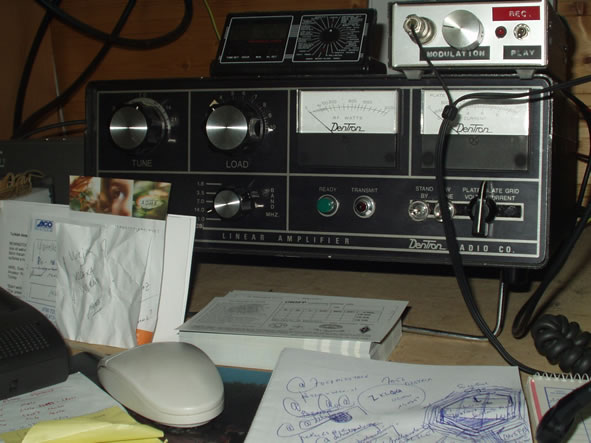

Dentron MLA 2500B amplifier
|
 |
|
Spare Heathkit SB220 amplifier
|
 |
|
Kenwood power supply PS50 Danmike DM085/D microphone/headset Kent paddle CDE rotor control box Various homemade equipment (voicekeyer, power supply, CW decoder…) |
