Output amplifier is built as two level - BRF91(90) + MAW11. On input there is combination R/C (470 Ohm + condenser) to adjust narrow frequency range. Condenser is set experimentally after mechanical completion of the device. 1 MHz and 80 MHz frequencies are used as measuring points. Schematics:

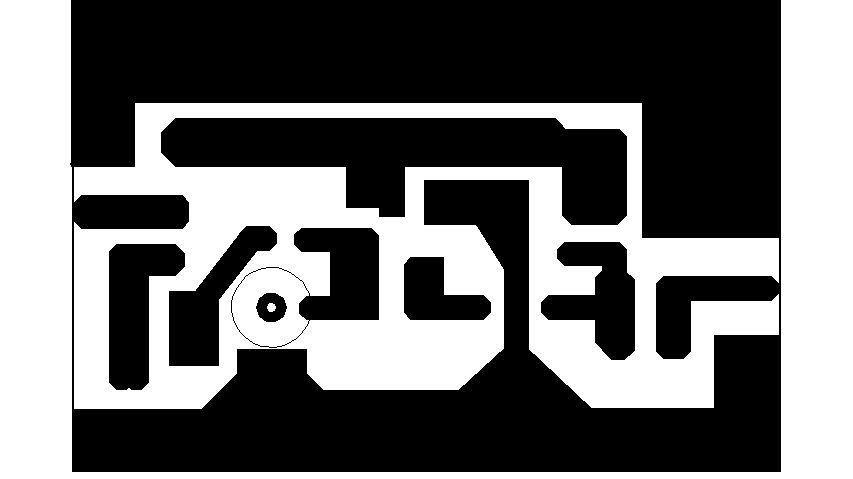

PCB is double sided with dimensions 30 x 45 mm:

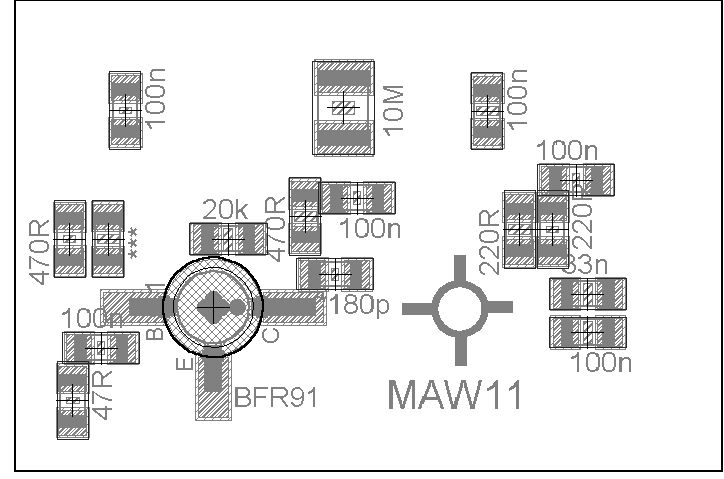

Components placement:

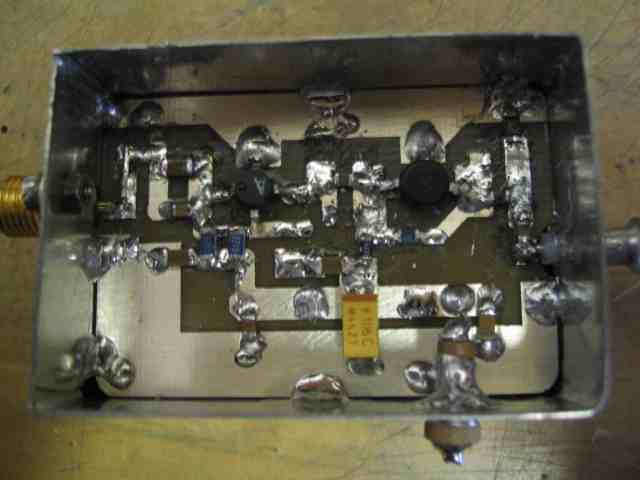

Photo from the time of tuning:
|
